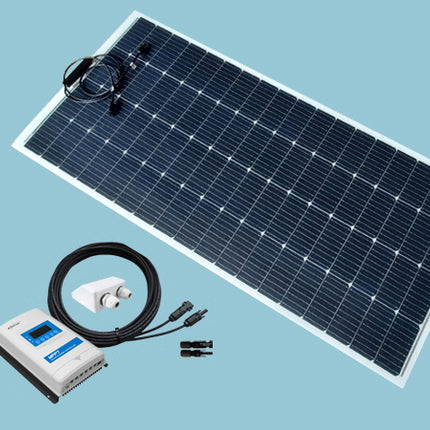

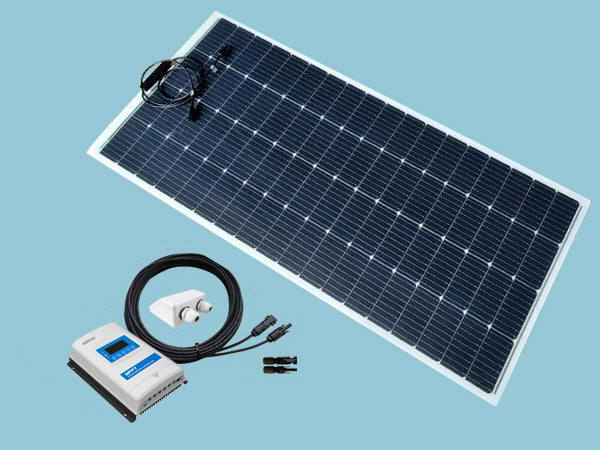

200W Sunshine Solar Flexible PERC Range Kit

This 200W high-efficiency solar panel with Mono-Perc technology embraces the latest, enhanced manufacturing process. It features a special encapsulant material designed to better resist solar cell micro-crack issues, which can occur when the panel is under stress during bending.

The solar panels can be flexed up to 30 degree, which makes it adaptable to all kinds of curved surfaces.

Light wight and only 2.5mm thick the Mono PERC range is suitable to be installed on rooftops with weight limit issues.

You can expect increased energy production and increased low-light and high-heat performance with the 200W Flexible Mono PERC Range. The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.

With a 200W Sunshine Solar Mono PERC Flexible Panel you could expect to generate around 66 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.

Solar Panel Specifications

• Maximum Power (Pmax): 200W
• Maximum Power Current (Ipm): 9.72A
• Maximum Power Voltage (Vpm): 20.58V
• Short Circuit Current (Isc): 10.53A
• Open Circuit Voltage (Voc): 24.35V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC1000V
• Size: 1595 x 720 x 2.5mm
• Weight: 3.9kg

Features

• Encapsulated scratch resistant surface which can be walked on in deck shoes.
• Highly efficient PERC monocrystalline cells
• Can be conveniently placed on slightly curved solid surfaces
• Can be easily bonded using Fixing Adhesive (no need for drilling)
• 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
• Three Year Manufacturers Warranty

Data Sheet
