The advantage of this system is that you can aim one camera down at the rear bumper and have it powered from the reversing lights, so that this lens would act as your reversing camera.
The other camera would be aimed straight outwards, or if you are towing a trailer, it can be aimed to keep an eye on the trailer and be powered from a switch on the dashboard of the vehicle.
This camera could be on whenever you wanted it on and could give you permanent rear vision when you are on the move.
Comes with white camera, 20 metres of cable with two video and one power lead.
SPECIFICATIONS:
Waterproof cameras with IR function for night vision
Ip rating: Ip66
Image sensors: 1/3" Sony Colour CCD
TV system: PAL
Effective Pixels: 512/582
Sensing area: 4.9mm x 3.7mm
Resolution (TV lines): 520
Min illumination (Lua/F1.2) 0
Horizontal Sync Frequency (KHZ) 1/50~1/10,000
Vertical Sync Frequency (HZ) 15.625
Video output: 1Vp-p, 75Ohm
BLC: Auto
S/N Ratio: Better than 48dB
Lens: F=2.2mm
Lens Angle: 150 Deg./90 Deg.
Current Consumption: 290 mA
Power supply: 12v DC
Operating Temperature: -20~+80 Deg C (RH95%Max)
Dimensions: 75mm X 43mm X 57mm
7" TFT-LCD colour monitor
Screen size: 7 inches (16:9)
Overall size: (W) 175mm, (H) 125mm, (D) 19mm
Resolution degree: 480(W) X RGB X 234(H)
System: PAL
Video: Two-way video input, V1/V2 switchable
Audio: One-way audio input
Rearview: AV2 is for rearview camera input
Choose your colour for camera housing....Black or White
The advantage of this system is that you can aim one camera down at the rear bumper and have it powered from the reversing lights, so that this lens would act as your reversing camera.
The other camera would be aimed straight outwards, or if you are towing a trailer, it can be aimed to keep an eye on the trailer and be powered from a switch on the dashboard of the vehicle.
This camera could be on whenever you wanted it on and could give you permanent rear vision when you are on the move.
Comes with white or black camera, 20 metres of cable with two video and one power lead.
SPECIFICATIONS:
Waterproof cameras with IR function for night vision
Ip rating: Ip66
Image sensors: 1/3" Sony Colour CCD
TV system: PAL
Effective Pixels: 512/582
Sensing area: 4.9mm x 3.7mm
Resolution (TV lines): 520
Min illumination (Lua/F1.2) 0
Horizontal Sync Frequency (KHZ) 1/50~1/10,000
Vertical Sync Frequency (HZ) 15.625
Video output: 1Vp-p, 75Ohm
BLC: Auto
S/N Ratio: Better than 48dB
Lens: F=2.2mm
Lens Angle: 150 Deg./90 Deg.
Current Consumption: 290 mA
Power supply: 12v DC
Operating Temperature: -20~+80 Deg C (RH95%Max)
Dimensions: 75mm X 43mm X 57mm
7" TFT-LCD colour mirror monitor
Screen size: 7 inches (16:9)
Overall size: (W) 250mm, (H) 108mm, (D) 22mm
Resolution degree: 800(W) X RGB X 480(H)
System: PAL
Video: Two-way video input, V1/V2 switchable
Rearview: AV2 is for rear view camera input
Power: 12v DC

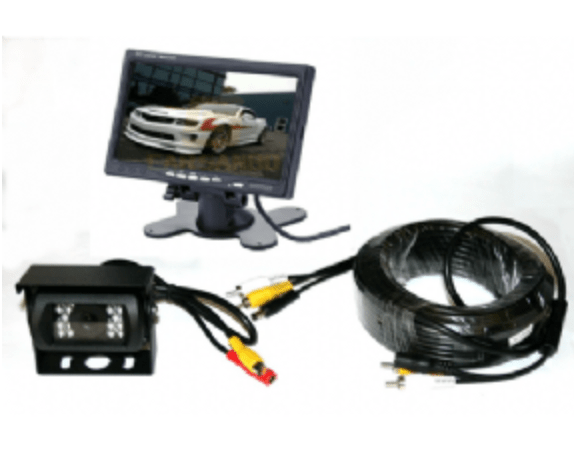

Comes with a 7" TFT Colour monitor that can be flush mounted or mounted on its own adjustable stand,
a heavy duty Rear View Colour Camera(White) with LED night vision, and 20 metres of video/power cable.
The colour monitor has 2 video inputs and comes with a remote control.
Screen size: 7 inches (16:9)
Overall size: (W) 175mm, (H) 125mm, (D) 19mm
System: PAL
Resolution: 480(W) X RGB X 234(H)
Power requirement: 12 v
Audio input: One audio input
The Camera is waterproof and is ideal for fitting high up on the rear of a motorhome or truck. It has 18 LEDs for good clear night vision.
TV system: PAL
Lens angle: 120 degrees
Resolution: 380TV/420TV Line
Image Sensor: 0V 1/3 inch colour CMOS
Effective Pixels: 512x582 pixels
Min illumination: 2.0 LUX (0 LUX/LEDS ON)
Power requirement: DC 9~15v, 150mA
