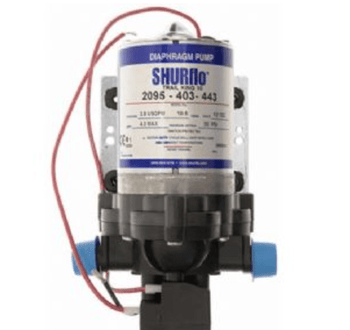

Shurflo Trail King 10 - 12v or 24v Pump
Built-in check valves prevent backflow into the tank. Info: Thermally protected for added safety and peace of mind.
Durable and reliable
Run dry capability
Thermal overload on motor
Flow 10.61/min, 30PSI, 12V or 24V
Durable and reliable high pressure pump - ideal for pressure systems in caravans, motorhomes and boats
Built-in check valves prevent backflow into the tank
Thermally protected for added safety and peace of mind
Thermal overload on motor. Run dry capability
30psi. 10.6 Ltr /Min
12V 70dB
24V 71DB
The Reich Immersion Pump Power Jet Power Jet is a compact immersion pump providing sufficient water pressure for caravans or motorhomes.
The Power Jet delivers a maximum flow rate of 25 litres per minute and a robust 2.1 bar of water pressure.
With a generous 1-meter cable, this pump is flexible enough to accommodate longer hoses or multiple users at various points of use.
As with other high-performance immersion pumps by Reich, the Power Jet comes equipped with automatic ventilation. This feature guarantees hassle-free operation and peace of mind.
Key Features
Sufficient water supply
1 meter cable
Max 25 l/min
Automatic ventilation
Brand
Reich
Type
Water Pump
Voltage Description
12V DC
Size
Cable length: 1000mm (1m)

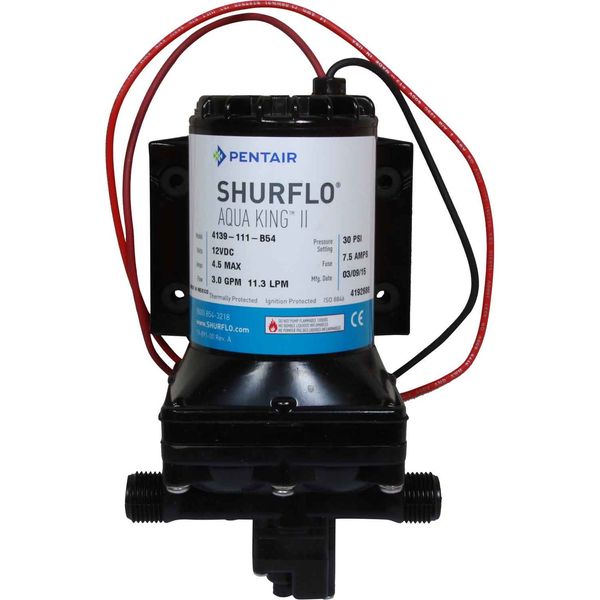

Fresh water diaphragm pump from Shurflo, with redesigned 4 chamber head, fully adjustable sealed pressure switch and heavy duty sealed motor. Built in check-valve, self primes (up to 6 feet), will run dry without damage. Ignition and thermal protection. Heavy duty design provides smoother flow due to 4 chamber head.
• 11.4lpm, 30psi
Maximum Recommended Head
1.8 Metres
Replaces
509506 Shurflo Aqua King Pump, 509404 Flojet R2100 Pressure Pump. Closest alternative for pressure pumps: 509663 - Shurflo 2852, 509682 - Shurflo 2858, 509506 - Floking 3000 pump & 509406 - Flojet R4305.
Self Primes up to
1.82 Metres (6 Feet)
Inlet Outlet
1/2"-14 NPSM Male (13mm)
Brand
SHURflo
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
4139-111
Height Description
104mm (4.1")
Width
124mm (4.9")
Length
208mm (8.2")
Material
Polypro Housings, EPDM Valves / Seals, Santoprene Draphragm, Stainless Steel Hardware
Fuse
7.5A Recommended
Flow Rate Description
11.35 LPM (3.0 GPM)
Approvals
Ignition Protection 8846, CE, IMCI Certified
Consumption
6.5 a
Series
Aqua King II Standard
Amps Description
Maximum: 6.5A
Connections Description
13mm (1/2") ID Hose or 15mm push fit
Cut Out Pressure Description
30 PSI / 2 Bar
Warranty
3 Years
Downloads
Shurflo AquaKing 2 4139 111 B54

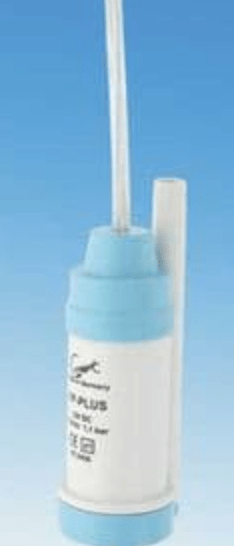

supply: 12 V = / 12 Volt DC
current: max. 3,8 A
Delivery rate: max. 20 l / min
delivery height: max. 11 m
pressure: 1,1 bar / 16 psi
power: 35 - 45 W
diam. / height: max. 48 / 123 mm
Reich submersible pump POWERJET, 22 litres/minute, with automatic vent and strainer. With UniQuick connection.
Pressure 1,8 bar
Diameter 55mm
Power consumption 70 Watt
Brand
Reich
Type
Water Pumps
Diameter Description
55mm
Consumption
Power: 70 Watt
Capacity Description
22 Litres/Minute
Working Pressure
1.8 bar
Submersible water pump, extremely well priced. 12V - 0.5Bar/ 14L per minute.
Brand
Reich
Type
Water Pump
Voltage Description
12V DC
Flow Rate Description
14 LPM
The Whale Universal water pressure pump provides smooth and constant water flow thanks to its seamless 4 diaphragm design, and can operate continuously without any damage from dry running.
This water pump has rotating feet to easily fit existing fresh water or saltwater pump systems. It runs quietly and efficiently, combining fantastic safety and reliability with high performance. A clear lid strainer allows for easy inspection and maintenance.
The pump materials are chosen for their suitability for freshwater contact. Only polypropylene, monprene, nitrile and stainless steel making contact with fluid.
The rest of the pump is made up of a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, the seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress.
The pump is recommended for supplying 1-2 outlets throughout the boat. These can include taps, showers and other domestic water outlets.
Accumulator Recommended
Yes
Maximum Recommended Head
Discharge Head: 30 Metres (98 Feet)
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum: 2.5mm² (13 AWG)
Inlet Outlet
Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose
Brand
Whale
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
UF0815
Height Description
125mm (4.9")
Width
230mm (9")
Length
220mm (8.7")
Material
Materials in Contact with Liquid: Glass-filled polypropylene, Monoprene, Nitrile, Stainless Steel
Fuse
5A
Flow Rate Description
8 LPM (2.2 US GPM)
Approvals
EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition)
Series
Universal
Supplied With
Strainer
Cut Out Pressure Description
45 PSI / 3 Bar
Warranty
2 Years
Country of Origin
United Kingdom

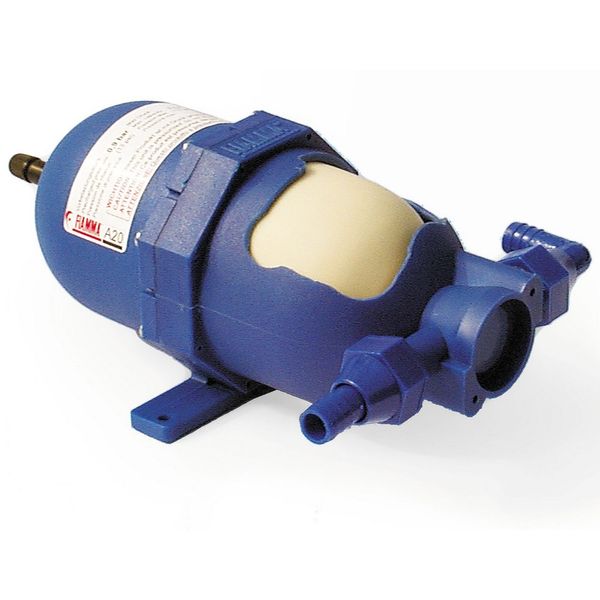

Eliminates the pulsating operation of pressure switch pumps and supplies a constant flow of water at an even pressure. It is suitable for all pressure switch pumps.
Brand
Fiamma
Type
Fresh Water Pumps

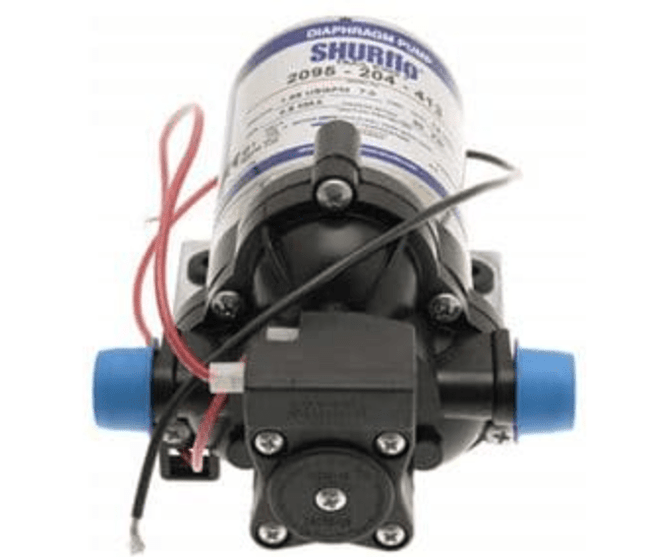

Shurflo Trail King 7 - 12v Pump. 20 OR 30PSI
Durable and reliable high pressure pump - ideal for pressure systems in caravans, motorhomes and boats
Built-in check valves prevent backflow into the tank
Thermally protected for added safety and peace of mind
Thermal overload on motor. Run dry capability
Flow: 7 Ltr / Min
20PSI: 57dB
30PSI: 61dB
Self Prime
The whale standard submersible pump is a simple, compact and economical solution. It has a long life and is very quiet with a low power consumption. An inexpensive way to update a manual to an electric system, it can be used with pressure and micro switch systems.
• Flow rate of 10 lpm
• Draw 2.4 amps
• 12V
Flow Rate 1 Metre Head
8.75 LPM (2.3 US GPM)
Flow Rate 3 Metre Head
5.75 LPM (1.5 US GPM)
Brand
Whale
Type
Fresh Water Pumps
Voltage Description
12V DC
Model
GP1002
Height Description
Overall: 108mm (4-1/4"), Pump: 88mm (3-7/16"), Hose Connector: 20mm (13/16")
Length
1m Cable
Material
Material In Contact with Liquid: ABS Pump Body, Nitrile Seals, Polypropylene Strainer, PBT Impeller, PVC Cable
Fuse
5A
Flow Rate Description
10.3 LPM
Approvals
ECD 2004/108/EC, CE mark, EN60335-1:2002, EN60335-2-41:2003, EN55014-1:2006 & A1:2009, EN55014-1:2006, EN55022:2006 & A1:2007
Diameter Description
36mm (1-7/16")
Amps Description
2.4A
Warranty
1 Year
Downloads
Data Sheet
