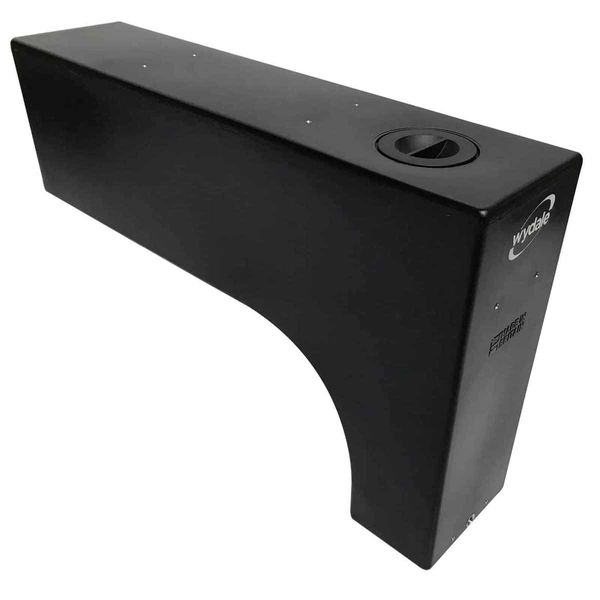

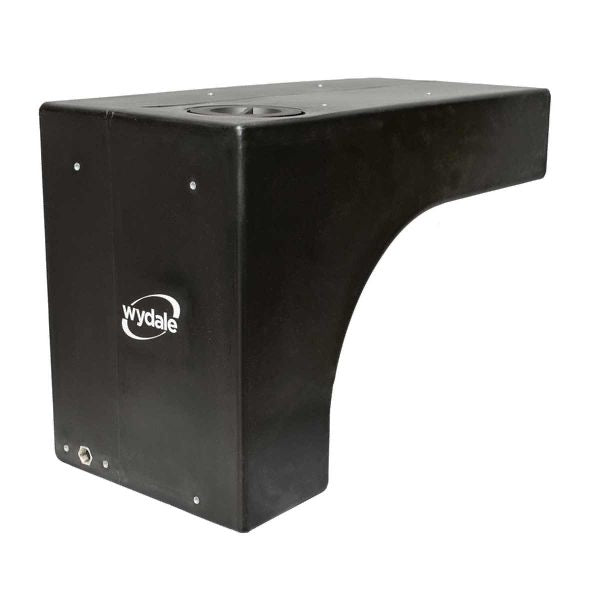

Water storage tank engineered specifically for vans and pickups.
Constructed from WRAS approved polyethylene, this 100-litre tank ensures the safe storage of potable water, meeting stringent quality standards for peace of mind.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T100WBK5
Height Description
680mm
Width
260mm
Depth
1100mm
Weight
11kg
Colour
Black
Outlet
1/2" BSP
Capacity Description
100 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T100WBK5

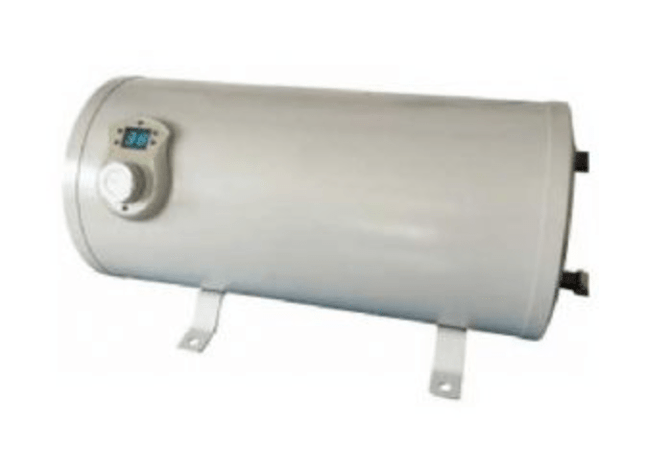

The inner tank is made of enameled steel plate – very tough, very strong, resistant to corrosion and water scale, giving a long life.
Ultra thick, Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs.
Clever design, novel and functional appearance makes it easy to mount in a bedbox, locker or under seat storage area.
Temperature meter and adjustment knob.
Multiple protection devices against, over temperature, over pressure and electricity-leakage.
Choice of pipe connections and comes fitted with 3 pin plug for fast and easy installation.
Technical Specifications
Rated Voltage:
220V
Rated Power:
800 W
Rated Frequency:
50HZ/ 60HZ
Rated Current:
4.1A
Rated Pressure:
0.8MPa (116psi)
Min Start-up Pressure:
0.05MPa (7psi)
Rated Water Temperature:
75°C
Fitted Socket:
250V, 16A
Heating Efficiency:
>90%
Model No: Rated Volume: Product Size (mm): NW (KG): GW (KG):
A1-6LH
6Litre
400x270x260mm
4.8
6.5
A1-10LH
10Litre
600x270x260mm
4.8
6.5
Mounting feet enable easy installation . Supplied water hose connector’s gives options of 12mm push fit female fitting or adapter to 12mm barbed hose connector.

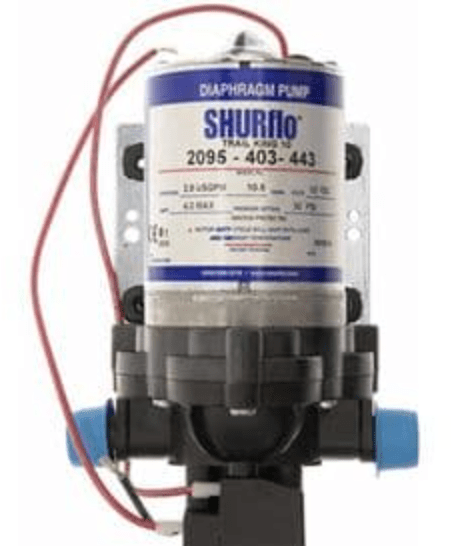

Shurflo Trail King 10 - 12v or 24v Pump
Built-in check valves prevent backflow into the tank. Info: Thermally protected for added safety and peace of mind.
Durable and reliable
Run dry capability
Thermal overload on motor
Flow 10.61/min, 30PSI, 12V or 24V
Durable and reliable high pressure pump - ideal for pressure systems in caravans, motorhomes and boats
Built-in check valves prevent backflow into the tank
Thermally protected for added safety and peace of mind
Thermal overload on motor. Run dry capability
30psi. 10.6 Ltr /Min
12V 70dB
24V 71DB

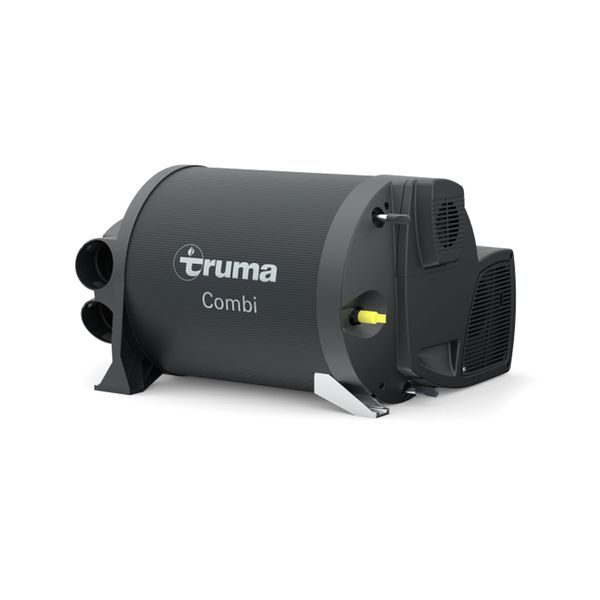

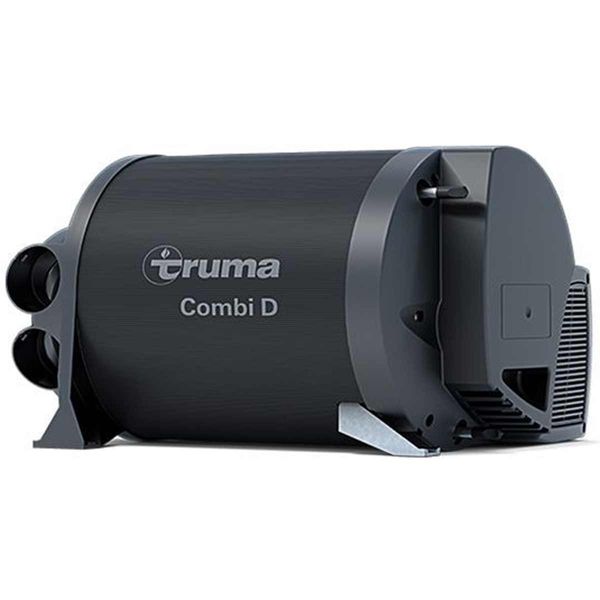

The Trauma 33513-26/MIR Gen1 Combi D 6 (E) diesel heater is a warm air heater with an integrated hot water system (10-litre volume).
In heating and hot water mode, the heater can be used to heat the vehicle and heat water up at the same time. If only hot water is required, the user can select the hot water mode.
Operating modes:
- Diesel mode only: for autonomous use
- Electric mode only: With 230V for stationary use
- Mixed mode (diesel and electrical mode): Only possible in heating and hot water mode
• Heating and Hot Water Mode
In heating and hot water mode, the unit automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature.
If the boiler has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output.
All three energy selection options can be used for winter deployment.
- Diesel mode: The unit automatically selects the operating level that is required.
- Electrical mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite.
If more output is required (e.g. heating up or low outside temperatures) diesel or mixed mode should be selected so that enough heating power is always available.
- Mixed mode: In this setting 230V electrical mode is preferred if the power requirement is low (e.g. for maintaining the room temperature). The diesel burner is not enabled until the power requirement is higher, and is the first to switch off when heating is in progress.
• Hot Water Mode (with filled boiler only)
Diesel mode or 230V electrical mode is used to generate hot water. The water temperature can be set to 40 °C or 60 °C.
- Diesel mode: In this setting the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off.
- Electric mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually selected in accordance with the fuse protection at the campsite.
- Mixed mode: This mode is not possible. With this setting the unit automatically selects electrical mode. The diesel burner is not enabled.
Please note: The heater requires DIN EN 590 diesel fuel for operation. Operation using bio-diesel (PME, RME or AME) is not permitted.
Product contents:
- Combi D 6 E (33516-78)
- Combi frost control JG assy (36100-52)
- Truma CP Plus Control Panel
- 6 Metre control cable (36110-52)
- Duct kit Combi D 1.0M BPK12 (34502-73)
- Wall Cowl Inner Part (36140-51)
- Cowl outer part black ZR80 (36151-59)
- 4 Metre cable for room sensor (34000-71900)
- Fuel line 5x1.5mm BPK 100M (34020-01315)
- Caravan Heater Pack FTG 820x1070 (358710)
- Caravan Heater Pack Top FTG 580x480x30 (358713)
- Caravan Heater Pack Outer 587x487x440 (358707)
- Energy sources: Diesel as per EN 590
- Rated heat output in gas mode: 2000 W / 4000 W / 6000 W
- Rated heat output in electric mode: 900 W / 1800 W
- Rated heat output in mixed mode: max. 5800 W
- Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W)
- Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h
- Water capacity: 10 litres
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
Key Features
Diesel heater with integrated heating elements
Truma CP plus control panel
Powerful fan and even distribution of warm air
Uses little energy
Lightweight and compact allowing for multiple mounting options
Brand
Truma
Type
Air & Water Heaters
Voltage Description
230V AC
Model
Combi D 6 E
Efficiency
Approx. 90%
Height Description
350mm
Width
500mm
Depth
540mm
Weight
18kg
Colour
Black
Flow Rate Description
Air flow: 287 m³/h Max.
Application
Motorhomes
Capacity Description
Water: 10 Litres
Heat Output
6000W
Energy Supply
Diesel as per EN 590
Country of Origin
Germany
Contents
Combi D 6 E, Combi frost control JG assembly, Truma CP Plus Control Panel, 6m control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4m cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440

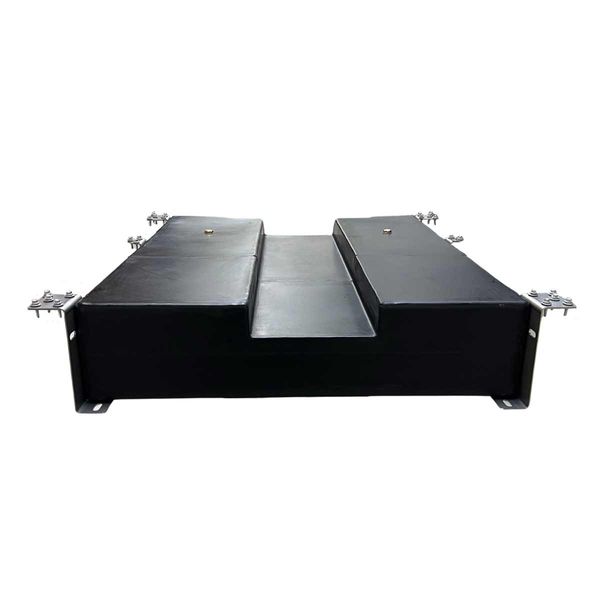

A 92-litre underslung water tank specifically designed for use with Fiat Ducato LWB vehicles (2006 onwards L3 and L4 models, including AdBlue models). The tank is also compatible with Peugeot Boxer and Citroen Relay vans of the same model years and sizes, including left-hand drive variants.
Outlets and vents:
1 x 1/2″ BSP Female outlet
1 x1 1/4″ BSP Female outlet.
1 x 5″ Internal Lid
2 x 1/2″ BSP pre-installed vents
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T92UBK5
Height Description
195mm
Width
760mm
Depth
890mm
Weight
12kg
Colour
Black
Capacity Description
92 Litres
Country of Origin
United Kingdom
The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving.
At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally.
The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options.
The Combi D 4 E is controlled and monitored with the digital Truma CP plus (iNet ready) control panel or via the iNet X System.
Product contents:32368
Combi D 4 E (33416-78)
Combi frost control JG assy (36100-52)
Truma iNet X Panel Bulk Pack (36411-51)
6 Metre control cable (36110-52)
Duct kit Combi D 1.0M BPK12 (34502-73)
Wall Cowl Inner Part (36140-51)
Cowl outer part black ZR80 (36151-59)
Cable 4 metre for room sensor (34000-71900)
Fuel line 5x1.5mm BPK 100M (34020-01315)
Caravan Heater Pack FTG 820x1070 (358710)
Caravan Heater Pack Top FTG 580x480x30 (358713)
Caravan Heater Pack Outer 587x487x440 (358707)
Can also be operated with an empty water tank
FrostControl drain valve is installed
Simple operation with the digital Truma CP plus (iNet ready) control panel or via iNet X System
Optimum warm air distribution via four air outlets
10-litre stainless steel water tank
Compact and space-saving, various installation options
Heats the vehicle and water very quickly
Uses little energy
Integrated pressure sensor automatically controls the combustion air infeed
Long service life thanks to efficient combustion control
Automatic climate control possible in combination with a Truma air conditioner
Key Features
Heat Hybrid: integrated electric heating elements for additional electrical power
2 in 1: heats your vehicle and heats water at the same time
For small and medium-sized vehicles
Brand
Truma
Type
12 & 230 Volt
Voltage Description
12 / 230V
Model
Combi D4 E
Height Description
300mm
Width
450mm
Length
510mm
Weight
16.8g
Flow Rate Description
Air: max. 287 m³/h
Operating Pressure
30 mbar
Consumption
Fuel: 0,1 – 0,4 l/h
Application
Caravans, Motorhomes
Capacity Description
10 Litres (2.6 US Gallons)
Heat Output
Diesel Mode: 1000 W/2000 W/3000 W/4000W
Electric Mode 900 W/1800 W
Mixed Mode: max. 3800 W
Contents
Combi D 4 E, Combi frost control JG assy, Truma iNet X Panel Bulk Pack, 6 Metre control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4 Metre cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440
Downloads
Declaration of Conformity UK April2018 Combi 4 4e
Operating Instructions Truma CP plus
Operating Instructions Truma Heating Combi e EN

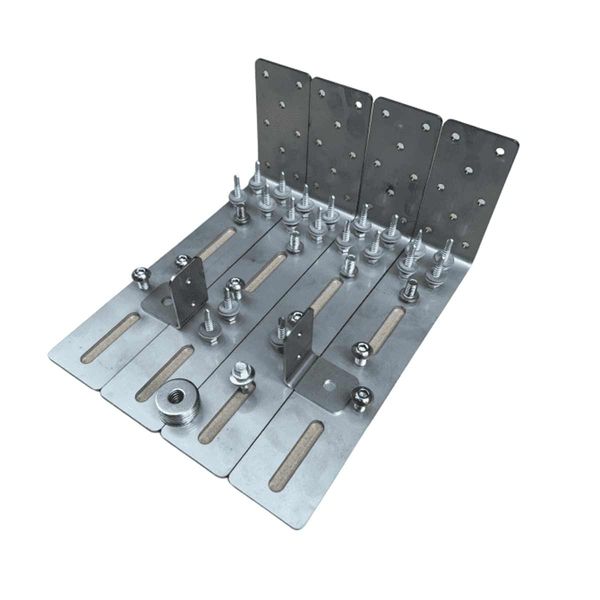

Installation kit for fitting the 100-litre Wheel Arch Water Tank
Kit contents:
4 x brackets 240 x 108 x 50 mm
2 x brackets 50 x 40 x 30 mm
10 x M8 x 12mm Stainless steel socket head screw
10 x M8 x 25mm Stainless steel washers
20 x 5.5 x 25 TEK screw
Brand
Wydale Plastics
Model
WAKF100
Country of Origin
United Kingdom

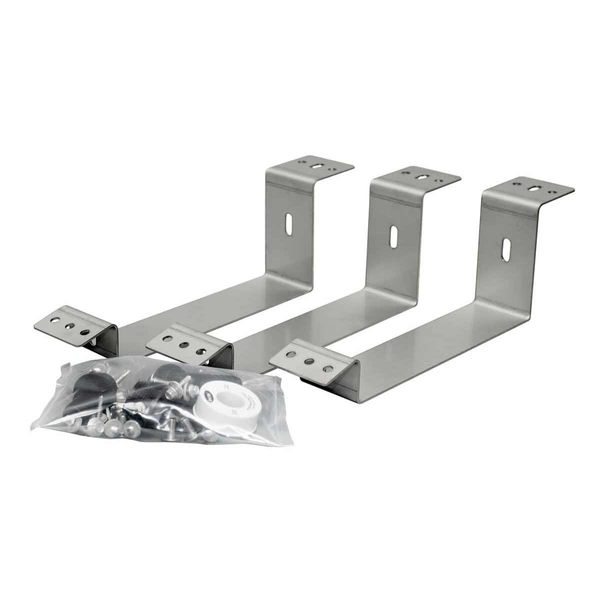

Complete fitting and plumbing kit for our 63-litre and 90-litre Underslung Water Tanks for VW Crafter and MAN TGE FWD vehicles.
Kit contents:
3 x Underslung Crafter FWD brackets
6 x M8 x 16mm socket head screws
15 x 5.5 x 25mm TEK screws
3/4" BSP x 20mm hosetail
3/4" x 20mm 90 degree hosetail
1" x 20mm 90 degree hosetail
1 Roll PTFE tape
Brand
Wydale Plastics
Model
USK90C
Height Description
90mm
Width
665mm
Depth
135mm
Weight
2.7kg
Country of Origin
United Kingdom
A specialised 68-litre water storage tank designed specifically for Volkswagen Transporters, from the T5 (2003) to the T6.1 (present), including 4motion models.
The tank fits conveniently in place of the spare wheel, maximising the use of space in the vehicle without compromising on storage capacity.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T68UBK5
Height Description
275mm
Width
670mm
Depth
650mm
Weight
7kg
Colour
Black
Outlet
1/2" BSP
Capacity Description
68 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T68UBK5

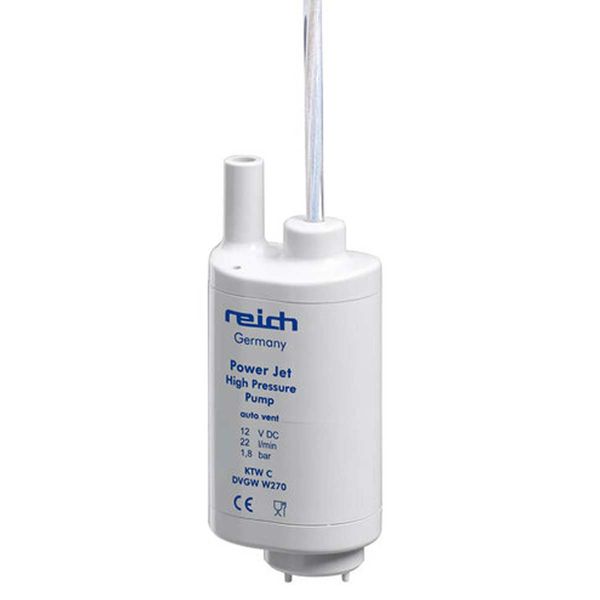

The Reich Immersion Pump Power Jet Power Jet is a compact immersion pump providing sufficient water pressure for caravans or motorhomes.
The Power Jet delivers a maximum flow rate of 25 litres per minute and a robust 2.1 bar of water pressure.
With a generous 1-meter cable, this pump is flexible enough to accommodate longer hoses or multiple users at various points of use.
As with other high-performance immersion pumps by Reich, the Power Jet comes equipped with automatic ventilation. This feature guarantees hassle-free operation and peace of mind.
Key Features
Sufficient water supply
1 meter cable
Max 25 l/min
Automatic ventilation
Brand
Reich
Type
Water Pump
Voltage Description
12V DC
Size
Cable length: 1000mm (1m)

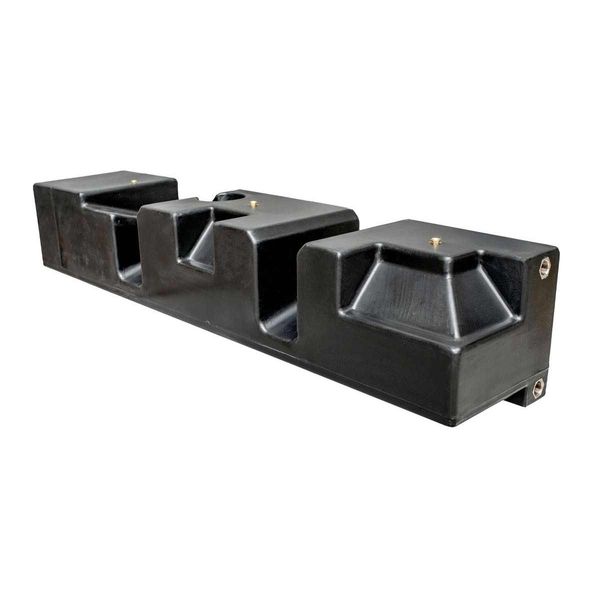

A 63-litre water tank designed for installation underneath Volkswagen Crafter and MAN TGE vehicles (suitable for MWB in FWD, RWD and 4WD variants - does not fit LHD vehicles).
The tank comes complete with brass M8 moulded threaded inserts for easy mounting when used with the complete bracket kit.
Brand
Wydale Plastics
Type
Medium Profile Water Tanks
Model
T63UBK5
Height Description
265mm
Width
1332mm
Depth
283mm
Weight
8kg
Colour
Black
Outlet
2 x 3/4" BSP
Capacity Description
63 Litres
Country of Origin
United Kingdom
Downloads
Dimensional Drawing T63UBK5

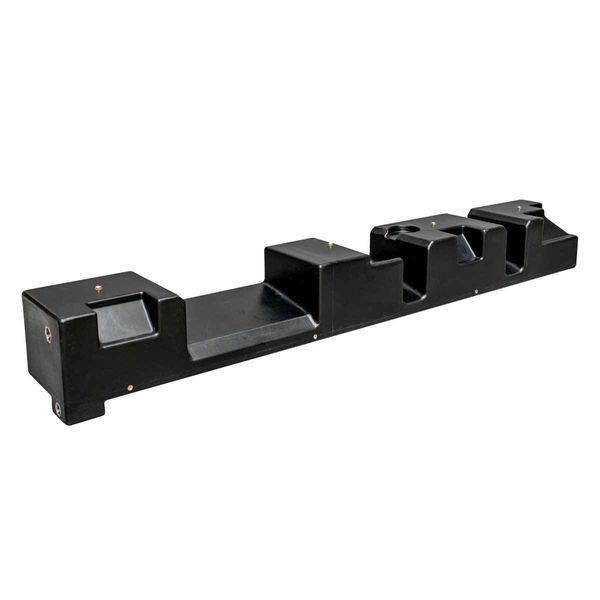

A 90-litre underslung tank specifically designed for VW Crafter and MAN TGE vans (2017 onwards).
This tank is compatible with Long Wheel Base (LWB) and Extra Long Wheel Base (XLWB) vehicle models and fits seamlessly with Front Wheel Drive (FWD), Rear Wheel Drive (RWD), and 4 Wheel Drive (4WD) variants.
Brand
Wydale Plastics
Type
Low Profile Water Tanks
Model
T90UBK5
Height Description
266mm
Width
2012mm
Depth
283mm
Weight
12kg
Colour
Black
Outlet
1" BSP, 2 x 3/4" BSP
Capacity Description
90 Litres
Country of Origin
United Kingdom
DownloadsDimensional Drawing T90UBK5
