The Trauma 33513-26/MIR Gen1 Combi D 6 (E) diesel heater is a warm air heater with an integrated hot water system (10-litre volume). In heating and hot water mode, the heater can be used to heat the vehicle and heat water up at the same time. If only hot water is required, the user can select the hot water mode. Operating modes: - Diesel mode only: for autonomous use - Electric mode only: With 230V for stationary use - Mixed mode (diesel and electrical mode): Only possible in heating and hot water mode • Heating and Hot Water Mode In heating and hot water mode, the unit automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature. If the boiler has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output. All three energy selection options can be used for winter deployment. - Diesel mode: The unit automatically selects the operating level that is required. - Electrical mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite. If more output is required (e.g. heating up or low outside temperatures) diesel or mixed mode should be selected so that enough heating power is always available. - Mixed mode: In this setting 230V electrical mode is preferred if the power requirement is low (e.g. for maintaining the room temperature). The diesel burner is not enabled until the power requirement is higher, and is the first to switch off when heating is in progress. • Hot Water Mode (with filled boiler only) Diesel mode or 230V electrical mode is used to generate hot water. The water temperature can be set to 40 °C or 60 °C. - Diesel mode: In this setting the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off. - Electric mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually selected in accordance with the fuse protection at the campsite. - Mixed mode: This mode is not possible. With this setting the unit automatically selects electrical mode. The diesel burner is not enabled. Please note: The heater requires DIN EN 590 diesel fuel for operation. Operation using bio-diesel (PME, RME or AME) is not permitted. Product contents: - Combi D 6 E (33516-78) - Combi frost control JG assy (36100-52) - Truma CP Plus Control Panel - 6 Metre control cable (36110-52) - Duct kit Combi D 1.0M BPK12 (34502-73) - Wall Cowl Inner Part (36140-51) - Cowl outer part black ZR80 (36151-59) - 4 Metre cable for room sensor (34000-71900) - Fuel line 5x1.5mm BPK 100M (34020-01315) - Caravan Heater Pack FTG 820x1070 (358710) - Caravan Heater Pack Top FTG 580x480x30 (358713) - Caravan Heater Pack Outer 587x487x440 (358707) - Energy sources: Diesel as per EN 590 - Rated heat output in gas mode: 2000 W / 4000 W / 6000 W - Rated heat output in electric mode: 900 W / 1800 W - Rated heat output in mixed mode: max. 5800 W - Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W) - Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h - Water capacity: 10 litres - Pump pressure: max. 2.8 bar - System pressure: max. 4.5 bar Key Features Diesel heater with integrated heating elements Truma CP plus control panel Powerful fan and even distribution of warm air Uses little energy Lightweight and compact allowing for multiple mounting options Brand Truma Type Air & Water Heaters Voltage Description 230V AC Model Combi D 6 E Efficiency Approx. 90% Height Description 350mm Width 500mm Depth 540mm Weight 18kg Colour Black Flow Rate Description Air flow: 287 m³/h Max. Application Motorhomes Capacity Description Water: 10 Litres Heat Output 6000W Energy Supply Diesel as per EN 590 Country of Origin Germany Contents Combi D 6 E, Combi frost control JG assembly, Truma CP Plus Control Panel, 6m control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4m cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440

Read more less

The Combi D 6 (E) diesel heater from Truma is a warm air heater with an integrated hot water system (10-litre volume). In heating and hot water mode, the heater can be used to heat the vehicle and heat water up at the same time. If only hot water is required, the user can select the hot water mode. Operating modes: Diesel mode only: for autonomous use Electric mode only: With 230V for stationary use Mixed mode (diesel and electrical mode): Only possible in heating and hot water mode • Heating and Hot Water Mode In heating and hot water mode, the unit automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature. If the boiler has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output. All three energy selection options can be used for winter deployment. Diesel mode: The unit automatically selects the operating level that is required. Electrical mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite. If more output is required (e.g. heating up or low outside temperatures) diesel or mixed mode should be selected so that enough heating power is always available. Mixed mode: In this setting 230V electrical mode is preferred if the power requirement is low (e.g. for maintaining the room temperature). The diesel burner is not enabled until the power requirement is higher, and is the first to switch off when heating is in progress. • Hot Water Mode (with filled boiler only) Diesel mode or 230V electrical mode is used to generate hot water. The water temperature can be set to 40 °C or 60 °C. Diesel mode: In this setting the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off. Electric mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually selected in accordance with the fuse protection at the campsite. Mixed mode: This mode is not possible. With this setting the unit automatically selects electrical mode. The diesel burner is not enabled. Please note: The heater requires DIN EN 590 diesel fuel for operation. Operation using bio-diesel (PME, RME or AME) is not permitted Product contents: Combi D 6 E (33516-78) Combi frost control JG assy (36100-52) Truma iNet X Panel Bulk Pack (36411-51) 6 Metre control cable (36110-52) Duct kit Combi D 1.0M BPK12 (34502-73) Wall Cowl Inner Part (36140-51) Cowl outer part black ZR80 (36151-59) 4 Metre cable for room sensor (34000-71900) Fuel line 5x1.5mm BPK 100M (34020-01315) Caravan Heater Pack FTG 820x1070 (358710) Caravan Heater Pack Top FTG 580x480x30 (358713) Caravan Heater Pack Outer 587x487x440 (358707) Energy sources: Diesel as per EN 590 Rated heat output in gas mode: 2000 W / 4000 W / 6000 W Rated heat output in electric mode: 900 W / 1800 W Rated heat output in mixed mode: max. 5800 W Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W) Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h Water capacity: 10 litres Pump pressure: max. 2.8 bar System pressure: max. 4.5 bar Key Features Diesel heater with integrated heating elements Digital Truma CP plus iNet ready control panel allows user to easily set required temperature Powerful fan and even distribution of warm air Uses little energy Lightweight and compact allowing for multiple mounting options Brand Truma Type Air & Water Heaters Voltage Description 230V AC Model Combi D 6 E Efficiency Approx. 90% Height Description 350mm Width 500mm Depth 540mm Weight 18kg Colour Black Flow Rate Description Air flow: 287 m³/h Max. Application Motorhomes Capacity Description Water: 10 Litres Heat Output 6000W Energy Supply Diesel as per EN 590 Country of Origin Germany Contents Combi D 6 E, Combi frost control JG assy, Truma iNet X Panel Bulk Pack, 6 Metre control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4 Metre cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440 Downloads Operating Manual Combi D 6 (E) Heaters Operating Manual Truma CP Plus iNet Ready Panel

Read more less

Eberspacher AS2 D2L Airtronic 12V heater kit to suit VW T5/T6. Kit contents: • Heater • Mount bracket for external installation • Easy Start Pro Controller • Wiring loom • Fuel pipe with tank pick up • 1-metre exhaust • Ducting and associated fittings included • 1 x hot air outlet Heater specs: • Voltage: 12 Volt • Heat output: 850 to 2,200 Watt • Air flow volume: 105 m3/h • Electrical power consumption: 6 (min.) to 31 (max.) Watt • Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h • Dimensions: L x W x H mm 310 x 115 x 122 • Weight: 2.7 kg Brand Eberspacher Type Blown Air Heaters Voltage Description 12V DC Height Description 122mm (4.8") Width 115 mm Length 310 mm Weight 2.7 kg Application Volkswagen T5 & T6 Heat Output 850 to 2,200 W Downloads Eberspacher Motorhome Heaters

Read more less

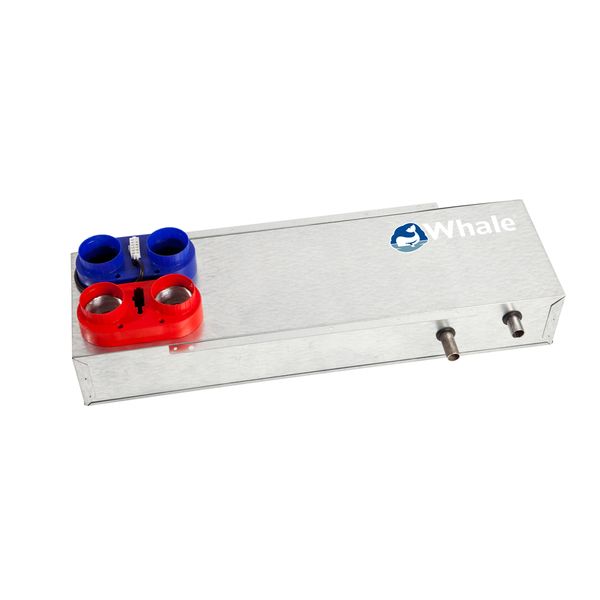

The Whale® 4.3s (4.3kW) space heater is a compact underfloor gas and electric blown air space heater designed for caravan and motorhome applications (it is not suitable for static caravans). The heater features a boost setting which varies the heat output depending on the temperature of the vehicle. It continually checks the temperature to establish the best settings to use. Nominal heat input is 2.9kW on gas and 2.6kW on mains electric. This model can use 2.9kW gas and up to 1.3kW electric simultaneously to provide the best available output. The Whale® 4.3s space heater is designed to be operated by either the Whale Space Heater Control Panel, the Whale Duo Control Panel or by the Whale iVan® Touchscreen Control Panel. The heater is designed to be installed with a ducted hot air system, and must not be used in conjunction with any other system. Please note, this Whale® 4.3s heater DOES NOT have a reset button. All Whale gas products must be installed by a Qualified Gas Engineer in accordance with the installation instructions and BS EN 1949-2011. All work must be carried out by a competent person as defined by BS7671 PART2. Key Features Boost setting to vary heat output depending on vehicle temperature Nominal heat input of 2.9kW on gas Nominal heat input of 2.6kW on mains electric Can use 2.9kW gas and up to 1.3kW electric simultaneously Can be operated by Whale Space Heater Control Panel, Duo Control Panel or Whale iVan® Touchscreen Control Panel Replaces W-SH4412IB Brand Whale Type Blown Air Heaters Voltage Description 12V DC Height Description 185mm Width 313.5mm Depth 820m Weight 10.9kg Colour Silver Wattage 650 / 1300 / 2600W Diameter Description Hot air duct: 60mm ID / Flue: 22mm ID Fuel Butane/Propane 28-30mbar - CAT I3B/P (30) Amps Description 11.5 Amps (Max.) Input Nominal Heat on Gas: 2.9kW / Electric: 2.6kW Gas Consumption 220g/hr Country of Origin United Kingdom Downloads Installation and Operation Manual Gas and Electric 4.3S 4.3kW

Read more less

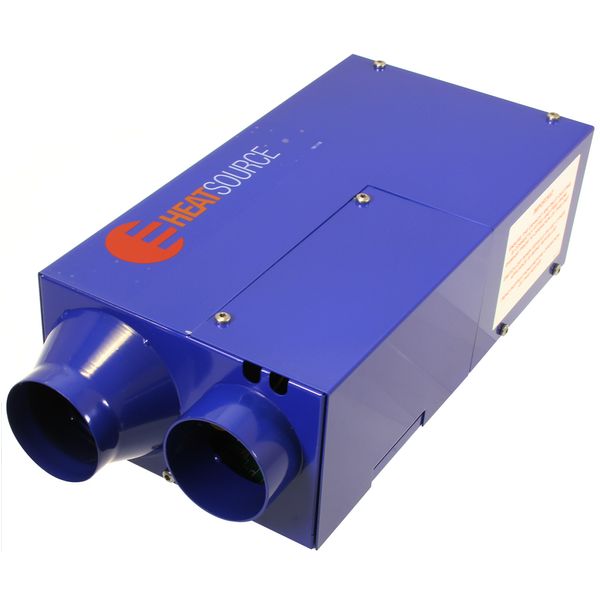

The HS2000 is a 12V automatic thermostatically controlled blown air heating system that has an output of 1.9KW, and is fuelled by butane or propane gas. Heatsource is designed for a variety of automotive applications as a source of heat totally independent from the engine. Typically used in caravans, motorhomes and boats. The HS2000 has a single outlet and is standard delivered with a thermostatic control box, 1M of ducting, 0.75M Flexible stainless steel exhaust and combination air inlet pipe, outlet & grills, brackets, cables and fasteners. Stainless steel burner and heat exchanger with clean combustion gives maintenance free durability. Features: • Runs on clean burning butane and propane gas • Reduces condensation • Quiet thermostatic operation • High quality motor with ball race bearings • Digital timer thermostat available • Advanced micro-processor electronics • Self diagnostic fault finding system • Fully CE compliant and tested to the latest European standards • Low electrical current consumption standards • Compact and easy to install • Fast warm up time • Dimensions: (mm) 320(L) x 172(W) x 100(H) Key Features Runs on clean burning butane and propane gas Reduces condensation Quiet thermostatic operation High quality motor with ball race bearings Digital timer thermostat available Advanced microprocessor electronics Self diagnostic fault finding system Fully CE compliant and tested to the latest European standards Low electrical current consumption standards Compact and easy to install Fast warm up time Brand Propex Type Blown Air Heaters Voltage Description 12V DC Height Description 100mm (3.9") Width 172mm Length 320mm Output 1.9 KW

Read more less

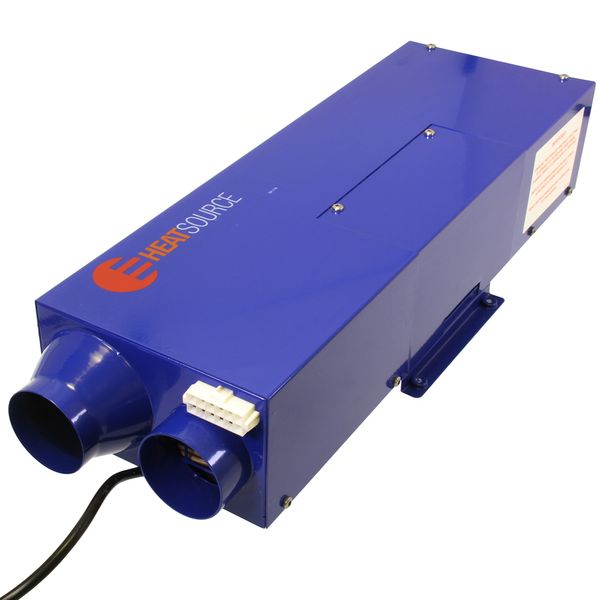

The HS2000E is an automatic thermostatically controlled blown air heating system fuelled by propane/butane or 240V mains electricity. It has an output of 1.9KW. Heatsource is designed for a variety of automotive applications as a source of heat totally independent from the engine. Typically used in caravans, motorhomes, and boats. The HS2000E has a single outlet and is standard delivered with a thermostatic control box, 1M of ducting, 0.75M flexible stainless steel exhaust, and combination air inlet pipe, outlet and inlet grills, brackets and fasteners. Stainless steel burner and heat exchanger with clean combustion gives maintenance-free durability. Features: • Runs on clean burning butane/propane gas or mains electric • High-quality motor with ball race bearing • Quiet thermostatic operation • Advanced micro-processor electronics • Digital timer available • Self-diagnostic fault finding system • Fully CE compliant and tested to the latest European standards • Compact and easy to install • Fast warm up time • Dimensions: (mm) 552(L) x 172(W) x 100(H) Key Features Runs on clean burning butane / propane gas or mains electric High quality motor with ball race bearing Quiet thermostatic operation Advanced microprocessor electronics Digital timer available Self diagnostic fault finding system Fully CE compliant and tested to the latest European standards Compact and easy to install Fast warm up time Brand Propex Type Blown Air Heaters Voltage Description 240V AC or LPG Height Description 172mm (6.8") Width 100mm Length 320mm Output 1.9 KW

Read more less

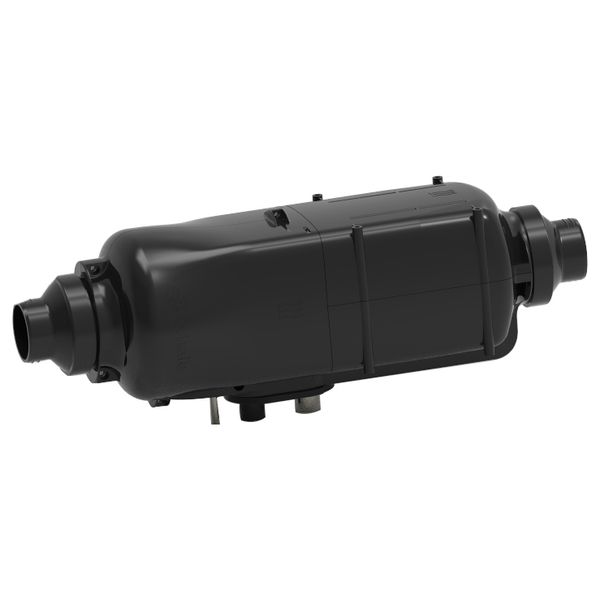

The Whale Heat Air 3GT 3KW Space Heater is a powerful and lightweight gas heater designed for campervans. The heater is installed under the floor, so valuable onboard space is not lost. Product contents: • 1 x Gas heater • 1 x Control panel • 1 x LIN cable and connector • 1 x Combustion air intake flue • 1 x Combustion air intake silencer • 1 x Combustion air intake clamp • 1 x Exhaust gas flue • 1 x Exhaust gas flue clamp • 2 x Exhaust gas flue brackets 60mm, 80mm • 1 x Exhaust gas flue end terminal bracket 100mm • 1 x Literature pack (install/operating instructions, warranty cards, service leaflet, questionnaire) • 2 x Ducting reducer 90-65 Key Features Easy-to-use, intuitive control panel Specifically designed for use in campervans Compact, lightweight and space saving with narrow rotatable design Installed underfloor, maximising valuable living and storage space Customisable installation, creating a blank canvas for vehicle designers CI-BUS control compatibility Fast heat up and fully automatic output modulation for enhanced user comfort Quiet night-time operation Even and well maintained heat distribution Brand Whale Type Blown Air Heaters Voltage Description 10.1V - 15.9V DC Model 3GT Height Description 175mm Width 165 mm Length 469 mm Weight 5.9 kg Fuel Butane/Propane 30mbar Heat Output 3KW Gas Consumption 109, 239 g/h Maximum Air Flow @ 0.5mbar: 220 m3/h Downloads Heat Air 3GT datasheet 32054

Read more less

The Whale Heat Air 4G 4KW Space Heater is a powerful and lightweight gas heater designed for caravans, motorhomes and campervans. The heater is installed underfloor, so valuable onboard space is not lost. Product contents: • 1 x Gas heater • 1 x Control panel • 1 x LIN cable and connector • 1 x Combustion air intake flue • 1 x Combustion air intake silencer • 1 x Combustion air intake clamp • 1 x Combustion air intake bracket 60mm • 1 x Exhaust gas flue • 1 x Exhaust gas flue clamp • 3 x Exhaust gas flue brackets 40mm, 60mm, 80mm • 1 x Exhaust gas flue end terminal bracket 100mm • 1 x Heater Z - mounting bracket • 1 x Heater isolation mounts • 1 x Heater bracket screw kit • 1 x Literature pack (install/operating instructions, warranty cards, service leaflet, questionnaire) Key Features Easy-to-use, intuitive control panel Specifically designed for use in campervans Compact, lightweight, and space-saving with a narrow rotatable design Installed underfloor, maximizing valuable living and storage space Customizable installation, creating a blank canvas for vehicle designers CI-BUS control compatibility Fast heat-up and fully automatic output modulation for enhanced user comfort Quiet night-time operation Even and well-maintained heat distribution Brand Whale Type Blown Air Heaters Voltage Description 10.1V - 15.9V DC Model 4G Height Description 175mm Width 165mm Length 469mm Weight 5.5 kg Fuel Butane/Propane 30mbar Heat Output 4KW Gas Consumption 109, 233, 342 g/h Maximum Air Flow @ 0.5mbar: 220 m3/h

Read more less

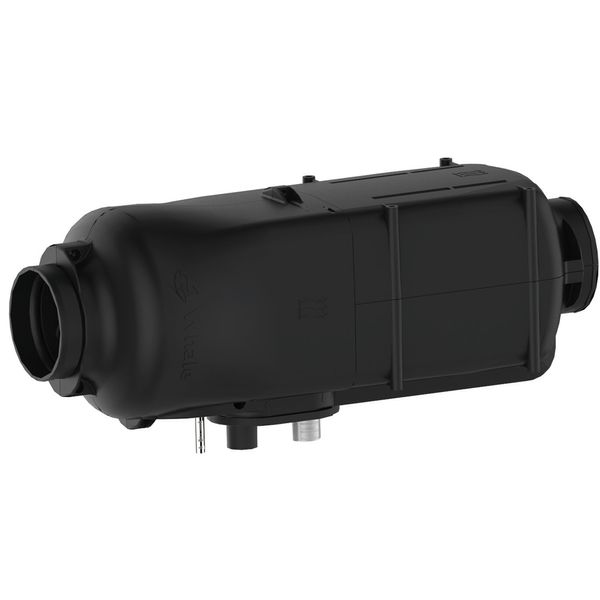

The Whale Heat Air 5GT 5KW Space Heater is a powerful and lightweight gas heater designed for caravans, motorhomes, and campervans. The heater is installed under the floor, so valuable onboard space is not lost. Product contents: • 1 x Gas heater • 1 x Control panel • 1 x LIN cable and connector • 1 x Combustion air intake flue • 1 x Combustion air intake silencer • 1 x Combustion air intake clamp • 1 x Combustion air intake bracket 60mm • 1 x Exhaust gas flue • 1 x Exhaust gas flue clamp • 3 x Exhaust gas flue brackets 40mm, 60mm, 80mm • 1 x Exhaust gas flue end terminal bracket 100mm • 1 x Heater Z - mounting bracket • 1 x Heater isolation mounts • 1 x Heater bracket screw kit • 1 x Literature pack (install/operating instructions, warranty cards, service leaflet, questionnaire) Key Features Easy-to-use, intuitive control panel Specifically designed for use in campervans Compact, lightweight and space saving with narrow rotatable design Installed underfloor, maximising valuable living and storage space Customisable installation, creating a blank canvas for vehicle designers CI-BUS control compatibility Fast heat up and fully automatic output modulation for enhanced user comfort Quiet night-time operation Even and well maintained heat distribution Brand Whale Type Blown Air Heaters Voltage Description 10.1V - 15.9V DC Model 5GT Height Description 175mm Width 165 mm Length 469 mm Weight 5.9 kg Fuel Butane/Propane 30mbar Heat Output 5KW Gas Consumption 131, 342, 436 g/h Maximum Air Flow @ 0.5mbar: 220 m3/h Downloads Heat Air 6GTE datasheet Whale Heat Control 32062

Read more less

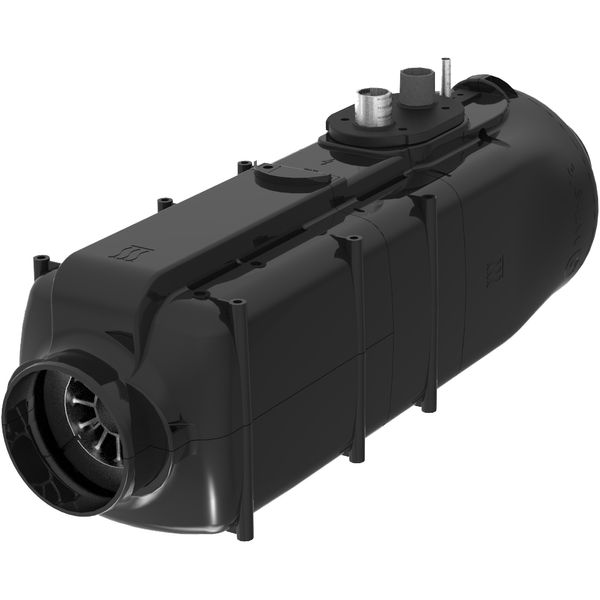

The Whale Heat Air 5GTE 5KW Space Heater is a powerful and lightweight gas and electric heater designed for caravans, motorhomes and campervans. The heater is installed underfloor, so valuable on-board space is not lost. Product contents: • 1 x Gas and Electric Heater • 1 x Control panel • 1 x LIN cable and connector • 1 x Combustion air intake flue • 1 x Combustion air intake silencer • 1 x Combustion air intake clamp • 1 x Combustion air intake bracket 60mm • 1 x Exhaust gas flue • 1 x Exhaust gas flue clamp • 3 x Exhaust gas flue brackets 40mm, 60mm, 80mm • 1 x Exhaust gas flue end terminal bracket 100mm • 1 x Heater Z - mounting bracket • 1 x Heater isolation mounts • 1 x Heater bracket screw kit • 1 x Literature pack (install/operating instructions, warranty cards, service leaflet, questionnaire) Key Features Easy-to-use, intuitive control panel Specifically designed for use in campervans Compact, lightweight and space saving with narrow rotatable design Installed underfloor, maximising valuable living and storage space Customisable installation, creating a blank canvas for vehicle designers CI-BUS control compatibility Fast heat up and fully automatic output modulation for enhanced user comfort Quiet night-time operation Even and well maintained heat distribution Brand Whale Type Blown Air Heaters Voltage Description 10.1V - 15.9V DC Model 5GTE Height Description 175mm Width 165 mm Length 559 mm Weight 8.7 kg Fuel Butane/Propane 30mbar + 3KW Electric Heat Output 5KW Gas Consumption 109, 233, 342 g/h Maximum Air Flow @ 0.5mbar: 220 m3/h Downloads Heat Air 6GTE datasheet Whale Heat Control 32062
