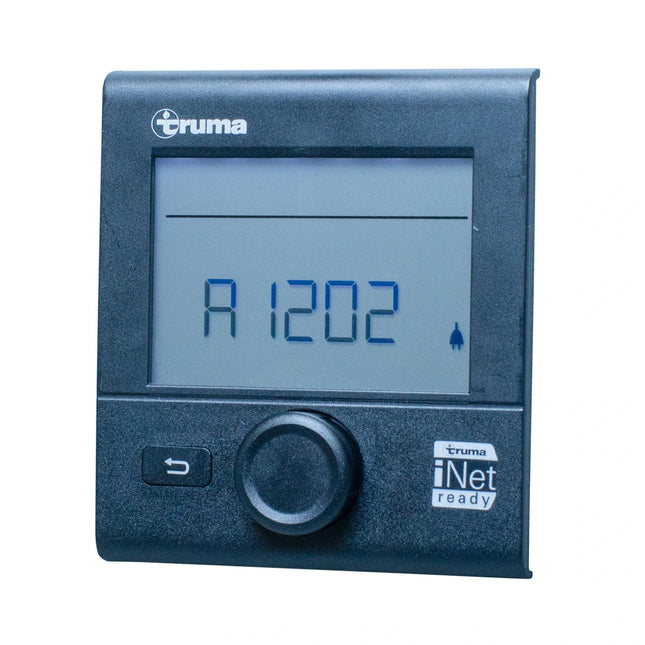

Digital Control Panel for Truma Systems
Digital control panel for the Truma AquaGo, Truma Aventa, Truma Combi, and Truma VarioHeat with automatic climate control, boost function, and time switch.
Control multiple Truma systems from one panel
Practical rotary push button, large backlit display
Technical Details
Suitable for
Travel trailers and motorhomes
Display
Monochrome LCD with backlighting
Interface
TIN bus (OEM, retrofit) and CI Bus (OEM only)
Power supply
8 - 16.5 volt DC
Power consumption (100% backlighting)
Max. 65 mA
Power consumption (stand-by)
10 mA
Quiescent current (off)
1 mA
Weight
0.22 lb(100 g)
Dimensions
4.06" W x3.62" L x 1.58" in (103mm W x 92mm L x 40mm H)
Truma CP plus – Connecting All of Your Truma Systems
Truma CP plus is a digital control panel for all Truma systems. The CP plus can be installed alongside the Truma AquaGo, Aventa, Combi, and VarioHeat, or any combination of these for a fully interconnected comfort system. Use the practical rotary push button to set the room and water temperatures in your trailer or motorhome easily and conveniently. Set basic functions like temperature and fuel source in seconds. Controlling fan modes, water boost, and more is also quick and easy.
Boost function for a fast supply of warm water and space heating with Truma Combi systems
Automatic Climate Control, when used with both a Truma heating and air conditioning system
Schedule room temperature with a programmable timer

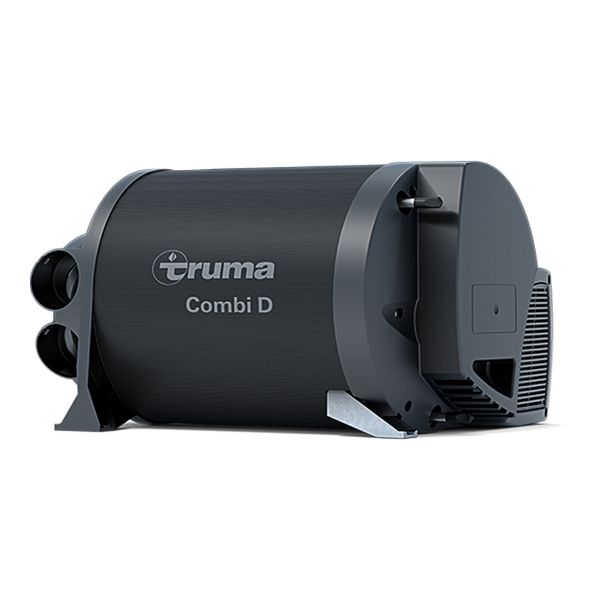

The Combi D 6 (E) diesel heater from Truma is a warm air heater with an integrated hot water system (10-litre volume).
In heating and hot water mode, the heater can be used to heat the vehicle and heat water up at the same time. If only hot water is required, the user can select the hot water mode.
Operating modes:
Diesel mode only: for autonomous use
Electric mode only: With 230V for stationary use
Mixed mode (diesel and electrical mode): Only possible in heating and hot water mode
• Heating and Hot Water Mode
In heating and hot water mode, the unit automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature.
If the boiler has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output.
All three energy selection options can be used for winter deployment.
Diesel mode: The unit automatically selects the operating level that is required.
Electrical mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite.
If more output is required (e.g. heating up or low outside temperatures) diesel or mixed mode should be selected so that enough heating power is always available.
Mixed mode: In this setting 230V electrical mode is preferred if the power requirement is low (e.g. for maintaining the room temperature). The diesel burner is not enabled until the power requirement is higher, and is the first to switch off when heating is in progress.
• Hot Water Mode (with filled boiler only)
Diesel mode or 230V electrical mode is used to generate hot water. The water temperature can be set to 40 °C or 60 °C.
Diesel mode: In this setting the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off.
Electric mode: In this mode an output of 900 W (3.9 A) or 1800 W (7.8 A) can be manually selected in accordance with the fuse protection at the campsite.
Mixed mode: This mode is not possible. With this setting the unit automatically selects electrical mode. The diesel burner is not enabled.
Please note: The heater requires DIN EN 590 diesel fuel for operation. Operation using bio-diesel (PME, RME or AME) is not permitted
Product contents:
Combi D 6 E (33516-78)
Combi frost control JG assy (36100-52)
Truma iNet X Panel Bulk Pack (36411-51)
6 Metre control cable (36110-52)
Duct kit Combi D 1.0M BPK12 (34502-73)
Wall Cowl Inner Part (36140-51)
Cowl outer part black ZR80 (36151-59)
4 Metre cable for room sensor (34000-71900)
Fuel line 5x1.5mm BPK 100M (34020-01315)
Caravan Heater Pack FTG 820x1070 (358710)
Caravan Heater Pack Top FTG 580x480x30 (358713)
Caravan Heater Pack Outer 587x487x440 (358707)
Energy sources: Diesel as per EN 590
Rated heat output in gas mode: 2000 W / 4000 W / 6000 W
Rated heat output in electric mode: 900 W / 1800 W
Rated heat output in mixed mode: max. 5800 W
Fuel consumption: 220 - 630 ml/h (110 ml/h with average heat output of 1000 W)
Air flow rate (free blowing) with 4 warm air outlets: max. 287 m³/h
Water capacity: 10 litres
Pump pressure: max. 2.8 bar
System pressure: max. 4.5 bar
Key Features
Diesel heater with integrated heating elements
Digital Truma CP plus iNet ready control panel allows user to easily set required temperature
Powerful fan and even distribution of warm air
Uses little energy
Lightweight and compact allowing for multiple mounting options
Brand
Truma
Type
Air & Water Heaters
Voltage Description
230V AC
Model
Combi D 6 E
Efficiency
Approx. 90%
Height Description
350mm
Width
500mm
Depth
540mm
Weight
18kg
Colour
Black
Flow Rate Description
Air flow: 287 m³/h Max.
Application
Motorhomes
Capacity Description
Water: 10 Litres
Heat Output
6000W
Energy Supply
Diesel as per EN 590
Country of Origin
Germany
Contents
Combi D 6 E, Combi frost control JG assy, Truma iNet X Panel Bulk Pack, 6 Metre control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4 Metre cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440
Downloads
Operating Manual Combi D 6 (E) Heaters
Operating Manual Truma CP Plus iNet Ready Panel
Eberspacher AS2 D2L Airtronic 12V heater kit to suit VW T5/T6.
Kit contents:
• Heater
• Mount bracket for internal installation
• Easy Start Pro controller
• Wiring loom
• Fuel pipe with tank pick up
• 1-metre exhaust
• Silencer
• Ducting and associated fittings included
• 1 x hot air outlet
Heater specs:
• Voltage: 12 or 24 Volt
• Heat output: 850 to 2,200 Watt
• Air flow volume: 105 m3/h
• Electrical power consumption: 6 (min.) to 31 (max.) Watt
• Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h
• Dimensions: L x W x H mm 310 x 115 x 122
• Weight: 2.7 kg
Brand
Eberspacher
Type
Blown Air Heaters
Voltage Description
12V DC
Height Description
122mm (4.8")
Width
115 mm
Length
310 mm
Weight
2.7 kg
Application
Volkswagen T5 & T6
Heat Output
850 to 2,200 W
Downloads
Eberspacher Motorhome Heaters
Eberspacher AS2 D2L Airtronic 12V heater kit to suit VW T5/T6.
Kit contents:
• Heater
• Mount bracket for external installation
• 802 controller
• Extended wiring loom for rear battery
• Fuel pipe with tank pick up
• 1-metre exhaust
• Ducting and associated fittings included
• 1 x hot air outlet
Heater specs:
• Voltage: 12 or 24 Volt
• Heat output: 850 to 2,200 Watt
• Air flow volume: 105 m3/h
• Electrical power consumption: 6 (min.) to 31 (max.) Watt
• Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h
• Dimensions: L x W x H mm 310 x 115 x 122
• Weight: 2.7 kg
Brand
Eberspacher
Type
Blown Air Heaters
Voltage Description
12V DC
Height Description
122mm (4.8")
Width
115 mm
Length
310 mm
Weight
2.7 kg
Application
Volkswagen T5 & T6
Heat Output
850 to 2,200 W
Downloads
Eberspacher Motorhome Heaters
Eberspacher AS2 D2L Airtronic 12V heater kit to suit VW T5/T6.
Kit contents:
• Heater
• Mount bracket for external installation
• Easy Start Pro controller
• Extended wiring loom for rear battery
• Fuel pipe with tank pick up
• 1-metre exhaust
• Ducting and associated fittings included
• 1 x hot air outlet
Heater specs:
• Voltage: 12 or 24 Volt
• Heat output: 850 to 2,200 Watt
• Air flow volume: 105 m3/h
• Electrical power consumption: 6 (min.) to 31 (max.) Watt
• Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h
• Dimensions: L x W x H mm 310 x 115 x 122
• Weight: 2.7 kg
Brand
Eberspacher
Type
Blown Air Heaters
Voltage Description
12V DC
Height Description
122mm (4.8")
Width
115 mm
Length
310 mm
Weight
2.7 kg
Application
Volkswagen T5 & T6
Heat Output
850 to 2,200 W
Downloads
Eberspacher Motorhome Heaters

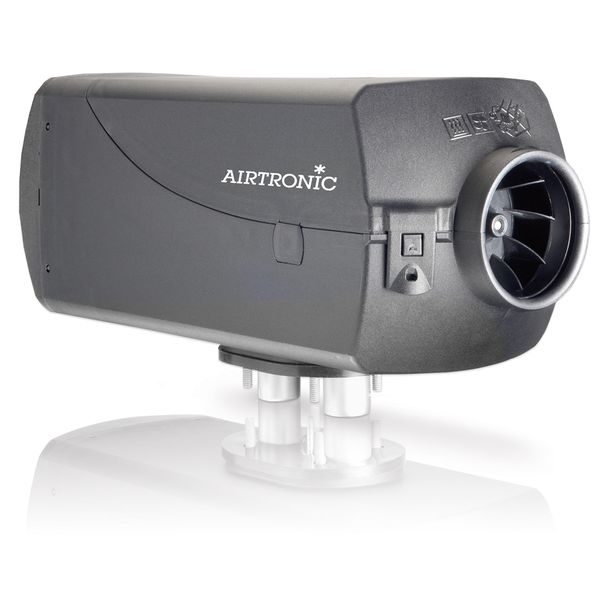

Eberspacher AS2 D2L Airtronic 12V heater kit to suit standard motorhome/van conversions and requires the fuel pick-up kit for your specific base vehicle (to be ordered separately).
Kit contents:
• Heater
• Mount bracket (floor plate)
• Easy Start Pro controller
• Wiring loom
• 1-metre exhaust
NOTE: Ducting and air fittings are supplied separately.
Heater specs:
• Voltage: 12 or 24 Volt
• Heat output: 850 to 2,200 Watt
• Air flow volume: 105 m3/h
• Electrical power consumption: 6 (min.) to 31 (max.) Watt
• Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h
• Dimensions: L x W x H mm 310 x 115 x 122
• Weight: 2.7 kg
Brand
Eberspacher
Type
Blown Air Heaters
Voltage Description
12V DC
Height Description
122mm (4.8")
Width
115 mm
Length
310 mm
Weight
2.7 kg
Application
Standard motorhome/van conversions
Heat Output
850 to 2,200 W
Downloads
Eberspacher Motorhome Heaters
Eberspacher AS2 D2L Airtronic 12V heater kit to suit VW T5/T6.
Kit contents:
• Heater
• Mount bracket for external installation
• Easy Start Pro Controller
• Wiring loom
• Fuel pipe with tank pick up
• 1-metre exhaust
• Ducting and associated fittings included
• 1 x hot air outlet
Heater specs:
• Voltage: 12 Volt
• Heat output: 850 to 2,200 Watt
• Air flow volume: 105 m3/h
• Electrical power consumption: 6 (min.) to 31 (max.) Watt
• Fuel consumption: 0.10 (min.) to 0.28 (max.) l/h
• Dimensions: L x W x H mm 310 x 115 x 122
• Weight: 2.7 kg
Brand
Eberspacher
Type
Blown Air Heaters
Voltage Description
12V DC
Height Description
122mm (4.8")
Width
115 mm
Length
310 mm
Weight
2.7 kg
Application
Volkswagen T5 & T6
Heat Output
850 to 2,200 W
Downloads
Eberspacher Motorhome Heaters
