The Combi D 4 E is structurally identical to the Combi D 4, the only difference being the integrated electric heating elements. The diesel version is equipped with a high-quality burner and therefore reliably heats the vehicle while driving. At the camp site, simply switch over to electrical mode and run the heater with 230 V, with no need for the vehicle battery. Depending on the required output, choose between diesel, electric or mixed mode: in milder weather, set the appliance to electrical mode, on colder days to diesel mode and in extremely cold weather use mixed mode – diesel and electrical mode. Through four air outlets, the warm air flows into the vehicle where it is distributed optimally. The powerful Combi D 4 E heats small and medium-sized vehicles within a short time. The appliance also has a 10-litre water tank, which is heated at the same time when hot water is required. This means that you do not need an additional water heater, which saves space and weight. The Combi heater is also very compact and offers many different installation options. The Combi D 4 E is controlled and monitored with the digital Truma CP plus (iNet ready) control panel or via the iNet X System. Product contents:32368 Combi D 4 E (33416-78) Combi frost control JG assy (36100-52) Truma iNet X Panel Bulk Pack (36411-51) 6 Metre control cable (36110-52) Duct kit Combi D 1.0M BPK12 (34502-73) Wall Cowl Inner Part (36140-51) Cowl outer part black ZR80 (36151-59) Cable 4 metre for room sensor (34000-71900) Fuel line 5x1.5mm BPK 100M (34020-01315) Caravan Heater Pack FTG 820x1070 (358710) Caravan Heater Pack Top FTG 580x480x30 (358713) Caravan Heater Pack Outer 587x487x440 (358707) Can also be operated with an empty water tank FrostControl drain valve is installed Simple operation with the digital Truma CP plus (iNet ready) control panel or via iNet X System Optimum warm air distribution via four air outlets 10-litre stainless steel water tank Compact and space-saving, various installation options Heats the vehicle and water very quickly Uses little energy Integrated pressure sensor automatically controls the combustion air infeed Long service life thanks to efficient combustion control Automatic climate control possible in combination with a Truma air conditioner Key Features Heat Hybrid: integrated electric heating elements for additional electrical power 2 in 1: heats your vehicle and heats water at the same time For small and medium-sized vehicles Brand Truma Type 12 & 230 Volt Voltage Description 12 / 230V Model Combi D4 E Height Description 300mm Width 450mm Length 510mm Weight 16.8g Flow Rate Description Air: max. 287 m³/h Operating Pressure 30 mbar Consumption Fuel: 0,1 – 0,4 l/h Application Caravans, Motorhomes Capacity Description 10 Litres (2.6 US Gallons) Heat Output Diesel Mode: 1000 W/2000 W/3000 W/4000W Electric Mode 900 W/1800 W Mixed Mode: max. 3800 W Contents Combi D 4 E, Combi frost control JG assy, Truma iNet X Panel Bulk Pack, 6 Metre control cable, Duct kit Combi D 1.0M BPK12, Wall Cowl Inner Part, Cowl outer part black ZR80, 4 Metre cable for room sensor, Fuel line 5x1.5mm BPK 100M, Caravan Heater Pack FTG 820x1070, Caravan Heater Pack Top FTG 580x480x30, Caravan Heater Pack Outer 587x487x440 Downloads Declaration of Conformity UK April2018 Combi 4 4e Operating Instructions Truma CP plus Operating Instructions Truma Heating Combi e EN

Read more less

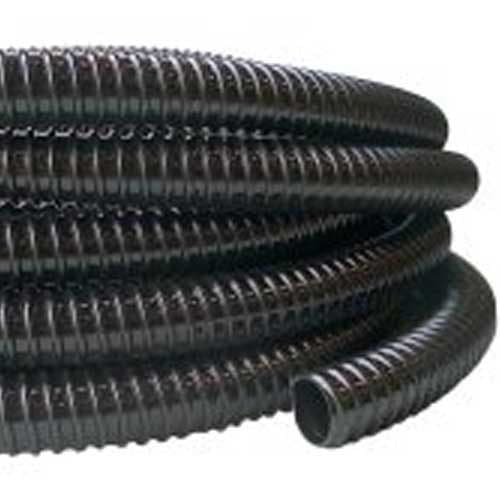

3/4" BLACK FLEXIBLE WASTE WATER HOSE 1M-30M Product information 20mm ID  Black spiral reinforced PVC hose, 30M coil.

Read more less

Whale 8-litre Rapid Heat Water Heater. Specs: • Capacity: 8 litres • Pressure relief valve setting: 2.6 bar • Maximum water inlet pressure: 1.9 bar • Gas type: Butane and Propane • Heat input (net): 1.25kw • Gas consumption: 93 g/hr • Gas connection: 8mm OD copper tube • Supply: 12V DC + 230V AC 50Hz • Electric lowest Eco setting: 750W • Electric highest setting: 1500W • Max. current consumption: (12V): 0.36 Amp (0.01 Amp on standby) • Max. current consumption: (230V): 3.25/6.5 Amp • Weight: 8kg (dry weight) NOTE: All Whale Water Heaters must be installed and serviced by a fully qualified gas engineer in accordance with the appropriate installation instructions. Key Features Neat and compact design Micro processor controlled - Including fault diagnostics Hot water outlet - Whale 12mm Quick Connect stem fitting Safe stainless steel braided heater hose Low voltage connection plug Front and rear mounting feet Cold water inlet Pressure relief valve Easy to use control panel with choice of settings Lightweight unit - weighs only 8kg (dry weight) Robust insulation retains heat for longer Easy installation Brand Whale Type 12 & 230 Volt Voltage Description 12V & 230V Height Description 258mm Width 329mm Length 391mm Fuel Butane/Propane 30mbar + 230Volt Capacity Description 8 Litres (2.1 US Gallons)

Read more less

The 20–25 mm angled waste fitting for CAN sinks (CAN LP1800) is a compact 90° elbow sink waste outlet designed for use with CAN sinks and other small installations in caravans, motorhomes, campervans, boats, and compact wash stations. It fits a 1¼-inch (Ø 54–55 mm) sink waste hole and features a dual barbed outlet that accepts both 20 mm and 25 mm flexible waste hoses, making it versatile for different plumbing setups. Built with a marine-grade stainless steel grate/strainer and a durable grey plastic body, it is resistant to corrosion and wear in wet environments. Some versions include a 52 mm rubber plug with a plastic handle for sealing the sink. Measuring approximately 136 × 77 × 36 mmand weighing around 0.1 kg, this Italian-made fitting is compact, reliable, and easy to install—ideal for tight under-sink spaces where durability and space-saving design are essential.   UNIVERSAL 90DEG. ELBOW DRAIN, SUITABLE FOR ALL CAN SINKS WITH 54-55 MM WASTE HOLE MARINE GRADE STAINLESS-STEEL GRIDDLE BARBED OUTLET 20-25 MM 52 MM RUBBER PLUG WITH PLASTIC HANDLE

Read more less

Digital Control Panel for Truma Systems Digital control panel for the Truma AquaGo, Truma Aventa, Truma Combi, and Truma VarioHeat with automatic climate control, boost function, and time switch. Control multiple Truma systems from one panel Practical rotary push button, large backlit display Technical Details Suitable for Travel trailers and motorhomes Display Monochrome LCD with backlighting Interface TIN bus (OEM, retrofit) and CI Bus (OEM only) Power supply 8 - 16.5 volt DC Power consumption (100% backlighting) Max. 65 mA Power consumption (stand-by) 10 mA Quiescent current (off) 1 mA Weight 0.22 lb(100 g) Dimensions 4.06" W x3.62" L x 1.58" in (103mm W x 92mm L x 40mm H) Truma CP plus – Connecting All of Your Truma Systems Truma CP plus is a digital control panel for all Truma systems. The CP plus can be installed alongside the Truma AquaGo, Aventa, Combi, and VarioHeat, or any combination of these for a fully interconnected comfort system. Use the practical rotary push button to set the room and water temperatures in your trailer or motorhome easily and conveniently. Set basic functions like temperature and fuel source in seconds. Controlling fan modes, water boost, and more is also quick and easy. Boost function for a fast supply of warm water and space heating with Truma Combi systems Automatic Climate Control, when used with both a Truma heating and air conditioning system Schedule room temperature with a programmable timer

Read more less

TRUMA COMBI 4E WITH BLACK COWL Truma reference: 33713-80GP/SPB BLACK COWL Truma Combi 4E with black cowl. FEATURES: Integrated 10l stainless steel water tank Independent heating of hot water is in summer mode, and hot water and warm air are in winter SPECIFICATIONS: Dimensions: L510 x W450 x D300mm Net weight: 15.1kg Rated thermal output (electric): 900W / 1800W Rated thermal output (gas): 2000W / 4000W Rated thermal output (combined): 3800W Fuel consumption (gas): 160-320g/h Water capacity: 10l Truma Ref:33713-80GP/SPB

Read more less

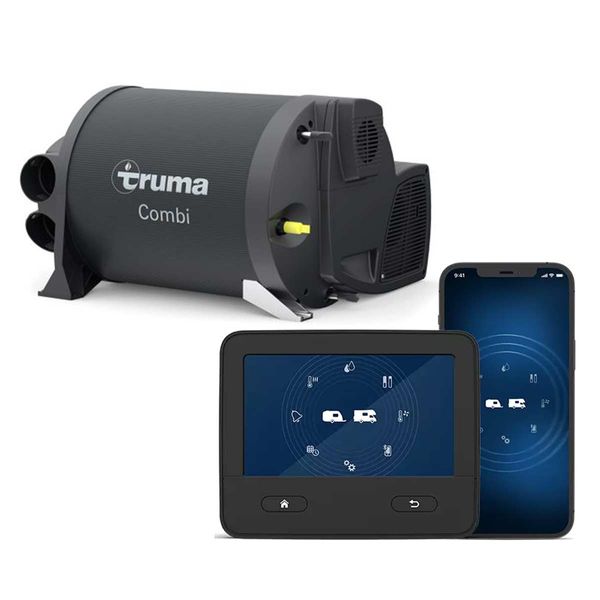

The iNet X System enables you to centrally control your indoor climate, hot water or similar, continually keep an eye on key status indicators and much more. - One central operating system: control key appliances from different manufacturers and services with one central operating system. So you will always have everything under control. - Status queries at a glance: real-time status indicators for all appliances and services. So you can always keep an eye on them all. - Intuitive operation: clear and uniform user interface in the panel with colour touch display and app for intuitive operation. So you will be familiar with the system right away. - Advanced control via your smartphone: it is possible to control appliances using your own smartphone with the free Truma iNet X App. Meaning you will be smartly connected. - Future-oriented: add and benefit from further developments by means of updates – even after the system has been installed. So you will always be up-to-date. - Troubleshooting help: detailed, precise description of the fault including recommendations on how to solve the issue yourself rather than cryptic fault codes. Meaning you are independently and safely on the move - Customisable: App interface can be configured according to individual requirements. So everything is geared to your own needs. The Truma iNet X App is the mobile version of the Truma iNet X Panel. The App can be used to set the hot water from the comfort of your bed or to check the indoor climate while relaxing on your lounger. A Bluetooth connection is currently required for this purpose. The App is required to perform updates to your Truma iNet X (Pro) Panel. This is the only way to extend the system and to benefit from future developments. Kit Contents Truma Combi 6E water & blown-air heater Truma iNet X control panel RJ45 connection cable for control panel Combustion air intake & exhaust ducting Intake/exhaust side wall cowl Black and white trims for side wall cowl John Guest (JG) connection kit for water supply Room temperature sensor (cable not supplied - requires 2 x 0.5mm²) Clamps, clips, fittings & fixings Product Code:32366-INET

Read more less

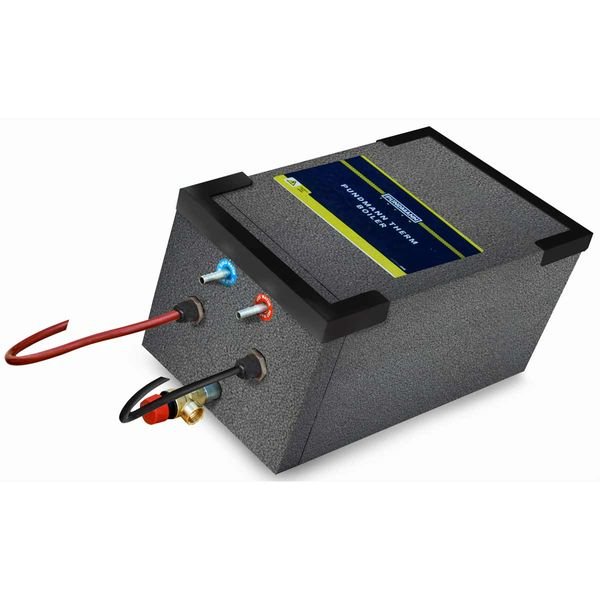

The Pundmann camper van 6L water heater is designed to bring creature comfort to off-grid adventures. Every unit is built to last and individually bench tested to ensure long term performance and safety. The off-grid units are all compact and easy to install for efficient use of small spaces as well as safe and stable. Perfect for campervans, motorhomes, caravans, boats, off grid locations, service vehicles, mountain top cabins, sandy shored beach huts, long distance lorry drivers and even the shed at the end of your garden. These electric water heaters are uniquely compact and narrow so they fit in the wardrobe of VW Campervans such as T4, T5 or T6. Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! Heats your water to 60°C in as little as 50 minutes. Well supported by our team for customer support and technical advice. Underpinned by a 3 year warranty. Key Features Twin immersion heater rods, 12V 200W and 230V 500W fitted with 5A 3-pin plug Insulated 316 stainless steel welded tank with high quality stainless heating rods Designed for safe use up to 2.3bar Supplied & fitted with a 3 bar hot water safety pressure release valve Designed to be compact & straight forward to install Engineered to provide excellent service 3 Year return to base Warranty Brand Pundmann Voltage Description 12V DC & 230V AC Height Description 200mm Width 228mm Length Heater: 360mm, Connections: 85mm Material Insulated 316 stainless steel welded tank with high quality stainless heating rods. Wattage 200W at 12V, 500W at 230V Operating Pressure 2.3 bar Maximum Hose Tail Size 10mm / 3/8" Pressure Rating 3 bar pressure relief valve Amps Description 16.67A at 12V, 2.08A at 230V Capacity Description 6 Litres Warranty 3 Years Downloads pundmann decloration of conformity pundmann diagrams pundmann faqs pundmann wiring plumbing guidelines

Read more less

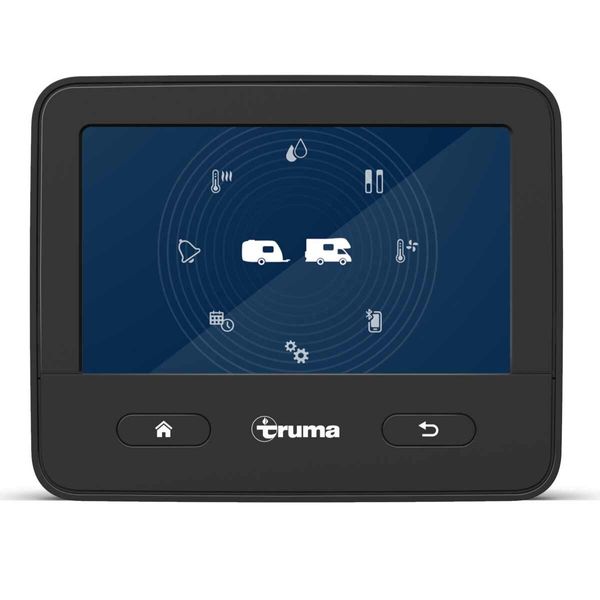

The Truma iNet X Panel serves as a centralised control hub, overseeing heating, hot water, and air conditioning systems using one operating system. The 4.3” colour panel has a touchscreen interface allowing onboard functions to be controlled effortlessly through the well-organised menu. The panel can also be operated remotely via Bluetooth technology and a dedicated smartphone app. You can also upgrade your current Truma CP+ panel to this new iNet X Panel in any caravan or motorhome manufactured since the 2019, either through your local dealer or a Truma mobile engineer. The Truma iNet X Panel is ideal for Truma CP plus and Truma CP classic owners, allowing an easy transition from the static iNet System to the advanced iNet X System. Built-in Bluetooth connectivity eliminates the need for a separate iNet Box as in the previous system. You can keep your operating system up-to-date effortlessly via the Truma iNet X App to ensure continuous improvement and smarter features. Key Features Manages heating, hot water, and air conditioning systems from one interface User-friendly control with a touchscreen display Control via Bluetooth and a dedicated smartphone app Adjust temperature, schedule heating cycles, and monitor status Manage water temperature and availability Set cooling settings and fan speeds Can replace existing Truma CP+ panels IP Rating: Front: IP20, Back: IP00 Brand Truma Type Control Panels Voltage Description 12V DC (8V - 16V DC) Height Description 97.6mm Width 120.1mm Depth 31mm Weight 150g (approx.) Approvals Class III Consumption 1.5W (approx. 130 mA) Operating Temperature -30°C to + 60°C Screen Size 4" Country of Origin Germany Downloads Operating Instructions Truma iNet X Panel

Read more less

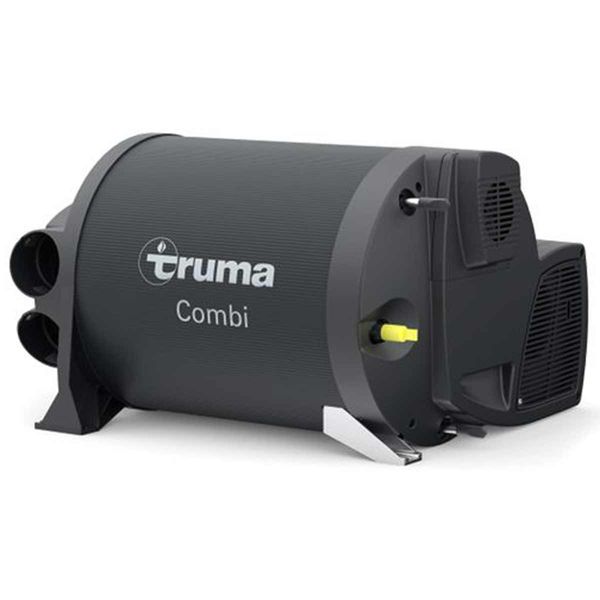

The Combi 2 E liquid gas heater is a warm air heater with an integrated hot water boiler. The appliance also has heating elements for electrical operation. In heating mode, the heater can be used to heat both the vehicle and water simultaneously. Or if hot water alone is required, the hot water mode can be selected. The lightweight combination heater runs in gas mode for self-sufficient use, in electrical mode for stationary use, and in mixed mode when outside temperatures are low. A 10-litre stainless steel water tank is integrated into the system, which is jointly heated in winter. In summer mode, the user can heat the water independently of the heater. The water then reaches a temperature of 60 degrees in about 20 minutes. With the Truma App, the user can switch their Combi heater on from a smartphone. • Heating Mode In Heating Mode the appliance automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature. If the water container has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output. Energy selection options: Gas mode: In this mode the appliance automatically selects the operating level that is required. Electric mode: In this mode an output of 980 W (3.9 A) or 1960 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite. If more output is required (e.g. heating up or low outside temperatures) gas or mixed mode should be selected so that enough heating power is always available. Mixed mode: In this setting 230V electric mode is preferred if the power requirement is only low (e.g. for maintaining the room temperature). The gas burner is not enabled until the power requirement is higher, and is the first to switch off during heat-up operations. • Hot Water Mode (with filled water container only) Gas mode or 230V electric mode is used for hot water preparation. The water temperature can be set to 40 °C / ECO or 60 °C / HOT (ECO, HOT only with control panel Truma CP plus). Gas mode: In this mode the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off. Electric mode: In this setting an output of 980 W (3.9 A) or 1960 W (7.8 A) can be manually selected in accordance with the fuse protection at a campsite. Mixed mode is not possible with the Hot Water Mode setting as the appliance automatically selects electric mode. If the 230V power supply is disconnected or fails, the heater automatically switches over to gas mode. The Truma Combi 2E Boiler and Space Heater Kit contains: Truma Combi 2E LPG gas and 230V electric unit Truma CP Plus digital control panel John Guest water connection kit ZR80 exhaust ducting 1 metre ZRS clip Truma Combi CP Plus cable 6m Side wall cowl in black JST electrical ends Installation and operation manuals Technical Specifications: Truma Combi 2E Dimensions (L x W x H): 510 x 450 x 300 mm Installation dimensions (L x W x H): 540 x 500 x 350mm (plus connections and drain valve) Weight (empty): 15.1kg Heating time (from 15°C to 60°C) (Water only): Approx. 20min. Heating time (from 15°C to 60°C) (Heater & Water): Approx. 80min. Rated thermal output (Electric): 980W / 1960W Rated thermal output (Gas): 1950W maximum Rated thermal output (Electric & Gas Combined): 3900W Fuel consumption (Gas): 130 g/h Water capacity: 10 litres Air flow rate: Max. 287 m3/h Power consumption (at 230V): 3.9A / 7.8A Power consumption (at 12V): Heating up boiler 0.2A up to temporary 5.6A maximum (average approx. 1.1A) Water pressure: 2.8 Bar maximum

Read more less

The iNet X System enables you to centrally control your indoor climate, hot water, or similar, continually monitor key status indicators, and much more. One central operating system: With one central operating system, you can control key appliances from different manufacturers and services, so you will always have everything under control. Status queries at a glance: real-time status indicators for all appliances and services. So you can always keep an eye on them all. Intuitive operation: clear and uniform user interface in the panel with colour touch display and app for intuitive operation. So you will be familiar with the system right away. Advanced control via your smartphone: it is possible to control appliances using your smartphone with the free Truma iNet X App. Meaning you will be smartly connected. Future-oriented: add and benefit from further developments using updates – even after the system has been installed. So you will always be up-to-date. Troubleshooting help: a detailed, precise description of the fault including recommendations on how to solve the issue yourself rather than cryptic fault codes. Meaning you are independently and safely on the move. Customisable: App interface can be configured according to individual requirements. So everything is geared to your own needs. The Truma iNet X App is the mobile version of the Truma iNet X Panel. The App can be used to set the hot water from the comfort of your bed or to check the indoor climate while relaxing on your lounger. A Bluetooth connection is currently required for this purpose. The App is required to perform updates to your Truma iNet X (Pro) Panel. This is the only way to extend the system and to benefit from future developments Key Features Tile view of all appliances and functions for the full view Intuitive menu guidance in 6 languages Check all resources centrally in on menu item, from the battery status, through to the gas level, to the water tank. Save power in standby mode - the display switches off after 20 seconds of inactivity Conveniently adjust the target temperatures using +/-. Night mode enables particularly quiet operation Colour pulsing rings indicate the heating (red) or cooling process (blue). Instructions for use make it easier to select the right heating level: Dish washer 40°C, Single shower 60°C, Several showers 70°C. Turbo mode to start extra fast heating Specific instructions on possible faults and causes.

Read more less

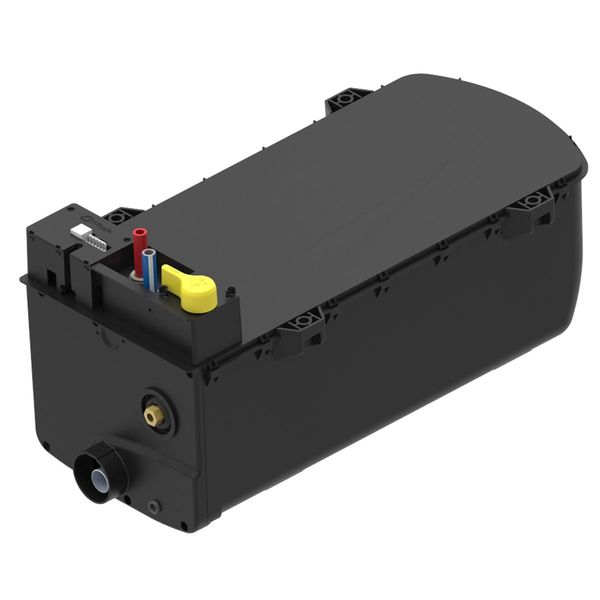

An underfloor gas water heater system offering fast heat up times and great heat retention, ideal for van conversions and panel vans. This externally mounted heater ensures valuable onboard space is not taken up. The exhaust can be ducted through the floor of the vehicle, avoiding the need to cut any holes. This water heater is supplied with a round control panel and LIN cable. • Nominal Water Capacity: 8 litre • Gas: Butane/Propane 30mbar - CAT I3B/P (30) • Classification of Storage Water Heater: Type: C13 • Nominal Heat Input: Gas 1.35kW • Standby Consumption: Gas 43W • Nominal Voltage: 12V d.c. (10.1 Volt d.c. min. to 14.9 Volt d.c. max.) • Maximum Current d.c: 0.48 Amps (0.03 Amps on standby) • Maximum Water Supply Pressure: 190kPa (1.9 Bar) • Rated Pressure: 300kPa (3.0 Bar) • Pressure Relief Valve Setting: 300kPa (3.0 Bar) • Maximum Caravan Floor Thickness: 47mm • Ingress Protection Rating: IP45 • Dry Storage Temperature: -20°C to 70°C • Maximum Water Temperature: Approx. 72°C • Typical heating up times from 15°C to 70°C: Approx. 26 minutes. PLEASE NOTE: If connecting to mains water supply, a suitable water pressure regulator must be connected to ensure that the maximum supply water pressure does not exceed 190kPa (1.9 Bar). Key Features Easy to access - Integrated Pressure Relief Drain Valve Winter protection - User-activated frost protection mode External gas connections - No cut outs required Underside flue connector 8 litre capacity water tank Easy mounting option - Integrated secure mounting bosses Superior insulation - Custom expanded polystyrene means water stays hotter for longer Under floor installation opens up living and storage space Brand Whale Type 12 Volt Voltage Description 12V & 230V Capacity Description 8 Litres (2.1 US Gallons) Country of Origin United Kingdom

Read more less
