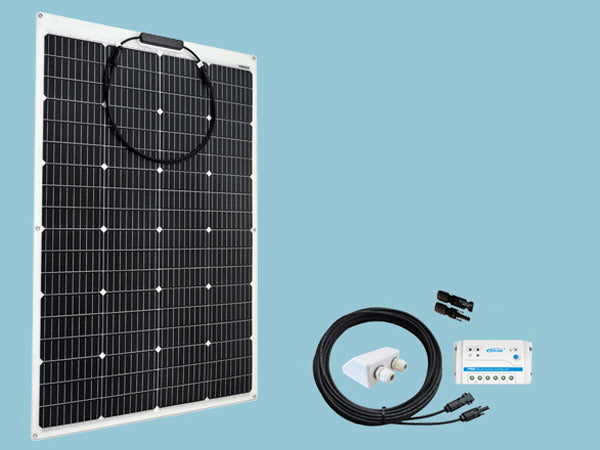

This 50W Sunshine Flexible Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 50 Watt solar power kit you could expect to generate around 14 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. etc.
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, macbooks and other devices, using the optional eBox-Bluetooth Adapter.
Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:
Single Battery Controller
MPPT Single Battery Controller
MPPT Dual Battery Controller
NOT the Dual Battery Controller
If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.
Solar Panel Specifications
Maximum Power (Pmax): 50W
Maximum Power Current (Ipm): 2.78A
Maximum Power Voltage (Vpm): 18V
Short Circuit Current (Isc): 3.032A
Open Circuit Voltage (Voc): 21.6V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Maximum Series Fuse: 10A
Size: 500 x 665 x 4mm
Weight: 1.35 kg
One Year Manufacturers Warranty
Kit Performance - Summertime
Standard Controller: 14Ah per day - (10-30% more with MPPT Controller)
Contents With Unit
1 X 50W 12V Sunshine Solar Flexible ETFE Range
1 X 6M Extension Cables & Connectors
1 X Pair of MC Type 4 Solar Connectors
1 X ABS Waterproof Cable Entry Cover
1 X Charge Controller Selection
Kit Performance - Summertime: Standard Controller: 5.5Ah per day - (10-30% more with MPPT Controller)
For More Info Please Click PDF For More Info On Installations And Maintenance.

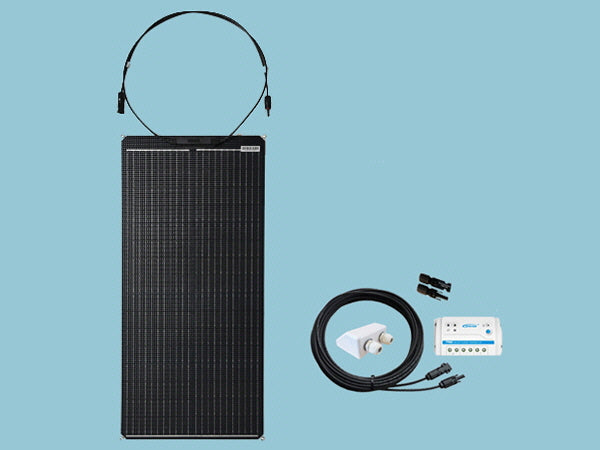

This 70W Sunshine Flexible Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 70 Watt solar power kit you could expect to generate around 19 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades.
Kit Performance - Summertime
Standard Controller: 19Ah per day - (10-30% more with MPPT Controller)
If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

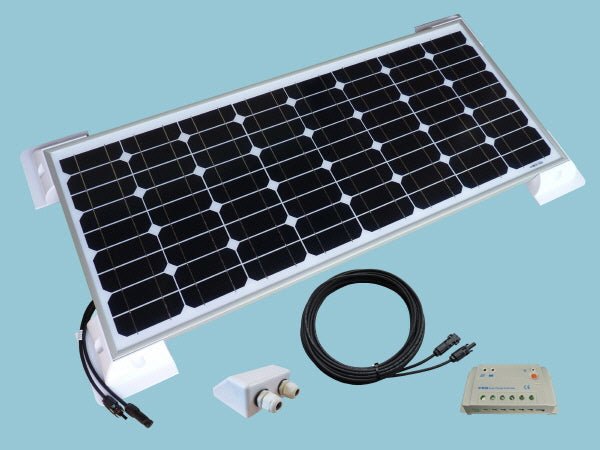

This 60W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 60 Watt solar power kit, you could expect to generate around 17 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc.
1 X Sunshine Solar Panels 60W 12V Monocrystalline
1 X 6M Extension Cables & Connectors
1 X Sunshine 4 Plastic Corner Mounts
1 X ABS Waterproof Cable Entry Cover
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter.
Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:
Single Battery Controller
MPPT Single Battery Controller
MPPT Dual Battery Controller
NOT the Dual Battery Controller
If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications
High-Efficiency Monocrystalline Cells
Maximum Power (Pmax): 60W
Maximum Power Current (Ipm): 3.48A
Maximum Power Voltage (Vmp): 17.2V
Short Circuit Current (Isc): 3.57A
Open Circuit Voltage (Voc): 21.5V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 1060 x 460 x 35mm
Weight: 6.1kg
Kit Performance - Summertime
Standard Controller: 17Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.
For More Info Please Click PDF For More Info On Installations And Maintenance.
This 80W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 80 Watt solar power kit, you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc.
1 X 80W Polycrystalline Solar Panel
1 X 6M Extension Cables & Connectors
1 X Sunshine 4 Plastic Corner Mounts
1 X ABS Waterproof Cable Entry Cover
1 X Charge Controller Selection
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter.
Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:
Single Battery Controller
MPPT Single Battery Controller
MPPT Dual Battery Controller
NOT the Dual Battery Controller
If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications
High-Efficiency Monocrystalline Cells
Maximum Power (Pmax): 60W
Maximum Power Current (Ipm): 3.48A
Maximum Power Voltage (Vmp): 17.2V
Short Circuit Current (Isc): 3.57A
Open Circuit Voltage (Voc): 21.5V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 1060 x 460 x 35mm
Weight: 6.1kg
Kit Performance - Summertime
Standard Controller: 17Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.
For More Info Please Click PDF For More Info On Installations And Maintenance.

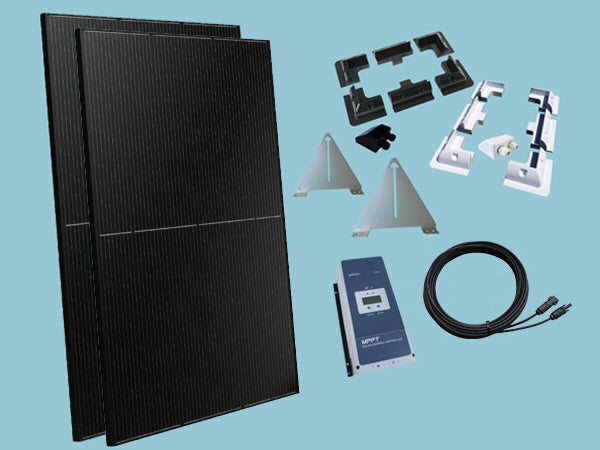

This 840W Sunshine Solar Power Narrowboat Kit offers outstanding performance and great value for money. With this 840 Watt solar power kit you could expect to generate around 280 amps per day (12V Battery System) or 140 amps per day (24V Battery System) during the summer months supplementing the leisure battery power onboard.
Whether you are on a liveaboard, day cruising or on the high seas you can rely on Sunshine Solar Panels to keep your batteries in a healthy condition at all times.
Solar Panel Specifications
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy
Data Sheet

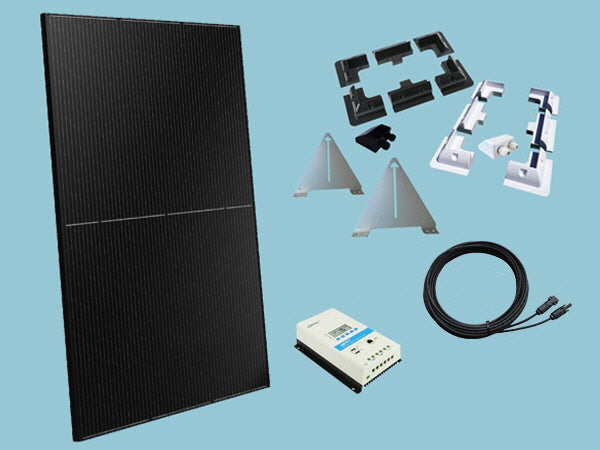

This 420W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 420 Watt solar power kit you could expect to generate around 140 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.
Solar Panel Specifications
Power Class: 420W
Maximum Power Current: (Ipm): 13.17A
Maximum Power Voltage: (Vpm): 31.89V
Short Circuit Current (Isc): 13.9A
Power Output Tolerance (Pmax): 0/+5
Open Circuit Voltage (Voc): 37.87V
Nominal Operating Cell Temp. (NOCT): -40 to +85°C
Maximum System Voltage: 1500V DC
Cells: 108 M10 Half Cells PERC
Frame Colour: Black
Module Efficiency (%): 22.51
Connector Type: MC4 or compatible connector
Length (mm): 1722
Width (mm): 1134
Thickness (mm): 30
Product Weight (Kg): 21.5
Guaranteed Performance
30 Year Linear Power Warranty
25 Year Product Warranty
Engineered in Italy

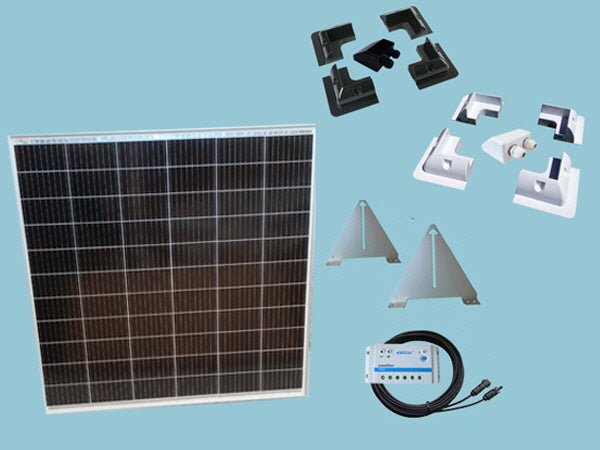

This 185W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 185 Watt solar power kit you could expect to generate around 49 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Solar Panel Specifications
Brand. Sunshine Solar
Product Code. SRG185
Max Power. 185W ± 3%
Max Power Voltage. 18.8V
Max Power Current. 9.85
Open Circuit Voltage. 22.0V
Short Circuit Current. 11.43A
Normal Operating Cell Temp. -45 to 85°C
Dimensions. 1000 x 960 x 35mm
Weight: 8.7kg
Guaranteed Performance
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Data Sheet

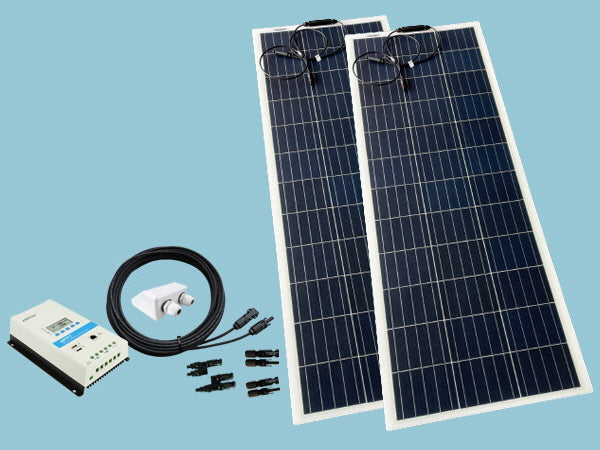

This 300W ETFE Flexible Solar Kit includes two slimline solar panels making it great for Narrowboats and applications where space is a premium. With this 300 Watt solar power kit you could expect to generate around 100 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. The kit can also be configured for 24V battery charging.
The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller.
If you are looking for maximum yield from your solar panel for a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer.
With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Maximum Power (Pmax): 150W
Maximum Power Current (Ipm): 8.33A
Maximum Power Voltage (Vpm): 18V
Short Circuit Current (Isc): 9.08A
Open Circuit Voltage (Voc): 21.6V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Size: 1450 x 540 x 4mm
Weight: 2.45 kg
Features
3° flexibility or 3cm per 1m of panel length
ETFE rough scratch resistant surface which can be walked on in deck shoes.
Aluminium Substrate
Highly efficient monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
One Year Manufacturers Warranty
Data Sheet

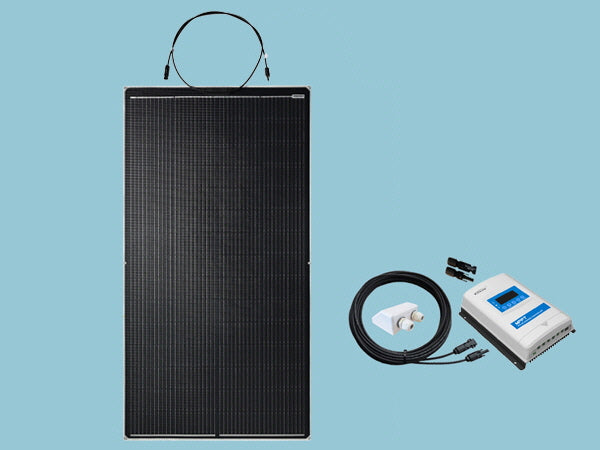

his 220W Sunshine Solar Kit features a semi-flexible solar panel that has a full ETFE coating making it perfect for extreme applications, especially the marine environment.
The Sunshine Solar Marine Flexi Panels are encapsulated in an ETFE coating, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a 220W Marine Flexi - Sunshine Solar Panel you could expect to generate around 73 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Maximum Power (Pmax): 220W
Maximum Power Current (Ipm): 6.33A
Maximum Power Voltage (Vpm): 34.8V
Short Circuit Current (Isc): .6.64A
Open Circuit Voltage (Voc): 40.7V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC200V
Size: 1500 x 780 x 4mm
Features
Four fixing eyelets
ETFE rough scratch resistant surface which can be walked on in deck shoes.
Highly efficient monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors
Three Year Manufacturers Warranty
Data sheet
This 200W high-efficiency solar panel with Mono-Perc technology embraces the latest, enhanced manufacturing process. It features a special encapsulant material designed to better resist solar cell micro-crack issues, which can occur when the panel is under stress during bending.
The solar panels can be flexed up to 30 degree, which makes it adaptable to all kinds of curved surfaces.
Light wight and only 2.5mm thick the Mono PERC range is suitable to be installed on rooftops with weight limit issues.
You can expect increased energy production and increased low-light and high-heat performance with the 200W Flexible Mono PERC Range. The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a 200W Sunshine Solar Mono PERC Flexible Panel you could expect to generate around 66 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Maximum Power (Pmax): 200W
Maximum Power Current (Ipm): 9.72A
Maximum Power Voltage (Vpm): 20.58V
Short Circuit Current (Isc): 10.53A
Open Circuit Voltage (Voc): 24.35V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 1595 x 720 x 2.5mm
Weight: 3.9kg
Features
Encapsulated scratch resistant surface which can be walked on in deck shoes.
Highly efficient PERC monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
Three Year Manufacturers Warranty
Data Sheet

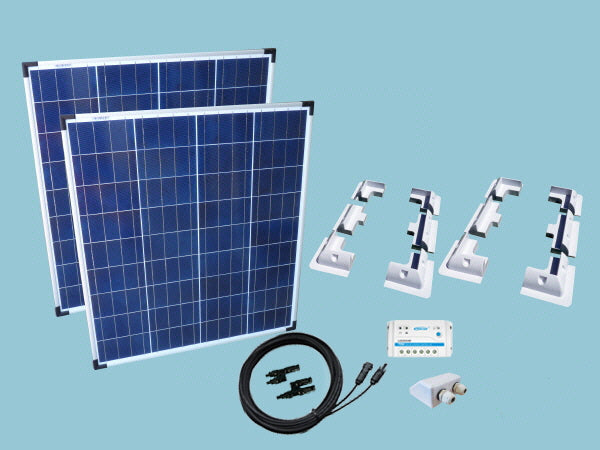

This 160W Sunshine Solar Panel Kit features two 80W solar panels ideal in situations where there is not enough space on a caravan/motorhome roof (due to vents, tv aerials etc) to fit one large panel.
The kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: Please note: The Bluetooth Adapter is only compatible with the MPPT Dual Controller DuoRacer (Upgrade). If you are upgrading to the MPPT Single Controller this has Bluetooth capabilities built-in, so for easy system monitoring you will just need to download the free APP and you are ready to go.
Need More Power? ...... Upgrade to an MPPT controller above for 10-30% eXtra Power
High Efficiency Polycrystalline Cells
Maximum Power (Pmax): 80W
Maximum Power Current (Ipm): 4.49A
Maximum Power Voltage (Vpm): 17.8V
Short Circuit Current (Isc): 4.85A
Open Circuit Voltage (Voc): 21.3V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC1000V
Size: 665mm x 760mm x 35mm
Weight: 5.69kg
Kit Performance - Summertime
Standard Controller: 45Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
5 Years Manufacturers Warranty
10 Years Warranty 90% Power Output
20 Years Warranty 80% Power Output
Data Sheet

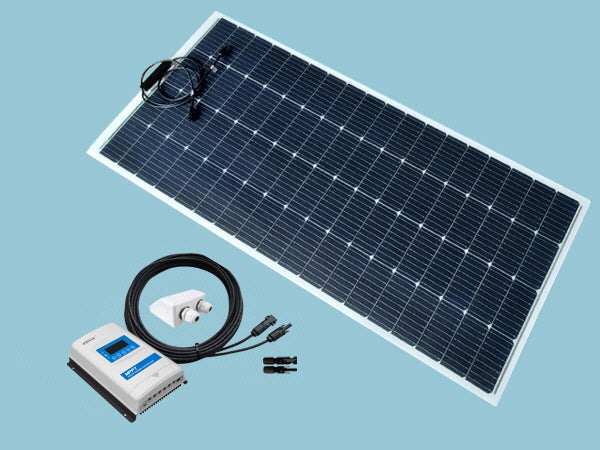

This 150W Sunshine Solar RV Flexible Solar Kit offers outstanding performance and great value for money. With this 150 Watt solar power kit you could expect to generate around 36 amps with the standard PWM controller supplied with this kit. With an MPPT controller upgrade this increases to 50 amps per day during the summer months supplementing the 12V leisure battery power in boats caravan, campervan etc.

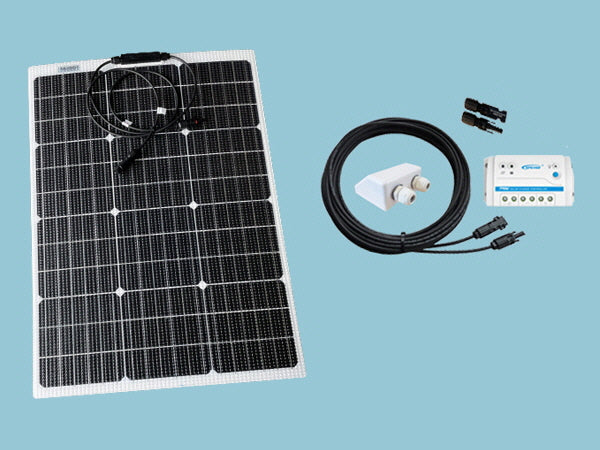

The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
Brand. Sunshine Solar
Maximum Power (Pmax): 150W
Maximum Power Current (Ipm): 7.18A
Maximum Power Voltage (Vpm): 20.9V
Short Circuit Current (Isc): 7.54A
Open Circuit Voltage (Voc): 24.5V
Nominal Operating Cell Temp. (NOCT): -45 to 80°C
Maximum System Voltage: DC600V
Size: 1110 x 770 x 2mm
Weight: 2.8 kg
Features
Six fixing eyelets
ETFE rough scratch resistant surface which can be walked on in deck shoes.
Highly efficient monocrystalline cells
Can be conveniently placed on slightly curved solid surfaces
Can be easily bonded using Fixing Adhesive (no need for drilling)
4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
Three Year Manufacturers Warranty
