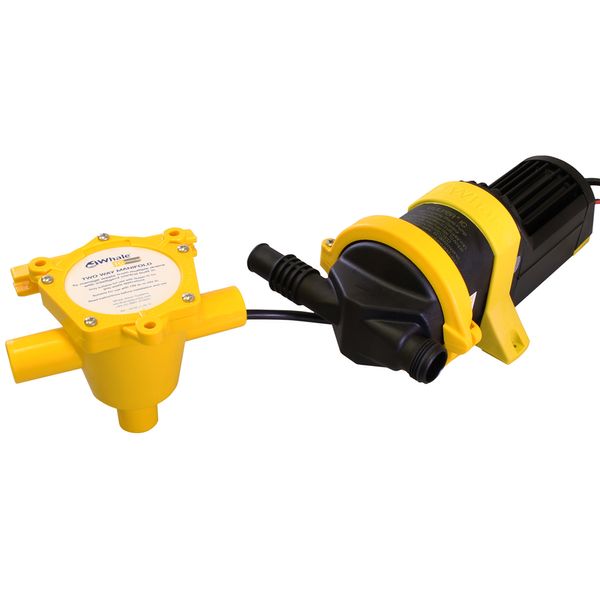

The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. This model supports 2 inlets.
Complete prewired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump.
Gulper IC - Automatic control - receives electrical signals to turn on/off as required
• One pump handles waste from multiple drains
• Fast drainage - high capacity up to 19 litres (5 US gals) /min
• Self primes and runs dry
• Easy to install - including uneven surfaces
• Time delay to allow for optimum drainage
• Soft start - protects the pump for long life
• Low current controlled switching - no switch failure from high currents
• Two Way Manifold IC- Fully automatic Two Way Manifold handles waste from multiple drains as required.
• Senses waste level through wall - not in contact with water
• Quiet drainage
• Removes the need to install a bulky grey waste tank
• Service free - No moving parts to clog or burn
• Fully potted circuitry - protected against water ingress
It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Flow Rate 1 Metre Head
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons)
Maximum Head and Lift
4 Metres
Maximum Recommended Head
3 Metres
Brand
Whale
Voltage Description
12V DC
Model
WM8284
Height Description
117mm
Width
198mm
Depth
102mm (4")
Length
280mm
Fuse
10A
Flow Rate Description
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons)
Approvals
ISO8846, IP45, CE Certified
Consumption
7.5A with 19mm Hose, 8A with 25mm Hose
Connections Description
19mm (3/4") / 25mm (1")
Minimum Cable Spec
1.5mm²
Country of Origin
United Kingdom
Downloads
Information Sheet
Product Sheet

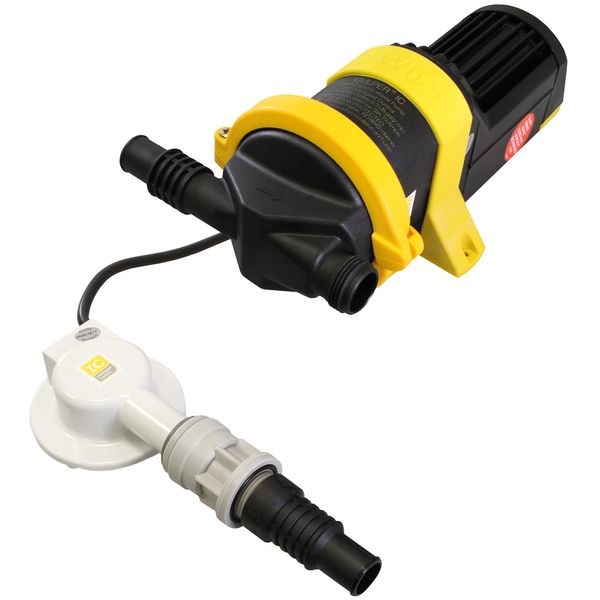

GULLEY IC (IC Intelligent Control)
The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. Connections: 19mm (3/4") or 25mm (1").
Specifically designed for shower waste - Includes Gulper IC electric waste pump and Compact Gulley IC with 4m (12ft) cable for easy installation.
Unique Intelligent Control means Gulley IC Kit is all you need for shower waste management. Electrical signals are sent from Gulley IC only when grey waste water needs to be pumped out. Fully automatic shower gulley drains waste away.
WHY Gully IC?
Features and Benefits
• Automatic control - Gulley IC senses the grey waste level and sends signals to Gulper IC to turn off and on as required
• One pump automatically handles waste from your shower on board - no manual switches required
• Easy installation - pre wired plug and play kit
• Reliability - no moving parts to clog
• Long life - self primes and can run dry
• Soft start - protects the pump
• Low current controlled switching - no switch failure from high currents
• Fast drainage - high capacity up to 19 ltrs (5 US gals) /min
• Optimal drainage - built in time delay
Accreditations:
• Ignition protection ISO8846.
• CE marked
Gulley IC
• Compact single shower gulley with integrated intelligent control
• Easy clean cover and sleek design
• Protected against water ingress – fully potted circuitry
• Quiet drainage
Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Flow Rate 1 Metre Head
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons)
Maximum Head and Lift
4 Metres (13.5ft)
Maximum Pump Head
2.3 to 4.27 Metres
Maximum Recommended Head
3 Metres (10ft)
Maximum Suction Lift
3 Metres (10ft)
Brand
Whale
Voltage Description
12V DC
Model
SG8284
Height Description
117mm
Width
198mm
Depth
102mm (4")
Length
280mm
Material
Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners
Fuse
10A
Flow Rate Description
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons)
Approvals
ISO8846, CE Certified
Consumption
8A
Connections Description
19mm (3/4") / 25mm (1")
Minimum Cable Spec
1.5mm² (16 AWG)
Country of Origin
United Kingdom
Downloads
Product Sheet
Installation Guide

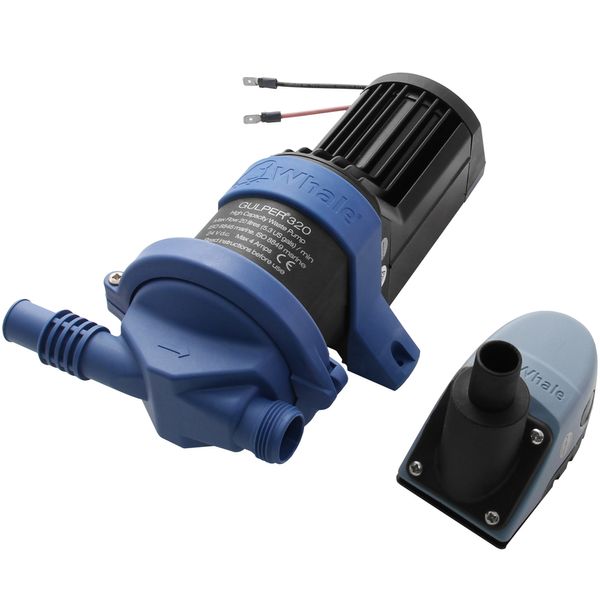

The Whale Gulper 320 is ideal where bilge space is limited as it has the smallest strainer footprint. The head rotates to suit your installation and making it easy to install even on uneven surfaces. It has non choke valves and no filter to clean making it easy to maintain.
Maximum Pump Head
2.3 to 4.27 Metres
Dimensions
Base: 156mm x 110mm (6.1" x 4.4")
Maximum Combined Head and Lift
4m (13.1ft)
Maximum Recommended Head
3 Metres (9.8 Feet)
Replaces
504814
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum 1.5mm² (16 AWG)
Inlet Outlet
19mm (3/4") & 25mm (1") ID Hose
Brand
Whale
Type
Toilet Pumps
Voltage Description
12V DC
Model
BP2052
Height Description
Overall: 117mm (4-5/8")
Width
Overall: 198mm (7-3/4"), Strumbox: 60mm
Length
Overall: 280mm (11"), Strumbox: 98mm
Material
Glass-Filled Nylon Body
Fuse
10A
Flow Rate Description
19 LPM (4.16 GPM / 5 US GPM)
Approvals
ISO15083 Marine Standard suitable for bilge pump ( for vessels up to 12mtrs), CE Marked, Ignition protected ISO8846
Supplied With
Strainer
Warranty
3 Years
Country of Origin
United Kingdom
Downloads
Whale Pump Brochure

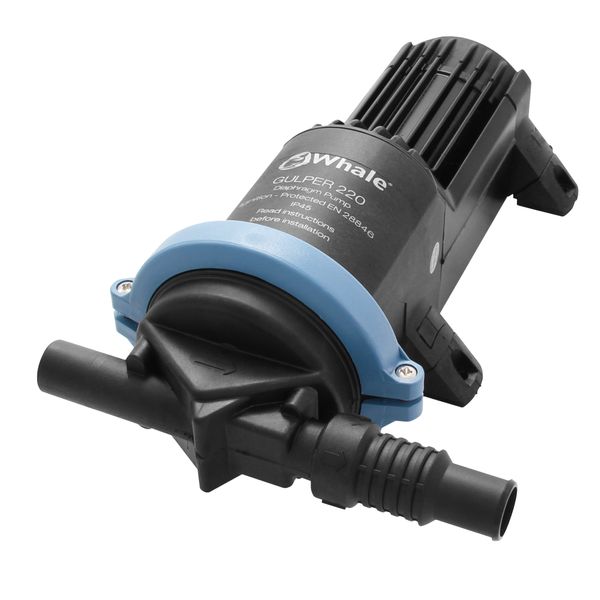

Whale Gulper 220 is a wastewater pump particularly designed to handle hair and gels, making it ideal as a shower waste pump. It features a body constructed from aluminium and glass-filled nylon for a robust housing suitable for the marine environment along with rubber feet designed to absorb vibration. Popular diaphragm pump, will run dry without damage and self priming up to 3m. Multi-directional head. Up to 14 litres per minute. Dimensions: 117mm x 173mm (including hose tails) x 273mm Connections Type: 19mm hose tails Fuse Requirement: 5A.
Maximum Pump Head
2.3 to 4.27 Metres
Dimensions
Base: 135mm x 111mm (5-5/16" x 4-3/4")
Maximum Combined Head and Lift
4m (13.1ft)
Maximum Recommended Head
3 Metres (9.8 Feet)
Replaces
Closest Alternative for 509430 & 509432 Flojet Shower Waste Drain Pumps
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum 1.5mm² (16 AWG)
Inlet Outlet
19mm (3/4") ID hose
Brand
Whale
Type
Toilet Pumps
Voltage Description
12V DC
Model
BP1552
Height Description
117mm (4-5/8")
Width
173mm (6-13/16")
Length
273mm (10-3/4")
Fuse
5A
Flow Rate Description
14 LPM (3 GPM / 3.7 US GPM)
Approvals
CE Marked, IP45 rated for water ingress, Ignition protected ISO8846, ISO10133 Electrical systems – extra low voltage dc installations
Warranty
2 Years
Country of Origin
United Kingdom
Downloads
Installation Sheet
Product Sheet
