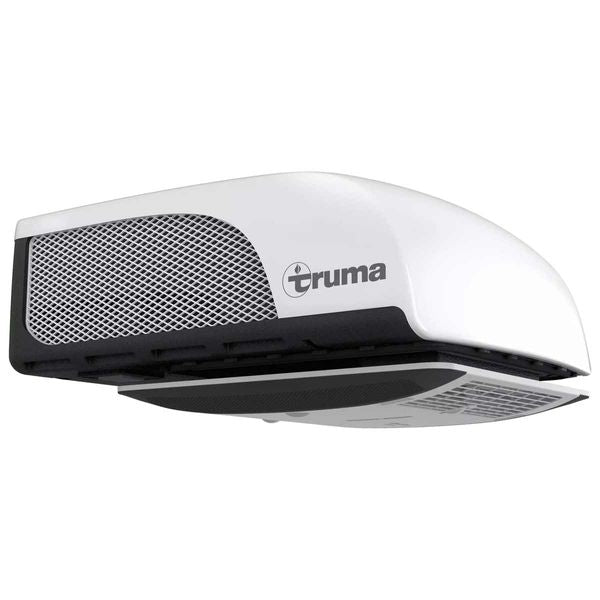

The Truma Aventa Compact Plus is a roof-mounted air conditioning system designed to provide efficient cooling power for a range of vehicles, from van conversions to large motorhomes.

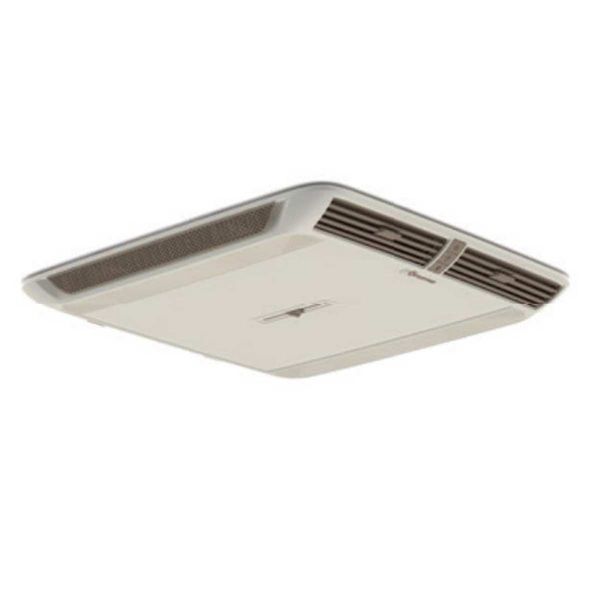

This model is made up of a stylish white roof-top unit and a cream diffuser installed on the interior ceiling of the vehicle.
Despite its compact housing, the system boasts an impressive cooling capacity of 2200 watts, offering 500 watts more than its predecessor, the Aventa Compact. It can fit onto the roof of most leisure vehicles and weighs just 29.5kg.
One of the notable features of the Aventa Compact Plus is its quiet operation, with reduced compressor noise compared to other roof-mounted air conditioning systems. This makes for a more comfortable environment without disturbance.
The unit allows for individual adjustment of air outlets, ensuring that cool air can be directed where desired.

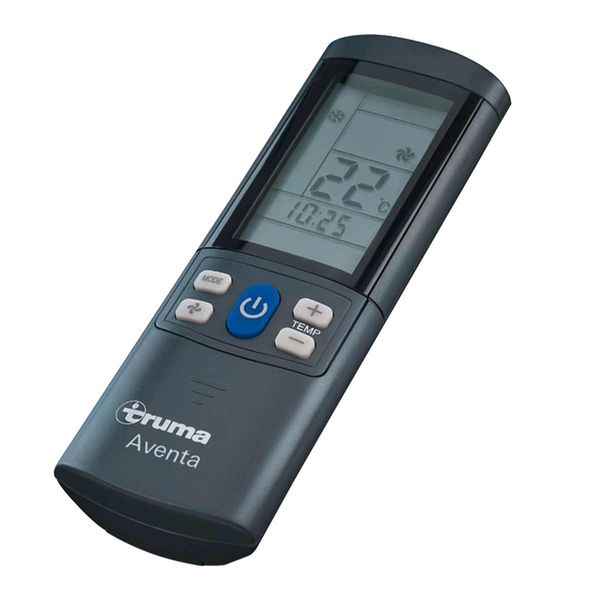

The Aventa Compact Plus can be managed conveniently using the supplied remote control or the CP Plus digital control unit (available separately). Additionally, integration into the iNet system enables control via a dedicated app, offering modern and flexible operation options.
This product comes with a 5-year parts warranty when installed by an authorised Truma dealer, and in the event of a warranty claim, a replacement unit can be provided promptly.
Key Features
Made up of white roof-top unit and interior cream diffuser
Compact cooling power of 2200 watts
Fits on the vehicle roof even where space is limited
Runs quietly thanks to reduced compressor noise
Weighs just 29.5kg
Brand
Truma
Voltage Description
230V
Model
Aventa Compact Plus
Power Supply
230V

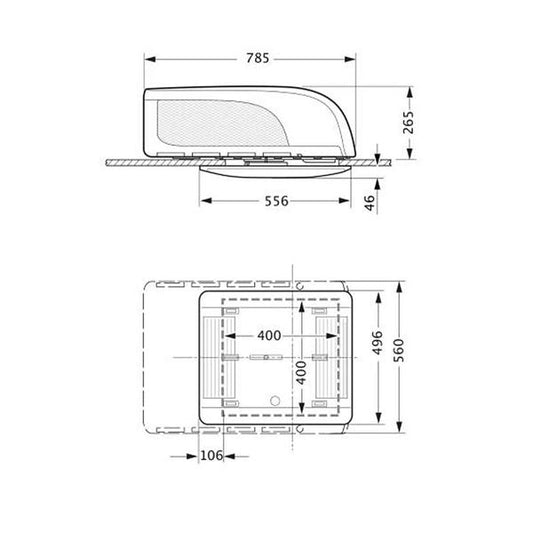

Height Description
Outer: 265mm, Inner: 46mm
Width
Outer: 560mm, Inner: 496mm
Length
Outer: 785mm, Inner: 556mm
Weight
29.5kg
Colour
Grey
Cut Out
380 x 350 mm / 400 x 400 mm
Wattage
Cooling Power: 2200W
Temperature Range
+16 °C to +40 °C
The Truma Aventa Compact Plus is a roof-mounted air conditioning system designed to provide efficient cooling power for a range of vehicles, from van conversions to large motorhomes.

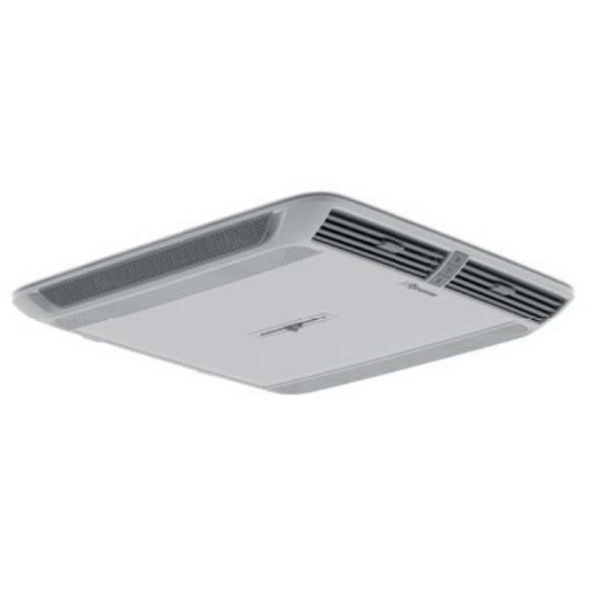

This model is made up of a stylish white roof-top unit and a grey diffuser installed on the interior ceiling of the vehicle.
Despite its compact housing, the system boasts an impressive cooling capacity of 2200 watts, offering 500 watts more than its predecessor, the Aventa Compact. It can fit onto the roof of most leisure vehicles and weighs just 29.5kg.
One of the notable features of the Aventa Compact Plus is its quiet operation, with reduced compressor noise compared to other roof-mounted air conditioning systems. This makes for a more comfortable environment without disturbance.
The unit allows for individual adjustment of air outlets, ensuring that cool air can be directed where desired.
The Aventa Compact Plus can be managed conveniently using the supplied remote control or the CP Plus digital control unit (available separately). Additionally, integration into the iNet system enables control via a dedicated app, offering modern and flexible operation options.
This product comes with a 5-year parts warranty when installed by an authorised Truma dealer, and in the event of a warranty claim, a replacement unit can be provided promptly.
Key Features
Made up of white roof-top unit and interior grey diffuser
Compact cooling power of 2200 watts
Fits on the vehicle roof even where space is limited
Runs quietly thanks to reduced compressor noise
Weighs just 29.5kg
Brand
Truma
Voltage Description
230V
Model
Aventa Compact Plus
Power Supply
230V
Height Description
Outer: 265mm, Inner: 46mm
Width
Outer: 560mm, Inner: 496mm
Length
Outer: 785mm, Inner: 556mm
Weight
29.5kg
Colour
Grey
Cut Out
380 x 350 mm / 400 x 400 mm
Wattage
Cooling Power: 2200W
Temperature Range
+16 °C to +40 °C

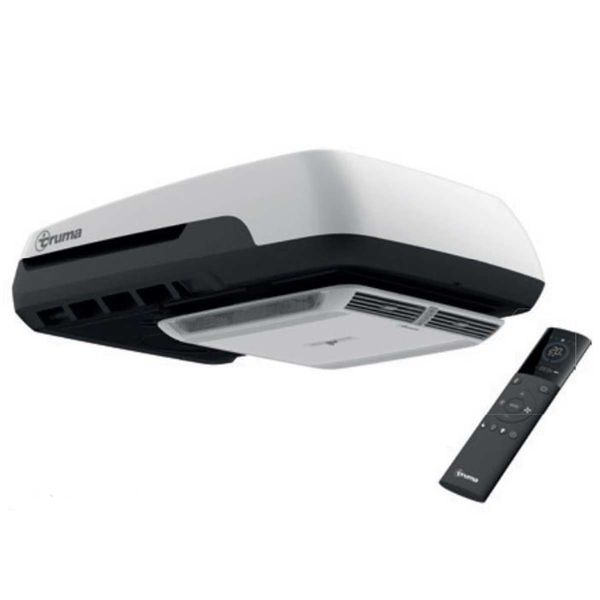

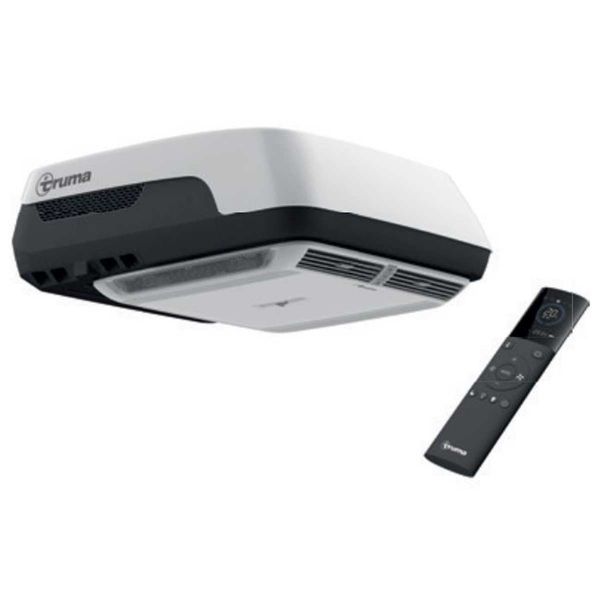

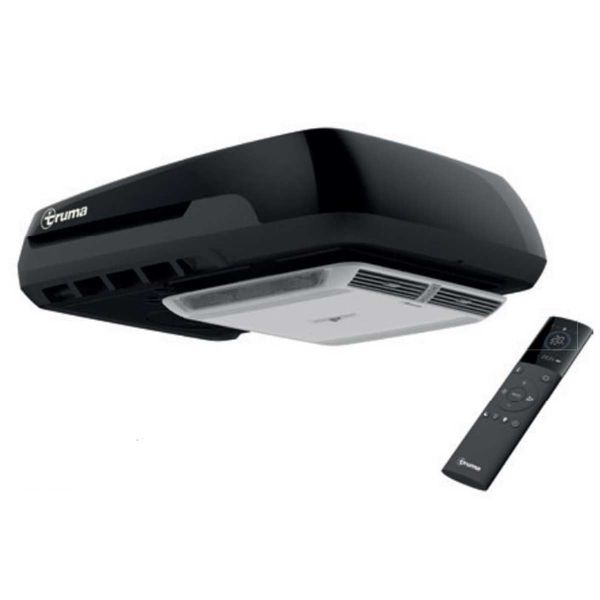

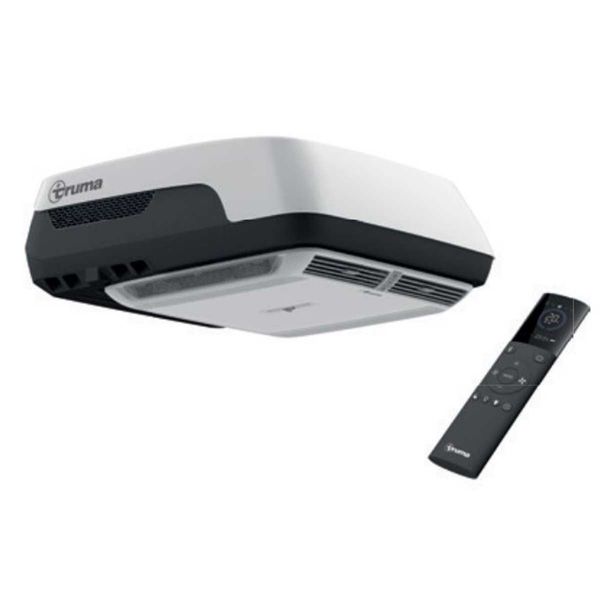

The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 243mm and has a cooling power of 2500W and a heat output of 2000W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 1008 x 665 x 243 mm (L x W x H)
Brand
Truma
Weight
28.7 kg
Colour
White
Output
2000W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
4.9A
Consumption Heating
4.2A
Cooling Power
2500W

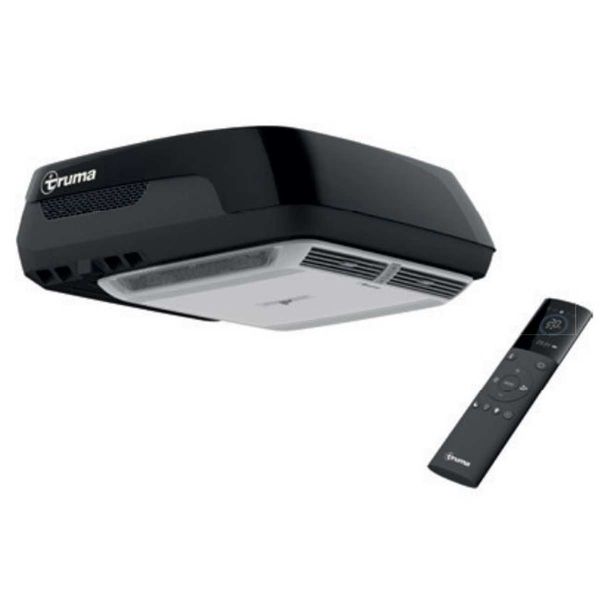

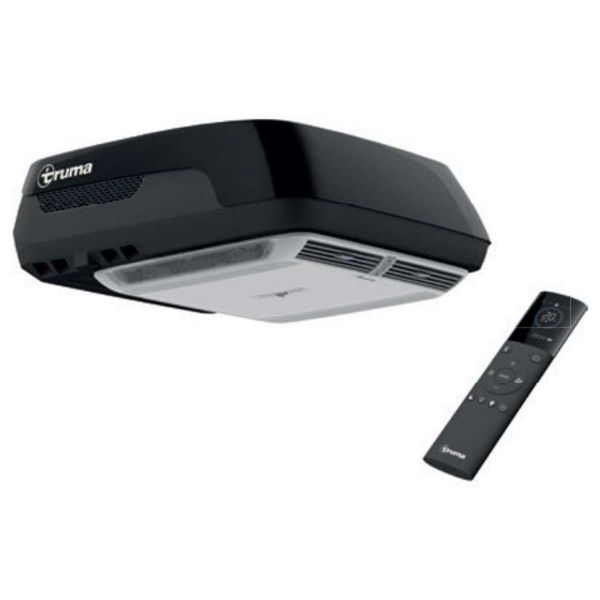

The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 243mm and has a cooling power of 2500W and a heat output of 2000W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 1008 x 665 x 243 mm (L x W x H)
Brand
Truma
Weight
28.7 kg
Colour
Black
Output
2000W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
4.9A
Consumption Heating
4.2A
Cooling Power
2500W
The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 245mm and has a cooling power of 2200W and a heat output of 1500W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 786 x 577 x 245 mm (L x W x H)
Brand
Truma
Weight
24.2 kg
Colour
White
Output
1500W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
5A
Consumption Heating
2.1A
Cooling Power
2200W
The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 245mm and has a cooling power of 2200W and a heat output of 1500W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 786 x 577 x 245 mm (L x W x H)
Brand
Truma
Weight
24.2 kg
Colour
Black
Output
1500W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
5A
Consumption Heating
2.1A
Cooling Power
2200W
The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 245mm and has a cooling power of 1700W and a heat output of 1200W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 786 x 577 x 245 mm (L x W x H)
Brand
Truma
Weight
23.2 kg
Colour
White
Output
1500W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
3.3A
Consumption Heating
1.55A
Cooling Power
1700W
The Aventa is perfect for campervans and motorhomes, which fits in to a 40 x 40cm aperture. The height above the vehicle when fitted is 245mm and has a cooling power of 1700W and a heat output of 1200W. Works in conjunction with iNet box for complete remote operation.
Dimensions
External: 786 x 577 x 245 mm (L x W x H)
Brand
Truma
Weight
23.2 kg
Colour
Black
Output
1500W
Cut Out
380 x 350 mm / 400 x 400 mm (L x W)
Consumption Cooling
3.3A
Consumption Heating
1.55A
Cooling Power
1700W

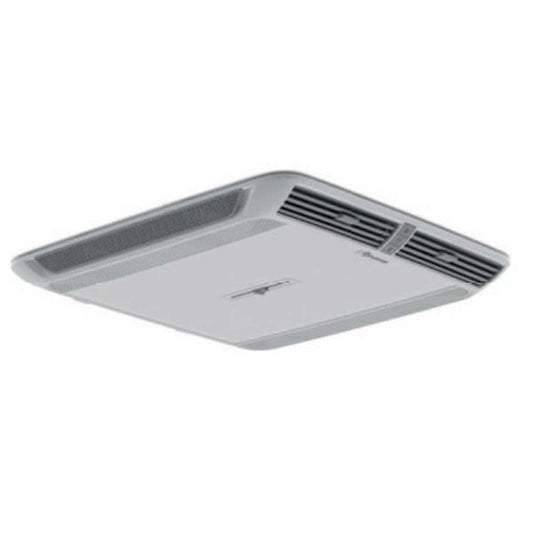

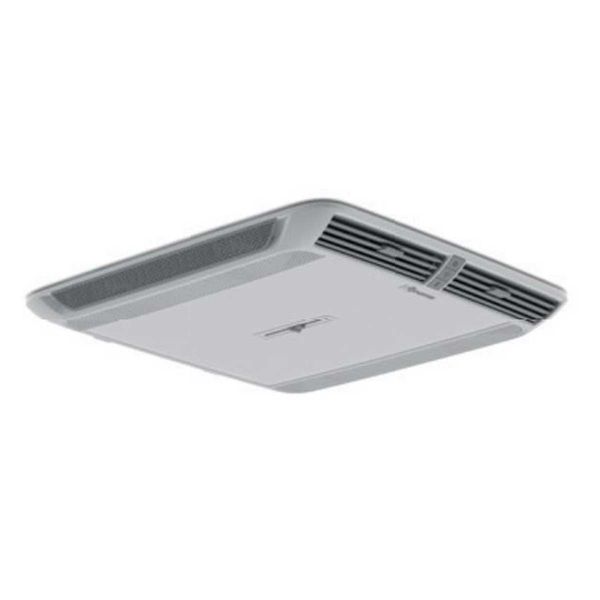

Truma Aventa Air distributor in colour premium cappuccino, comes with full adjustability and integrated ambient lighting.
Air distributor, mounting frame, remote control incl. wall mount, installation material (screws, clamps)
Brand
Truma
Height Description
45mm
Width
497mm
Length
550mm
Weight
2.7kg
Colour
Beige

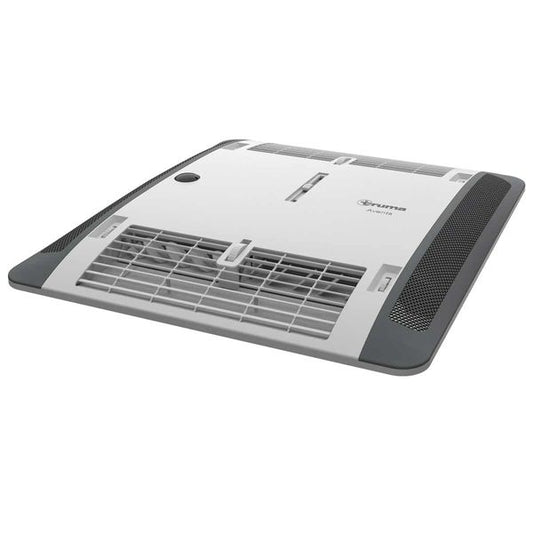

Truma Aventa Air distributor in colour premium stone, comes with full adjustability and integrated ambient lighting.
Air distributor, mounting frame, remote control incl. wall mount, installation material (screws, clamps)
Brand
Truma
Height Description
45mm
Width
497mm
Length
550mm
Weight
2.7kg
Colour
Grey
Truma Aventa Air distributor in colour standard cappuccino, comes with full adjustability and integrated ambient lighting.
Air distributor, mounting frame, remote control incl. wall mount, installation material (screws, clamps)
Brand
Truma
Height Description
45mm
Width
497mm
Length
550mm
Weight
2.7kg
Colour
Beige
Truma Aventa Air distributor in colour Standard Stone, comes with full adjustability and integrated ambient lighting.
Air distributor, mounting frame, remote control incl. wall mount, installation material (screws, clamps)
Brand
Truma
Height Description
45mm
Width
497mm
Length
550mm
Weight
2.7kg
Colour
Beige
