▪ This towbar easily swings to the side to give you full access to the rear
of your vehicle, even with e-bikes mounted on a towbar bike rack;
▪ This towbar solution allows you to use the same towbar bike rack or
cargo box on your RV and your everyday car;
▪ Thule VeloSwing functions as a certified towbar, allowing you to tow a
heavy trailer, boat, and other towbar accessories up to the vehicle's
allowed limit (3000 kg);
▪ Total ease of use with intuitive locking system
302064 Thule VeloSwing
302065 Thule VeloSwing Bumper
302066 Thule VeloSwing Bumper | Parking Sensors
302075 Thule VeloSwing Wiring Kit (13 pin) > 02/2011
302076 Thule VeloSwing Wiring Kit (13 pin) 2006 < 01/2011
Ducato based vehicles:
▪ Fiat Ducato H1, H2, H3/ L1, L2, L3, L4 2006 -
▪ Peugeot Boxer H1, H2, H3/ L1, L2, L3, L4 2006 -
▪ Citroën Jumper H1, H2, H3/ L1, L2, L3, L4 2006 -
▪ Opel Movano H1, H2, H3/ L1, L2, L3, L4 2022 -
Product specs:
▪ Maximum vertical load: 150kg, in line with vehicle capacity
▪ Maximum trailer weight: 3T, in line with vehicle capacity
▪ Opening range : 95°
▪ Product weight: 53kg >> 45kg
DOWNLOAD PRESENTATION
DOWNLOAD VELOSWING FITTING INSTRUCTIONS
Product video
Memo Europe chassis extensions widely used in the motorhome industry when a vehicle is not suitable for towing. These Type Approved extensions attach to the existing X250 / X290 chassis.
Please do not order these extensions without first checking with our sales department that these are suitable / required for the specific vehicle.
Daniel (Lead Engineer)
07407221667

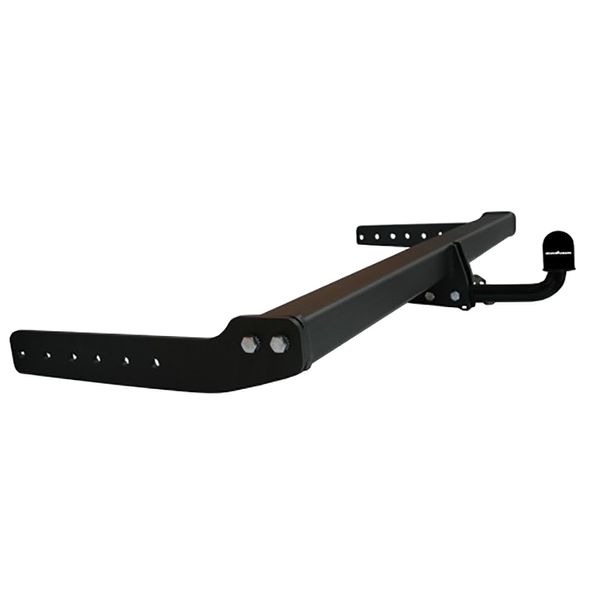

Towbar for Al-Ko-based motorhomes . This Memo motorhome towbar has a fixed width of 1030mm and has a Max Towing Capacity (D.Value) :13.08kn, 2000kg and (S.Value):100kg. (Swan neck ball)
This towbar is suitable for motorhomes with an AL-KO chassis or extension (or any other extension that is suitable for fitting a towbar).
This fixed width of 1030 mm perfectly fits Adria Coral series (till 2006), Mercedes Sprinter based motorhomes (1996-2018) in combination with chassis extensions and many more motorhomes and other Mercedes Sprinter or Volkswagen Crafter based vehicles with Al-Ko or Sawiko chassis extensions. This towbar fits to the chassis widths: 1020, 1030 and 1040 mm.
Brand
Memo Europe
Width
1030mm
Finish
Powder Coated
Material
Metal
Colour
Black
Approvals
EC 94/20 approved
Application
Al-Ko
Unsure of Motorhome type please fill out information form please click blue link below

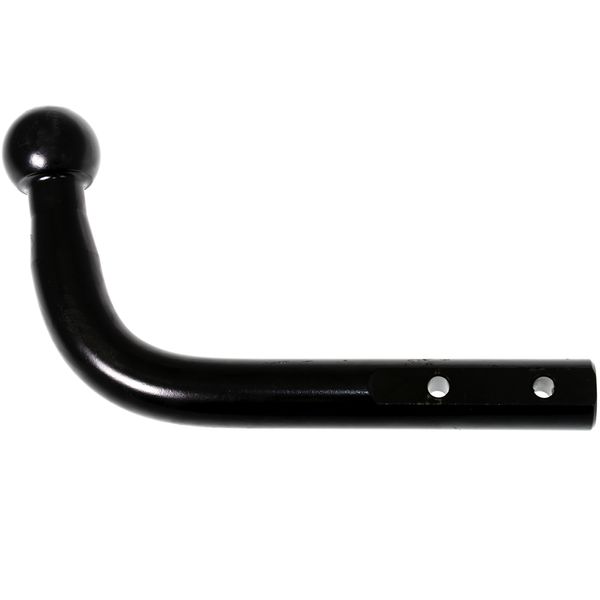

The Memo High Neck Towball is 50mm higher than a standard towball and has a black powder coated finish.
(NOT SUITABLE FOR TOWBALL MOUNTED CARRIERS)
Brand
Memo Europe
Type
Towballs
Towbar for Fiat Ducato X250-based motorhomes with chassis extensions. This Memo motorhome towbar has a fixed width of 1420mm and has a Max Towing Capacity (D.Value): 13.08kn, 2000kg and (S.Value): 100kg. This towbar is suitable for Fiat Ducato X250-based motorhomes (2006 onwards) with a Memo, Linnepe, or SMV chassis extension fitted on the outside of the chassis. (swan neck ball)
This fixed width of 1420 mm perfectly fits all motorhomes that are built on a Fiat Ducato chassis (2006 onwards) and that have chassis extensions fitted on the outside of the chassis, such as: Itineo; Burstner; Adria; SunLight; Dethleffs; Sun Living; Knaus; Weinsberg; LMC; Carado; McLouis; etc. This towbar fits to the chassis widths: 1420 mm and 1430 mm.
Brand
Memo Europe
Height Description
170mm
Width
200mm
Length
1460mm
Finish
Powder Coated
Weight
20kg
Material
Metal
Colour
Black
Approvals
EC 94/20 approved
Application
Fiat

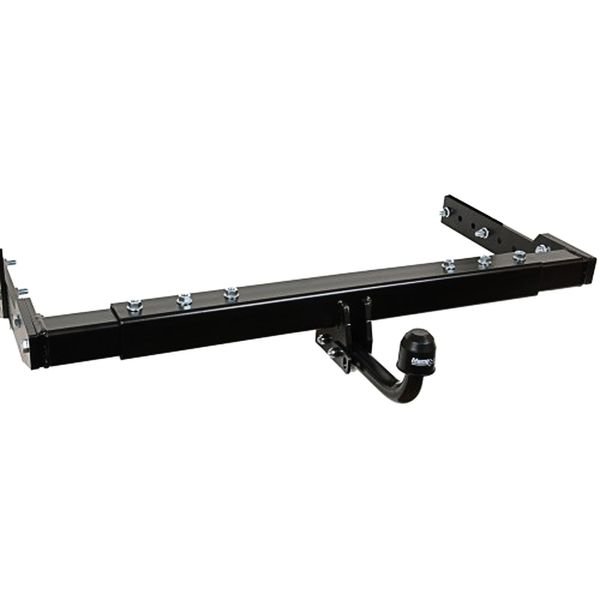

Fantastic quality product made in the Netherlands. This tow bar is adjustable to any width of Alko chassis. Fits on (almost) any chassis extension (e.g.. Alko / Trigano). EC 94/20 approved, D-value of 13,08 (200KG towing capacity with vehicle weight of 4000KG). Powder coated finish in black, Easy to fit, Detachable tow-ball optional (32841). Weight approx. 32KG.
Brand
Memo Europe
Application
Al-Ko
This Memo Towbar kit is predominately suitable for Fiat based vehicles with an AL-KO chassis conversion, making it compatible with a large array of modern day coach built motorhomes.
Kit consists of a 1280-1290mm fixed width Towbar with D-Value of 13.08kN and S-Value of 100kg, diagonal braces and a 13-pin Jaeger wiring kit.
Has type approval : ECE 94/20 R55
Brand
Memo Europe
Application
Fiat

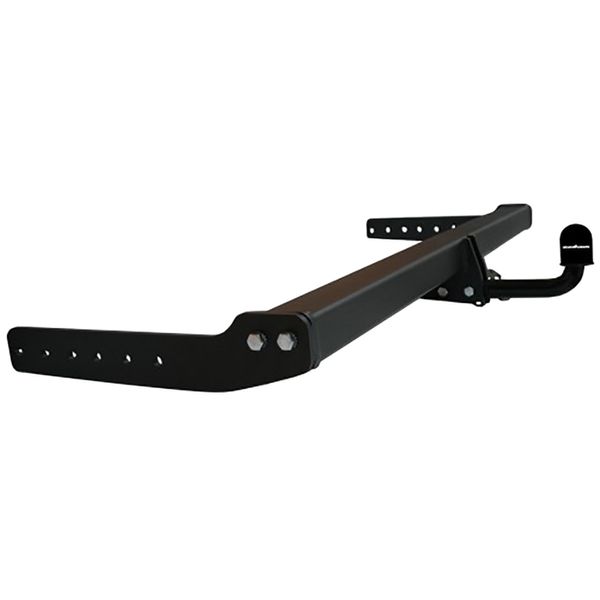

Towbar for Al-Ko based motorhomes. This Memo motorhome towbar has a fixed width of 1280mm and has a Max Towing Capacity (D.Value) : 13.08kn, 2000kg and (S.Value) : 100kg. This towbar is suitable for motorhomes with an Al-ko chassis or chassis extension (or any other extension that is suitable for fitting a towbar). (swan neck ball)
This fixed width of 1280 mm, amongst others, perfectly fits Hymer, Carthago, Bailey, AutoSleeper, Pilote and EuraMobil on Al-Ko chassis. This towbar fits to the chassis widths: 1275, 1280 and 1290 mm.
Brand
Memo Europe
Width
1280mm
Finish
Powder Coated
Material
Metal
Colour
Black
Approvals
EC 94/20 approved
Application
Al-Ko

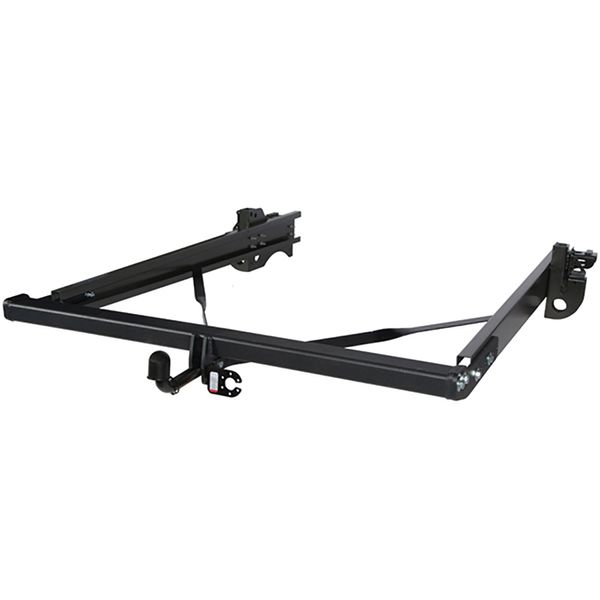

This Memo Towbar kit is predominately suitable for Fiat based vehicles where there are no chassis extensions present, or the extensions currently present are not deemed suitable for towing.
Kit consists of a 1420mm fixed width Towbar with D-Value of 13.08kN and S-Value of 100kg, tapered C-Section profile chassis extensions, diagonal braces and a 13-pin Jaeger wiring kit.
Has type approval : ECE 94/20 R55
Brand
Memo Europe
Application
Fiat
This Memo Towbar kit is predominately suitable for Fiat-based vehicles with an AL-KO chassis conversion, making it compatible with a large array of modern-day coach-built motorhomes.
Kit consists of a 1280-1290mm fixed width Towbar with a D-Value of 13.08kN and S-Value of 100kg, diagonal braces, and a 13-pin Jaeger wiring kit.
Has type approval: ECE 94/20 R55
Brand: Memo Europe
Application: Fiat
