Description

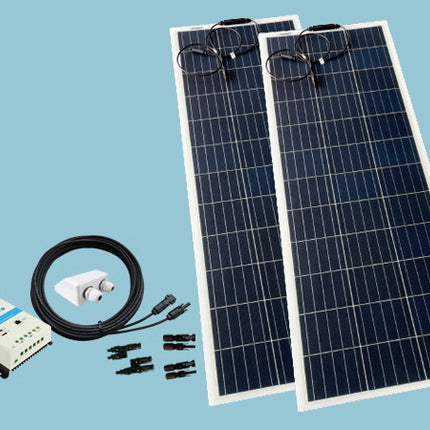

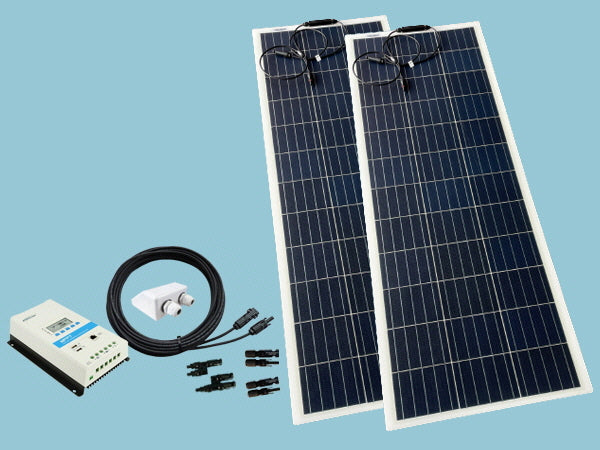

This 300W ETFE Flexible Solar Kit includes two slimline solar panels making it great for Narrowboats and applications where space is a premium. With this 300 Watt solar power kit you could expect to generate around 100 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. The kit can also be configured for 24V battery charging.
The Sunshine Flexible ETFE 150W Solar Panels have been specially manufactured to provide a high DC voltage to maximise battery charging through a higher efficiency MPPT charge controller.
If you are looking for maximum yield from your solar panel for a 12 volt battery systems the 150W Flexible Solar Panel will provide the answer.
With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
- Maximum Power (Pmax): 150W
- Maximum Power Current (Ipm): 8.33A
- Maximum Power Voltage (Vpm): 18V
- Short Circuit Current (Isc): 9.08A
- Open Circuit Voltage (Voc): 21.6V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC600V
- Size: 1450 x 540 x 4mm
- Weight: 2.45 kg
Features
- 3° flexibility or 3cm per 1m of panel length
- ETFE rough scratch resistant surface which can be walked on in deck shoes.
- Aluminium Substrate
- Highly efficient monocrystalline cells
- Can be conveniently placed on slightly curved solid surfaces
- Can be easily bonded using Fixing Adhesive (no need for drilling)
- 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
- One Year Manufacturers Warranty
Data Sheet
