Description

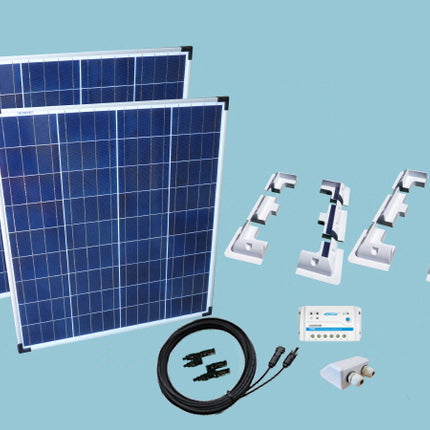

This 160W Sunshine Solar Panel Kit features two 80W solar panels ideal in situations where there is not enough space on a caravan/motorhome roof (due to vents, tv aerials etc) to fit one large panel.
The kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Please note: Please note: The Bluetooth Adapter is only compatible with the MPPT Dual Controller DuoRacer (Upgrade). If you are upgrading to the MPPT Single Controller this has Bluetooth capabilities built-in, so for easy system monitoring you will just need to download the free APP and you are ready to go.
Need More Power? ...... Upgrade to an MPPT controller above for 10-30% eXtra Power
- High Efficiency Polycrystalline Cells
- Maximum Power (Pmax): 80W
- Maximum Power Current (Ipm): 4.49A
- Maximum Power Voltage (Vpm): 17.8V
- Short Circuit Current (Isc): 4.85A
- Open Circuit Voltage (Voc): 21.3V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC1000V
- Size: 665mm x 760mm x 35mm
- Weight: 5.69kg
Kit Performance - Summertime
- Standard Controller: 45Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
Data Sheet
