Description
This 60W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 60 Watt solar power kit, you could expect to generate around 17 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc.

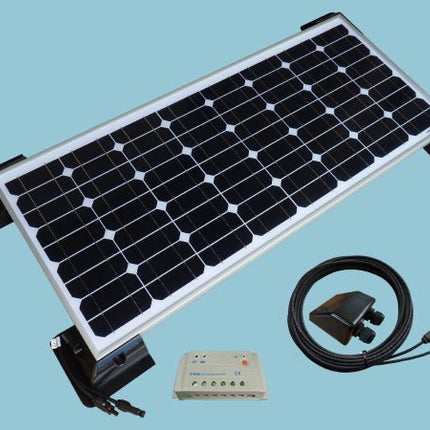

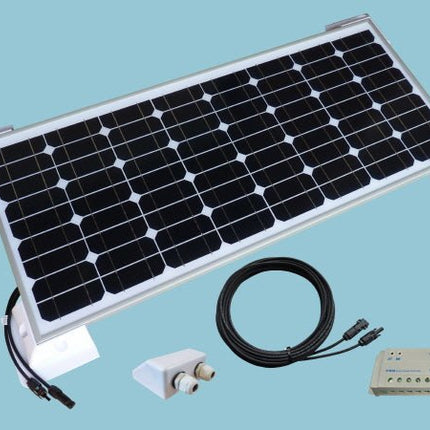

1 X Sunshine Solar Panels 60W 12V Monocrystalline
1 X 6M Extension Cables & Connectors
1 X Sunshine 4 Plastic Corner Mounts
1 X ABS Waterproof Cable Entry Cover
Description
This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter.
Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:
- Single Battery Controller
- MPPT Single Battery Controller
- MPPT Dual Battery Controller
NOT the Dual Battery Controller
If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.
Solar Panel Specifications
- High-Efficiency Monocrystalline Cells
- Maximum Power (Pmax): 60W
- Maximum Power Current (Ipm): 3.48A
- Maximum Power Voltage (Vmp): 17.2V
- Short Circuit Current (Isc): 3.57A
- Open Circuit Voltage (Voc): 21.5V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC1000V
- Size: 1060 x 460 x 35mm
- Weight: 6.1kg
Kit Performance - Summertime
- Standard Controller: 17Ah per day - (10-30% more with MPPT Controller)
Solar Performance Guarantee
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.
For More Info Please Click PDF For More Info On Installations And Maintenance.
