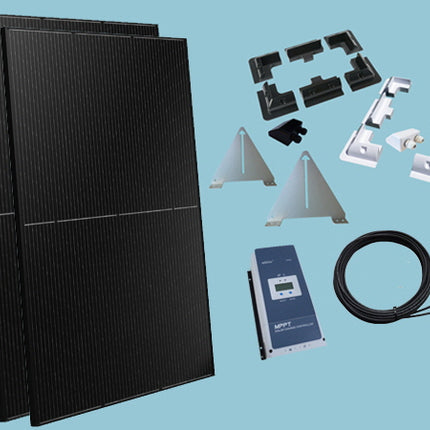

840W Rigid Solar Narrowboat Kit 12V or 24V

This 840W Sunshine Solar Power Narrowboat Kit offers outstanding performance and great value for money. With this 840 Watt solar power kit you could expect to generate around 280 amps per day (12V Battery System) or 140 amps per day (24V Battery System) during the summer months supplementing the leisure battery power onboard.

Whether you are on a liveaboard, day cruising or on the high seas you can rely on Sunshine Solar Panels to keep your batteries in a healthy condition at all times.

Solar Panel Specifications

• Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.

  The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.

  10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".

  Discover what happens when innovation meets technology.




  Solar Panel Specifications

  • Power Class: 420W
  • Maximum Power Current: (Ipm): 13.17A
  • Maximum Power Voltage: (Vpm): 31.89V
  • Short Circuit Current (Isc): 13.9A
  • Power Output Tolerance (Pmax): 0/+5
  • Open Circuit Voltage (Voc): 37.87V
  • Nominal Operating Cell Temp. (NOCT): -40 to +85°C
  • Maximum System Voltage: 1500V DC
  • Cells: 108 M10 Half Cells PERC
  • Frame Colour: Black
  • Module Efficiency (%): 22.51
  • Connector Type: MC4 or compatible connector
  • Length (mm): 1722
  • Width (mm): 1134
  • Thickness (mm): 30
  • Product Weight (Kg): 21.5

  Guaranteed Performance


  • 30 Year Linear Power Warranty
  • 25 Year Product Warranty
  • Engineered in Italy

• Data Sheet
