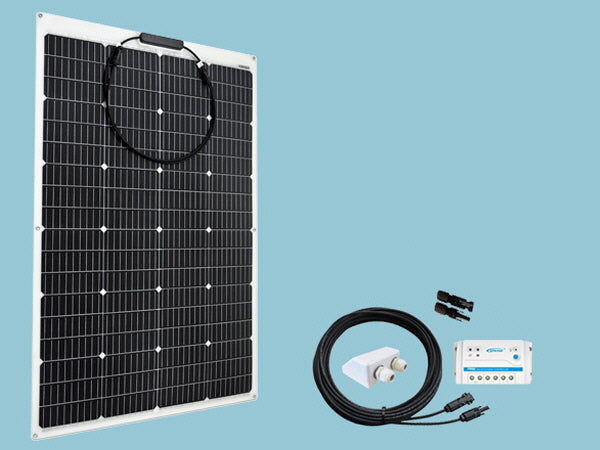

150W Sunshine Solar RV Flexible Solar Kit

This 150W Sunshine Solar RV Flexible Solar Kit offers outstanding performance and great value for money. With this 150 Watt solar power kit you could expect to generate around 36 amps with the standard PWM controller supplied with this kit. With an MPPT controller upgrade this increases to 50 amps per day during the summer months supplementing the 12V leisure battery power in boats caravan, campervan etc.

The Sunshine Solar RV Flexible Panels are made with an ETFE surface, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.

The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.

With a Sunshine Flexible 150W 12V solar panel you could expect to generate around 50 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.

Solar Panel Specifications

• Brand. Sunshine Solar
• Maximum Power (Pmax): 150W
• Maximum Power Current (Ipm): 7.18A
• Maximum Power Voltage (Vpm): 20.9V
• Short Circuit Current (Isc): 7.54A
• Open Circuit Voltage (Voc): 24.5V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC600V
• Size: 1110 x 770 x 2mm
• Weight: 2.8 kg

Features

• Six fixing eyelets
• ETFE rough scratch resistant surface which can be walked on in deck shoes.
• Highly efficient monocrystalline cells
• Can be conveniently placed on slightly curved solid surfaces
• Can be easily bonded using Fixing Adhesive (no need for drilling)
• 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
• Three Year Manufacturers Warranty
