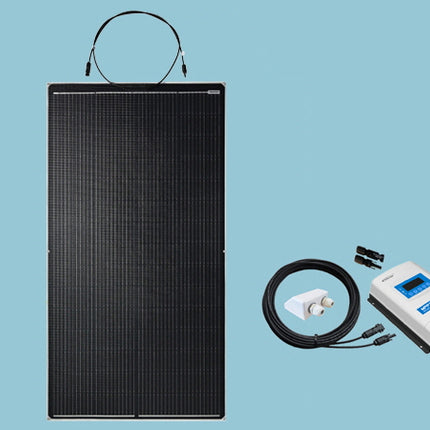

220W Marine Flexible Solar Panel Kit

his 220W Sunshine Solar Kit features a semi-flexible solar panel that has a full ETFE coating making it perfect for extreme applications, especially the marine environment.

The Sunshine Solar Marine Flexi Panels are encapsulated in an ETFE coating, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.

The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.

With a 220W Marine Flexi - Sunshine Solar Panel you could expect to generate around 73 amps per day when used in conjunction with an  MPPT Solar Controller during the summer months.

Solar Panel Specifications

• Maximum Power (Pmax): 220W
• Maximum Power Current (Ipm): 6.33A
• Maximum Power Voltage (Vpm): 34.8V
• Short Circuit Current (Isc): .6.64A
• Open Circuit Voltage (Voc): 40.7V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC200V
• Size: 1500 x 780 x 4mm

Features

• Four fixing eyelets
• ETFE rough scratch resistant surface which can be walked on in deck shoes.
• Highly efficient monocrystalline cells
• Can be conveniently placed on slightly curved solid surfaces
• Can be easily bonded using Fixing Adhesive (no need for drilling)
• 4mm Single Core Cable fitted with type MC4 Connectors
• Three Year Manufacturers Warranty
