Motorhome Heaters, Water Tanks and Plumbing

The Whale BP3708 Gusher 10 MK3 - Standard bilge pump has been around for decades and is recognized as a robust pump ideal for workboats, cruisers or offshore racing vessels. The epoxy coated anodised diecast aluminium alloy body assures long life, and a world wide supply of replacement parts means the Gusher 10 will never go out of date. Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO15083. Designed for easy maintenance and instant access, high flow non-choke valves can pump 17 Gallons per minute at 70 strokes per minute. Materials: Marine Grade LM6 Aluminium alloy, epoxy coated, stainless steel, Nitrile and Neoprene • Maximum suction lift: 13.5 ft • Maximum discharge head: 13.5ft Automatic Bilge Pumps No Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 4 Metres (13.5 Feet) Maximum Suction Lift 4 Meters (13.5 Feet) Removable Handle Yes Inlet Outlet To suit 38mm (1-1/2") ID hose Brand Whale Type Deck Mounted Voltage Description Manual Model BP3708 Height Description Pump Body: 200mm Width Body: 204mm Length 436mm Flow Rate Description 41 LPM (10.5 US GPM) at 45 strokes per minute, 65 LPM (17 US GPM) at 70 strokes per minute. Approvals Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831 Application Bilge or Waste Water Warranty 5 Years Country of Origin United Kingdom

Read more less

The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. This model supports 2 inlets. Complete prewired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump. Gulper IC - Automatic control - receives electrical signals to turn on/off as required • One pump handles waste from multiple drains • Fast drainage - high capacity up to 19 litres (5 US gals) /min • Self primes and runs dry • Easy to install - including uneven surfaces • Time delay to allow for optimum drainage • Soft start - protects the pump for long life • Low current controlled switching - no switch failure from high currents • Two Way Manifold IC- Fully automatic Two Way Manifold handles waste from multiple drains as required. • Senses waste level through wall - not in contact with water • Quiet drainage • Removes the need to install a bulky grey waste tank • Service free - No moving parts to clog or burn • Fully potted circuitry - protected against water ingress It is important to ensure that a vented anti-syphon loop is incorporated in the system. Flow Rate 1 Metre Head 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) Maximum Head and Lift 4 Metres Maximum Recommended Head 3 Metres Brand Whale Voltage Description 12V DC Model WM8284 Height Description 117mm Width 198mm Depth 102mm (4") Length 280mm Fuse 10A Flow Rate Description 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) Approvals ISO8846, IP45, CE Certified Consumption 7.5A with 19mm Hose, 8A with 25mm Hose Connections Description 19mm (3/4") / 25mm (1") Minimum Cable Spec 1.5mm² Country of Origin United Kingdom Downloads Information Sheet Product Sheet

Read more less

GULLEY IC (IC Intelligent Control) The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. Connections: 19mm (3/4") or 25mm (1"). Specifically designed for shower waste - Includes Gulper IC electric waste pump and Compact Gulley IC with 4m (12ft) cable for easy installation. Unique Intelligent Control means Gulley IC Kit is all you need for shower waste management. Electrical signals are sent from Gulley IC only when grey waste water needs to be pumped out. Fully automatic shower gulley drains waste away. WHY Gully IC? Features and Benefits • Automatic control - Gulley IC senses the grey waste level and sends signals to Gulper IC to turn off and on as required • One pump automatically handles waste from your shower on board - no manual switches required • Easy installation - pre wired plug and play kit • Reliability - no moving parts to clog • Long life - self primes and can run dry • Soft start - protects the pump • Low current controlled switching - no switch failure from high currents • Fast drainage - high capacity up to 19 ltrs (5 US gals) /min • Optimal drainage - built in time delay Accreditations: • Ignition protection ISO8846. • CE marked Gulley IC • Compact single shower gulley with integrated intelligent control • Easy clean cover and sleek design • Protected against water ingress – fully potted circuitry • Quiet drainage Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system. Flow Rate 1 Metre Head 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) Maximum Head and Lift 4 Metres (13.5ft) Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 3 Metres (10ft) Maximum Suction Lift 3 Metres (10ft) Brand Whale Voltage Description 12V DC Model SG8284 Height Description 117mm Width 198mm Depth 102mm (4") Length 280mm Material Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners Fuse 10A Flow Rate Description 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) Approvals ISO8846, CE Certified Consumption 8A Connections Description 19mm (3/4") / 25mm (1") Minimum Cable Spec 1.5mm² (16 AWG) Country of Origin United Kingdom   Downloads Product Sheet Installation Guide

Read more less

The Whale Gulper 320 is ideal where bilge space is limited as it has the smallest strainer footprint. The head rotates to suit your installation and making it easy to install even on uneven surfaces. It has non choke valves and no filter to clean making it easy to maintain. Maximum Pump Head 2.3 to 4.27 Metres Dimensions Base: 156mm x 110mm (6.1" x 4.4") Maximum Combined Head and Lift 4m (13.1ft) Maximum Recommended Head 3 Metres (9.8 Feet) Replaces 504814 Self Primes up to 3 Metres (9.8 Feet) Wire Size Minimum 1.5mm² (16 AWG) Inlet Outlet 19mm (3/4") & 25mm (1") ID Hose Brand Whale Type Toilet Pumps Voltage Description 12V DC Model BP2052 Height Description Overall: 117mm (4-5/8") Width Overall: 198mm (7-3/4"), Strumbox: 60mm Length Overall: 280mm (11"), Strumbox: 98mm Material Glass-Filled Nylon Body Fuse 10A Flow Rate Description 19 LPM (4.16 GPM / 5 US GPM) Approvals ISO15083 Marine Standard suitable for bilge pump ( for vessels up to 12mtrs), CE Marked, Ignition protected ISO8846 Supplied With Strainer Warranty 3 Years Country of Origin United Kingdom   Downloads Whale Pump Brochure

Read more less

Jabsco accumulator mounting bracket Brand Jabsco Type Accumulator Tanks Weight 0.20kg

Read more less

Enamelled steel with stainless steel flange and internal rubber membrane. Can be mounted in any attitude. Brand Jabsco Type Accumulator Tanks Height Description 230mm (9") Width 200mm Depth 220mm Capacity Description 8 Litres (2.1 US Gallons) Connections Description 3/4" BSP Working Pressure 4 bar (60psi)

Read more less

The Fiamma A20 expansion tank is designed to enhance the performance of water pumps in various systems by eliminating pulsating pump operation. This helps achieve a smooth and continuous flow of water rather than intermittent bursts. By providing a constant flow of water, the A20 expansion tank contributes to reducing water consumption. The tank's internal diaphragm absorbs water hammer (the pressure surge or shockwaves caused by the sudden stop or change in the flow of water). This helps in preventing damage to the pump and associated components. This 2024 A20 expansion tank has a black finish and is compatible with all Fiamma pumps and other non-Fiamma pumps. Key Features Ensures a smooth and continuous flow of water for improved water distribution Contributes to reduced water consumption Internal diaphragm absorbs water hammer Compatible with all Fiamma pumps and other non-Fiamma pumps Brand Fiamma Type Fresh Water Pumps

Read more less

Shurflo Pump Strainer. Eliminate unnecessary repairs by keeping debris and other particles out of the pump. Screws directly on the pumphead. Transparent design shows when it is time to clean the bowl. 50 mesh SS screen Easy to install to pumphead Clear, clean plastic construction makes it easy to see when cleaning is needed Keeps debris out of pump Easy disassembles for easy cleaning

Read more less

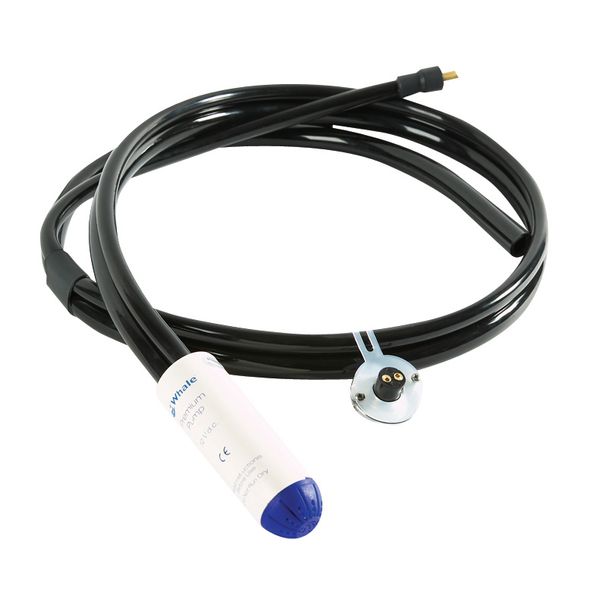

VIP Plus Pump with Cable & Plug to connect to service hatch 3500.06.19; 12v pump with 1.50m cable and plug  1.50m Hose

Read more less

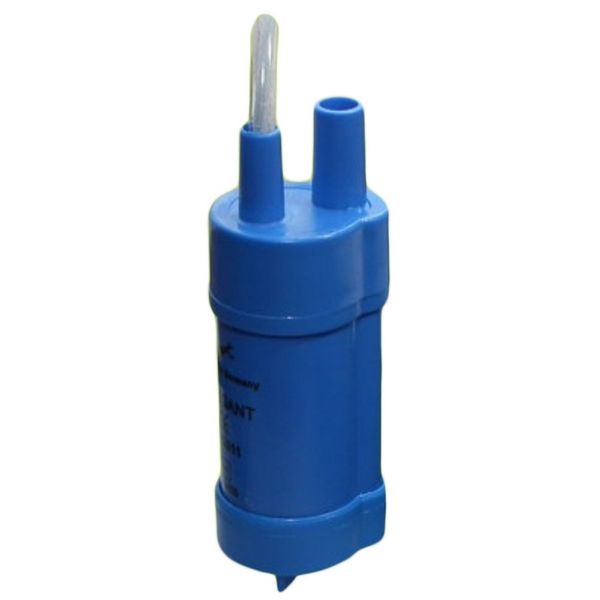

supply: 12 V = / 12 Volt DC current: max. 1,8 A Delivery rate: max. 16 l / min delivery height: max. 6,5 m pressure: 0,65 bar / 9,4 psi power: 10 - 20 W diam. / height: max. 48 / 123 mm

Read more less

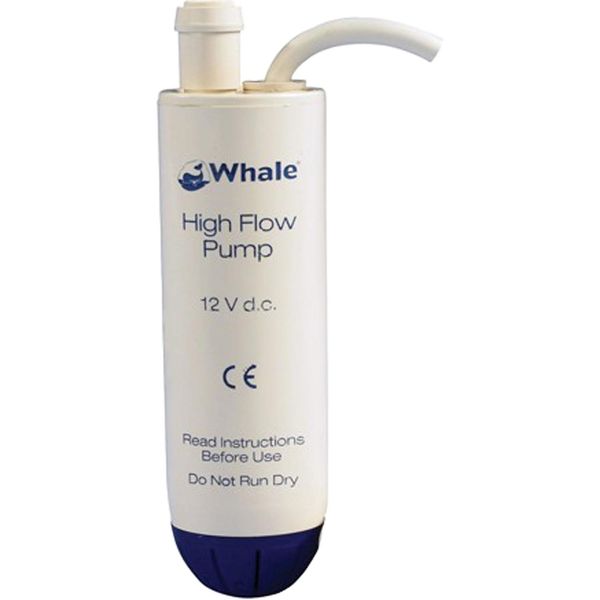

supply: 12 V = / 12 Volt DC current: max. 3,8 A Delivery rate: max. 19 l / min delivery height: max. 7,5 m pressure: 0,75 bar / 11 psi power: 25 - 50 W diam. / height: max. 42 / 124 mm

Read more less
