GOK 90DEG Regulator - Available with either 8mm or 10mm outlet
Caramatic BasicOne with test point
Capacity stage 3, type EN61-DS with overpressure safety device S2SR
Without pressure gauge
30mbar, M20x1.5 M x compr.fit. 8 OR 10, S2SR Test FKM
For connection to gas cylinders with a high pressure hose assembly to regulate the pressure to the nominal pressure of the gas equipment.
Consisting of: low pressure regulator with integrated safety device against overpressure and wall bracket
The Combi 2 E liquid gas heater is a warm air heater with an integrated hot water boiler. The appliance also has heating elements for electrical operation.
In heating mode, the heater can be used to heat both the vehicle and water simultaneously. Or if hot water alone is required, the hot water mode can be selected.
The lightweight combination heater runs in gas mode for self-sufficient use, in electrical mode for stationary use, and in mixed mode when outside temperatures are low.
A 10-litre stainless steel water tank is integrated into the system, which is jointly heated in winter. In summer mode, the user can heat the water independently of the heater. The water then reaches a temperature of 60 degrees in about 20 minutes.

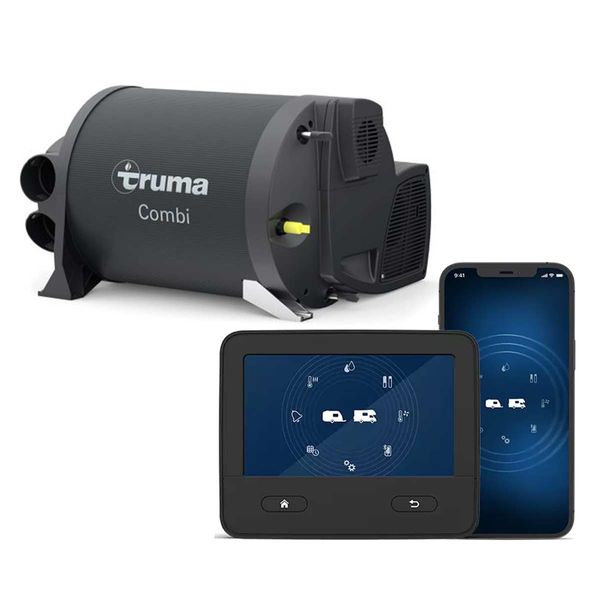

With the Truma App, the user can switch their Combi heater on from a smartphone.
• Heating Mode
In Heating Mode the appliance automatically selects the required operating level according to the temperature difference between the temperature set on the control panel and the current room temperature.
If the water container has been filled, the water is automatically heated as well. The water temperature depends on the selected operating mode and the heater output.
Energy selection options:
Gas mode: In this mode the appliance automatically selects the operating level that is required.
Electric mode: In this mode an output of 980 W (3.9 A) or 1960 W (7.8 A) can be manually preselected in accordance with the fuse protection at a campsite.
If more output is required (e.g. heating up or low outside temperatures) gas or mixed mode should be selected so that enough heating power is always available.
Mixed mode: In this setting 230V electric mode is preferred if the power requirement is only low (e.g. for maintaining the room temperature). The gas burner is not enabled until the power requirement is higher, and is the first to switch off during heat-up operations.
• Hot Water Mode (with filled water container only)
Gas mode or 230V electric mode is used for hot water preparation. The water temperature can be set to 40 °C / ECO or 60 °C / HOT (ECO, HOT only with control panel Truma CP plus).
Gas mode: In this mode the water is heated at the lowest burner setting. Once the water temperature has been reached, the burner switches off.
Electric mode: In this setting an output of 980 W (3.9 A) or 1960 W (7.8 A) can be manually selected in accordance with the fuse protection at a campsite.
Mixed mode is not possible with the Hot Water Mode setting as the appliance automatically selects electric mode.
If the 230V power supply is disconnected or fails, the heater automatically switches over to gas mode.

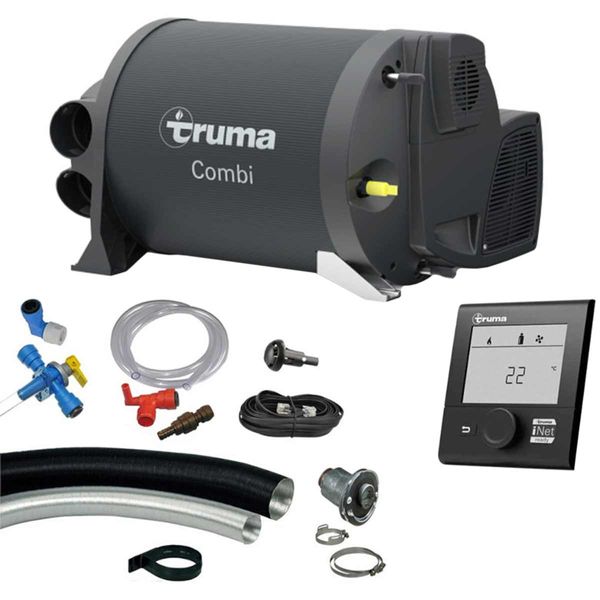

The Truma Combi 2E Boiler and Space Heater Kit contains:
Truma Combi 2E LPG gas and 230V electric unit
Truma CP Plus digital control panel
John Guest water connection kit
ZR80 exhaust ducting 1 metre
ZRS clip
Truma Combi CP Plus cable 6m
Side wall cowl in black
JST electrical ends
Installation and operation manuals
Technical Specifications:
Truma Combi 2E
Dimensions (L x W x H): 510 x 450 x 300 mm
Installation dimensions (L x W x H): 540 x 500 x 350mm (plus connections and drain valve)
Weight (empty): 15.1kg
Heating time (from 15°C to 60°C) (Water only): Approx. 20min.
Heating time (from 15°C to 60°C) (Heater & Water): Approx. 80min.
Rated thermal output (Electric): 980W / 1960W
Rated thermal output (Gas): 1950W maximum
Rated thermal output (Electric & Gas Combined): 3900W
Fuel consumption (Gas): 130 g/h
Water capacity: 10 litres
Air flow rate: Max. 287 m3/h
Power consumption (at 230V): 3.9A / 7.8A
Power consumption (at 12V): Heating up boiler 0.2A up to temporary 5.6A maximum (average approx. 1.1A)
Water pressure: 2.8 Bar maximum

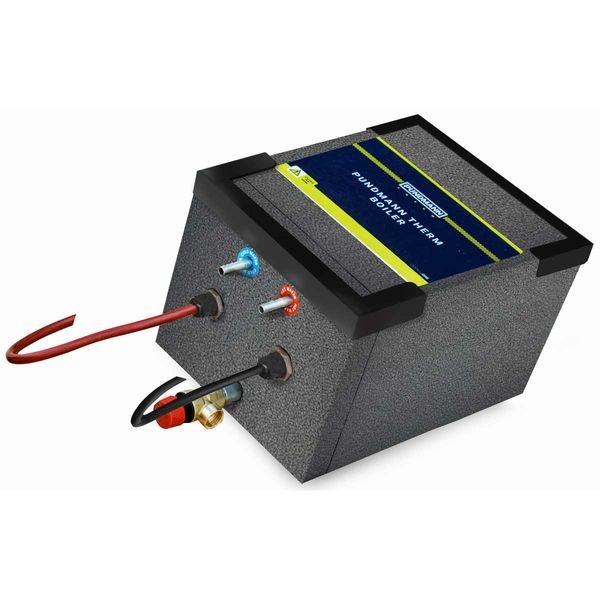

The Pundmann camper van 3L water heater is designed to bring creature comfort to camper adventures. Every unit is built to last and individually bench tested to ensure long term performance and safety.
The off-grid units are all compact and easy to install for efficient use of small spaces as well as safe and stable. Perfect for campervans, motorhomes, caravans, boats, off grid locations, service vehicles, mountain top cabins, sandy shored beach huts, long distance lorry drivers and even the shed at the end of your garden.
These electric water heaters are uniquely compact and narrow so they fit in the wardrobe of VW Campervans such as T4, T5 or T6.
Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! Heats your water to 60°C in as little as 50 minutes.
Well supported by our team for customer support and technical advice. Underpinned by a 3 year warranty.
Key Features
Twin immersion heater rods, 12V 180W and 230V 250W fitted with 5A 3-pin plug
Insulated 316 stainless steel welded tank with high quality stainless heating rods
Designed for safe use up to 2.3bar
Supplied & fitted with a 3 bar hot water safety pressure release valve
Designed to be compact & straight forward to install
Engineered to provide excellent service
3 Year return to base Warranty
Brand
Pundmann
Voltage Description
12V DC & 230V AC
Height Description
200mm
Width
228mm
Length
Heater: 217mm, Connections: 85mm
Material
Insulated 316 stainless steel welded tank with high quality stainless heating rods.
Wattage
180W at 12V, 250W at 230V
Operating Pressure
2.3 bar Maximum
Hose Tail Size
10mm / 3/8"
Pressure Rating
3 bar pressure relief valve
Amps Description
15A at 12V, 1.04A at 230V
Capacity Description
3 Litres
Warranty
3 Years
Downloads
pundmann decloration of conformity
pundmann diagrams
pundmann faqs
pundmann wiring plumbing guidelines

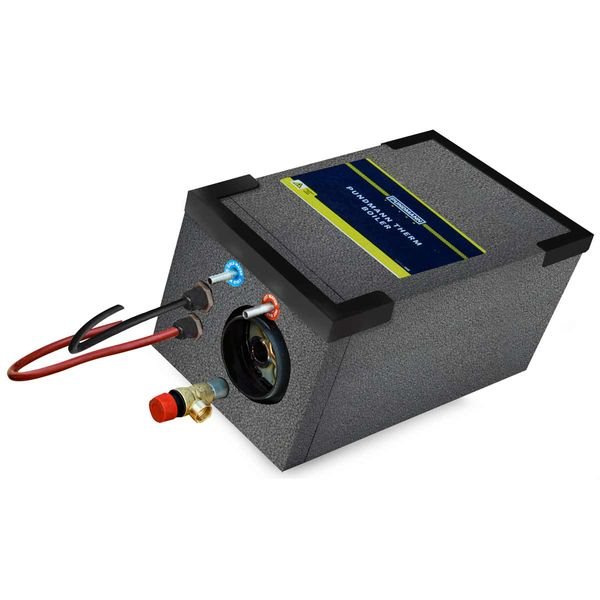

The Pundmann off-grid 6L water heater is designed to bring creature comfort to camper van adventures. Every unit is built to last and individually bench tested to ensure long term performance and safety.
The water heater units are all compact and easy to install for efficient use of small spaces as well as safe and stable. Perfect for campervans, motorhomes, caravans, boats, off grid locations, service vehicles, mountain top cabins, sandy shored beach huts, long distance lorry drivers and even the shed at the end of your garden.
These electric water heaters are uniquely compact and narrow so they fit in the wardrobe of VW Campervans such as T4, T5 or T6.
Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! Heats your water to 75°C in as little as 50 minutes.
Well supported by our team for customer support and technical advice. Underpinned by a 3 year warranty.
Please Note: There is no maximum temperature cut off when coupled with a heater, it is recommended you install a thermostatic blending valve to control the maximum temperature of water to the tap.
Key Features
Combi tank with air heat exchanger
Twin immersion heater rods, 12V 200W and 230V 500W fitted with 5A 3-pin plug
Compatible with diesel or gas heaters & works efficiently with 2kw or 4kw heaters
Insulated 316 stainless steel welded tank with high quality stainless heating rods
Designed for safe use up to 2.3bar
Supplied & fitted with a 3 bar hot water safety pressure release valve
Designed to be compact & straight forward to install
Engineered to provide excellent service
3 Year return to base Warranty
Brand
Pundmann
Voltage Description
12V DC & 230V AC
Height Description
200mm
Width
228mm
Length
Heater: 360mm, Connections: 85mm
Material
Insulated 316 stainless steel welded tank with high quality stainless heating rods.
Wattage
200W at 12V, 500W at 230V
Operating Pressure
2.3 bar Maximum
Hose Tail Size
10mm / 3/8"
Pressure Rating
3 bar pressure relief valve
Amps Description
16.67A at 12V, 2.08A at 230V
Capacity Description
6 Litres
Warranty
3 Years
Downloads
pundmann decloration of conformity
pundmann diagrams
pundmann faqs
pundmann wiring plumbing guidelines
The Pundmann off-grid 10L water heater is designed to bring creature comfort to camper van adventures. Every unit is built to last and individually bench tested to ensure long term performance and safety.
The water heater units are all compact and easy to install for efficient use of small spaces as well as safe and stable. Perfect for campervans, motorhomes, caravans, boats, off grid locations, service vehicles, mountain top cabins, sandy shored beach huts, long distance lorry drivers and even the shed at the end of your garden.
These electric water heaters are uniquely compact and narrow so they fit in the wardrobe of VW Campervans such as T4, T5 or T6.
Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! Heats your water to 75°C in as little as 50 minutes.
Well supported by our team for customer support and technical advice. Underpinned by a 3 year warranty.
Please Note: There is no maximum temperature cut off when coupled with a heater, it is recommended you install a thermostatic blending valve to control the maximum temperature of water to the tap.
Key Features
Combi tank with air heat exchanger
Twin immersion heater rods, 12V 200W and 230V 500W fitted with 5A 3-pin plug
Compatible with diesel or gas heaters & works efficiently with 2kw or 4kw heaters
Insulated 316 stainless steel welded tank with high quality stainless heating rods
Designed for safe use up to 2.3bar
Supplied & fitted with a 3 bar hot water safety pressure release valve
Designed to be compact & straight forward to install
Engineered to provide excellent service
3 Year return to base Warranty
Brand
Pundmann
Voltage Description
12V DC & 230V AC
Height Description
200mm
Width
228mm
Length
Heater: 520mm, Connections: 85mm
Material
Insulated 316 stainless steel welded tank with high quality stainless heating rods.
Wattage
200W at 12V, 500W at 230V
Operating Pressure
2.3 bar Maximum
Hose Tail Size
10mm / 3/8"
Pressure Rating
3 bar pressure relief valve
Amps Description
16.67A at 12V, 2.08A at 230V
Capacity Description
10 Litres
Warranty
3 Years
Downloads
pundmann decloration of conformity
pundmann diagrams
pundmann faqs
pundmann wiring plumbing guidelines

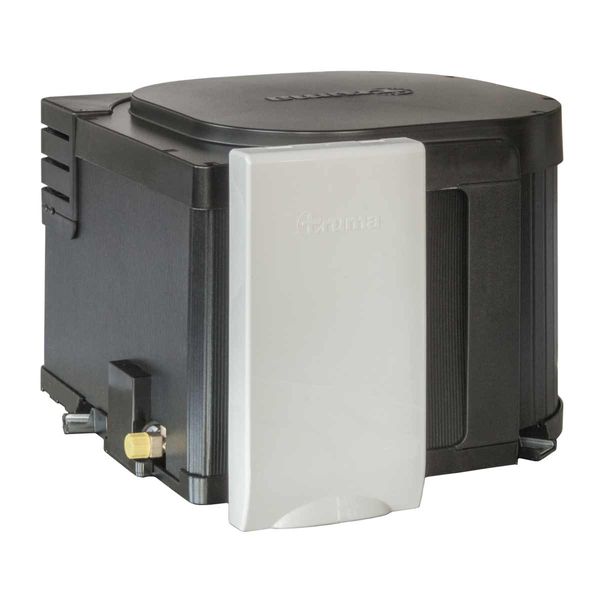

The Truma Ultrastore Rapide GE Boiler is a compact and versatile 10-liter water heater designed for use in caravans, motorhomes, and other recreational vehicles.
This water heater can operate on both gas and electricity, providing flexibility in choosing your energy source.
It is designed to work with 10mm diameter flexible water pipes, ensuring compatibility with standard water pipe sizes commonly found in RVs.
This product includes a control panel with a 3-meter connecting cable, a white wall cowl for installation, and a safety/drain valve. These components are essential for the proper installation and operation of the water heater.
When using the 12V power supply, ignition consumes 0.17A, the heating phase consumes 0.08A, and during standby mode, it draws 0.04A of current.
When using a 230V power supply at 850W, the water heater consumes either 3.7A or 5.7A of current.
The gas consumption rate for this water heater is 120grams per hour.
The water heater without water is just 7.2kg, making it suitable for installation in RVs where weight considerations are important.
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
- Type of gas: Liquid gas (propane / butane)
- Operating pressure: 30 mbar
- Rated thermal output: 1500 W
- Gas consumption: 120 g/h
- Heating up time from approx. 15 °C to approx. 70 °C (Rapid GE - 10 litres): Gas operation: approx. 31 minutes, Electrical operation: approx. 29 minutes, Gas and electrical operation: approx. 16 minutes
- 12V Power consumption: Ignition: 0.17 A, Heating up: 0.08 A, Standby: 0.04 A
- 230V Power consumption: Heating up: (3.7 A) 850W / (5.7 A) 1300W
Stand-by consumption gas: approx. 70W
Key Features
10-liter water heater designed for caravans, motorhomes, and RVs
Supplied with standard fittings
Operates on both gas and electricity
Works with 10mm flexible water pipes commonly found in RVs
Comes with a control panel, 3-meter cable, white wall cowl, and safety/drain valve
Quickly heats water with gas in approximately 31 minutes and electric in about 29 minutes
Brand
Truma
Type
12 & 230 Volt
Voltage Description
12V & 230V
Height Description
261mm
Width
347mm
Depth
360mm
Weight
7.2kg
Approvals
EN 15033
Fuel
Butane/Propane 30mbar + 230V
Capacity Description
10 Litres
Country of Origin
Germany
The Truma Ultrastore Rapide GE Boiler is a compact and versatile 10-liter water heater designed for use in caravans, motorhomes, and other recreational vehicles.
This water heater can operate on both gas and electricity, providing flexibility in choosing your energy source.
It is designed to work with 10mm diameter flexible water pipes, ensuring compatibility with standard water pipe sizes commonly found in RVs.
This product includes a control panel with a 3-meter connecting cable, a white wall cowl for installation, and a safety/drain valve. These components are essential for the proper installation and operation of the water heater.
When using the 12V power supply, ignition consumes 0.17A, the heating phase consumes 0.08A, and during standby mode, it draws 0.04A of current.
When using a 230V power supply at 850W, the water heater consumes either 3.7A or 5.7A of current.
The gas consumption rate for this water heater is 120grams per hour.
The water heater without water is just 7.2kg, making it suitable for installation in RVs where weight considerations are important.
- Pump pressure: max. 2.8 bar
- System pressure: max. 4.5 bar
- Type of gas: Liquid gas (propane / butane)
- Operating pressure: 30 mbar
- Rated thermal output: 1500 W
- Gas consumption: 120 g/h
- Heating up time from approx. 15 °C to approx. 70 °C (Rapid GE - 10 litres): Gas operation: approx. 31 minutes, Electrical operation: approx. 29 minutes, Gas and electrical operation: approx. 16 minutes
- 12V Power consumption: Ignition: 0.17 A, Heating up: 0.08 A, Standby: 0.04 A
- 230V Power consumption: Heating up: (3.7 A) 850W / (5.7 A) 1300W
Stand-by consumption gas: approx. 70W
Key Features
10-liter water heater designed for caravans, motorhomes, and RVs
Supplied with JG Fittings (John guest)
Operates on both gas and electricity
Works with 10mm flexible water pipes commonly found in RVs
Comes with a control panel, 3-meter cable, white wall cowl, and safety/drain valve
Quickly heats water with gas in approximately 31 minutes and electric in about 29 minutes
Brand
Truma
Type
12 & 230 Volt
Voltage Description
12V & 230V
Height Description
261mm
Width
347mm
Depth
360mm
Weight
7.2kg
Approvals
EN 15033
Fuel
Butane/Propane 30mbar + 230V
Capacity Description
10 Litres
Country of Origin
Germany
