Description
The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. This model supports 2 inlets.

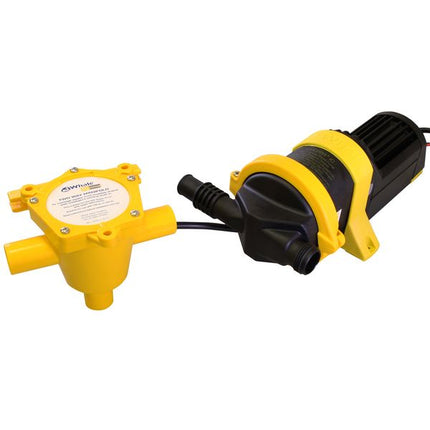

Complete prewired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump.
Gulper IC - Automatic control - receives electrical signals to turn on/off as required
• One pump handles waste from multiple drains
• Fast drainage - high capacity up to 19 litres (5 US gals) /min
• Self primes and runs dry
• Easy to install - including uneven surfaces
• Time delay to allow for optimum drainage
• Soft start - protects the pump for long life
• Low current controlled switching - no switch failure from high currents
• Two Way Manifold IC- Fully automatic Two Way Manifold handles waste from multiple drains as required.
• Senses waste level through wall - not in contact with water
• Quiet drainage
• Removes the need to install a bulky grey waste tank
• Service free - No moving parts to clog or burn
• Fully potted circuitry - protected against water ingress
It is important to ensure that a vented anti-syphon loop is incorporated in the system.
| Flow Rate 1 Metre Head |
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) |
| Maximum Head and Lift |
4 Metres |
| Maximum Recommended Head |
3 Metres |
| Brand |
Whale |
| Voltage Description |
12V DC |
| Model |
WM8284 |
| Height Description |
117mm |
| Width |
198mm |
| Depth |
102mm (4") |
| Length |
280mm |
| Fuse |
10A |
| Flow Rate Description |
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) |
| Approvals |
ISO8846, IP45, CE Certified |
| Consumption |
7.5A with 19mm Hose, 8A with 25mm Hose |
| Connections Description |
19mm (3/4") / 25mm (1") |
| Minimum Cable Spec |
1.5mm² |
| Country of Origin |
United Kingdom |
