GULLEY IC (IC Intelligent Control)
The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. Connections: 19mm (3/4") or 25mm (1").
Specifically designed for shower waste - Includes Gulper IC electric waste pump and Compact Gulley IC with 4m (12ft) cable for easy installation.
Unique Intelligent Control means Gulley IC Kit is all you need for shower waste management. Electrical signals are sent from Gulley IC only when grey waste water needs to be pumped out. Fully automatic shower gulley drains waste away.
WHY Gully IC?
Features and Benefits
• Automatic control - Gulley IC senses the grey waste level and sends signals to Gulper IC to turn off and on as required
• One pump automatically handles waste from your shower on board - no manual switches required
• Easy installation - pre wired plug and play kit
• Reliability - no moving parts to clog
• Long life - self primes and can run dry
• Soft start - protects the pump
• Low current controlled switching - no switch failure from high currents
• Fast drainage - high capacity up to 19 ltrs (5 US gals) /min
• Optimal drainage - built in time delay
Accreditations:
• Ignition protection ISO8846.
• CE marked
Gulley IC
• Compact single shower gulley with integrated intelligent control
• Easy clean cover and sleek design
• Protected against water ingress – fully potted circuitry
• Quiet drainage
Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Flow Rate 1 Metre Head
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons)
Maximum Head and Lift
4 Metres (13.5ft)
Maximum Pump Head
2.3 to 4.27 Metres
Maximum Recommended Head
3 Metres (10ft)
Maximum Suction Lift
3 Metres (10ft)
Brand
Whale
Voltage Description
12V DC
Model
SG8284
Height Description
117mm
Width
198mm
Depth
102mm (4")
Length
280mm
Material
Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners
Fuse
10A
Flow Rate Description
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons)
Approvals
ISO8846, CE Certified
Consumption
8A
Connections Description
19mm (3/4") / 25mm (1")
Minimum Cable Spec
1.5mm² (16 AWG)
Country of Origin
United Kingdom
Downloads
Product Sheet
Installation Guide
The Whale Gulper 320 is ideal where bilge space is limited as it has the smallest strainer footprint. The head rotates to suit your installation and making it easy to install even on uneven surfaces. It has non choke valves and no filter to clean making it easy to maintain.
Maximum Pump Head
2.3 to 4.27 Metres
Dimensions
Base: 156mm x 110mm (6.1" x 4.4")
Maximum Combined Head and Lift
4m (13.1ft)
Maximum Recommended Head
3 Metres (9.8 Feet)
Replaces
504814
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum 1.5mm² (16 AWG)
Inlet Outlet
19mm (3/4") & 25mm (1") ID Hose
Brand
Whale
Type
Toilet Pumps
Voltage Description
12V DC
Model
BP2052
Height Description
Overall: 117mm (4-5/8")
Width
Overall: 198mm (7-3/4"), Strumbox: 60mm
Length
Overall: 280mm (11"), Strumbox: 98mm
Material
Glass-Filled Nylon Body
Fuse
10A
Flow Rate Description
19 LPM (4.16 GPM / 5 US GPM)
Approvals
ISO15083 Marine Standard suitable for bilge pump ( for vessels up to 12mtrs), CE Marked, Ignition protected ISO8846
Supplied With
Strainer
Warranty
3 Years
Country of Origin
United Kingdom
Downloads
Whale Pump Brochure
Whale Gulper 220 is a wastewater pump particularly designed to handle hair and gels, making it ideal as a shower waste pump. It features a body constructed from aluminium and glass-filled nylon for a robust housing suitable for the marine environment along with rubber feet designed to absorb vibration. Popular diaphragm pump, will run dry without damage and self priming up to 3m. Multi-directional head. Up to 14 litres per minute. Dimensions: 117mm x 173mm (including hose tails) x 273mm Connections Type: 19mm hose tails Fuse Requirement: 5A.
Maximum Pump Head
2.3 to 4.27 Metres
Dimensions
Base: 135mm x 111mm (5-5/16" x 4-3/4")
Maximum Combined Head and Lift
4m (13.1ft)
Maximum Recommended Head
3 Metres (9.8 Feet)
Replaces
Closest Alternative for 509430 & 509432 Flojet Shower Waste Drain Pumps
Self Primes up to
3 Metres (9.8 Feet)
Wire Size
Minimum 1.5mm² (16 AWG)
Inlet Outlet
19mm (3/4") ID hose
Brand
Whale
Type
Toilet Pumps
Voltage Description
12V DC
Model
BP1552
Height Description
117mm (4-5/8")
Width
173mm (6-13/16")
Length
273mm (10-3/4")
Fuse
5A
Flow Rate Description
14 LPM (3 GPM / 3.7 US GPM)
Approvals
CE Marked, IP45 rated for water ingress, Ignition protected ISO8846, ISO10133 Electrical systems – extra low voltage dc installations
Warranty
2 Years
Country of Origin
United Kingdom
Downloads
Installation Sheet
Product Sheet
Technical Article - Waste Tanks & Kits

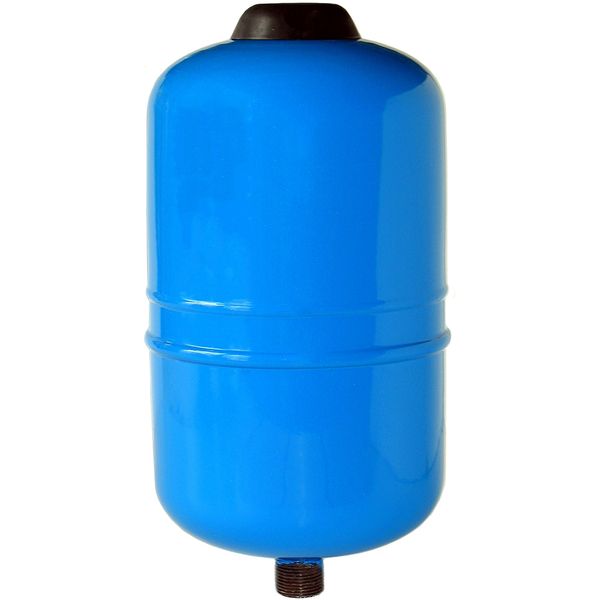

Jabsco accumulator tank with enamelled steel vessel with stainless steel flange and internal rubber membrane.
Key Features
For small to medium-sized pressure systems
May be mounted in any attitude
Stainless steel and rubber wetted parts
Brand
Jabsco
Type
Accumulator Tanks
Height Description
305mm
Diameter Description
160mm
Capacity Description
5 Litres (1.3 US Gallons)
Connections Description
3/4" BSP
Working Pressure
4 bar (60psi)

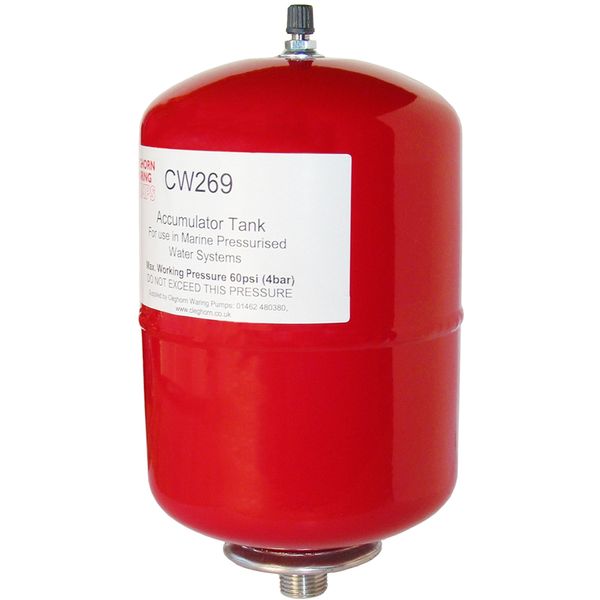

Enamelled steel with stainless steel flange and internal rubber membrane. Can be mounted in any attitude.
• Dimensions: 230mm(H) x 125mm(D)
• Connections Type: 1/2” BSP threaded spigot
• Pressure: Max 4 bar (60 psi)
Key Features
For small to medium-sized pressure systems
May be mounted in any attitude
Stainless steel and rubber wetted parts
Brand
Jabsco
Type
Accumulator Tanks
Height Description
230mm (9")
Diameter Description
125mm
Capacity Description
2 Litres (0.5 US Gallons)
Connections Description
1/2" BSP
Working Pressure
4 bar (60psi)

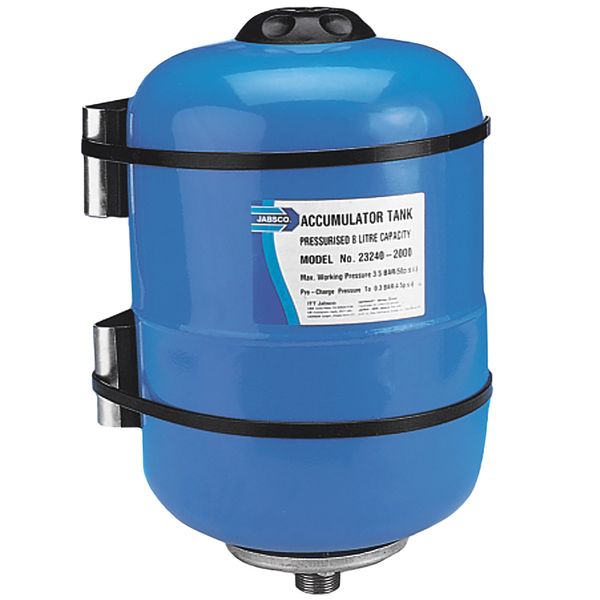

Enamelled steel with stainless steel flange and internal rubber membrane. Can be mounted in any attitude.
Brand
Jabsco
Type
Accumulator Tanks
Height Description
230mm (9")
Width
200mm
Depth
220mm
Capacity Description
8 Litres (2.1 US Gallons)
Connections Description
3/4" BSP
Working Pressure
4 bar (60psi)

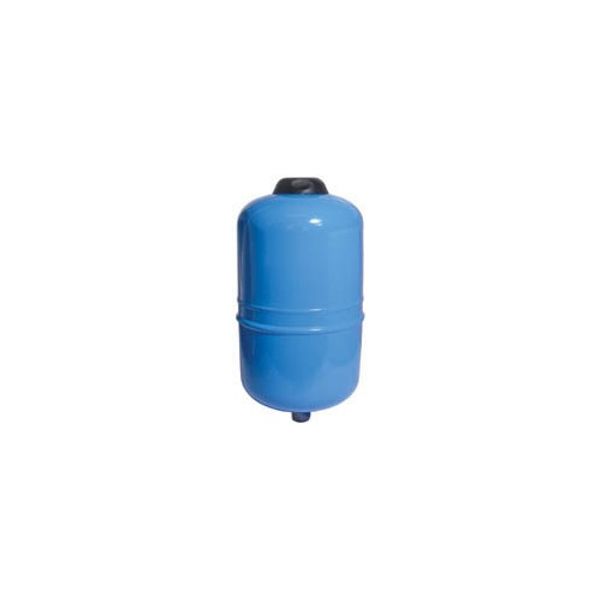

Mild Steel with an internal bladder made of rubber. The cylinder pressure should be set according to the nature of use and specification of water pump. Please contact us for more information.
Brand
AG
Type
Accumulator Tanks
Size
5L
Height Description
275mm
Width
6 ½"
Length
10 ¾"
Colour
Grey
Diameter Description
170mm
Operating Temperature
-10 to 100°C
Capacity Description
5 Litres (1.3 US Gallons)
Connections Description
3/4" BSP
Working Pressure
Max: 10 bar

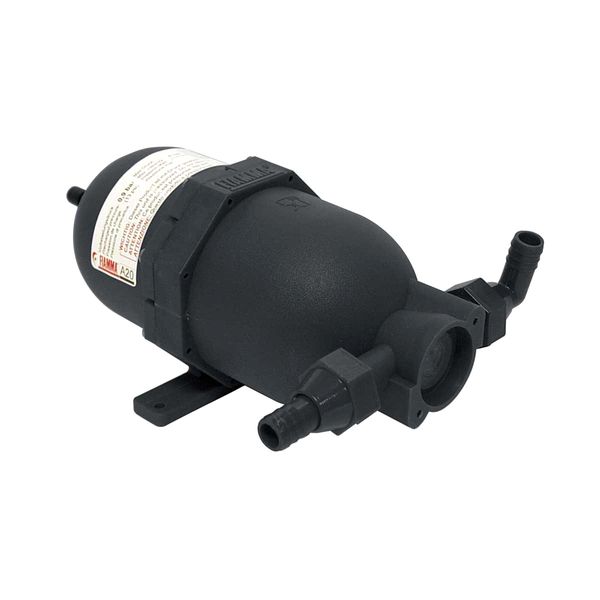

The Fiamma A20 expansion tank is designed to enhance the performance of water pumps in various systems by eliminating pulsating pump operation. This helps achieve a smooth and continuous flow of water rather than intermittent bursts.
By providing a constant flow of water, the A20 expansion tank contributes to reducing water consumption. The tank's internal diaphragm absorbs water hammer (the pressure surge or shockwaves caused by the sudden stop or change in the flow of water). This helps in preventing damage to the pump and associated components.
This 2024 A20 expansion tank has a black finish and is compatible with all Fiamma pumps and other non-Fiamma pumps.
Key Features
Ensures a smooth and continuous flow of water for improved water distribution
Contributes to reduced water consumption
Internal diaphragm absorbs water hammer
Compatible with all Fiamma pumps and other non-Fiamma pumps
Brand
Fiamma
Type
Fresh Water Pumps

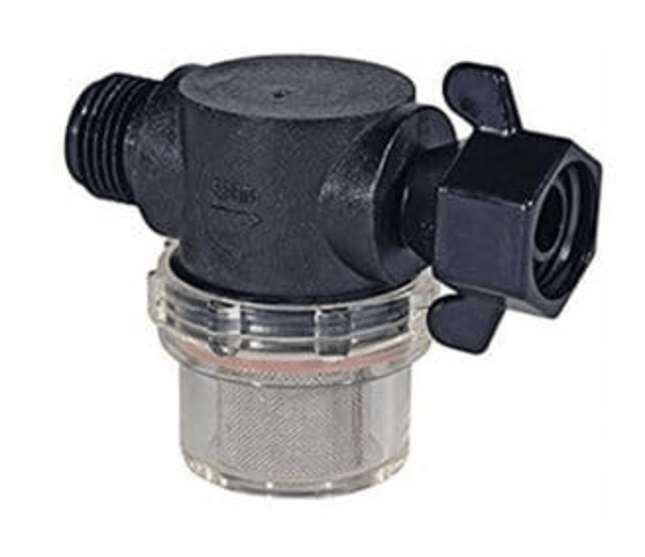

Shurflo Pump Strainer.
Eliminate unnecessary repairs by keeping debris and other particles out of the pump. Screws directly on the pumphead. Transparent design shows when it is time to clean the bowl.
50 mesh SS screen
Easy to install to pumphead
Clear, clean plastic construction makes it easy to see when cleaning is needed
Keeps debris out of pump
Easy disassembles for easy cleaning
