Description

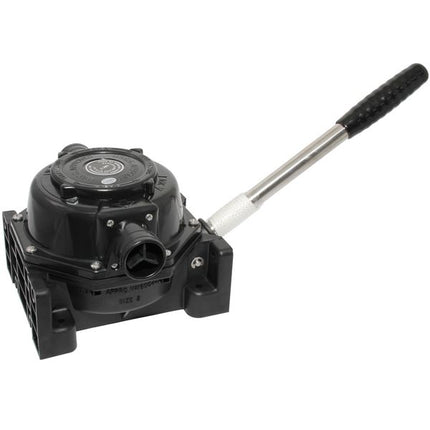

The Whale MK5 manual bilge pump is a hand operated bilge pump combining versatile design with high output. The MK5's compact design means it can be on deck, through deck or bulkhead mounted without modification. As a nitrile diaphragm pump, it can be used to pump bilge water, saltwater or diesel.
The bilge pump is constructed from a robust glass filled polypropylene body with a glass filled nylon and acetyl operating lever. Reliability is ensured with non choke valves and a fully enclosed diaphragm. It contains an inspection hatch for quick and easy maintenance of the pump. This pump also features a removable handle.
| Automatic Bilge Pumps |
No |
| Maximum Pump Head |
Over 4.27 Metres |
| Maximum Recommended Head |
4.5 Metres (15 Feet) |
| Maximum Suction Lift |
4.5 Meters (15 Feet) |
| Removable Handle |
Yes |
| Inlet Outlet |
To Suit 38mm (1-1/2") ID Hose |
| Brand |
Whale |
| Type |
Universal Mount |
| Voltage Description |
Manual |
| Model |
BP0510 |
| Height Description |
Pump Body: 139mm (5-1/2") |
| Width |
Pump Body: 187mm (7-3/8") |
| Length |
Overall (including removable handle): 481mm (18-7/8") |
| Flow Rate Description |
42 LPM (11 US GPM) at 45 strokes per minute, 66 LPM (17.5 US GPM) at 70 strokes per minute. |
| Approvals |
Approved by Lloyds (MCA) and USCG. Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831. |
| Application |
Bilge Water, Salt Water or Diesel |
| Warranty |
5 Years |
| Country of Origin |
United Kingdom |
Downloads
Whale Pump Brochure
