| Maximum Pump Head |
2.3 to 4.27 Metres |

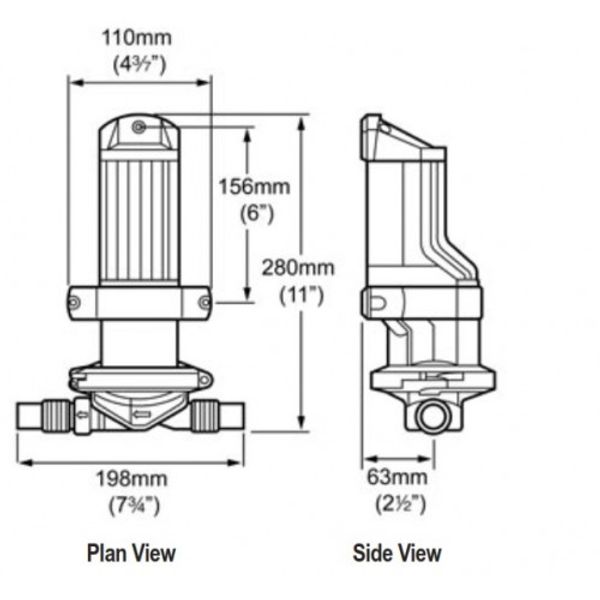

| Dimensions |
Base: 156mm x 110mm (6.1" x 4.4") |
| Maximum Combined Head and Lift |
4m (13.1ft) |
| Maximum Recommended Head |
3 Metres (9.8 Feet) |
| Replaces |
504814 |
| Self Primes up to |
3 Metres (9.8 Feet) |
| Wire Size |
Minimum 1.5mm² (16 AWG) |
| Inlet Outlet |
19mm (3/4") & 25mm (1") ID Hose |
| Brand |
Whale |
| Type |
Toilet Pumps |
| Voltage Description |
12V DC |
| Model |
BP2052 |
| Height Description |
Overall: 117mm (4-5/8") |
| Width |
Overall: 198mm (7-3/4"), Strumbox: 60mm |
| Length |
Overall: 280mm (11"), Strumbox: 98mm |
| Material |
Glass-Filled Nylon Body |
| Fuse |
10A |
| Flow Rate Description |
19 LPM (4.16 GPM / 5 US GPM) |
| Approvals |
ISO15083 Marine Standard suitable for bilge pump ( for vessels up to 12mtrs), CE Marked, Ignition protected ISO8846 |
| Supplied With |
Strainer |
| Warranty |
3 Years |
| Country of Origin |
United Kingdom |
