Description

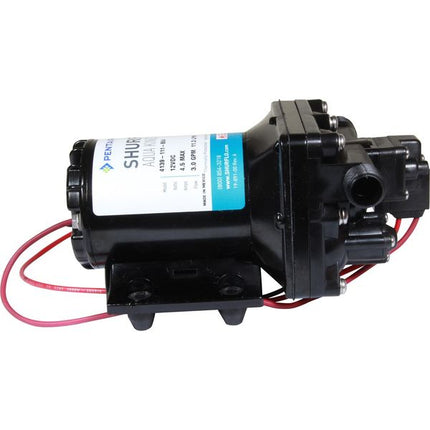

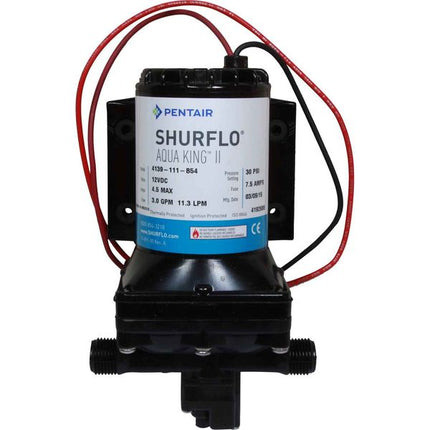

Fresh water diaphragm pump from Shurflo, with redesigned 4 chamber head, fully adjustable sealed pressure switch and heavy duty sealed motor. Built in check-valve, self primes (up to 6 feet), will run dry without damage. Ignition and thermal protection. Heavy duty design provides smoother flow due to 4 chamber head.
• 11.4lpm, 30psi
| Maximum Recommended Head |
1.8 Metres |
| Replaces |
509506 Shurflo Aqua King Pump, 509404 Flojet R2100 Pressure Pump. Closest alternative for pressure pumps: 509663 - Shurflo 2852, 509682 - Shurflo 2858, 509506 - Floking 3000 pump & 509406 - Flojet R4305. |
| Self Primes up to |
1.82 Metres (6 Feet) |
| Inlet Outlet |
1/2"-14 NPSM Male (13mm) |
| Brand |
SHURflo |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
4139-111 |
| Height Description |
104mm (4.1") |
| Width |
124mm (4.9") |
| Length |
208mm (8.2") |
| Material |
Polypro Housings, EPDM Valves / Seals, Santoprene Draphragm, Stainless Steel Hardware |
| Fuse |
7.5A Recommended |
| Flow Rate Description |
11.35 LPM (3.0 GPM) |
| Approvals |
Ignition Protection 8846, CE, IMCI Certified |
| Consumption |
6.5 a |
| Series |
Aqua King II Standard |
| Amps Description |
Maximum: 6.5A |
| Connections Description |
13mm (1/2") ID Hose or 15mm push fit |
| Cut Out Pressure Description |
30 PSI / 2 Bar |
| Warranty |
3 Years |
Downloads
Shurflo AquaKing 2 4139 111 B54
