Description

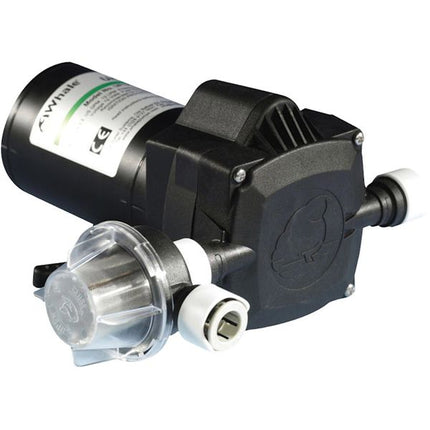

The Whale Universal water pressure pump provides smooth and constant water flow thanks to its seamless 4 diaphragm design, and can operate continuously without any damage from dry running.
This water pump has rotating feet to easily fit existing fresh water or saltwater pump systems. It runs quietly and efficiently, combining fantastic safety and reliability with high performance. A clear lid strainer allows for easy inspection and maintenance.
The pump materials are chosen for their suitability for freshwater contact. Only polypropylene, monprene, nitrile and stainless steel making contact with fluid.
The rest of the pump is made up of a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, the seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress.
The pump is recommended for supplying 1-2 outlets throughout the boat. These can include taps, showers and other domestic water outlets.
| Accumulator Recommended |
Yes |
| Maximum Recommended Head |
Discharge Head: 30 Metres (98 Feet) |
| Self Primes up to |
3 Metres (9.8 Feet) |
| Wire Size |
Minimum: 2.5mm² (13 AWG) |
| Inlet Outlet |
Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose |
| Brand |
Whale |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
UF0815 |
| Height Description |
125mm (4.9") |
| Width |
230mm (9") |
| Length |
220mm (8.7") |
| Material |
Materials in Contact with Liquid: Glass-filled polypropylene, Monoprene, Nitrile, Stainless Steel |
| Fuse |
5A |
| Flow Rate Description |
8 LPM (2.2 US GPM) |
| Approvals |
EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition) |
| Series |
Universal |
| Supplied With |
Strainer |
| Cut Out Pressure Description |
45 PSI / 3 Bar |
| Warranty |
2 Years |
| Country of Origin |
United Kingdom |
