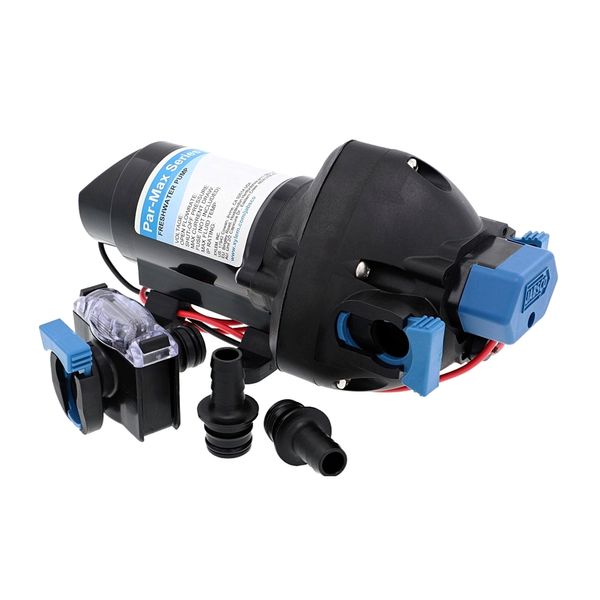

An efficient 12V DC, high-flow, self-priming pump with good performance in an economical footprint. The Jabsco Xylem Par-Max 3 has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve two or more outlets.
Pump features include a plastic housing protecting the motors from corrosion, vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. It has a
The pressure-controlled pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer.
• Voltage: 12V DC
• Open flow GPM (LPM): 3 (11)
• Shut-off pressure PSI (BAR): 40 (2.8)
• Max. current AMPS: 6.2
• Recommended fuse size: 10
• Port fittings: 2 x 1/2" Straight Hosebarb
• Dimensions: 9.1” in length, 4.2” in width, 4.2” in height / 231(L) x 107(W) x 107(H)mm
| Replaces |
JAB-31395-0392 |
| Self Primes up to |
Up to 10ft (3m) dry prime |
| Inlet Outlet |
Fittings for 13mm (1/2") ID hose |
| Brand |
Jabsco |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
31395-4012-3A |
| Size |
Leads: 12" (305mm), 16 AWG (1.5mm^2) |
| Height Description |
108mm |
| Width |
108mm |
| Depth |
231mm |
| Weight |
1.8kg |
| Fuse |
10A (not included) |
| Temperature Range |
Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) |
| Flow Rate Description |
11 LPM (2.9 US GPM) |
| Approvals |
ISO 8846 Ignition Protected, C.E Certified, RCM compliant |
| Pressure Rating |
Operating: 40 PSI (2.8 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum |
| Amps Description |
6 Amps at 40 PSI (2.8 BAR) |
| Supplied With |
Inline Strainer (40 mesh) & Quick Connect Fittings |
| Cut In Pressure |
35 PSI |
| Cut Out Pressure Description |
40 PSI / 2.8 Bar |
Downloads
Jabsco Par Max Series Brochure en
Technical Data Sheet Jabsco Xylem Par Max 3 31395 4012 3A
