Description

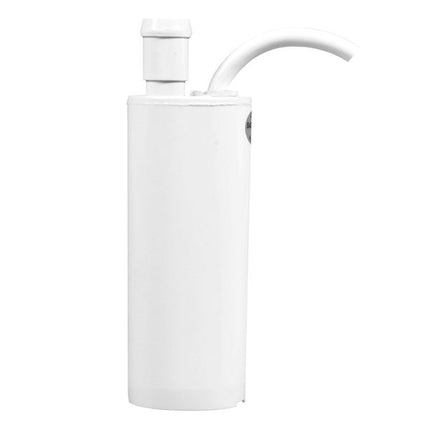

The whale standard submersible pump is a simple, compact and economical solution. It has a long life and is very quiet with a low power consumption. An inexpensive way to update a manual to an electric system, it can be used with pressure and micro switch systems.
• Flow rate of 10 lpm
• Draw 2.4 amps
• 12V
| Flow Rate 1 Metre Head |
8.75 LPM (2.3 US GPM) |
| Flow Rate 3 Metre Head |
5.75 LPM (1.5 US GPM) |
| Brand |
Whale |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
GP1002 |
| Height Description |
Overall: 108mm (4-1/4"), Pump: 88mm (3-7/16"), Hose Connector: 20mm (13/16") |
| Length |
1m Cable |
| Material |
Material In Contact with Liquid: ABS Pump Body, Nitrile Seals, Polypropylene Strainer, PBT Impeller, PVC Cable |
| Fuse |
5A |
| Flow Rate Description |
10.3 LPM |
| Approvals |
ECD 2004/108/EC, CE mark, EN60335-1:2002, EN60335-2-41:2003, EN55014-1:2006 & A1:2009, EN55014-1:2006, EN55022:2006 & A1:2007 |
| Diameter Description |
36mm (1-7/16") |
| Amps Description |
2.4A |
| Warranty |
1 Year |
Downloads
Data Sheet
