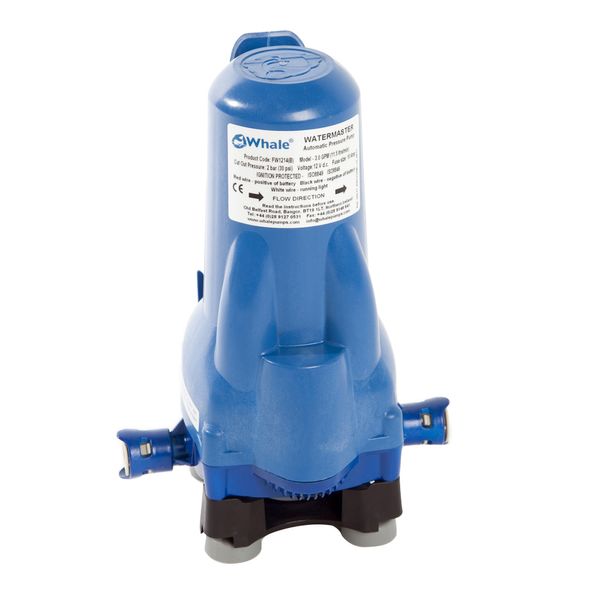

The Whale Watermaster On Board Fresh Water Pump delivers a smooth, consistent flow and runs dry without damage.
Specs:
• Voltage (V d.c.): 12
• Open Flow Rate (per min): 8 ltrs (2.0 GPM)
• Cut Out Pressure: 2 bar (30psi)
• Recommended Fuse Size: 5 Amp Automotive
• Current Draw: 4 amps
• Weight: 1.48kg (3.26 lbs)
• Inlet/Outlet Size: Whale® Quick Connect 12mm Female Connections
• Hose Connections: For 1/2” flexible hose use WU1282. For 3/8” flexible hose use WU1280
• Semi Rigid Pipework System Connections: For Whale® Quick Connect 12mm no adapter required - use 12mm semi rigid pipework WX7112
• Materials in contact with fluid: Glass-filled Polypropylene, Monoprene®, Nitrile®, Stainless Steel
• Service Kits: AK1317 - Microswitch Kit, AK1318 - Replacement Head Kit. AK1320 - Strainer
• Max. Wire Size: 1.5mm2 (16AWG)
• Max. Wire Size: 3m (9ft)
• Max. Discharge Head: 20m (66ft)
Key Features
- 20% lighter than Whale Smartflo
- Vertically mounted
- Quick Conntect 12mm ports
- Rubber feet to absorb vibration
- Fully sealed protective motor cover
| Brand |
Whale |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Weight |
1.48kg (3.26 lbs) |
| Flow Rate Description |
8 LPM (2.0 GPM) |
| Cut Out Pressure Description |
30 PSI / 2 Bar |
