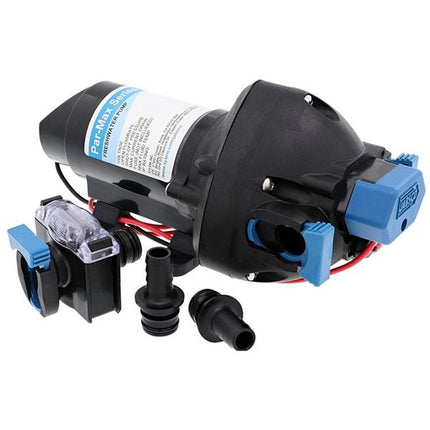

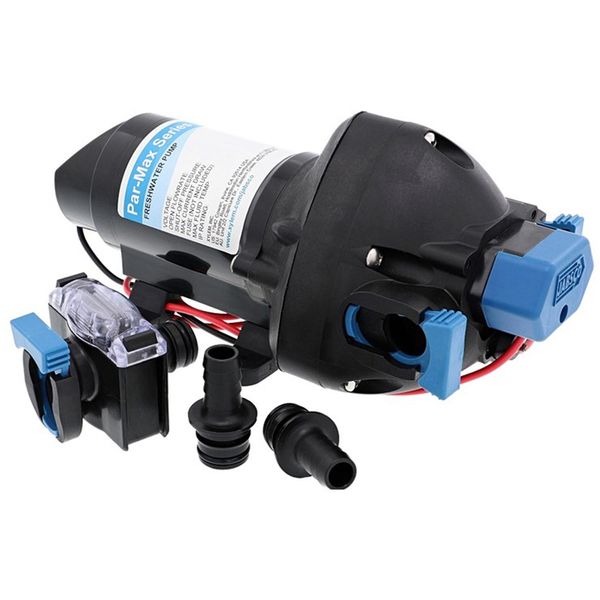

Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer.
The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps.
Jabsco Pump 31395-2512-3A Spare Parts:
Part ID | Spare Part | Part Number
1 | Port Clips | 30647‐1000
2 | Switch Kit | 18916‐1025
3 | Check Valve Assembly| 20407034
4 | Diaphragm/Drive Assembly | Not offered
5 | Baseplate/Mounting Feet | 20717001A
Key Features
- Enclosed motor
- Integrated Pressure Switch
- Vibration & Noise reducing mounting
- Self‐priming
- Runs Dry without Damage
| Replaces |
Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732 |
| Self Primes up to |
1.8 Metres (5.9 Feet) |
| Inlet Outlet |
Fittings for 13mm (1/2") ID hose |
| Brand |
Jabsco |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
31395-2512-3A |
| Height Description |
110mm (4.3") |
| Width |
152mm (6") |
| Length |
230mm (9") |
| Fuse |
10A |
| Flow Rate Description |
11 LPM (2.9 US GPM) |
| Approvals |
Complies with ISO8846 Marine (Ignition protection) |
| Series |
Par Max 3 |
| Amps Description |
5.2A |
| Supplied With |
Quick Connect Fittings & Inline Strainer |
| Cut In Pressure |
15 PSI / 1 Bar |
| Cut Out Pressure Description |
25 PSI / 1.7 Bar |
| Warranty |
3 Years |
Downloads
parmax 3 datasheet 31395 2512 3a
