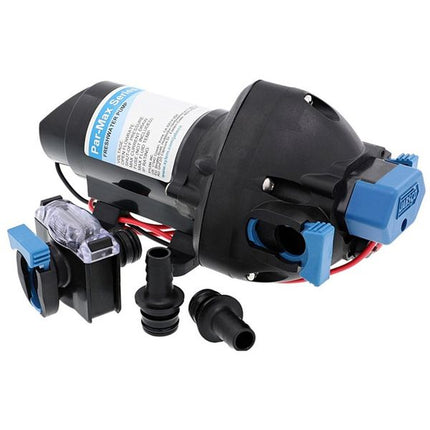

Jabsco Par Max 2 water pressure pumps are internally grounded and have a three chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets.
The Jabsco 31295-3512-3A water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation, as well as a 40 mesh inline strainer.
Jabsco 31295-3512-3A Pressure Pump Features & Benefits:
- Enclosed motor
- Integrated Pressure Switch
- Vibration & Noise reducing mounting
- Self‐priming
- Runs Dry without Damage
| Replaces |
Jabsco 31295‐0092 Par Max 1.9 Pumps |
| Self Primes up to |
3 Metres (9.8 Feet) Vertical Lift |
| Inlet Outlet |
Fittings for 13mm (1/2") ID hose |
| Brand |
Jabsco |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
31295-3512-3A |
| Size |
Leads: 305mm (12"), 1.5mm2 (16 AWG) |
| Height Description |
107mm (4.2") |
| Width |
107mm (4.2") |
| Length |
231mm (9.1") |
| Fuse |
10A (not included) |
| Temperature Range |
Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) |
| Flow Rate Description |
7.6 LPM (2 US GPM) |
| Approvals |
ISO 8846 MARINE (ignition protection), CSA Listed, C.E Certified |
| Pressure Rating |
Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum |
| Series |
Par Max 2 |
| Amps Description |
6A (at 35 PSI / 1.7 bar) |
| Supplied With |
Inline Strainer (40 Mesh) & Quick Connect Fittings |
| Cut In Pressure |
15 PSI / 1 Bar |
| Cut Out Pressure Description |
35 PSI / 2.4 Bar |
| Warranty |
3 Years |
