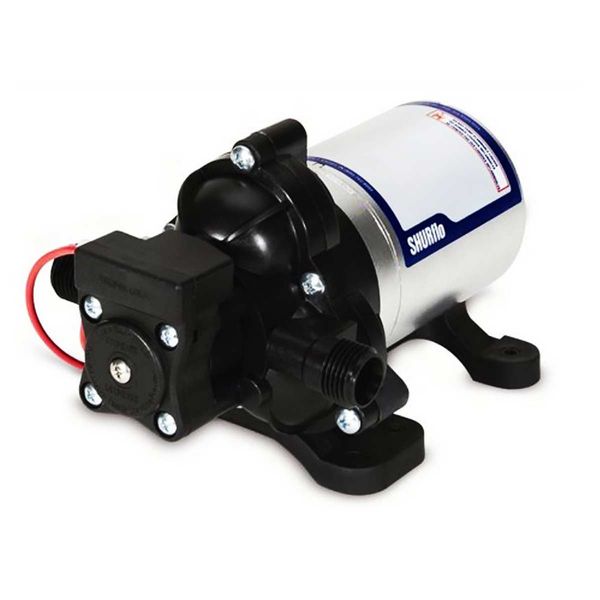

OEM version of the 26502 pump - It does not include retail packaging, fittings or connectors. Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected • Light duty (vehicle/motorhome) leisure use. Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Flow Rate Description 7 LPM (1.8 US GPM) Cut Out Pressure Description 30 PSI / 2 Bar

Read more less

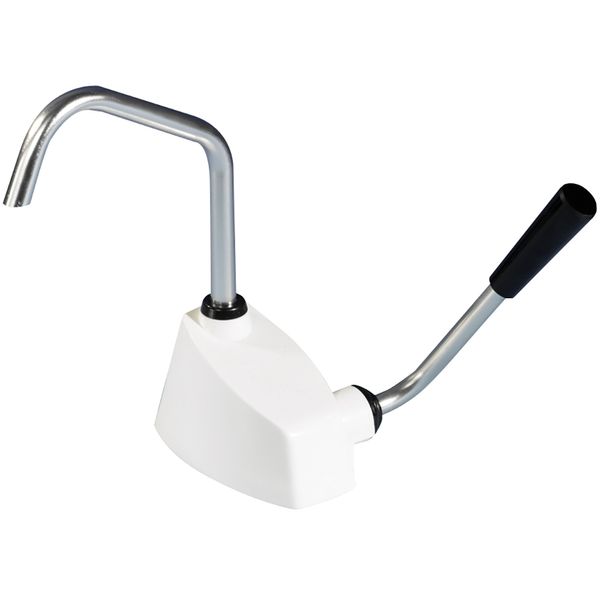

Whale's manual galley pumps are truly design classics. Since the 1960s these manual pumps have been designed, refined and manufactured by our skilled UK based workforce. Self priming Lever operated hand pump. Ideal for installing between two sinks- swivelling outlet fine flow control. 7 litres capacity per minute Key Features Easy operation Light back & forth pump action Suitable for fresh watered saltwater Brand Whale Type Cold Tap Model Flipper MK4 Height Description Overall: 304mm Width Body: 61mm Depth Body: 103mm Finish Aluminium Material Aluminium Alloy Outlet Colour Aluminium Diameter Description Base: 54mm Application 13mm Inside Diameter Hose Capacity Description 7 LPM Country of Origin United Kingdom Downloads Whale Pump Brochure Whale Pump Brochure

Read more less

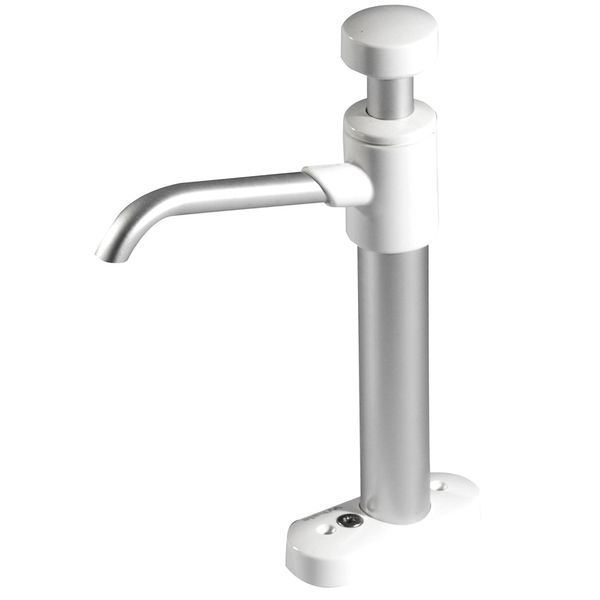

Narrow mounting base allows installation for use between two sinks. Angled spout and adjustable height provide various options for installation. Extended spout makes for easy filling of containers Capacity 8 lpm Useful as a back-up pump or for a simple freshwater supply pump. Suitable for fresh water and saltwater. Maximum Suction Lift 3m Brand Whale Type Cold Taps Model GP0650 Height Description Above Surface: 390mm (15-5/16") Maximum, 90mm (3-1/2") Minimum Width Barrel: 25mm (1") Length Spout: 125mm (5") Finish Aluminium Material Acetal, Anodised Aluminium Alloy, Neoprene & Nitrile, Stainless Steel Colour Aluminium Flow Rate Description 8 LPM (2.2 US Gallons), 480 LPH (132 US Gallons) Mounting Description 32mm x 80mm (1-1/4" x 3-3/16") Warranty 1 Year Downloads Whale Pump Brochure Whale Pump Brochure

Read more less

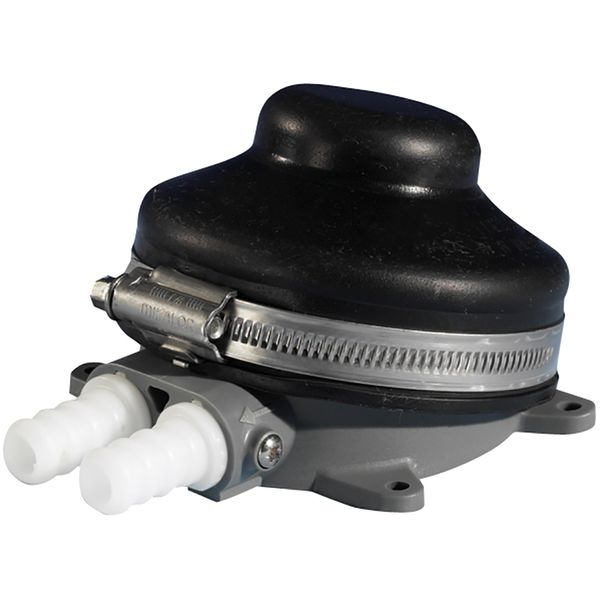

Self-priming foot pump designed for easy installation and use. Simple foot operated solution for pumping water in the galley. Smooth and easy operation. Comfortable to use - angled top section. Compact for installing in confined spaces. Ideal as a priming pump for use with Whale in line impeller electric pumps. The ideal foot pump for a simple freshwater system. Note: Not for use in pressurised systems. Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 3 Metres (9.8 Feet) Maximum Suction Lift 1.5m (5 ft) Brand Whale Type Foot Pumps Voltage Description Manual Model GP4618 Material Nylon Pump Body, Acetal Ports, Neoprene Seals, Stainless Steel Fasteners, Phosphor Bronze Flow Rate Description 8 LPM (2.2 US Gallons), 480 LPH (132 US Gallons) Mounting Description On-Deck Mount Application Fresh Water, Salt Water Downloads Whale Pump Brochure

Read more less

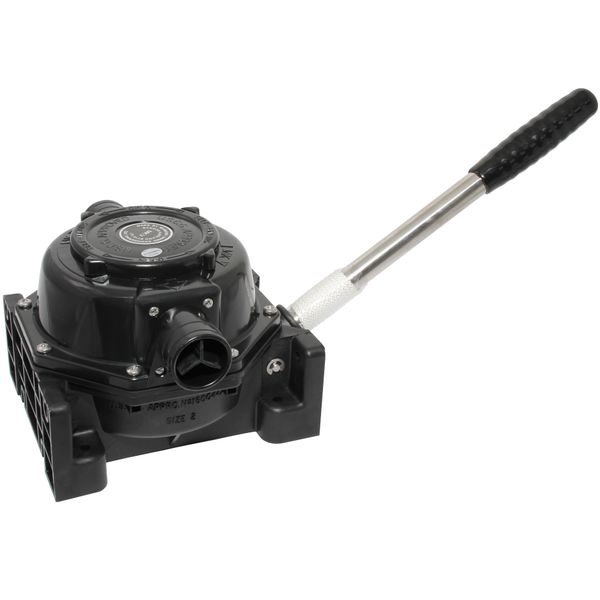

The Whale MK5 manual bilge pump is a hand operated bilge pump combining versatile design with high output. The MK5's compact design means it can be on deck, through deck or bulkhead mounted without modification. As a nitrile diaphragm pump, it can be used to pump bilge water, saltwater or diesel. The bilge pump is constructed from a robust glass filled polypropylene body with a glass filled nylon and acetyl operating lever. Reliability is ensured with non choke valves and a fully enclosed diaphragm. It contains an inspection hatch for quick and easy maintenance of the pump. This pump also features a removable handle. Automatic Bilge Pumps No Maximum Pump Head Over 4.27 Metres Maximum Recommended Head 4.5 Metres (15 Feet) Maximum Suction Lift 4.5 Meters (15 Feet) Removable Handle Yes Inlet Outlet To Suit 38mm (1-1/2") ID Hose Brand Whale Type Universal Mount Voltage Description Manual Model BP0510 Height Description Pump Body: 139mm (5-1/2") Width Pump Body: 187mm (7-3/8") Length Overall (including removable handle): 481mm (18-7/8") Flow Rate Description 42 LPM (11 US GPM) at 45 strokes per minute, 66 LPM (17.5 US GPM) at 70 strokes per minute. Approvals Approved by Lloyds (MCA) and USCG. Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831. Application Bilge Water, Salt Water or Diesel Warranty 5 Years Country of Origin United Kingdom Downloads Whale Pump Brochure

Read more less

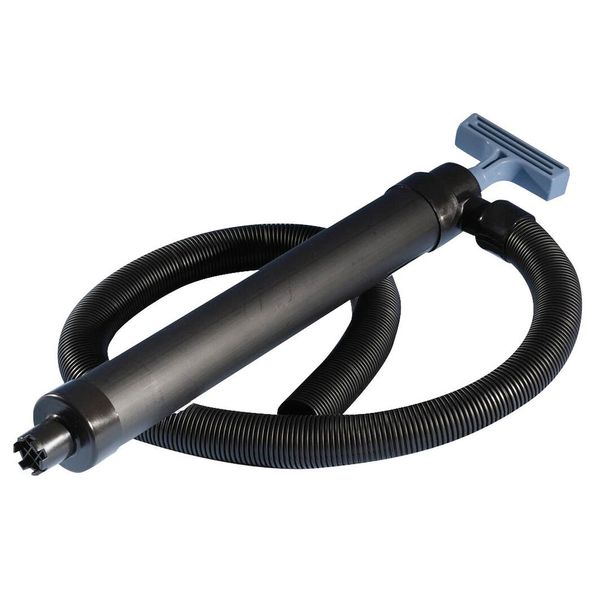

The Whale Easybailer BP1935 is a portable bilge pump ideal for use in open boats, RIBS and when in confined spaces. Featuring a lightweight design and an easy-to-use pump action handle, this pump is suitable for bilge water or diesel transfer and provides easy bail out on board small boats. The Easybailer is supplied with 1 metre of outlet hose flexible hose enabling the user to pump out from hard to reach bilge areas.   • No fittings or plumbing required • Materials in contact with fluid: ABS, HDPE, polypropylene, PVC, uPVC, neoprene and stainless steel • Barrel length 483 mm (19") Automatic Bilge Pumps No Maximum Pump Head 0 to 2.2 Metres Maximum Recommended Head 0.5 Metres (1.5 Feet) Maximum Suction Lift 1m (3 ft) Inlet Outlet 25mm (1") Brand Whale Type Unmounted Voltage Description Manual Model BP1935 Width 50mm (1-15/16") Length Barrel: 483mm (19"), Extended: 793mm (31-7/32") Material Pump Body: ABS, HDPE, Polypropylene, PVC, uPVC. Neoprene Diaphragm, Stainless Steel Fasteners Flow Rate Description 19 litres (5 US gallons) at 45 strokes per minute, 31.4 litres (8.3 US gallons) at 70 strokes per minute. Approvals ISO15083- Marine Standard for Vessels up to 12 Metres in Length, Suitable as a primary bilge pump on boats up to 12m (40ft) in accordance with ISO15083 Mounting Description Handheld Application Bilge Water or Diesel Transfer Warranty 5 Years Country of Origin United Kingdom   Downloads Whale Pump Brochure

Read more less

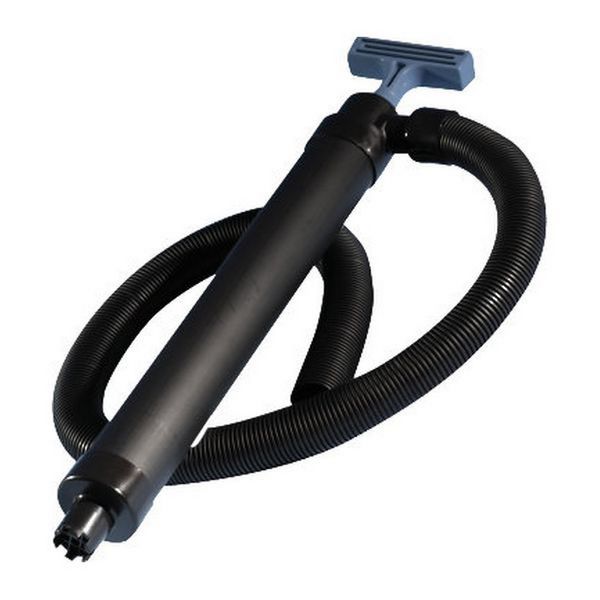

The portable choice from Whale. Whale's hand held pump for easy bail out on board small boats. • Portable light weight design • Suitable for bilge water or diesel transfer • Easy to use pump action handle • Flexible hose can be easily directed to hard to reach bilge areas • Available in two barrel lengths 483 mm (19") or 685 mm (27") Automatic Bilge Pumps No Maximum Pump Head 0 to 2.2 Metres Maximum Recommended Head 0.5 Metres (1.5 Feet) Maximum Suction Lift 1m (3 ft) Inlet Outlet 25mm (1") Brand Whale Type Unmounted Voltage Description Manual Model BP1955 Width 50mm (1-15/16") Length Barrel: 685mm (26-15/16"), Extended: 995mm (39-3/16") Material Pump Body: ABS, HDPE, Polypropylene, PVC, uPVC. Neoprene Diaphragm, Stainless Steel Fasteners Flow Rate Description 19 litres (5 US gallons) at 45 strokes per minute, 31.4 litres (8.3 US gallons) at 70 strokes per minute. Approvals ISO15083- Marine Standard for Vessels up to 12 Metres in Length, Suitable as a primary bilge pump on boats up to 12m (40ft) in accordance with ISO15083 Mounting Description Handheld Application Bilge Water or Diesel Transfer Series Easybailer Warranty 5 Years Country of Origin United Kingdom Downloads Whale Pump Brochure

Read more less

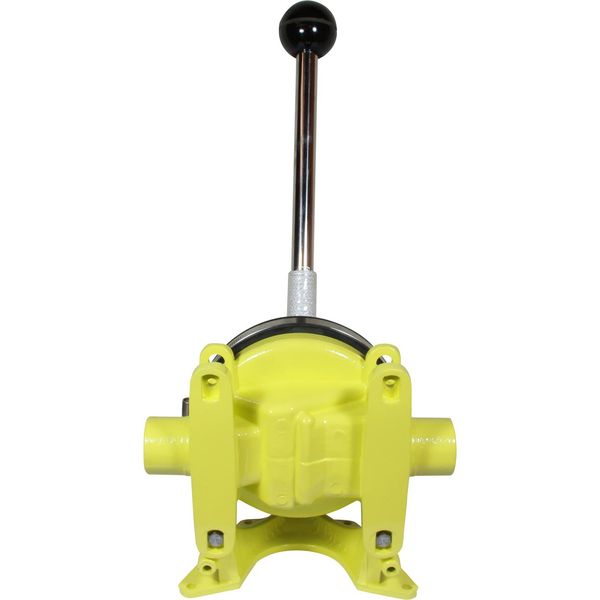

The Whale BP3708 Gusher 10 MK3 - Standard bilge pump has been around for decades and is recognized as a robust pump ideal for workboats, cruisers or offshore racing vessels. The epoxy coated anodised diecast aluminium alloy body assures long life, and a world wide supply of replacement parts means the Gusher 10 will never go out of date. Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO15083. Designed for easy maintenance and instant access, high flow non-choke valves can pump 17 Gallons per minute at 70 strokes per minute. Materials: Marine Grade LM6 Aluminium alloy, epoxy coated, stainless steel, Nitrile and Neoprene • Maximum suction lift: 13.5 ft • Maximum discharge head: 13.5ft Automatic Bilge Pumps No Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 4 Metres (13.5 Feet) Maximum Suction Lift 4 Meters (13.5 Feet) Removable Handle Yes Inlet Outlet To suit 38mm (1-1/2") ID hose Brand Whale Type Deck Mounted Voltage Description Manual Model BP3708 Height Description Pump Body: 200mm Width Body: 204mm Length 436mm Flow Rate Description 41 LPM (10.5 US GPM) at 45 strokes per minute, 65 LPM (17 US GPM) at 70 strokes per minute. Approvals Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831 Application Bilge or Waste Water Warranty 5 Years Country of Origin United Kingdom

Read more less

The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. This model supports 2 inlets. Complete prewired grey waste system that handles waste from multiple drains using the high capacity Gulper IC pump. Gulper IC - Automatic control - receives electrical signals to turn on/off as required • One pump handles waste from multiple drains • Fast drainage - high capacity up to 19 litres (5 US gals) /min • Self primes and runs dry • Easy to install - including uneven surfaces • Time delay to allow for optimum drainage • Soft start - protects the pump for long life • Low current controlled switching - no switch failure from high currents • Two Way Manifold IC- Fully automatic Two Way Manifold handles waste from multiple drains as required. • Senses waste level through wall - not in contact with water • Quiet drainage • Removes the need to install a bulky grey waste tank • Service free - No moving parts to clog or burn • Fully potted circuitry - protected against water ingress It is important to ensure that a vented anti-syphon loop is incorporated in the system. Flow Rate 1 Metre Head 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) Maximum Head and Lift 4 Metres Maximum Recommended Head 3 Metres Brand Whale Voltage Description 12V DC Model WM8284 Height Description 117mm Width 198mm Depth 102mm (4") Length 280mm Fuse 10A Flow Rate Description 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) Approvals ISO8846, IP45, CE Certified Consumption 7.5A with 19mm Hose, 8A with 25mm Hose Connections Description 19mm (3/4") / 25mm (1") Minimum Cable Spec 1.5mm² Country of Origin United Kingdom Downloads Information Sheet Product Sheet

Read more less

GULLEY IC (IC Intelligent Control) The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. Connections: 19mm (3/4") or 25mm (1"). Specifically designed for shower waste - Includes Gulper IC electric waste pump and Compact Gulley IC with 4m (12ft) cable for easy installation. Unique Intelligent Control means Gulley IC Kit is all you need for shower waste management. Electrical signals are sent from Gulley IC only when grey waste water needs to be pumped out. Fully automatic shower gulley drains waste away. WHY Gully IC? Features and Benefits • Automatic control - Gulley IC senses the grey waste level and sends signals to Gulper IC to turn off and on as required • One pump automatically handles waste from your shower on board - no manual switches required • Easy installation - pre wired plug and play kit • Reliability - no moving parts to clog • Long life - self primes and can run dry • Soft start - protects the pump • Low current controlled switching - no switch failure from high currents • Fast drainage - high capacity up to 19 ltrs (5 US gals) /min • Optimal drainage - built in time delay Accreditations: • Ignition protection ISO8846. • CE marked Gulley IC • Compact single shower gulley with integrated intelligent control • Easy clean cover and sleek design • Protected against water ingress – fully potted circuitry • Quiet drainage Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system. Flow Rate 1 Metre Head 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) Maximum Head and Lift 4 Metres (13.5ft) Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 3 Metres (10ft) Maximum Suction Lift 3 Metres (10ft) Brand Whale Voltage Description 12V DC Model SG8284 Height Description 117mm Width 198mm Depth 102mm (4") Length 280mm Material Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners Fuse 10A Flow Rate Description 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) Approvals ISO8846, CE Certified Consumption 8A Connections Description 19mm (3/4") / 25mm (1") Minimum Cable Spec 1.5mm² (16 AWG) Country of Origin United Kingdom   Downloads Product Sheet Installation Guide

Read more less

The Whale Gulper 320 is ideal where bilge space is limited as it has the smallest strainer footprint. The head rotates to suit your installation and making it easy to install even on uneven surfaces. It has non choke valves and no filter to clean making it easy to maintain. Maximum Pump Head 2.3 to 4.27 Metres Dimensions Base: 156mm x 110mm (6.1" x 4.4") Maximum Combined Head and Lift 4m (13.1ft) Maximum Recommended Head 3 Metres (9.8 Feet) Replaces 504814 Self Primes up to 3 Metres (9.8 Feet) Wire Size Minimum 1.5mm² (16 AWG) Inlet Outlet 19mm (3/4") & 25mm (1") ID Hose Brand Whale Type Toilet Pumps Voltage Description 12V DC Model BP2052 Height Description Overall: 117mm (4-5/8") Width Overall: 198mm (7-3/4"), Strumbox: 60mm Length Overall: 280mm (11"), Strumbox: 98mm Material Glass-Filled Nylon Body Fuse 10A Flow Rate Description 19 LPM (4.16 GPM / 5 US GPM) Approvals ISO15083 Marine Standard suitable for bilge pump ( for vessels up to 12mtrs), CE Marked, Ignition protected ISO8846 Supplied With Strainer Warranty 3 Years Country of Origin United Kingdom   Downloads Whale Pump Brochure

Read more less

Whale Gulper 220 is a wastewater pump particularly designed to handle hair and gels, making it ideal as a shower waste pump. It features a body constructed from aluminium and glass-filled nylon for a robust housing suitable for the marine environment along with rubber feet designed to absorb vibration. Popular diaphragm pump, will run dry without damage and self priming up to 3m. Multi-directional head. Up to 14 litres per minute. Dimensions: 117mm x 173mm (including hose tails) x 273mm Connections Type: 19mm hose tails Fuse Requirement: 5A. Maximum Pump Head 2.3 to 4.27 Metres Dimensions Base: 135mm x 111mm (5-5/16" x 4-3/4") Maximum Combined Head and Lift 4m (13.1ft) Maximum Recommended Head 3 Metres (9.8 Feet) Replaces Closest Alternative for 509430 & 509432 Flojet Shower Waste Drain Pumps Self Primes up to 3 Metres (9.8 Feet) Wire Size Minimum 1.5mm² (16 AWG) Inlet Outlet 19mm (3/4") ID hose Brand Whale Type Toilet Pumps Voltage Description 12V DC Model BP1552 Height Description 117mm (4-5/8") Width 173mm (6-13/16") Length 273mm (10-3/4") Fuse 5A Flow Rate Description 14 LPM (3 GPM / 3.7 US GPM) Approvals CE Marked, IP45 rated for water ingress, Ignition protected ISO8846, ISO10133 Electrical systems – extra low voltage dc installations Warranty 2 Years Country of Origin United Kingdom Downloads Installation Sheet Product Sheet Technical Article - Waste Tanks & Kits

Read more less
