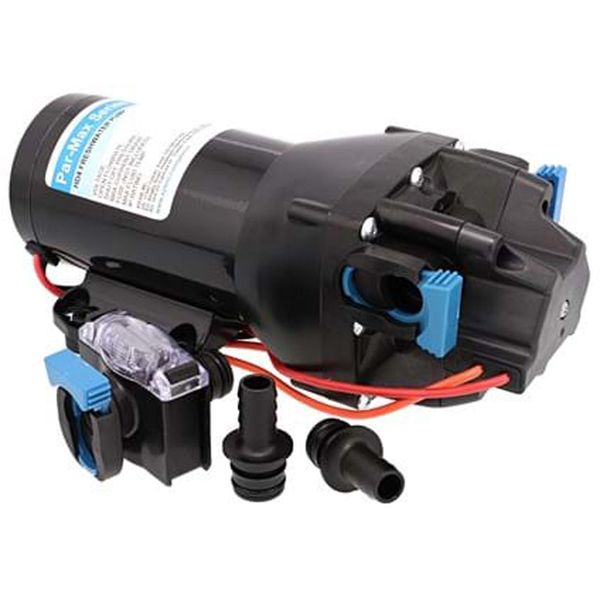

Jabsco Q401J-112S-3A freshwater delivery pump Par Max HD4 is an efficient, self-priming pump with high flow output for serving four or more outlets. The Jabsco multi-diaphragm design self primes to 2.4m vertical lift and can run dry without damage. Supplied with 40-mesh inline Quick Connect strainer.
The Jabsco pump can be used for the following applications: Washdown, Livewell Circulation, Freshwater Delivery (galley, shower, washing machine), Shower Drain, Baitwell, General Purpose and Auxiliary Bilge.
This drinking water pressure pump replaces the following Jabsco pressure pumps: 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 and 82600‐0392.
Jabsco Pump Spares for Q401J-112S-3A:
# | Item | Part Number
1 | Port Clips | 30647‐1000
2 | Switch Kit | 16470‐0025
3 | Check Valve Assembly | 18753‐0731
4 | Diaphragm & Drive Assembly | 18753‐0730
5 | Baseplate & Mounting Feet | 18753‐0729
Key Features
- Heavy Duty, Coated Motor
- Integrated Sealed Pressure Switch
- Efficient, quiet operation
- Self‐priming
- Runs Dry without Damage
- Quick Connect Ports
- Noise Dampening Baseplate
- Thermal Motor Protection (TCO)
| Accumulator Recommended |
Yes |
| Dimensions |
Distance between mounting hole centres: 50mm x 90mm (2" x 3.6") |
| Maximum Pressure |
Inlet: 30 PSI (2.1 Bar) |
| Replaces |
Jabsco 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 & 82600‐0392, WP-014 & 509736. Closest Alternative for Jabsco 52600-0292 PAR-Max 7 Pump |
| Self Primes up to |
2.4 Metres (7.9 Feet) |
| Wire Size |
2.5mm2 (14 AWG) |
| Inlet Outlet |
Fittings for 13mm (1/2") ID hose |
| Brand |
Jabsco |
| Type |
Fresh Water Pumps |
| Voltage Description |
12V DC |
| Model |
Q401J-112S-3A |
| Height Description |
97mm (3.8") |
| Width |
109mm (4.3") |
| Length |
Pump: 239mm (9.4"), Cable: 305mm (12") |
| Material |
Upper Housing*: Fibre reinforced polypropylene, Lower Housing: Cast Aluminium, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*: EPDM, Switch diaphragm*: EPDM, Bypass Diaphragm*: EPDM, PH Seals*: EPDM, PH Fasteners: Stainless Steel, Baseplate: Plastic & rubber feet, Motor Casing: Cast Aluminium; Coated Steel. (*in contact with water) |
| Fuse |
15A (Not Included) |
| Temperature Range |
Ambient: 0°C ‐ 60°C (32°F ‐ 140°F), Fluid: 0°C ‐ 60°C (32°F ‐ 140°F) |
| Flow Rate Description |
15.1 LPM (4 US GPM) |
| Approvals |
CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 Marine (Ignition Protected) |
| Series |
Par-Max HD4 |
| Amps Description |
Maximum: 8A (at 25 PSI / 1.7 Bar) |
| Cut Out Pressure Description |
25 PSI / 1.7 Bar |
| Warranty |
3 Years |
