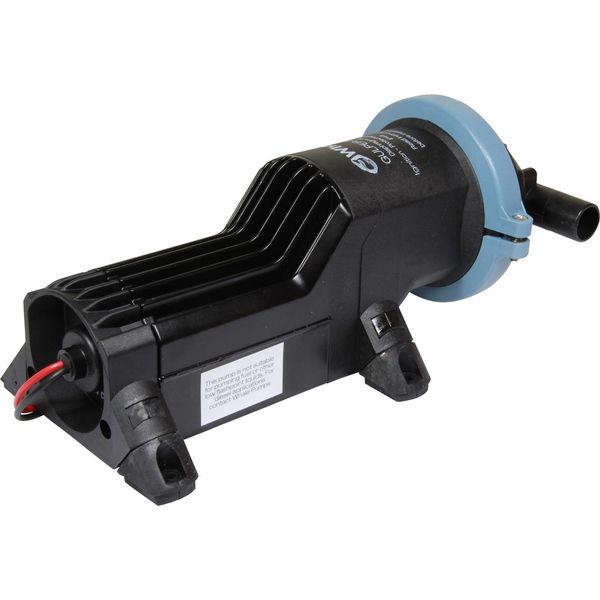

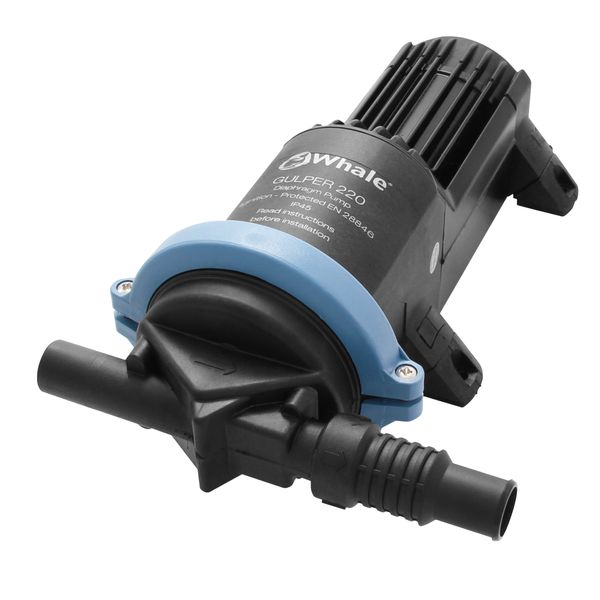

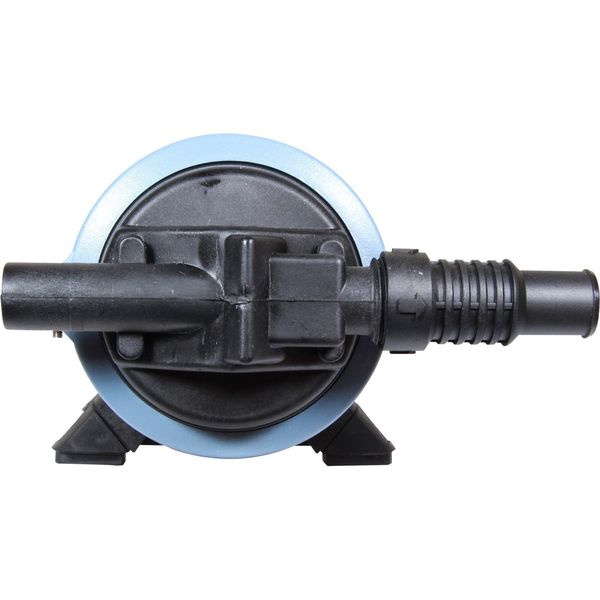

Whale Gulper 220 is a wastewater pump particularly designed to handle hair and gels, making it ideal as a shower waste pump. It features a body constructed from aluminium and glass-filled nylon for a robust housing suitable for the marine environment along with rubber feet designed to absorb vibration. Popular diaphragm pump, will run dry without damage and self priming up to 3m. Multi-directional head. Up to 14 litres per minute. Dimensions: 117mm x 173mm (including hose tails) x 273mm Connections Type: 19mm hose tails Fuse Requirement: 5A.
| Maximum Pump Head |
2.3 to 4.27 Metres |
| Dimensions |
Base: 135mm x 111mm (5-5/16" x 4-3/4") |
| Maximum Combined Head and Lift |
4m (13.1ft) |
| Maximum Recommended Head |
3 Metres (9.8 Feet) |
| Replaces |
Closest Alternative for 509430 & 509432 Flojet Shower Waste Drain Pumps |
| Self Primes up to |
3 Metres (9.8 Feet) |
| Wire Size |
Minimum 1.5mm² (16 AWG) |
| Inlet Outlet |
19mm (3/4") ID hose |
| Brand |
Whale |
| Type |
Toilet Pumps |
| Voltage Description |
12V DC |
| Model |
BP1552 |
| Height Description |
117mm (4-5/8") |
| Width |
173mm (6-13/16") |
| Length |
273mm (10-3/4") |
| Fuse |
5A |
| Flow Rate Description |
14 LPM (3 GPM / 3.7 US GPM) |
| Approvals |
CE Marked, IP45 rated for water ingress, Ignition protected ISO8846, ISO10133 Electrical systems – extra low voltage dc installations |
| Warranty |
2 Years |
| Country of Origin |
United Kingdom |
