GULLEY IC (IC Intelligent Control)
The Whale IC Waste Management System has a unique intelligent control that means this is all you need for waste management. The automatic control receives electrical signals to turn on and off as required, the pump also has soft start which protects the pump for a longer life. It self primes and usable to run dry without causing damage and has fast drainage of up to 19LPM. Connections: 19mm (3/4") or 25mm (1").

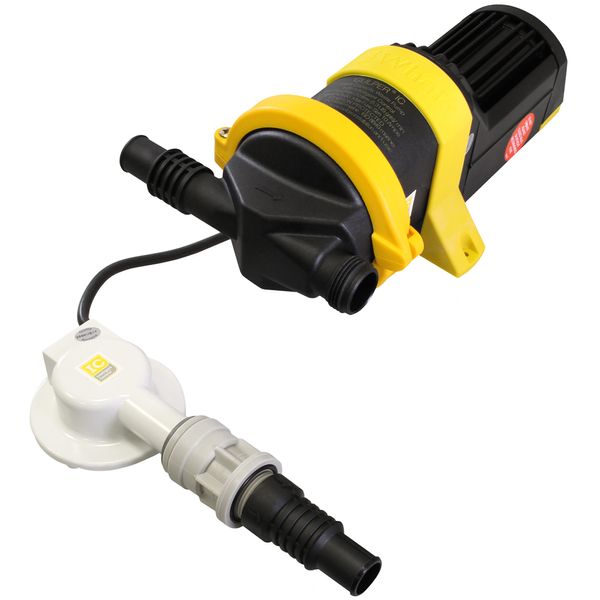

Specifically designed for shower waste - Includes Gulper IC electric waste pump and Compact Gulley IC with 4m (12ft) cable for easy installation.
Unique Intelligent Control means Gulley IC Kit is all you need for shower waste management. Electrical signals are sent from Gulley IC only when grey waste water needs to be pumped out. Fully automatic shower gulley drains waste away.
WHY Gully IC?
Features and Benefits
• Automatic control - Gulley IC senses the grey waste level and sends signals to Gulper IC to turn off and on as required
• One pump automatically handles waste from your shower on board - no manual switches required
• Easy installation - pre wired plug and play kit
• Reliability - no moving parts to clog
• Long life - self primes and can run dry
• Soft start - protects the pump
• Low current controlled switching - no switch failure from high currents
• Fast drainage - high capacity up to 19 ltrs (5 US gals) /min
• Optimal drainage - built in time delay
Accreditations:
• Ignition protection ISO8846.
• CE marked
Gulley IC
• Compact single shower gulley with integrated intelligent control
• Easy clean cover and sleek design
• Protected against water ingress – fully potted circuitry
• Quiet drainage
Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
| Flow Rate 1 Metre Head |
17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) |
| Maximum Head and Lift |
4 Metres (13.5ft) |
| Maximum Pump Head |
2.3 to 4.27 Metres |
| Maximum Recommended Head |
3 Metres (10ft) |
| Maximum Suction Lift |
3 Metres (10ft) |
| Brand |
Whale |
| Voltage Description |
12V DC |
| Model |
SG8284 |
| Height Description |
117mm |
| Width |
198mm |
| Depth |
102mm (4") |
| Length |
280mm |
| Material |
Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners |
| Fuse |
10A |
| Flow Rate Description |
19 LPM (5 US Gallons), 1140 LPH (300 US Gallons) |
| Approvals |
ISO8846, CE Certified |
| Consumption |
8A |
| Connections Description |
19mm (3/4") / 25mm (1") |
| Minimum Cable Spec |
1.5mm² (16 AWG) |
| Country of Origin |
United Kingdom |
