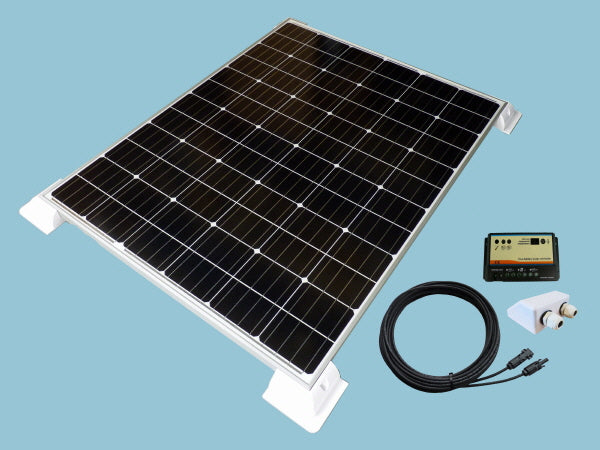

This 200W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 200 Watt solar power kit you could expect to generate around 56 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. his 200W Sunshine Solar Caravan Motorhome Kit includes an MPPT single battery charge controller for one battery bank as standard with the option to upgrade to an MPPT dual battery controller for optimised battery charging of two battery banks.    Solar Panel Specifications High Efficiency Monocrystalline Cells Maximum Power (Pmax): 200W Maximum Power Current (Ipm): 11.1A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 11.9A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Maximum Series Fuse: 9A Size: 1335 x 986 x 35mm Weight: 14kg Kit Contents 1 x Sunshine Solar Panels 200W 12V  1 x MPPT Single Battery Controller 20A - 12V/24V (Upgrade available) 1 x 6m Extension Cable & Connectors 2 x Set Of Plastic Corner Mounts - White or Black 2 x Sets Of Plastic Side Mounts - White or Black 1 x ABS Cable Entry Cover Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output

Read more less

With a 185W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 52 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 185W Kit that equates to around 62 amps per day with an MPPT solar controller during the summer months. This 185W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated. Specifications Product Code. SSP185MS Max Power. 185W ± 3% Max Power Voltage. 18V Max Power Current. 10.3A Open Circuit Voltage. 21.6V Short Circuit Current. 11.2A Nominal Operating Cell Temp. -45 to 80°C Max System Voltage. DC600V Dimensions. 1470 x 660 x 35mm Weight: 11.2kg Features 900mm of 4mm single-core cable fitted with MC Type 4 Connectors High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diodes to minimise the effect of shading Completely weatherproof Guaranteed Performance 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Suitable Solar Charge Controllers PWM Solar Controller 20A - 12/24V Dual Battery Controller 20A - 12/24V MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation) Dual MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)

Read more less

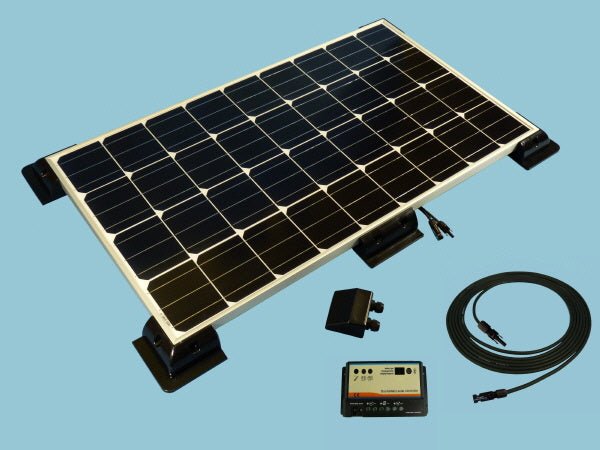

With a 160W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 44 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 160W Kit that equates to around 53 amps per day with an MPPT solar controller during the summer months. This 160W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated. Solar Panel Specifications High Efficiency Monocrystalline Cells Maximum Power (Pmax): 160W Maximum Power Current (Ipm): 8.31A Maximum Power Voltage (Vpm): 18.1V Short Circuit Current (Isc): 8.66A Open Circuit Voltage (Voc): 22.4V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Size: 1470mm x 669mm x 35mm Weight: 11.20kg Kit Contents 1 x Sunshine Solar Panels 160W 12V 1 x Single Battery Controller 20A - 12V/24V (upgrade available) 1 x 6m Extension Cable & Connectors 1 x Set Of Plastic Corner Mounts - White or Black 1 x Set Of Plastic Side Mounts - White or Black 1 x ABS Cable Entry Cover Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Don't forget the add-ons to compliment this kit such as the Remote Meter, not only does this give the customer valuable data about the overall performance of their solar panel it also gives them info on the battery state of charge and makes setting up the system easier. Important note: The solar panel needs a flat area of 1590mm x 789mm these dimensions include the corner mounts supplied with the kit.

Read more less

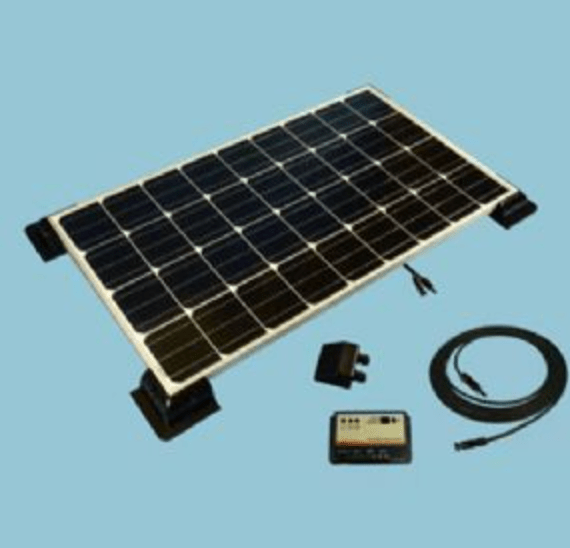

This Solar Power Caravan & Motorhome Kit includes a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups With this 150 Watt solar power kit you could expect to generate around 41 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.  Solar Panel Specifications High Efficiency Monocrystalline Cells Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.31A Maximum Power Voltage (Vpm): 18.1V Short Circuit Current (Isc): 8.66A Open Circuit Voltage (Voc): 22.4V Norminal Operating Cell Temp. (NOCT): -45 to 80??C Maximum System Voltage: DC1000V Size: 1475mm x 670mm x 35mm Weight: 11.20kg Kit Features 1 x Sunshine Solar Panels 150W 12V 1 x Solar Battery Controller 20A - 12V/24V 2 x 6m Single Core Cable 4mm 1 x Waterproof Cable Entry Cover 6 x ABS Moulded Corner Brackets MC4 Connectors

Read more less

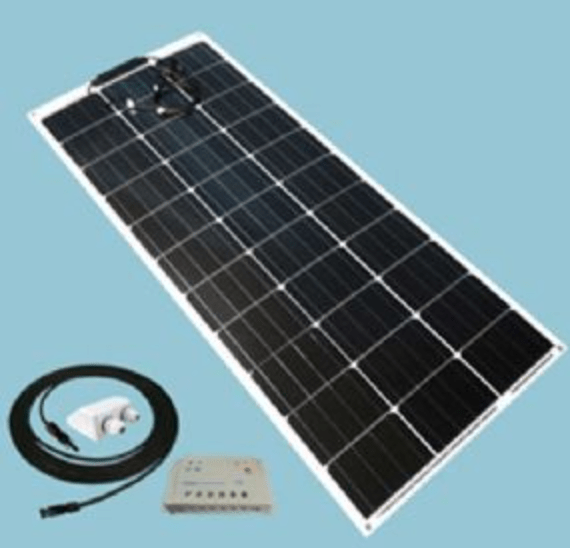

With this 150 Watt solar power kit you could expect to generate around 50 amps per day during the summer months supplementing the 12V leisure battery power in boats etc. SPECS Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 7.58A Maximum Power Voltage (Vpm): 19.8V Short Circuit Current (Isc): 8.09A Open Circuit Voltage (Voc): 23.4V Norminal Operating Cell Temp. (NOCT): -45 to 80??C Maximum System Voltage: DC600V Maximum Series Fuse: 9A Size: 1510 x 670 x 2mm Weight: 5.5kg FEATURES 20?? flexibility Coated surface which can be walked on in deck shoes. Highly efficient monocrystalline cells Can be conveniently placed on curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) IN THE KIT 1 x Solar Panel 150W 12V Monocrystalline 1 x Single Battery Controller 20A - 12V/24V - with Display 2 x 6m 4mm Single Core Cable 1 x Waterproof Cable Entry Cover MCA Connectors

Read more less

This 120W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accommodate our most popular 120W Solar Panel. With the 120 Watt solar power kit you could expect to generate around 31 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. This Sunshine Solar Power Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter. Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades. Need More Power?...... Upgrade to an MPPT controller above for 10-30% eXtra Power Area and Fitting Information : Fitted ABS Corner Mounts will add 120mm to the overall length and width of the solar panel . Fitted Streamline Mounts will add 120mm to the overall length of the solar panel. The width of this solar panel is 580mm the Streamline Mounts are 660mm therefore you may prefer to cut them down for a more aesthetically pleasing look. Kit Performance - Summertime Standard Controller: 31A per day - (10-30% more with MPPT Controller)

Read more less
