| With this 150 Watt solar power kit you could expect to generate around 50 amps per day during the summer months supplementing the 12V leisure battery power in boats etc. |
|
| SPECS |
| Maximum Power (Pmax): 150W |
| Maximum Power Current (Ipm): 7.58A |
| Maximum Power Voltage (Vpm): 19.8V |
| Short Circuit Current (Isc): 8.09A |
| Open Circuit Voltage (Voc): 23.4V |
| Norminal Operating Cell Temp. (NOCT): -45 to 80??C |
| Maximum System Voltage: DC600V |
| Maximum Series Fuse: 9A |
| Size: 1510 x 670 x 2mm |
| Weight: 5.5kg |
|
| FEATURES |
| 20?? flexibility |
| Coated surface which can be walked on in deck shoes. |
| Highly efficient monocrystalline cells |
| Can be conveniently placed on curved solid surfaces |
| Can be easily bonded using Fixing Adhesive (no need for drilling) |
| 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) |
|

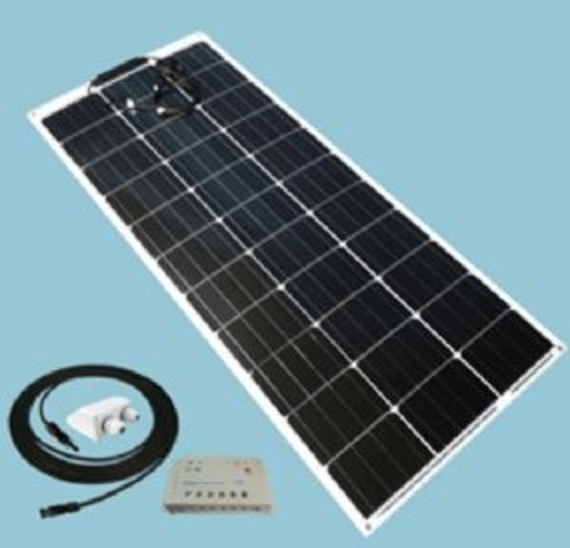

| IN THE KIT |
| 1 x Solar Panel 150W 12V Monocrystalline |
| 1 x Single Battery Controller 20A - 12V/24V - with Display |
| 2 x 6m 4mm Single Core Cable |
| 1 x Waterproof Cable Entry Cover |
| MCA Connectors |
