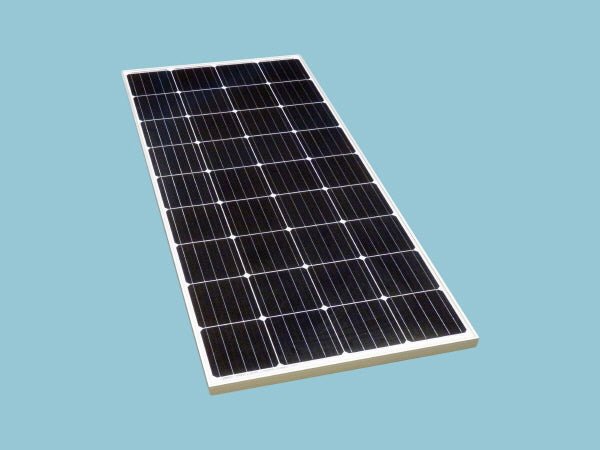

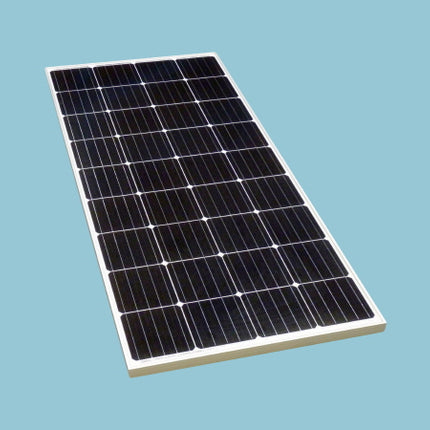

SUNSHINE SOLAR PANELS 185W 12V MONO

With a 185W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 52 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 185W Kit that equates to around 62 amps per day with an MPPT solar controller during the summer months.

This 185W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated.

Specifications

• Product Code. SSP185MS
• Max Power. 185W ± 3%
• Max Power Voltage. 18V
• Max Power Current. 10.3A
• Open Circuit Voltage. 21.6V
• Short Circuit Current. 11.2A
• Nominal Operating Cell Temp. -45 to 80°C
• Max System Voltage. DC600V
• Dimensions. 1470 x 660 x 35mm
• Weight: 11.2kg

Features

• 900mm of 4mm single-core cable fitted with MC Type 4 Connectors
• High Performance Monocrystalline Cells
• Factory fitted aluminium frame with pre-drilled mounting holes
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 5 Years Manufacturers Warranty
• 10 Years Warranty 90% Power Output
• 20 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

• PWM Solar Controller 20A - 12/24V
• Dual Battery Controller 20A - 12/24V
• MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
• Dual MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
