160W Sunshine Solar Caravan & Motorhome Kit

160W Sunshine Solar Caravan & Motorhome Kit

Regular price £214.56
Regular price £0.00 Sale price £214.56
Sale Sold out
Tax included. Shipping calculated at checkout.

With a 160W Sunshine Solar Caravan & Motorhome Kit you could expect to generate around 44 amps per day when used in conjunction with the Single Battery Controller supplied with the kit as standard. This figure is the same when used in conjunction with the upgrade option of a Dual Battery Controller, however the MPPT Dual & Single Battery Controller upgrade options offer 10%-30% more solar power generation depending on the solar panel specifications, in short the higher the solar panels open circuit voltage (Voc) the harder an MPPT Controller works to maximise the power generated. With this 160W Kit that equates to around 53 amps per day with an MPPT solar controller during the summer months.

This 160W Sunshine Solar Caravan & Motorhome Kit includes a single battery charge controller for one battery bank as standard with the option to upgrade to a dual battery controller for optimised battery charging of two battery banks. Our MPPT versions are perfect for those customers wishing to maximise the solar power generated.

Solar Panel Specifications

  • High Efficiency Monocrystalline Cells
  • Maximum Power (Pmax): 160W
  • Maximum Power Current (Ipm): 8.31A
  • Maximum Power Voltage (Vpm): 18.1V
  • Short Circuit Current (Isc): 8.66A
  • Open Circuit Voltage (Voc): 22.4V
  • Nominal Operating Cell Temp. (NOCT): -45 to 80°C
  • Maximum System Voltage: DC1000V
  • Size: 1470mm x 669mm x 35mm
  • Weight: 11.20kg

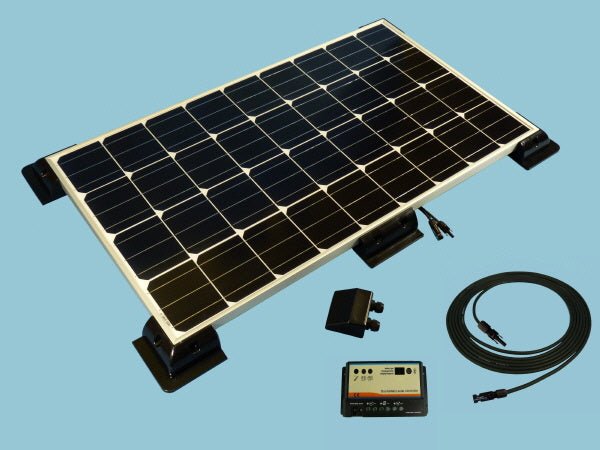

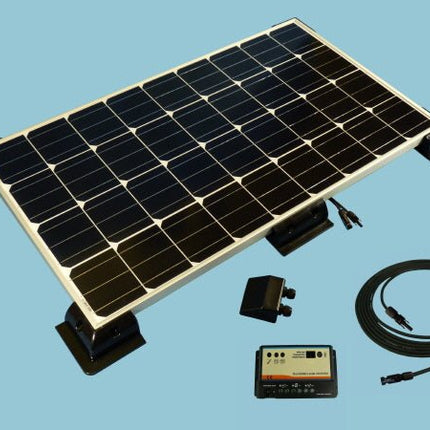

Kit Contents

  • 1 x Sunshine Solar Panels 160W 12V
  • 1 x Single Battery Controller 20A - 12V/24V (upgrade available)
  • 1 x 6m Extension Cable & Connectors
  • 1 x Set Of Plastic Corner Mounts - White or Black
  • 1 x Set Of Plastic Side Mounts - White or Black
  • 1 x ABS Cable Entry Cover

Solar Performance Guarantee

  • 5 Years Manufacturers Warranty
  • 10 Years Warranty 90% Power Output
  • 20 Years Warranty 80% Power Output

Don't forget the add-ons to compliment this kit such as the Remote Meter, not only does this give the customer valuable data about the overall performance of their solar panel it also gives them info on the battery state of charge and makes setting up the system easier.

Important note: The solar panel needs a flat area of 1590mm x 789mm these dimensions include the corner mounts supplied with the kit.
