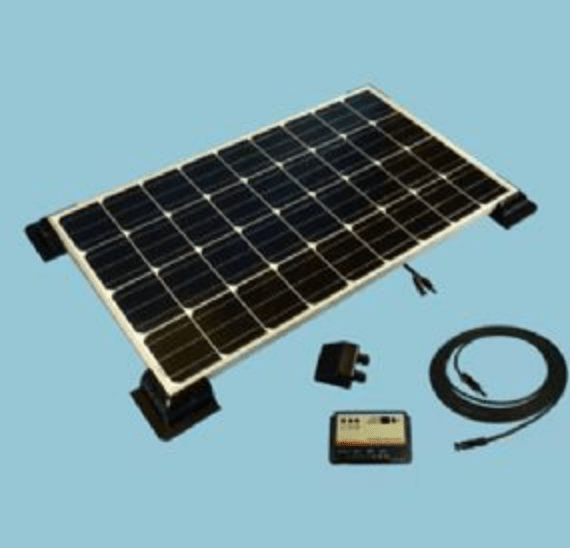

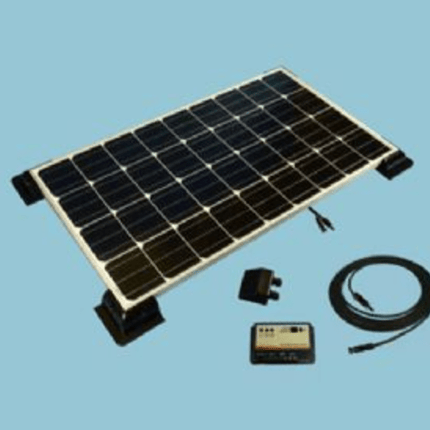

| This Solar Power Caravan & Motorhome Kit includes a single battery charge controller for one battery or one battery bank typically used in caravan solar set-ups |
| With this 150 Watt solar power kit you could expect to generate around 41 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. |
|
| Solar Panel Specifications |
| High Efficiency Monocrystalline Cells |
| Maximum Power (Pmax): 150W |
| Maximum Power Current (Ipm): 8.31A |
| Maximum Power Voltage (Vpm): 18.1V |
| Short Circuit Current (Isc): 8.66A |
| Open Circuit Voltage (Voc): 22.4V |
| Norminal Operating Cell Temp. (NOCT): -45 to 80??C |
| Maximum System Voltage: DC1000V |
| Size: 1475mm x 670mm x 35mm |
| Weight: 11.20kg |
|
| Kit Features |
| 1 x Sunshine Solar Panels 150W 12V |
| 1 x Solar Battery Controller 20A - 12V/24V |
| 2 x 6m Single Core Cable 4mm |
| 1 x Waterproof Cable Entry Cover |
| 6 x ABS Moulded Corner Brackets |
| MC4 Connectors |
