The Jabsco Par Max 2 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price. Jabsco Par Max 2 water pressure pumps are internally grounded and have a three chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets. The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation, as well as a 40 mesh inline strainer. Jabsco Par Max Pressure Pump Features & Benefits: - Enclosed motor - Integrated Pressure Switch - Vibration & Noise reducing mounting - Self‐priming - Runs Dry without Damage Replaces Jabsco 31295‐0094 Par Max 1.9 Pumps & 42630‐2994‐P. Closest Alternative for 509409 Flojet R4305 Pressure Pump & 42630‐3994‐P. Self Primes up to 3 Metres (9.8 Feet) Vertical Lift Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 24V DC Model 31295-3524-3A Size Leads: 305mm (12"), 1.5mm2 (16 AWG) Height Description 107mm (4.2") Width 107mm (4.2") Length 231mm (9.1") Fuse 5A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 7.6 LPM (2 US GPM) Approvals ISO 8846 MARINE (ignition protection), CSA Listed, C.E Certified Pressure Rating Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Series Par Max 2 Amps Description 3A (at 35 PSI / 1.7 bar) Supplied With Inline Strainer (40 Mesh) & Quick Connect Fittings Cut In Pressure 15 PSI / 1 Bar Cut Out Pressure Description 35 PSI / 2.4 Bar Warranty 3 Years   Downloads parmax 2 datasheet 31295 3524 3a

Read more less

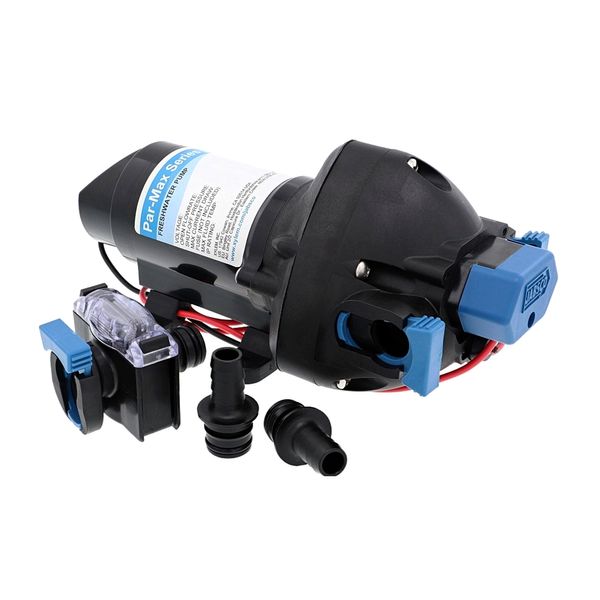

An efficient 12V DC, high-flow, self-priming pump with good performance in an economical footprint. The Jabsco Xylem Par-Max 3 has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve two or more outlets. Pump features include a plastic housing protecting the motors from corrosion, vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. It has a The pressure-controlled pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer. • Voltage: 12V DC • Open flow GPM (LPM): 3 (11) • Shut-off pressure PSI (BAR): 40 (2.8) • Max. current AMPS: 6.2 • Recommended fuse size: 10 • Port fittings: 2 x 1/2" Straight Hosebarb • Dimensions: 9.1” in length, 4.2” in width, 4.2” in height / 231(L) x 107(W) x 107(H)mm Replaces JAB-31395-0392 Self Primes up to Up to 10ft (3m) dry prime Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 12V DC Model 31395-4012-3A Size Leads: 12" (305mm), 16 AWG (1.5mm^2) Height Description 108mm Width 108mm Depth 231mm Weight 1.8kg Fuse 10A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 11 LPM (2.9 US GPM) Approvals ISO 8846 Ignition Protected, C.E Certified, RCM compliant Pressure Rating Operating: 40 PSI (2.8 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Amps Description 6 Amps at 40 PSI (2.8 BAR) Supplied With Inline Strainer (40 mesh) & Quick Connect Fittings Cut In Pressure 35 PSI Cut Out Pressure Description 40 PSI / 2.8 Bar Downloads Jabsco Par Max Series Brochure en Technical Data Sheet Jabsco Xylem Par Max 3 31395 4012 3A

Read more less

An efficient 24V DC, high-flow, self-priming pump with good performance in an economical footprint. The Jabsco Xylem Par-Max 3 has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve two or more outlets. Pump features include a plastic housing protecting the motors from corrosion, vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pressure-controlled pump is supplied with two 1/2" quick connect straight hose barb fittings and a quick connect inline 40 mesh strainer. • Voltage: 24V DC • Open flow: 3 GPM (11 LPM) • Shut-off pressure: 40 PSI (2.8 BAR) • Max. current: 3.1 Amps • Recommended fuse size: 5A • Port fittings: 2x 1/2" Straight Hose barb • Dimensions: 9.1" (231mm) in length, 4.2" (107mm) in width, 4.2" (107mm) in height Replaces JAB-31395-0394 Self Primes up to Up to 10ft (3m) dry prime Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 24V DC Model 31395-4024-3A Size Leads: 12" (305mm), 16 AWG (1.5mm^2) Height Description 108mm Width 108mm Depth 231mm Weight 1.8kg Fuse 5A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 11 LPM (2.9 US GPM) Approvals ISO 8846 Ignition Protected, C.E Certified, RCM compliant Pressure Rating Operating: 40 PSI (2.8 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Amps Description 3 Amps at 40 PSI (2.8 BAR) Supplied With Inline Strainer (40 mesh) & Quick Connect Fittings Cut In Pressure 15 PSI Cut Out Pressure Description 40 PSI / 2.8 Bar Downloads Jabsco Par Max Series Brochure en Technical Data Sheet Jabsco Xylem Par Max 3 31395 4024 3A

Read more less

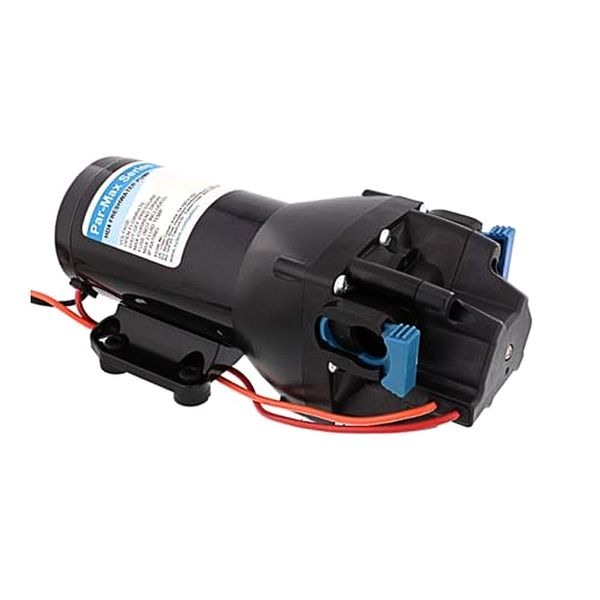

The Jabsco Xylem Par-Max HD4 24V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium endbells and lower housing to improve pressure capability and life. The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets. Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer.  Voltage: 24V DC Open flow GPM (LPM): 4 (15) Shut-off pressure PSI (BAR): 25 (1.7) EU only Max. current AMPS: 4.0 Recommended fuse size: 10 Port fittings: 2 x 1/2" Straight Hosebarb Dimensions: 9.4” in length, 4.1” in width, 3.8” in height / 239(L) x 104(W) x 97(H)mm Replaces 509738 Self Primes up to Up to 8ft (2.4m) dry prime Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 24V DC Model Q402J-112S-3A Size Leads: 12" (305mm), 14 AWG (2.5mm^2) Height Description 97mm Width 104mm Depth 239mm Weight 2.92kg Fuse 10A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 15 LPM (4 US GPM) Approvals ISO 8846 Ignition Protected, C.E Certified, RCM compliant Pressure Rating Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Amps Description 4 Amps at 25 PSI (1.7 BAR) Supplied With Inline Strainer (40 mesh) & Quick Connect Fittings Cut In Pressure 10 PSI Cut Out Pressure Description 25 PSI / 1.7 Bar     Downloads Jabsco Par Max Series Brochure en Technical Data Sheet Jabsco Xylem Par Max HD4 Q402J 112S 3A

Read more less

The Jabsco Xylem Par-Max HD4 24V DC freshwater delivery pump features a wide diameter motor (compared to non-HD models) with a powder-coated shell, cast aluminium endbells and lower housing to improve pressure capability and life. The pump delivers exceptional performance and has a dry self-priming capability of 2.13 meters (7ft) and can run dry without damage. It is designed to serve four or more outlets. Pump features include vibration-dampening feet for quiet operation and an integrated, sealed pressure switch for on-demand operation. The pump is supplied with two 1/2” quick connect straight hosebarb fittings and a quick connect inline 40 mesh strainer. • Voltage: 24V DC • Open flow GPM (LPM): 4 (15) • Shut-off pressure PSI (BAR): 40 (2.8) • Max. current AMPS: 5.0 • Recommended fuse size: 10 • Port fittings: 2 x 1/2" Straight Hosebarb • Dimensions: 9.4” in length, 4.1” in width, 3.8” in height / 239(L) x 104(W) x 97(H)mm Replaces 509739 Self Primes up to Up to 8ft (2.4m) dry prime Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 24V DC Model Q402J-115S-3A Size Leads: 12" (305mm), 14 AWG (2.5mm^2) Height Description 97mm Width 104mm Depth 239mm Weight 2.88kg Fuse 10A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 15 LPM (4 US GPM) Approvals ISO 8846 Ignition Protected, C.E Certified, RCM compliant Pressure Rating Operating: 40 PSI (2.8 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Amps Description 5 Amps at 40 PSI (2.8 BAR) Supplied With Inline Strainer (40 mesh) & Quick Connect Fittings Cut In Pressure 15 PSI Cut Out Pressure Description 40 PSI / 2.8 Bar Downloads Jabsco Par Max Series Brochure en Technical Data Sheet Jabsco Xylem Par Max HD4 Q402J 115S 3A

Read more less

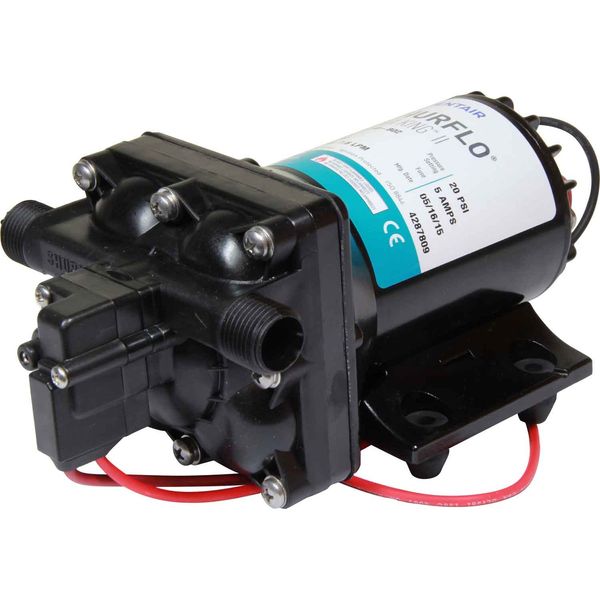

Fresh water diaphragm pump from Shurflo, with redesigned 4 chamber head, fully adjustable sealed pressure switch and heavy duty sealed motor. Built in check-valve, self primes (up to 6 feet), will run dry without damage. Ignition and thermal protection. Heavy duty design provides smoother flow due to 4 chamber head. • 7.6lpm, 20psi Maximum Recommended Head 1.8 Metres Replaces 509502 - SHURflo Aqua King Junior 12v Fresh Water Pressure Pump Self Primes up to 1.82 Metres (6 Feet) Inlet Outlet 1/2"-14 NPSM Male (13mm) Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Model 4129-110 Height Description 104mm (4.1") Width 124mm (4.9") Length 208mm (8.2") Material Polypro Housings, EPDM Valves / Seals, Santoprene Draphragm, Stainless Steel Hardware Fuse 5A Recommended Flow Rate Description 7.6 LPM (2.0 GPM) Approvals Ignition Protection 8846, CE, IMCI Certified Consumption 3.5 a Series SHURflo Aqua King II Junior Amps Description Maximum: 3.5A Connections Description 13mm (1/2") ID Hose or 15mm push fit Cut Out Pressure Description 20 PSI / 1.4 Bar Warranty 3 Years     Downloads Shurflo AquaKing 2 4129 110 B02

Read more less

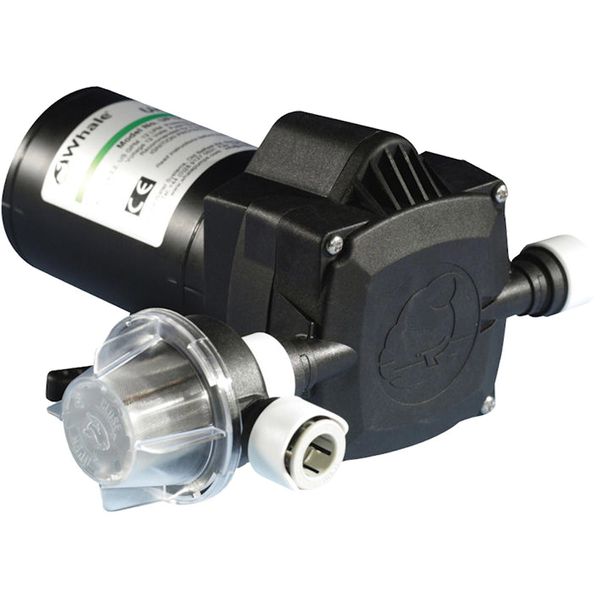

The Whale Universal water pressure pump provides smooth and constant water flow thanks to its seamless 4 diaphragm design, and can operate continuously without any damage from dry running. This water pump has rotating feet to easily fit existing fresh water or saltwater pump systems. It runs quietly and efficiently, combining fantastic safety and reliability with high performance. A clear lid strainer allows for easy inspection and maintenance. The pump materials are chosen for their suitability for freshwater contact. Only polypropylene, monprene, nitrile and stainless steel making contact with fluid. The rest of the pump is made up of a glass filled polypropylene pump body and an aluminium and powder-coated steel motor casing. All diaphragms, valves and feet are monprene, the seals are nitrile and fasteners are all made from stainless steel. The Whale Universal pump range is EMC compliant, CE marked and features an ISO8846 rating for particle ingress. The pump is recommended for supplying 1-2 outlets throughout the boat. These can include taps, showers and other domestic water outlets. Accumulator Recommended Yes Maximum Recommended Head Discharge Head: 30 Metres (98 Feet) Self Primes up to 3 Metres (9.8 Feet) Wire Size Minimum: 2.5mm² (13 AWG) Inlet Outlet Fittings for 15mm Whale Female Quick Connect and 13mm (1/2") BSP / ID Hose Brand Whale Type Fresh Water Pumps Voltage Description 12V DC Model UF0815 Height Description 125mm (4.9") Width 230mm (9") Length 220mm (8.7") Material Materials in Contact with Liquid: Glass-filled polypropylene, Monoprene, Nitrile, Stainless Steel Fuse 5A Flow Rate Description 8 LPM (2.2 US GPM) Approvals EMC Compliant, CE Marked, ISO 8846 MARINE (Ignition) Series Universal Supplied With Strainer Cut Out Pressure Description 45 PSI / 3 Bar Warranty 2 Years Country of Origin United Kingdom

Read more less

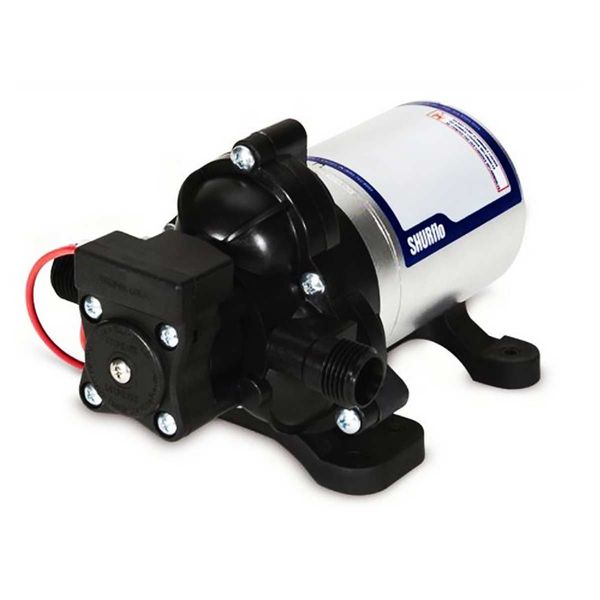

OEM version of the 26500 pump - It does not include retail packaging, fittings or connectors. Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Model Trail King 7 Flow Rate Description 7LPM Cut Out Pressure Description 20 PSI / 1.4 Bar

Read more less

OEM version of the 26502 pump - It does not include retail packaging, fittings or connectors. Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected • Light duty (vehicle/motorhome) leisure use. Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Flow Rate Description 7 LPM (1.8 US GPM) Cut Out Pressure Description 30 PSI / 2 Bar

Read more less

Whale's manual galley pumps are truly design classics. Since the 1960s these manual pumps have been designed, refined and manufactured by our skilled UK based workforce. Self priming Lever operated hand pump. Ideal for installing between two sinks- swivelling outlet fine flow control. 7 litres capacity per minute Key Features Easy operation Light back & forth pump action Suitable for fresh watered saltwater Brand Whale Type Cold Tap Model Flipper MK4 Height Description Overall: 304mm Width Body: 61mm Depth Body: 103mm Finish Aluminium Material Aluminium Alloy Outlet Colour Aluminium Diameter Description Base: 54mm Application 13mm Inside Diameter Hose Capacity Description 7 LPM Country of Origin United Kingdom Downloads Whale Pump Brochure Whale Pump Brochure

Read more less

Narrow mounting base allows installation for use between two sinks. Angled spout and adjustable height provide various options for installation. Extended spout makes for easy filling of containers Capacity 8 lpm Useful as a back-up pump or for a simple freshwater supply pump. Suitable for fresh water and saltwater. Maximum Suction Lift 3m Brand Whale Type Cold Taps Model GP0650 Height Description Above Surface: 390mm (15-5/16") Maximum, 90mm (3-1/2") Minimum Width Barrel: 25mm (1") Length Spout: 125mm (5") Finish Aluminium Material Acetal, Anodised Aluminium Alloy, Neoprene & Nitrile, Stainless Steel Colour Aluminium Flow Rate Description 8 LPM (2.2 US Gallons), 480 LPH (132 US Gallons) Mounting Description 32mm x 80mm (1-1/4" x 3-3/16") Warranty 1 Year Downloads Whale Pump Brochure Whale Pump Brochure

Read more less

Self-priming foot pump designed for easy installation and use. Simple foot operated solution for pumping water in the galley. Smooth and easy operation. Comfortable to use - angled top section. Compact for installing in confined spaces. Ideal as a priming pump for use with Whale in line impeller electric pumps. The ideal foot pump for a simple freshwater system. Note: Not for use in pressurised systems. Maximum Pump Head 2.3 to 4.27 Metres Maximum Recommended Head 3 Metres (9.8 Feet) Maximum Suction Lift 1.5m (5 ft) Brand Whale Type Foot Pumps Voltage Description Manual Model GP4618 Material Nylon Pump Body, Acetal Ports, Neoprene Seals, Stainless Steel Fasteners, Phosphor Bronze Flow Rate Description 8 LPM (2.2 US Gallons), 480 LPH (132 US Gallons) Mounting Description On-Deck Mount Application Fresh Water, Salt Water Downloads Whale Pump Brochure
