The Whale Water master gives a smooth consistent flow and can run dry without causing damage. It is self-priming up to 3 metres and is suitable for 2 outlets (2gpm) or 3 to 4 outlets (3gpm). A fully sealed protective motor housing and completely integrated switch means the pump is well protected. Included in the box: 1 x Strainer,1 x Screw kit, 2 x 1/2" threaded connectors, 2 x 1/2" barbed connectors. 12 volt. Available in 2 and 3 gallons per minute versions. Flow Rate 1 Metre Head 11.75 LPM (3.1 US GPM) Accumulator Recommended Yes Maximum Recommended Head Maximum Discharge Head: 20 Metres (66 Feet) Self Primes up to 3 Metres (9.8 Feet) Wire Size Minimum Wire Size: 1.5mm² (16 AWG) Inlet Outlet Fittings for 15mm Whale Female Quick Connect, 13mm (1/2") ID Hose & 1/2" NPT Brand Whale Type Fresh Water Pumps Voltage Description 12V DC Model P3 FW1214, FW1214B Height Description 125mm (4.9") Width 179mm (7") Length 209mm (8.25") Fuse 7.5A Flow Rate Description 11.5 LPM (3 US GPM) Approvals EMC Compliant, CE Marked Amps Description 6A Supplied With Strainer Cut Out Pressure Description 30 PSI / 2 Bar Warranty 2 Years Country of Origin United Kingdom Downloads Information Sheet Installation Instructions

Read more less

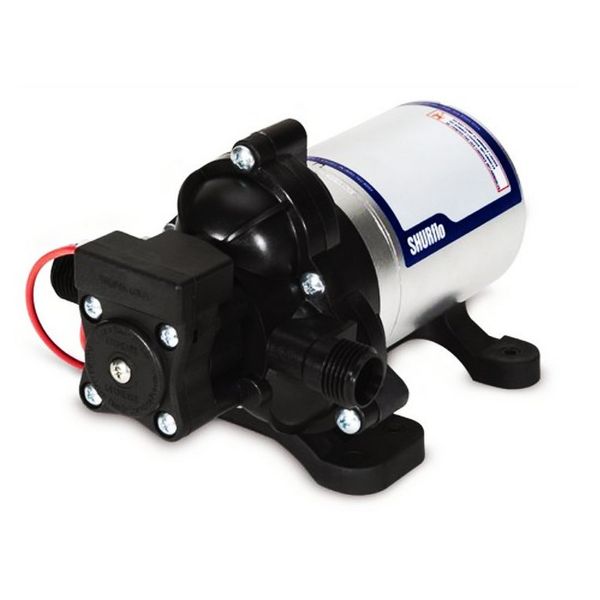

Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Model Trail King 7 Flow Rate Description 7LPM Cut Out Pressure Description 20 PSI / 1.4 Bar

Read more less

Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected • Light duty (vehicle/motorhome) leisure use. Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Model Trail King Flow Rate Description 7 LPM (1.8 US GPM) Cut Out Pressure Description 30 PSI / 2 Bar

Read more less

Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 12V DC Model Trail King 10 Flow Rate Description 10LPM Cut Out Pressure Description 45 PSI / 3.1 Bar

Read more less

Shurflo Trail King are fully automatic triple diaphragm positive displacement freshwater pumps with integral pressure switch. • Quiet Performance • Runs dry without damage • Self Priming • Built-in Check Valve • Easy Installation • Enclosed Motor • Thermally Protected Key Features Quiet Performance Runs dry without damage Self Priming Built-in Check Valve Easy Installation Enclosed Motor Thermally Protected Brand SHURflo Type Fresh Water Pumps Voltage Description 24V DC Flow Rate Description 10 LPM (2.6 US GPM) Cut Out Pressure Description 30 PSI / 2 Bar

Read more less

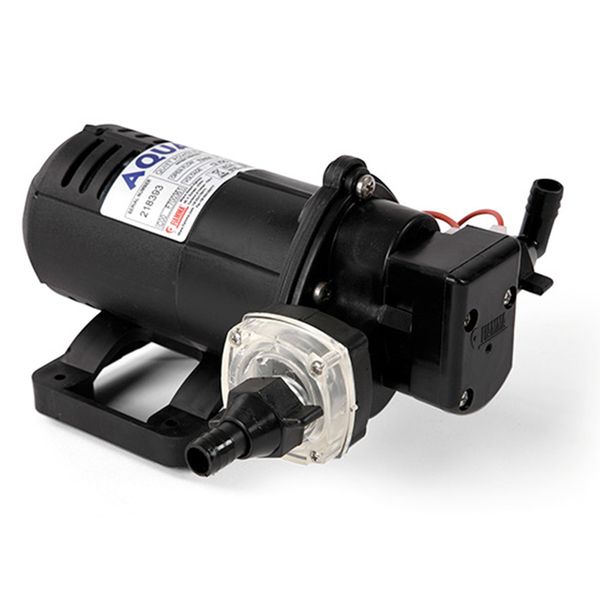

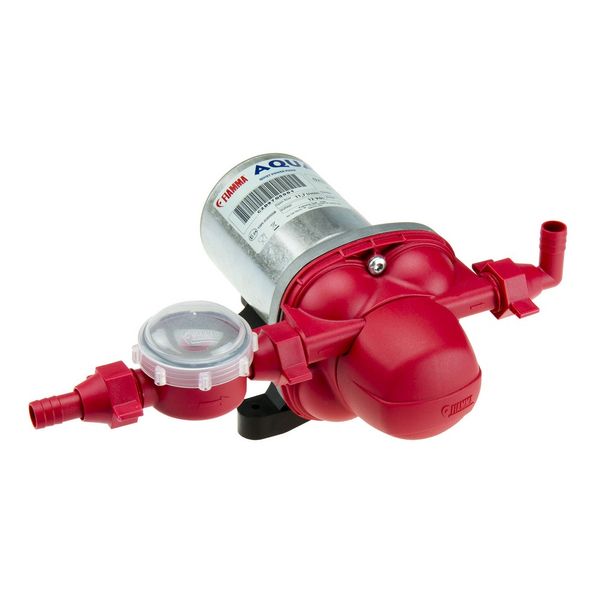

The Fiamma Aqua F pump is Fiamma's first self priming pump with 4 chambers giving it a greater flow of water. Equipped with innovative inner membrane made from a single piece to ensure watertight seal. With anti-vibration base, and external filter for easy maintenance. Enhanced motor with high efficiency, to ensure high capacity with low power consumption. Effective flow up to 10 L/min. The change from 3 to 4 pistons and the simultaneous increase in displacement allow the new Aqua F of up to 10 L/min flow rate. Constant flow rate when opening the tap. The largest number of pistons, each of which assisted by one inlet valve (the outer ones in the picture) and one outlet valve (the four internal), apply a constant thrust; this translates into a continuous water flow. Decreased to 50 dB of maximum noise level. Several factors contribute to reduce vibrations, making this pump even quieter: • More balanced pressure • Rubber membrane in a single piece • Compact mechanical transmission • Anti vibration base Brand Fiamma Type Fresh Water Pumps Voltage Description 12V DC Cut Out Pressure Description 21.7 PSI / 1.5 Bar

Read more less

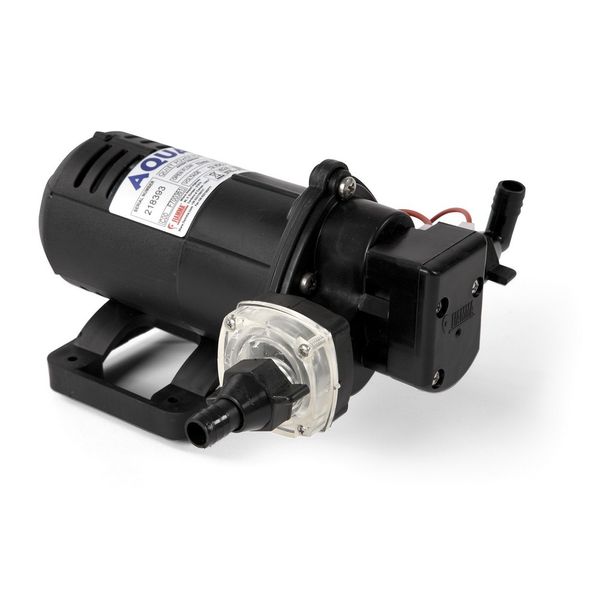

The only self-priming pump with incorporated filter and anti-vibration Silent Plate included. The Aqua 8 pumps water vertically over 3m with no priming. The stainless steel filter prevents impurities from entering and is easily cleaned so the pump lasts longer. An automatic pressure switch starts and stops the pump by opening and closing the valve. Brand Fiamma Type Fresh Water Pumps Voltage Description 12V DC Weight 1.5kg Noise 55/60 db Flow Rate Description 7 LPM Consumption 1.4 a Cut In Pressure 21.75 PSI Cut Out Pressure Description 21 PSI / 1.4 Bar

Read more less

The only self-priming pump with incorporated filter and anti-vibration Silent Plate included. The Aqua 8 pumps water vertically over 3m with no priming. The stainless steel filter prevents impurities from entering and is easily cleaned so the pump lasts longer. An automatic pressure switch starts and stops the pump by opening and closing the valve. Brand Fiamma Type Fresh Water Pumps Voltage Description 12V DC Weight 1.5kg Noise 65/70 db Flow Rate Description 10 LPM Consumption 3.4 a Cut In Pressure 21.75 PSI Cut Out Pressure Description 21 PSI / 1.4 Bar

Read more less

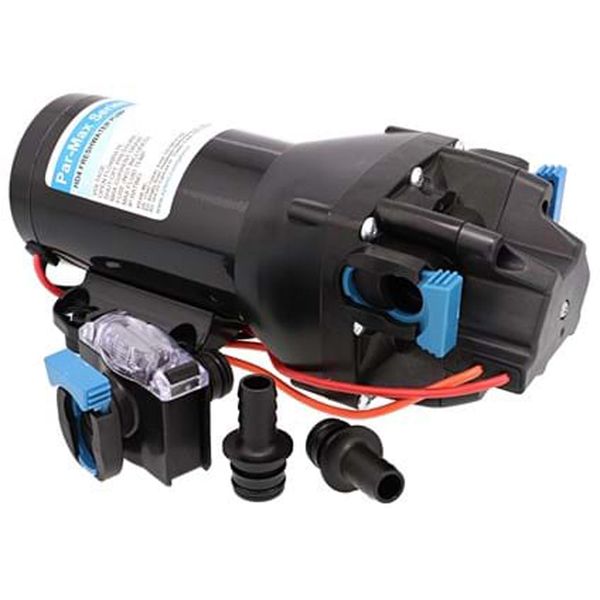

Jabsco Q401J-112S-3A freshwater delivery pump Par Max HD4 is an efficient, self-priming pump with high flow output for serving four or more outlets. The Jabsco multi-diaphragm design self primes to 2.4m vertical lift and can run dry without damage. Supplied with 40-mesh inline Quick Connect strainer. The Jabsco pump can be used for the following applications: Washdown, Livewell Circulation, Freshwater Delivery (galley, shower, washing machine), Shower Drain, Baitwell, General Purpose and Auxiliary Bilge. This drinking water pressure pump replaces the following Jabsco pressure pumps: 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 and 82600‐0392. Jabsco Pump Spares for Q401J-112S-3A: # | Item | Part Number 1 | Port Clips | 30647‐1000 2 | Switch Kit | 16470‐0025 3 | Check Valve Assembly | 18753‐0731 4 | Diaphragm & Drive Assembly | 18753‐0730 5 | Baseplate & Mounting Feet | 18753‐0729 Key Features Heavy Duty, Coated Motor Integrated Sealed Pressure Switch Efficient, quiet operation Self‐priming Runs Dry without Damage Quick Connect Ports Noise Dampening Baseplate Thermal Motor Protection (TCO) Accumulator Recommended Yes Dimensions Distance between mounting hole centres: 50mm x 90mm (2" x 3.6") Maximum Pressure Inlet: 30 PSI (2.1 Bar) Replaces Jabsco 31620‐0292, 32600‐0092, 82400‐0392, 82500‐0392 & 82600‐0392, WP-014 & 509736. Closest Alternative for Jabsco 52600-0292 PAR-Max 7 Pump Self Primes up to 2.4 Metres (7.9 Feet) Wire Size 2.5mm2 (14 AWG) Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 12V DC Model Q401J-112S-3A Height Description 97mm (3.8") Width 109mm (4.3") Length Pump: 239mm (9.4"), Cable: 305mm (12") Material Upper Housing*: Fibre reinforced polypropylene, Lower Housing: Cast Aluminium, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*: EPDM, Switch diaphragm*: EPDM, Bypass Diaphragm*: EPDM, PH Seals*: EPDM, PH Fasteners: Stainless Steel, Baseplate: Plastic & rubber feet, Motor Casing: Cast Aluminium; Coated Steel. (*in contact with water) Fuse 15A (Not Included) Temperature Range Ambient: 0°C ‐ 60°C (32°F ‐ 140°F), Fluid: 0°C ‐ 60°C (32°F ‐ 140°F) Flow Rate Description 15.1 LPM (4 US GPM) Approvals CE - EMC/EMI, EN 60945 (Marine) EN 61000-6-3 (residential, commercial, & light industrial) EN 55014-1 (Household appliance, electrical tools, & similar products), RCM, WEEE, RoHSII, ISO8846 Marine (Ignition Protected) Series Par-Max HD4 Amps Description Maximum: 8A (at 25 PSI / 1.7 Bar) Cut Out Pressure Description 25 PSI / 1.7 Bar Warranty 3 Years Downloads jabsco par max hd manual q401j 112s 3a pump data sheet

Read more less

Jabsco 31395-2512 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer. The Jabsco Par-Max 3 pump replaces Jabsco 31395-0292 Par-Max 2.9 pressure pumps. Jabsco Pump 31395-2512-3A Spare Parts: Part ID | Spare Part | Part Number 1 | Port Clips | 30647‐1000 2 | Switch Kit | 18916‐1025 3 | Check Valve Assembly| 20407034 4 | Diaphragm/Drive Assembly | Not offered 5 | Baseplate/Mounting Feet | 20717001A Key Features Enclosed motor Integrated Pressure Switch Vibration & Noise reducing mounting Self‐priming Runs Dry without Damage Replaces Jabsco 31395-0292 Par Max 2.9, WP-001 & 509732 Self Primes up to 1.8 Metres (5.9 Feet) Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 12V DC Model 31395-2512-3A Height Description 110mm (4.3") Width 152mm (6") Length 230mm (9") Fuse 10A Flow Rate Description 11 LPM (2.9 US GPM) Approvals Complies with ISO8846 Marine (Ignition protection) Series Par Max 3 Amps Description 5.2A Supplied With Quick Connect Fittings & Inline Strainer Cut In Pressure 15 PSI / 1 Bar Cut Out Pressure Description 25 PSI / 1.7 Bar Warranty 3 Years Downloads parmax 3 datasheet 31395 2512 3a

Read more less

Jabsco 31395-2524 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings - for ease of pump installation - as well as an inline strainer. This pump replaces the Jabsco 31395-0294 Par-Max 2.9 pressure pumps. Jabsco Par-Max 3 Pump Features: - Enclosed motor - Integrated Pressure Switch - Vibration & Noise reducing mounting - Self‐priming - Runs Dry without Damage Jabsco Pump 31395-2524-3A Spare Parts: Part ID | Spare Part | Part Number 1 | Port Clips | 30647‐1000 2 | Switch Kit | 18916‐1025 3 | Check Valve Assembly| 20407034 4 | Diaphragm/Drive Assembly | Not offered 5 | Baseplate/Mounting Feet | 20717001A Replaces Jabsco 31395-0294 Par Max 2.9 Self Primes up to 1.8 Metres (5.9 Feet) Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 24V DC Model 31395-2524-3A Height Description 110mm (4.3") Width 152mm (6") Length 230mm (9") Fuse 5A Flow Rate Description 11 LPM (2.9 US GPM) Approvals Complies with ISO8846 Marine (Ignition protection) Series Par Max 3 Amps Description 2.6A Supplied With Quick Connect Fittings & Inline Strainer Cut In Pressure 15 PSI / 1 Bar Cut Out Pressure Description 25 PSI / 1.7 Bar Warranty 3 Years   Downloads parmax 3 datasheet 31395 2524 3a

Read more less

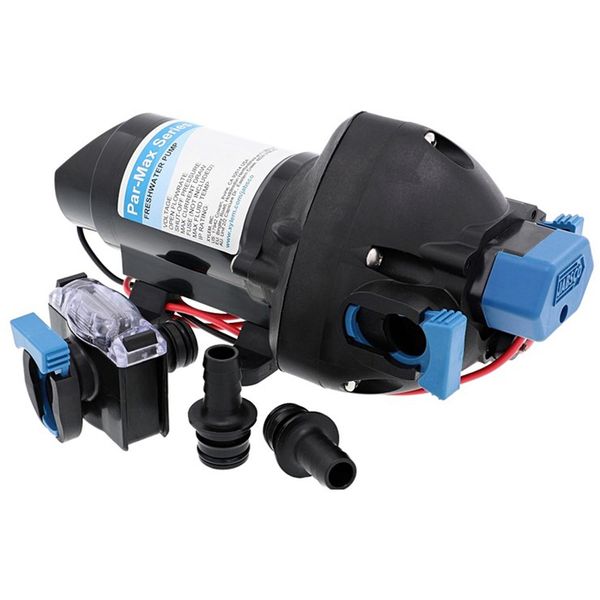

Jabsco Par Max 2 water pressure pumps are internally grounded and have a three chamber diaphragm on demand pump with the performance characteristics to match the needs of a typical vessel with a shower, water heating and up to three faucets. The Jabsco 31295-3512-3A water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price. The water pressure pump is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. Quick connection fittings are included as standard for ease of pump installation, as well as a 40 mesh inline strainer. Jabsco 31295-3512-3A Pressure Pump Features & Benefits: - Enclosed motor - Integrated Pressure Switch - Vibration & Noise reducing mounting - Self‐priming - Runs Dry without Damage Replaces Jabsco 31295‐0092 Par Max 1.9 Pumps Self Primes up to 3 Metres (9.8 Feet) Vertical Lift Inlet Outlet Fittings for 13mm (1/2") ID hose Brand Jabsco Type Fresh Water Pumps Voltage Description 12V DC Model 31295-3512-3A Size Leads: 305mm (12"), 1.5mm2 (16 AWG) Height Description 107mm (4.2") Width 107mm (4.2") Length 231mm (9.1") Fuse 10A (not included) Temperature Range Ambient & Fluid: 0°C to 60°C (32°F ‐ 140°F) Flow Rate Description 7.6 LPM (2 US GPM) Approvals ISO 8846 MARINE (ignition protection), CSA Listed, C.E Certified Pressure Rating Operating: 25 PSI (1.7 bar) maximum, Inlet: 30 PSI (2.1 bar) maximum Series Par Max 2 Amps Description 6A (at 35 PSI / 1.7 bar) Supplied With Inline Strainer (40 Mesh) & Quick Connect Fittings Cut In Pressure 15 PSI / 1 Bar Cut Out Pressure Description 35 PSI / 2.4 Bar Warranty 3 Years   Downloads parmax 2 datasheet 31295 3512 3a

Read more less
