Sunshine Rigid Solar Panels

This 80W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 80 Watt solar power kit, you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc. 1 X 80W Polycrystalline Solar Panel 1 X 6M Extension Cables & Connectors 1 X Sunshine 4 Plastic Corner Mounts 1 X ABS Waterproof Cable Entry Cover 1 X Charge Controller Selection Description  This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter. Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:   Single Battery Controller MPPT Single Battery Controller MPPT Dual Battery Controller   NOT the Dual Battery Controller If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications High-Efficiency Monocrystalline Cells Maximum Power (Pmax): 60W Maximum Power Current (Ipm): 3.48A Maximum Power Voltage (Vmp): 17.2V Short Circuit Current (Isc): 3.57A Open Circuit Voltage (Voc): 21.5V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Size: 1060 x 460 x 35mm Weight: 6.1kg Kit Performance - Summertime Standard Controller: 17Ah per day - (10-30% more with MPPT Controller) Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.  For More Info Please Click PDF For More Info On Installations And Maintenance.

Read more less

With this 80 Watt solar panel you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc. Solar Panel Specifications High-Efficiency Polycrystalline Cells Maximum Power (Pmax): 80W Maximum Power Current (Ipm): 4.49A Maximum Power Voltage (Vpm): 17.8V Short Circuit Current (Isc): 4.85A Open Circuit Voltage (Voc): 21.3V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Size: 670 x 770 x 35mm Weight: 5.69kg Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output

Read more less

This 840W Sunshine Solar Power Narrowboat Kit offers outstanding performance and great value for money. With this 840 Watt solar power kit you could expect to generate around 280 amps per day (12V Battery System) or 140 amps per day (24V Battery System) during the summer months supplementing the leisure battery power onboard. Whether you are on a liveaboard, day cruising or on the high seas you can rely on Sunshine Solar Panels to keep your batteries in a healthy condition at all times. Solar Panel Specifications Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.  The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.  10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".  Discover what happens when innovation meets technology. Solar Panel Specifications Power Class: 420W Maximum Power Current: (Ipm): 13.17A Maximum Power Voltage: (Vpm): 31.89V Short Circuit Current (Isc): 13.9A Power Output Tolerance (Pmax): 0/+5 Open Circuit Voltage (Voc): 37.87V Nominal Operating Cell Temp. (NOCT): -40 to +85°C Maximum System Voltage: 1500V DC Cells: 108 M10 Half Cells PERC Frame Colour: Black Module Efficiency (%): 22.51 Connector Type: MC4 or compatible connector Length (mm): 1722 Width (mm): 1134 Thickness (mm): 30 Product Weight (Kg): 21.5 Guaranteed Performance 30 Year Linear Power Warranty 25 Year Product Warranty Engineered in Italy   Data Sheet

Read more less

This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%. This Solar Charge Controller comes with a Bluetooth Adapter that allows basic reprogramming such as battery type selection along with full monitoring of the solar panel power and state of charge of your battery bank via an iOS / android app or desktop computer. The app also allows control over the load very useful for setting timers for lighting applications.  This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system. Solar Controller Features Product Codes: TRIRON2210N and BLE-RJ45-D MPPT function Bluetooth (with included adapter) Compatible with lead acid & lithium-ion batteries 5VDC dual USB outputs Built in display Optional 2m wired remote display Microprocessor controller pulse width modulation (PWM) charging Overload protection Overcharge protection Short circuit protection Lightning protection Reverse discharge protection Reverse polarity connection protection Under voltage protection Rated battery voltage 12/24vdc RJ45 communication port for optional remote meter   Solar Controller Specifications Max Rated Charging Current: 20 amps Max Rated Load Current: 20 amps Rated Solar Charge Power: 260 Watts @ 12V - 520 Watts @ 24V Max. PV Array Power: 780W / 12V - 1560W/24V Max Input Voltage: 100Vdc MPPT Efficiency: 99.5% Self Consumption: ≤14mA/12V - ≤15mA/12V System Voltage: 12V/24V Auto-set Working Temperature: -35° to +55° Battery Selection: Gel, Sealed, Flooded, Lithium-ion Enclosure: IP30 Temperature Compensation: -30mV/°C/12V @ 25°C Control Mode: MPPT Charging Max PV Wire Size: 6mm² Dimensions: 150mm x 216mm x 56.7mm Weight: 0.92kg  Please download the links below for more info Doc1 Doc2

Read more less

This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10% to 30%. This Solar Charge Controller comes with a Bluetooth Adapter that allows basic reprogramming such as battery type selection along with full monitoring of the solar panel power and state of charge of your battery bank via an iOS / android app or desktop computer. The app also allows control over the load very useful for setting timers for lighting applications.  This series of controllers can effectively prolong the lifecycle of batteries, significantly improve the system performance and gives all-round electronic protection, including overcharging and over-discharge protection to minimise damage to system components caused by incorrect installation or system failure, this effectively ensures a safer and more reliable solar power system. Solar Controller Features Product Codes: TRIRON4210N and BLE-RJ45-D MPPT function Bluetooth (with included adapter) Compatible with lead acid & lithium-ion batteries 5VDC dual USB outputs Built in display Optional 2m wired remote display Microprocessor controller pulse width modulation (PWM) charging Overload protection Overcharge protection Short circuit protection Lightning protection Reverse discharge protection Reverse polarity connection protection Under voltage protection Rated battery voltage 12/24vdc RJ45 communication port for optional remote meter   Solar Controller Specifications Max Rated Charging Current: 40 amps Max Rated Load Current: 40 amps Rated Solar Charge Power: 520 Watts @ 12V - 1040 Watts @ 24V Max. PV Array Power: 780W / 12V - 1560W/24V Max Input Voltage: 100Vdc MPPT Efficiency: 99.5% Self Consumption: ≤14mA/12V - ≤15mA/12V System Voltage: 12V/24V Auto-set Working Temperature: -35° to +55° Battery Selection: Gel, Sealed, Flooded, Lithium-ion Enclosure: IP30 Temperature Compensation: -30mV/°C/12V @ 25°C Control Mode: MPPT Charging Max PV Wire Size: 6mm² Dimensions: 183mm x 256.8mm x 66.7mm Weight: 2.06kg  Doc1 Doc2

Read more less

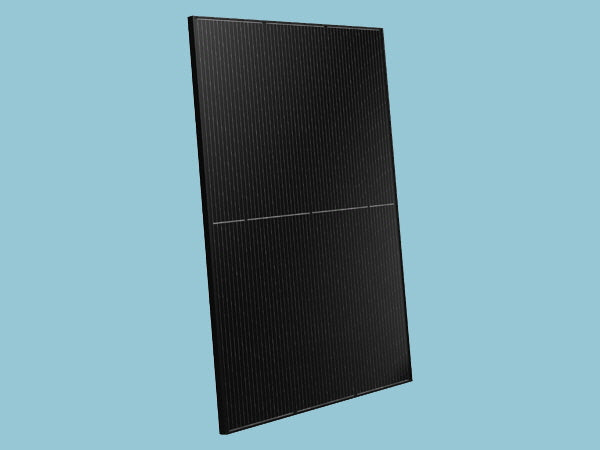

The Peimar OR10H420M is a 420W monocrystalline solar module manufactured in Italy, backed by a 30 Year Linear Power Warranty. These large solar panels can also be used for battery charging in off grid systems where larger power requirements are needed typically liveaboard boats, power failure back up systems, static caravans, off grid home offices, etc. Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied. The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations. 10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future". Discover what happens when innovation meets technology. Solar Panel Specifications Power Class: 420W Maximum Power Current: (Ipm): 13.17A Maximum Power Voltage: (Vpm): 31.89V Short Circuit Current (Isc): 13.9A Power Output Tolerance (Pmax): 0/+5 Open Circuit Voltage (Voc): 37.87V Nominal Operating Cell Temp. (NOCT): -40 to +85°C Maximum System Voltage: 1500V DC Cells: 108 M10 Half Cells PERC Frame Colour: Black Module Efficiency (%): 22.51 Connector Type: MC4 or compatible connector Length (mm): 1722 Width (mm): 1134 Thickness (mm): 30 Product Weight (Kg): 21.5 Guaranteed Performance 30 Year Linear Power Warranty 25 Year Product Warranty Engineered in Italy

Read more less

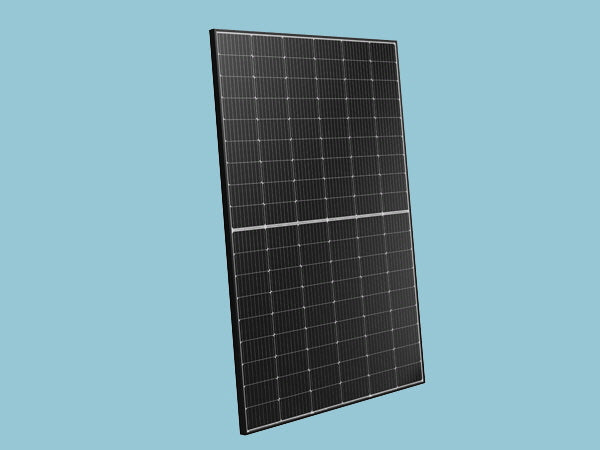

The Peimar OR10H425M is a 425W monocrystalline solar module manufactured in Italy, a 30 Year Linear Power Warranty backs it. These large solar panels can also be used for battery charging in off grid systems where larger power requirements are needed typically liveaboard boats, power failure back up systems, static caravans, off grid home offices, etc. Description Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied. The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations. 10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future". Discover what happens when innovation meets technology. Solar Panel Specifications Power Class: 425W Maximum Power Current: (Ipm): 13.27A Maximum Power Voltage: (Vpm): 32.03V Short Circuit Current (Isc): 13.27A Power Output Tolerance (Pmax): 0/+5 Open Circuit Voltage (Voc): 38.037V Nominal Operating Cell Temp. (NOCT): -40 to +85°C Maximum System Voltage: 1500V DC Cells: 108 M10 Half Cells PERC Frame Colour: Black Module Efficiency (%): 21.76 Connector Type: MC4 or compatible connector Length (mm): 1722 Width (mm): 1134 Thickness (mm): 30 Product Weight (Kg): 21.5 Guaranteed Performance 30 Year Linear Power Warranty 25 Year Product Warranty Engineered in Italy For more info please view the data sheet below Data Sheet

Read more less

The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 100 watt solar panel includes supplementing the leisure battery power in caravans, motorhomes and boats. Description With a Sunshine 100W solar panel you could expect to generate around 26 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.  Specifications Maximum Power (Pmax): 100W Maximum Power Current (Ipm): 5.19A Maximum Power Voltage (Vpm): 19.28V Short Circuit Current (Isc): 5.5A Open Circuit Voltage (Voc): 22.92V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC500V Maximum Series Fuse: 9A Size: 450 x 1160 x 30mm Weight: 5.5kg Features Shingle-technology for increased stability and size reduction 700mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diodes to minimise the effect of shading Completely weatherproof Guaranteed Performance 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 25 Years Warranty 80% Power Output Suitable Solar Charge Controllers PWM Solar Controller 10A - 12/24V  PWM Dual Battery Controller 10A - 12/24V MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation) MPPT Dual Solar Controller 10A - 12V/24V (10% - 30% more power generation) Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors. Please View Doc Below For More Info Instructions

Read more less

The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 120 watt solar panel includes supplementing the leisure battery power in caravans, motorhomes and boats. Description With a Sunshine 150W solar panel you could expect to generate around 40 amps per day when used in conjunction with a PWM solar charge controller and around 50 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed. Specifications Maximum Power (Pmax): 150W Maximum Power Current (Ipm): 8.09A Maximum Power Voltage (Vpm): 18.56V Short Circuit Current (Isc): 8.58 Open Circuit Voltage (Voc): 21.76V Nominal Operating Cell Temp. (NOCT): -40 to 80°C Maximum System Voltage: DC500V Size: 768 x 1045 x 30mm Weight: 7.4kg Features Full Black 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diodes to minimise the effect of shading Completely weatherproof Guaranteed Performance 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 25 Years Warranty 80% Power Output Suitable Solar Charge Controllers PWM Solar Controller 20A - 12/24V  PWM Dual Battery Controller 20A - 12/24V MPPT Solar Controller 20A - 12V/24V (10% - 30% more power generation) MPPT Dual Solar Controller 20A - 12V/24V (10% - 30% more power generation) For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.

Read more less

The SRGH120 is a glass free monocrystalline solar module fitted into a black aluminium frame. Only weighing approximately half that of a rigid glass solar panel, makes it perfect where weight restrictions are required. The high strength design and impact resistance prevents deformation caused by heat and load and defends against hail, whilst the innovative super insulation and honeycomb structure enhances heat dissipation and energy conversion efficiency. Description With this Sunshine 120W solar panel you could expect to generate around 31 amps per day when used in conjunction with a PWM solar charge controller and around 40 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.  Specifications Product Code. SRGH120 Max Power. 120W ± 3% Max Power Voltage. 19.1V Max Power Current. 6.29A Open Circuit Voltage. 22.3V Short Circuit Current. 6.60A Normal Operating Cell Temp. -20 to 75°C Max System Voltage. DC1000V Dimensions. 1180 x 620 x 11mm Weight. 3.23kg Features 3m of twin-core insulated cable High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diode Completely weatherproof Guaranteed Performance 10 Years Warranty 20 Years Service Life Suitable Solar Charge Controllers PWM Solar Controller 10A - 12/24V Dual Battery Controller 10A - 12/24V MPPT Single Solar Controller 10A - 12/24V (10% - 30% more power generation) MPPT Dual Solar Controller 10A - 12/24V (10% - 30% more power generation) Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 2 for Technical.  Save Money.....on a selection of Add-on items when you purchase them with this product. Please view the document below for more info Instruction

Read more less

This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at the Maximum Power Point of the V-A curve. Compared with ordinary solar controllers, this MPPT controller can increase the efficiency of PV modules by 10% to 30%. Solar Controller Features MPPT function Compatible with lead acid & lithium-ion batteries 5VDC dual USB outputs Built-in display Optional 2m wired remote display Microprocessor controller pulse width modulation (PWM) charging Overload protection Overcharge protection Short circuit protection Lightning protection Reverse discharge protection Reverse polarity connection protection Under voltage protection Rated battery voltage 12/24vdc RJ45 communication port for optional remote meter   Solar Controller Specifications Max Rated Charging Current: 10 amps Max Rated Load Current: 10 amps Rated Solar Charge Power: 130 Watts @ 12V - 260 Watts @ 24V Max. PV Array Power: 390W / 12V - 780W/24V Max Input Voltage: 100Vdc MPPT Efficiency: 99.5% Self Consumption: ≤14mA/12V - ≤15mA/12V System Voltage: 12V/24V Auto-set Working Temperature: -35° to +55° Battery Selection: Gel, Sealed, Flooded, Lithium-ion Enclosure: IP30 Temperature Compensation: -30mV/°C/12V @ 25°C Control Mode: MPPT Charging Max PV Wire Size: 6mm²

Read more less

Sunshine 100W solar panel you could expect to generate around 29 amps per day when used in conjunction with a PWM solar charge controller and around 33 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.  DATA SHEET Specifications Maximum Power (Pmax): 100W Maximum Power Current (Ipm): 5.62A Maximum Power Voltage (Vpm): 17.8V Short Circuit Current (Isc): 6.07A Open Circuit Voltage (Voc): 21.30V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Maximum Series Fuse: 9A Size: 510 x 1000 x 35mm Weight: 7.3kg Features 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors High Performance Monocrystalline Cells Factory fitted aluminium frame with pre-drilled mounting holes Multiple pieces can be connected to acquire higher power Suitable for charging all types of 12 volt batteries Fitted with bypass diodes to minimise the effect of shading Completely weatherproof Guaranteed Performance 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Suitable Solar Charge Controllers PWM Solar Controller 10A - 12/24V  Dual Battery Controller 10A - 12/24V MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation) Dual MPPT Solar Controller 10A - 12V/24V (10% - 30% more power generation) Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 07407221667 For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.   PRODUCT CODE: SSP100SS

Read more less
