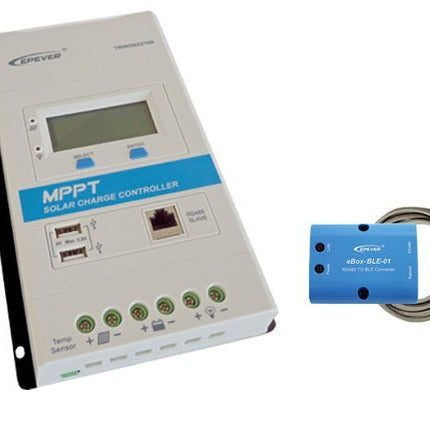

Sunshine Solar MPPT 10A - 12/24V Solar Controller & Bluetooth Adapter

This Sunshine Solar Controller features the latest MPPT charge regulation for reliable and economical battery charge control along with a Bluetooth Adapter for setting and monitoring your solar power system. MPPT Solar controllers (Maximum Power Point Tracking) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at the Maximum Power Point of the V-A curve. Compared with ordinary solar controllers, this MPPT controller can increase the efficiency of PV modules by 10% to 30%.

Solar Controller Features

• MPPT function
• Compatible with lead acid & lithium-ion batteries
• 5VDC dual USB outputs
• Built-in display
• Optional 2m wired remote display
• Microprocessor controller pulse width modulation (PWM) charging
• Overload protection
• Overcharge protection
• Short circuit protection
• Lightning protection
• Reverse discharge protection
• Reverse polarity connection protection
• Under voltage protection
• Rated battery voltage 12/24vdc
• RJ45 communication port for optional remote meter

Solar Controller Specifications

• Max Rated Charging Current: 10 amps
• Max Rated Load Current: 10 amps
• Rated Solar Charge Power: 130 Watts @ 12V - 260 Watts @ 24V
• Max. PV Array Power: 390W / 12V - 780W/24V
• Max Input Voltage: 100Vdc
• MPPT Efficiency: 99.5%
• Self Consumption: ≤14mA/12V - ≤15mA/12V
• System Voltage: 12V/24V Auto-set
• Working Temperature: -35° to +55°
• Battery Selection: Gel, Sealed, Flooded, Lithium-ion
• Enclosure: IP30
• Temperature Compensation: -30mV/°C/12V @ 25°C
• Control Mode: MPPT Charging
• Max PV Wire Size: 6mm²
