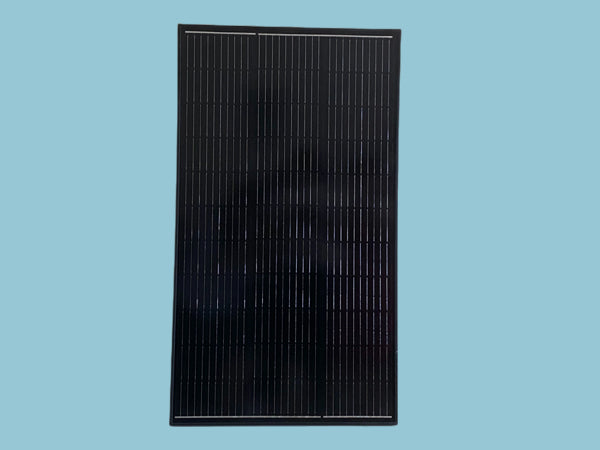

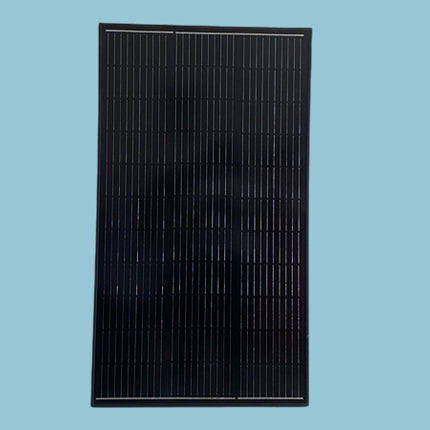

Sunshine Solar 120w / 150w 12v Mono- Full Back

Sunshine Solar 120w / 150w 12v Mono- Full Back

Regular price £87.72
Regular price Sale price £87.72
Sale Sold out
Tax included. Shipping calculated at checkout.
Type

The Sunshine Solar panels are ideal for keeping 12V batteries topped up. Solar panels are suitable for a wide range of applications however the most common uses for our 120 watt solar panel includes supplementing the leisure battery power in caravans, motorhomes and boats.

Description

With a Sunshine 150W solar panel you could expect to generate around 40 amps per day when used in conjunction with a PWM solar charge controller and around 50 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


Specifications

  • Maximum Power (Pmax): 150W
  • Maximum Power Current (Ipm): 8.09A
  • Maximum Power Voltage (Vpm): 18.56V
  • Short Circuit Current (Isc): 8.58
  • Open Circuit Voltage (Voc): 21.76V
  • Nominal Operating Cell Temp. (NOCT): -40 to 80°C
  • Maximum System Voltage: DC500V
  • Size: 768 x 1045 x 30mm
  • Weight: 7.4kg

Features

  • Full Black
  • 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
  • High Performance Monocrystalline Cells
  • Factory fitted aluminium frame with pre-drilled mounting holes
  • Multiple pieces can be connected to acquire higher power
  • Suitable for charging all types of 12 volt batteries
  • Fitted with bypass diodes to minimise the effect of shading
  • Completely weatherproof

Guaranteed Performance

  • 5 Years Manufacturers Warranty
  • 10 Years Warranty 90% Power Output
  • 25 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

  • PWM Solar Controller 20A - 12/24V
  • PWM Dual Battery Controller 20A - 12/24V
  • MPPT Solar Controller 20A - 12V/24V (10% - 30% more power generation)
  • MPPT Dual Solar Controller 20A - 12V/24V (10% - 30% more power generation)

For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
