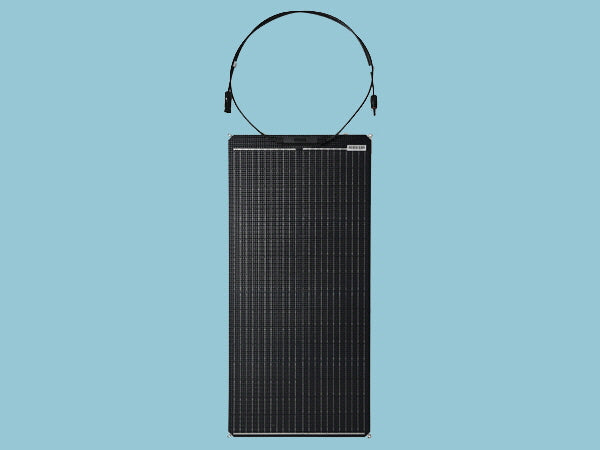

The Sunshine Solar’s SFGM series is a semi-rigid lightweight solar panel it has flame-retardant ETFE coating on both the front and back sides which can also protect the solar cells from external impact. Its special grain design can reduce the reflection of light to absorb more sunlight. Having a full ETFE coating makes it more suitable for extreme application, especially the marine environment. Description The Sunshine Solar Marine Flexi Panels are encapsulated in an ETFE coating, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels. The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance. With a 60W Marine Flexi - Sunshine Solar Panel you could expect to generate around 20 amps per day when used in conjunction with an MPPT Solar Controller during the summer months. Solar Panel Specifications Maximum Power (Pmax): 60W Maximum Power Current (Ipm): 3.23A Maximum Power Voltage (Vpm): 18.6V Short Circuit Current (Isc): .3.39A Open Circuit Voltage (Voc): 21.8V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC200V Size: 845 x 395 x 4mm Weight: 2kg Features Four fixing eyelets ETFE rough scratch resistant surface which can be walked on in deck shoes. Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using Fixing Adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors Three Year Manufacturers Warranty

Read more less

This 60W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 60 Watt solar power kit, you could expect to generate around 17 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc. 1 X Sunshine Solar Panels 60W 12V Monocrystalline 1 X 6M Extension Cables & Connectors 1 X Sunshine 4 Plastic Corner Mounts 1 X ABS Waterproof Cable Entry Cover Description  This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter. Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:   Single Battery Controller MPPT Single Battery Controller MPPT Dual Battery Controller   NOT the Dual Battery Controller If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications High-Efficiency Monocrystalline Cells Maximum Power (Pmax): 60W Maximum Power Current (Ipm): 3.48A Maximum Power Voltage (Vmp): 17.2V Short Circuit Current (Isc): 3.57A Open Circuit Voltage (Voc): 21.5V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Size: 1060 x 460 x 35mm Weight: 6.1kg Kit Performance - Summertime Standard Controller: 17Ah per day - (10-30% more with MPPT Controller) Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.  For More Info Please Click PDF For More Info On Installations And Maintenance.

Read more less

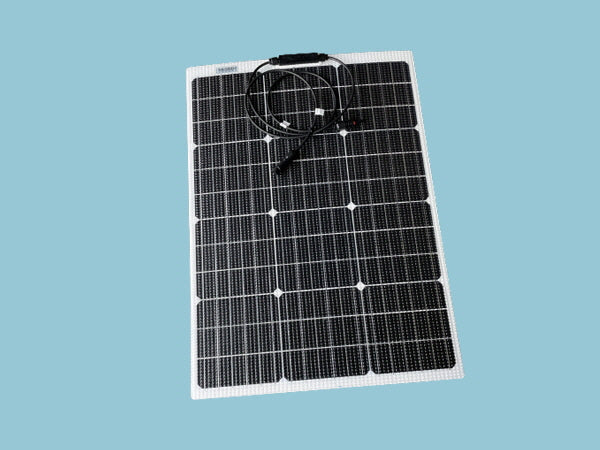

This Sunshine Solar Flexible ETFE 70W 12V boasts ultra pure silicon delivering optimal power conversion. The aluminium backing adds massive strength, preventing corrosion and helps with heat dissipation. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. Please view this Document for more info.

Read more less

This Sunshine Solar Flexible ETFE 100W 12V boasts ultra-pure silicon delivering optimal power conversion. Thin, light, and when fitted to the roof of a caravan or motorhome very aerodynamic. Lightweight design combined with high-efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. With a Sunshine Flexible ETFE 35W 12V solar panel you could expect to generate around 9.7 amps per day when used in conjunction with a PWM solar charge controller and 12 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed. Solar Panel Specifications Maximum Power (Pmax): 35W Maximum Power Current (Ipm): 1.94A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 2.09A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC300V Size: 560 x 370 x 4mm Weight: 1.2kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch-resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using fixing adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) 5 Year Manufacturers Warranty Please view this Document for more info.

Read more less

This 70W Sunshine Flexible Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 70 Watt solar power kit you could expect to generate around 19 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc. Description This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimised battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. The Sunshine Flexible Solar range benefit from being thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and 3° solar panel flexibility for fitting on slightly curved surfaces our flexible solar range are perfect for caravans, motorhomes and campers. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter. Please note: The Bluetooth Adapter is only compatible with the MPPT Single and Dual Controller Upgrades. Kit Performance - Summertime Standard Controller: 19Ah per day - (10-30% more with MPPT Controller) If you are a competent DIYer this kit has everything you need for a professional looking finish. If you require the services of an installer please contact our Customer Services on 01508 488188.

Read more less

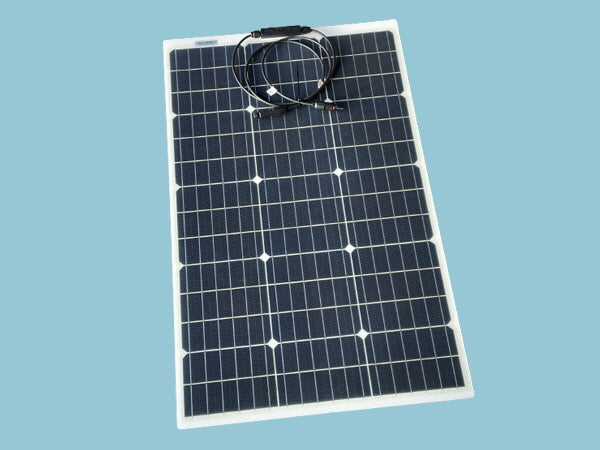

This Sunshine Solar Flexible ETFE 80W 12V boasts ultra pure silicon delivering optimal power conversion. The aluminium backing adds massive strength, preventing corrosion and helps with heat dissipation. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. With a Sunshine Flexible ETFE 80W 12V solar panel you could expect to generate around 22 amps per day when used in conjunction with a PWM solar charge controller and 27 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed. Solar Panel Specifications Maximum Power (Pmax): 80W Maximum Power Current (Ipm): 4.44A Maximum Power Voltage (Vpm): 18V Short Circuit Current (Isc): 4.84A Open Circuit Voltage (Voc): 21.6V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC300V Size: 530 x 850 x 4mm Weight: 1.7 kg Features 3° flexibility or 3cm per 1m of panel length ETFE rough scratch resistant surface which can be walked on in deck shoes. Aluminium Substrate Highly efficient monocrystalline cells Can be conveniently placed on slightly curved solid surfaces Can be easily bonded using fixing adhesive (no need for drilling) 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm) 5 Year Manufacturers Warranty Doc1

Read more less

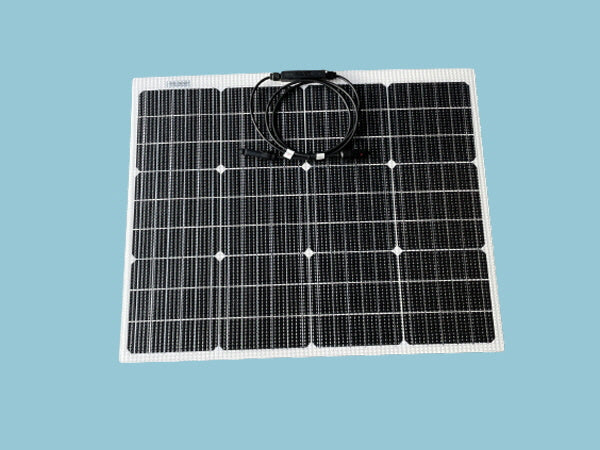

This Sunshine Solar Flexible ETFE 70W 12V boasts ultra pure silicon delivering optimal power conversion. The aluminium backing adds massive strength, preventing corrosion and helps with heat dissipation. Thin, light and when fitted to the roof of a caravan or motorhome very aerodynamic. Light weight design combined with high efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option. Please view this Document for more info.

Read more less

This 80W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 80 Watt solar power kit, you could expect to generate around 22 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats, etc. 1 X 80W Polycrystalline Solar Panel 1 X 6M Extension Cables & Connectors 1 X Sunshine 4 Plastic Corner Mounts 1 X ABS Waterproof Cable Entry Cover 1 X Charge Controller Selection Description  This Sunshine Solar Flexible Caravan & Motorhome Kit includes a choice of either a single battery charge controller for one battery bank typically used in caravan solar set-ups or a dual battery controller for optimized battery charging of two battery banks useful for those of you wishing to keep both starter and leisure batteries charged commonly used in motorhome solar set-ups. Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBooks, and other devices, using the optional eBox-Bluetooth Adapter. Please note: eBox-Bluetooth Adapter is only compatible with the following Solar Charge Controllers:   Single Battery Controller MPPT Single Battery Controller MPPT Dual Battery Controller   NOT the Dual Battery Controller If you are a competent DIYer this kit has everything you need for a professional-looking finish. If you require the services of an installer please contact our Customer Services at 01508 488188.Solar Panel Specifications High-Efficiency Monocrystalline Cells Maximum Power (Pmax): 60W Maximum Power Current (Ipm): 3.48A Maximum Power Voltage (Vmp): 17.2V Short Circuit Current (Isc): 3.57A Open Circuit Voltage (Voc): 21.5V Nominal Operating Cell Temp. (NOCT): -45 to 80°C Maximum System Voltage: DC1000V Size: 1060 x 460 x 35mm Weight: 6.1kg Kit Performance - Summertime Standard Controller: 17Ah per day - (10-30% more with MPPT Controller) Solar Performance Guarantee 5 Years Manufacturers Warranty 10 Years Warranty 90% Power Output 20 Years Warranty 80% Power Output Important note: The solar panel needs a flat area of 1180mm x 580mm these dimensions include the corner mounts supplied with the kit.  For More Info Please Click PDF For More Info On Installations And Maintenance.

Read more less

This 840W Sunshine Solar Power Narrowboat Kit offers outstanding performance and great value for money. With this 840 Watt solar power kit you could expect to generate around 280 amps per day (12V Battery System) or 140 amps per day (24V Battery System) during the summer months supplementing the leisure battery power onboard. Whether you are on a liveaboard, day cruising or on the high seas you can rely on Sunshine Solar Panels to keep your batteries in a healthy condition at all times. Solar Panel Specifications Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.  The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.  10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".  Discover what happens when innovation meets technology. Solar Panel Specifications Power Class: 420W Maximum Power Current: (Ipm): 13.17A Maximum Power Voltage: (Vpm): 31.89V Short Circuit Current (Isc): 13.9A Power Output Tolerance (Pmax): 0/+5 Open Circuit Voltage (Voc): 37.87V Nominal Operating Cell Temp. (NOCT): -40 to +85°C Maximum System Voltage: 1500V DC Cells: 108 M10 Half Cells PERC Frame Colour: Black Module Efficiency (%): 22.51 Connector Type: MC4 or compatible connector Length (mm): 1722 Width (mm): 1134 Thickness (mm): 30 Product Weight (Kg): 21.5 Guaranteed Performance 30 Year Linear Power Warranty 25 Year Product Warranty Engineered in Italy   Data Sheet

Read more less
