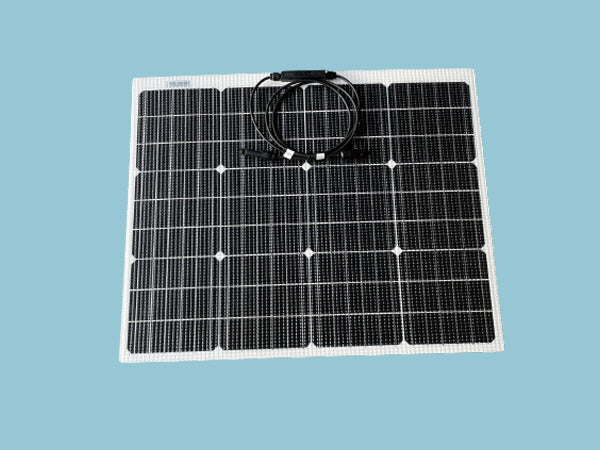

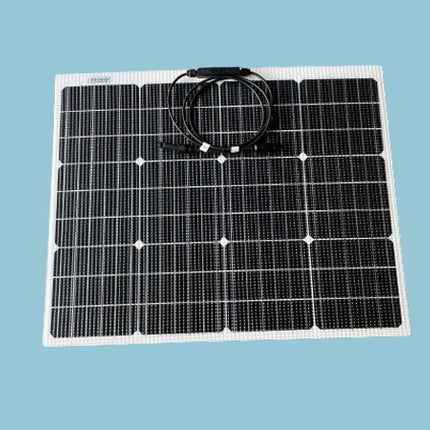

70w 12v Sunshine Solar Flexible ETFE Range

70w 12v Sunshine Solar Flexible ETFE Range

Regular price £152.87
Regular price Sale price £152.87
Sale Sold out
Tax included. Shipping calculated at checkout.

This Sunshine Solar Flexible ETFE 100W 12V boasts ultra-pure silicon delivering optimal power conversion. Thin, light, and when fitted to the roof of a caravan or motorhome very aerodynamic. Lightweight design combined with high-efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.

With a Sunshine Flexible ETFE 35W 12V solar panel you could expect to generate around 9.7 amps per day when used in conjunction with a PWM solar charge controller and 12 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


Solar Panel Specifications

  • Maximum Power (Pmax): 35W
  • Maximum Power Current (Ipm): 1.94A
  • Maximum Power Voltage (Vpm): 18V
  • Short Circuit Current (Isc): 2.09A
  • Open Circuit Voltage (Voc): 21.6V
  • Nominal Operating Cell Temp. (NOCT): -45 to 80°C
  • Maximum System Voltage: DC300V
  • Size: 560 x 370 x 4mm
  • Weight: 1.2kg


Features

  • 3° flexibility or 3cm per 1m of panel length
  • ETFE rough scratch-resistant surface which can be walked on in deck shoes.
  • Aluminium Substrate
  • Highly efficient monocrystalline cells
  • Can be conveniently placed on slightly curved solid surfaces
  • Can be easily bonded using fixing adhesive (no need for drilling)
  • 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
  • 5 Year Manufacturers Warranty


Please view this Document for more info.
