Fresh design, superior energy efficiency: this smart compressor-cooled refrigerator provides 113 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 8.2 l freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing.
General Features
3-in-1 cooling solution: fridge, freezer or both at the same time!
Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
Frameless door with dark silver front panel and full-width handle
Beveled rear side for maximal utilization of space on board
Reversible door hinge - can be fitted left or right as required
Dual-function locks can also act as vents for your fridge
Standard or flush-mount installation frame available as an accessory
Specification
SKU: 9620001485
Model: NRX0115C
Model on Label: NRX0115
Scope of Delivery: 1 refrigerator, 1 drain elbow, 1 SOM manual, 1 INM manual
Product Description: Compressor-cooled refrigerator, 113 l, dark silver front
Refrigeration Technolgy: Compressor
Dimensions
Dimension of product depth: 568
Dimension of product height: 745
Dimension of product width: 525
Net Weight: 26
Total Volume: 113
Frozen Total en662552: 8.2
Electrical
Input Voltage: 12/24
Rated Input Power: 70
Performance
Refrigerant Type: R14a
Gwp:1430
Regerant Amount (g): 40
Co2 Equivalent (t) 0.057
Energy Consumption (DC@ 5/25 (kwh/24h) 0.48
Climnate Class (en62552)
Logistics
Ean:7315091485975
Dimension of parcel depth: 648
Dimension of parcel height: 809
Dimension of parcel width: 638
Parcel weight:30
Documentation & Download
Installation Manual
Short Operating Manual
Operating Manual
Fresh design and superior energy efficiency: this smart compressor refrigerator provides 58 l of cool storage. Its elegant frameless door, incorporating a dark silver front panel and a convenient full-width handle, opens to a versatile interior. You can easily remove the 6.1L freezer compartment to use the full cabinet capacity for refrigeration or deep-freezing.
A touch control panel is flush-mounted inside the cabinet, with nicely integrated LED light bar.
Stay fresh in Winter Mode with a smart closing mechanism to create a gap between the fridge and the door for airing out in the off-season.
The fridge interior is well-equipped; with a freezer, shelves, bottle holder, door tray and crispers - it's all there.
The freezer compartment can be easily removed to make room for more fridge storage.
Two crisper drawers for storing fruit and vegetables at the optimal temperature.
A full-width door handle is neatly integrated for easy access from every angle.
The NRX 60C is equipped with a premium compressor, boasting high energy-efficiency, lightweight and compact construction with 3 operating modes (Eco, Boost and Silent).
• Capacity 58L (including 6.1L ice box)
• Dimensions 525mm(H) x 448(W) x 537(D)
Please note: Optional standard or flush mount frame kits available.
Key Features
3-in-1 cooling: fridge, freezer or both at the same time!
Touch control panel
Stay fresh in Winter Mode
Well-equipped interior
Removable freezer
Two crispers
Frameless door with dark silver front panel & full-width handle
Premium compressor - energy-efficient with 3 operating modes
Bevelled rear side for maximal utilisation of space onboard
Reversible door hinge - can be fitted left or right as required
Dual function locks can also act as vents for your fridge
Replaces
Dometic 9105306568 CRX65
Brand
Dometic
Type
Integrated Fridge Freezers
Voltage Description
12V - 24V DC
Model
NRX0060C
Height Description
525mm
Width
448mm
Depth
537mm
Weight
17kg
Colour
Grey
Wattage
45W
Approvals
TÜV/GS
Consumption
1.14 a/hr +20 °C ambient temp, 1.8 a/hr at +32 °C ambient temp
Application
Motorhome, Caravan, Boat
Series
CoolMatic
Amps Description
5.5A
Capacity Description
58 Litres
Energy Supply
12v - 24v
Contents
Refrigerator, Drain Elbow, Short Operating Manual, Installation Manual
Downloads
dometic nrx installation instructions
dometic nrx user manual
Dometic adapter frame for the installation of air conditioners or roof vents that exceed the standard opening size of 40 x 40 cm (for flat roofed vehicles).
Key Features
For roof cutouts bigger than 400 x 400 mm
For frame widths from 25 to 60 mm
Suitable For
Fiat Ducato
Brand
Dometic
Type
Air Conditioning Spares
This 220V Smart Switch can be easily added to the Indel B Plein-Aircon air conditioning unit (product code 32600), for users who visit campsites with access to mains power. Once the switch is fitted and the vehicle is plugged into mains, the air conditioning unit will automatically switch to operating from mains power.
Downloads:
Technical Specs Indel B Plein Aircon 12V 32600
Suitable For
Fiat Ducato
Brand
Indel B
Type
Air Conditioning Spares
Voltage Description
220V
Application
Indel B Plein-Aircon air conditioning unit (product code 32600)
The New Freshlight 2200 is the worlds first powerful roof mount air-conditioner featuring the new built in acrylic window, delivering natural light into your vehicle. Also offer active ventilation bringing fresh air into the interior. Ideal for larger sized Motorhomes up to 7m. The proven air diffuser from the B2200 offers front & rear air distribution. This powerful unit offers a special reverse cycle compressor providing excellent an excellent cooling & heating performance.A digital remote control unit for on/off, fan speed, temperature, & dimmable LED lights integrated into the air vent panel.The internal diffuser has two internal air filters which can be removed & cleaned.
The world's first roof air conditioner with integrated roof light, Roof light with active ventilation system, Single-pleated blackout screen, Energy-efficient heat pump system for cooling and heating, Individual air flow regulation with automatic blower control.
The Freshlight can easily be retro fitted in replacement of your existing 400 x 400 roof vent & enlarging the cut-out to 700 x 400 (subject to the roof vent location, & roof space for the AC unit), alternatively it can be retro fitted with a new reinforced 700 x 400 roof cut out. A mounting frame & fixing kit with instructions are supplied.
If roof struts are in the way, an alternative cut out solution of 400 x400 for the main centre section of the AC unit, plus a further 200 x 400 for the forward moulding.
Suitable For
Fiat Ducato
Brand
Dometic
Type
Air Conditioners
Voltage Description
230V AC
Height Description
758mm
Width
210mm
Length
1105mm
Thickness
Roof: 25 - 60 mm
Weight
42kg
Cut Out
400 x 700mm
Operation
Remote Control
Approvals
E24, CE
Application
Motorhome
Input
230 v
Consumption Cooling
2200 w
Consumption Heating
2700 w
Downloads
Instruction Manual
Mounting Guide

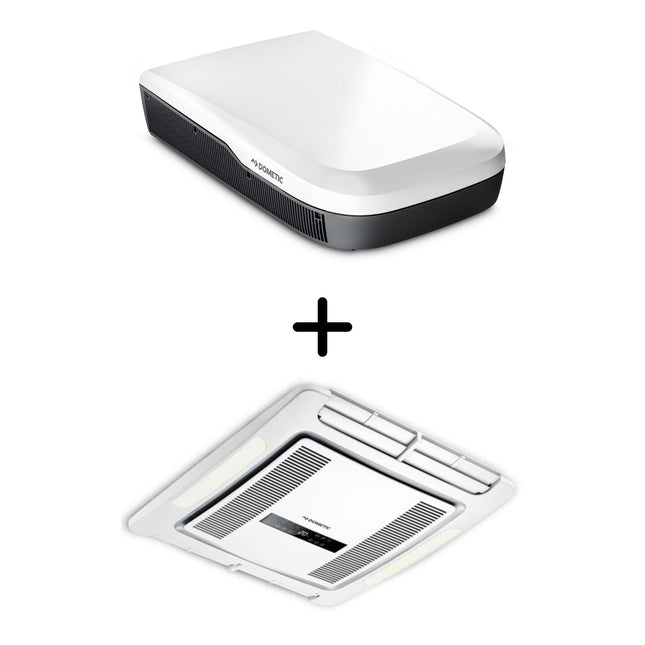

The Dometic FreshJet 3000 rooftop air conditioner is designed to fit larger motorhomes and caravans and has an impressive heating or cooling performance. It comes with super-bright LED lights, an air distribution box and patented dual-cylinder inverter for quiet and efficient performance.
Specs:
• Compressor cooling capacity: 3600 W
• Rated input voltage: 220 Vw to 240 Vw/ 50 Hz
• Rated current cooling: 7.5 A
• Rated current heating 6.1 A
• Required fuse: 10 A
• Operating temperature range: –2 °C to +52 °C
• Refrigerant: R-410A
• Refrigerant quantity: 0.650 kg
• CO2 equivalent: 1.357 t
• Suggested max. vehicle length (with insulated walls): <6 m
Key Features
Quiet operation
Lightweight and compact design
Cools, heats and dehumidifies air
Simple touch control on air distribution box
Cool white LED activated via remote control
Remote control operation and energy-saving sleep mode
Vertically-adjustable outlet vents allow individual air flow control
Connectivity with CI-BUS compatible control panels
Suitable For
Fiat Ducato
Brand
Dometic
Type
Air Conditioners
Height Description
240mm (9.4")
Width
665mm
Length
997 mm
Weight
37 kg
Approvals
CE, E13, C-Tick
Operating Temperature
-2 °C to +52 °C
Downloads
Dometic FreshJet 3000 Installation Manual
Dometic FreshJet 3000 Operating Manual
A unique 12V roof air conditioner designed for use in campervans, motorhomes and van conversions up to 6 metres. This air conditioner is ideal for cooling and dehumidifying the sleeping area of a vehicle, rather than the entire vehicle as with traditional AC air conditioning units. It can also be used in the sleeping areas of larger vehicles that do not exceed 9m3 in size.
This Plein-Aircon unit kicks out an impressive 1200W of output and is recommended to use with a minimum of 150AH leisure battery. For those visiting campsites with access to mains power, a 220V Smart Switch can be easily added to this unit (see product code 32602). Once the switch is fitted and the vehicle is plugged into mains, the unit will automatically switch to operating from mains power.
We recommend the user cools the sleeping area of their vehicle with the unit on full power for approximately an hour, then the air conditioner can be turned down to a lower setting to maintain a comfortable sleeping temperature. The unit also has a ventilation mode which enables fresh air to be generated.
The roof-top unit includes all the necessary components for the air conditioning function (the condenser, the evaporator, the hermetic compressor and the fans). It then MUST be combined with an air diffuser (sold separately) which is installed inside the vehicle against the roof.
Diffuser options are as follows:
- Plein-Aircon Basic model: This diffuser features adjustable vents without mood lighting.
- Plein-Aircon Ringlight model: This diffuser features a customisable panel with white or blue LED perimeter lighting. This panel can also be customised with different finishes, fabrics, and stickers to integrate the air conditioner with the vehicle's interior style.
- Plein-Aircon Lightbox model: This diffuser is designed to return natural light from the porthole and radiates and diffuses white or blue light, ideal for night driving.
The latest Plein-Aircon models have been redesigned and manufactured entirely in Italy, with improved efficiency and user-friendliness thanks to the new configuration of the fins. The precision and directional flexibility of the air distribution have been optimised, allowing for even vertical distribution.
The unit can operate in two modes (one of which is optional):
- 12V (standard mode), connected to the service battery. The air conditioner can work if the vehicle is either stationary or moving.
12V and 230V (optional mode), connected to the service battery and to the mains (it requires a230V Smart Switch transformer kit, optional).
The air conditioner can work if the vehicle is either stationary or moving.
One of the notable features of the new Plein-Aircon models is their connectivity. They can be controlled via a smartphone app with dual connectivity via Bluetooth and Wi-Fi.
This app offers various functionalities, including manual operation, as well as Indel B's innovative Pre-Adaptive technology (Smart mode).
This technology adapts the operation of the air conditioner based on the user's habits and optimises performance according to current weather conditions or predicted conditions at a set future destination. Additionally, the app provides diagnostic and service information.
- Compressor: 12V Samsung
- Refrigerant gas: R134A
- Cooling capacity: 1200W to 4100 BTU(max.)
- External roof mounted unit: 246(H) x 670(W) x 800mm(D)
- Roof cut-out dimensions: 400 x 400mm
- Roof thickness: 30 to 70mm
- Weight: 23.1kg
- Air vents: 2 (front and rear)
• Compressor: Direct current single compressor
• Input voltage: 12V DC (Optional 115V-230V Smart Switch power supply)
• Refrigerant gas: R134A
• Cooling capacity: 1200 Watt (max)
• Number of blower speeds: 3 + auto
• Air flow: 350m3/h
• Remote control: Included
• Timer: Yes
• Battery protection: Yes
• Starting current: Very low starting current
• Soft start function: Yes
• Interchangeable internal filters: Yes
• Test marks: E-mark / EMC
Key Features
Cooling and dehumidifying
Ventilation mode
For campervans, motorhomes and van conversions up to 6 meters
Optional 220V Smart Switch can be fitted for use with mains power
Eco Sustainable System - No generator needed
Suitable For
Fiat Ducato,Merc Sprinter,Vw Crafter, Motorhomes
Brand
Indel B
Type
Air Conditioners
Voltage Description
12V DC
Height Description
246mm
Width
720mm
Depth
800mm
Thickness
Roof: 30 - 70mm
Weight
25.3kg
Cut Out
400 x 400mm
Wattage
1200w
Application
Motorhomes, Campervans and Van Conversions
Consumption Cooling
16 amp/h (auto) / 42 amp/h (max)
Downloads
Technical Specs Indel B Plein Aircon 12V 32600
Dometic FreshJet FJX7 3000 roof air conditioner with electronic inverter compressor. This 3000 W roof air conditioner is one of the coolest Dometic have ever built... Its sleek rooftop unit with the exclusive LED light curve immediately catches the eye. Fitted with the latest speed-controlled inverter compressor and heat pump technology, it cools down your motorhome faster, quieter and more efficiently than any other RV air conditioner around. The FreshJet air con unit will heat as well, if required.
Aerodynamically shaped rooftop unit with eye-catching LED light curve
The motorhome, caravan or campervan is cooled down in record time
With its variable compressor speed, the FJX7 operates silently while maintaining the desired temperature
Reduced power consumption thanks to advanced compressor and heat pump technology
Effectively reduces bacteria and odours to keep your RV smelling fresh and clean
Conveniently control your roof air conditioner from your smartphone
Quiet and gentle air conditioner start-up even on campsites with low fuse protection
Product contents:
- Roof air conditioner
- User manual and installation manual
Please Note: air distribution box with touch control panel and integrated ambient light is sold separately as Dometic FreshJext FJX ADBD.
Key Features
Cooling capacity 3000 W / 10236 BTU/h
CleanAir technology
Dometic Climate App
Sleep mode
Superior cooling performance
Whisper-quiet operation
Integrated heating
Exclusive premium design
Superior energy efficiency
Advanced soft start function
Suitable For
Fiat Ducato
Replaces
Dometic FreshJet 2000 9105306511 (32564)
Brand
Dometic
Type
Air Conditioners
Voltage Description
230V AC
Model
3000 FJX7337IHP
Height Description
240mm
Width
700mm
Depth
1090mm
Weight
36.8kg
Colour
White
Temperature Range
Operating: 0 °C to +52 °C
Approvals
CE, E24
Mounting Description
Roof Mount
Series
FreshJet
Heat Output
2692W
Consumption Cooling
7.5 A
Cooling Power
3000W
Downloads
dometic freshjet fjx4 2200 installation instructions
dometic freshjet fjx4 2200 user manual
The Dometic FreshJet FJX4 1700M is a compact roof air conditioner with modern looks and superior performance. This inexpensive 1500 W roof air conditioner quickly cools your motorhome with its efficient, two-way air distribution system. It also filters out dust particles. Powerful yet quiet, it ensures you can comfortably enjoy time in your motorhome with friends and family.
Quickly cools the vehicle interior
Quiet operation for a comfortable rest and a peaceful night's sleep
Entry-level model with manual controls – designed for small and medium-sized motorhomes
Optimised air distribution unit – increased airflow and less noise
Reusable dust filter – easy to remove for cleaning
Lightweight design helps save fuel
Extremely durable and robust design
Product contents:
- Roof air conditioner
- User manual and installation manual
Please Note: manual control panel is sold separately as Dometic FreshJext FJX ADBM. Simply adjust the two knobs on the manual control panel to set the temperature and airflow level you want.
Key Features
Cooling capacity 1500 W / 5118 BTU/h
Modern & fresh design
Modular design concept
Suitable For
Fiat Ducato
Replaces
Dometic FreshJet 2200 9105306513
Brand
Dometic
Type
Air Conditioners
Voltage Description
230V AC
Model
1500M FJX4233M
Height Description
225mm
Width
702mm
Depth
752mm
Weight
25.8kg
Colour
White
Temperature Range
Operating: 0 °C to +52 °C
Approvals
CE, E24
Mounting Description
Roof Mount
Series
FreshJet
Consumption Cooling
4.1 A
Cooling Power
1500W
Downloads
dometic freshjet fjx4 2200 installation instructions
dometic freshjet fjx4 2200 user manual
The Dometic FreshJet FJX4 1500M is a compact roof air conditioner with modern looks and superior performance. This inexpensive 1500 W roof air conditioner quickly cools your motorhome with its efficient, two-way air distribution system. It also filters out dust particles. Powerful yet quiet, it ensures you can comfortably enjoy time in your motorhome with friends and family.
Quickly cools the vehicle interior
Quiet operation for a comfortable rest and a peaceful night's sleep
Entry-level model with manual controls – designed for small and medium-sized motorhomes
Optimized air distribution unit – increased airflow and less noise
Reusable dust filter – easy to remove for cleaning
Lightweight design helps save fuel
Extremely durable and robust design
Product contents:
- Roof air conditioner
- User manual and installation manual
Please Note: manual control panel is sold separately as Dometic FreshJext FJX ADBM. Simply adjust the two knobs on the manual control panel to set the temperature and airflow level you want.
Key Features
Cooling capacity 1500 W / 5118 BTU/h
Modern & fresh design
Modular design concept
Suitable For
Fiat Ducato
Brand
Dometic
Type
Air Conditioners
Voltage Description
230V AC
Model
1500M FJX4233M
Height Description
225mm
Width
702mm
Depth
752mm
Weight
25.8kg
Colour
Black
Temperature Range
Operating: 0 °C to +52 °C
Approvals
CE, E24
Mounting Description
Roof Mount
Series
FreshJet
Consumption Cooling
4.1 A
Cooling Power
1500W
Downloads
dometic freshjet fjx4 2200 installation instructions
dometic freshjet fjx4 2200 user manual
The Dometic FreshJet FJX4 2200 is a compact roof air conditioner with modern looks and superior performance. This new-generation 2200 W roof air conditioner cools down your motorhome, caravan or campervan in record time – with minimal energy consumption, and superbly quietly too. The integrated CleanAir system keeps your vehicle smelling fresh and clean. Rest and relax in complete comfort after an adventure-filled day, and wake up to a new day full of energy!
Superior cooling performance – the cabin is cooled down in record time
Quieter than other roof air conditioners available in the market
Even quieter - sleep mode reduces the fan speed to 80% to minimise operating noise
Superior energy efficiency – reduced power consumption
CleanAir air purifier system effectively reduces bacteria and odours to keep your motorhome smelling fresh and clean
Smart connectivity options – compatible with Dometic smart phone app and premium wall thermostat
Quick heat at the touch of a button
Product contents:
- Roof air conditioner
- Remote control
- User manual and installation manual
Please Note: air distribution box with touch control panel and integrated ambient light is sold separately as Dometic FreshJext FJX ADBD.
Suitable For
Fiat Ducato
Replaces
Dometic FreshJet 2000 9105306511
Brand
Dometic
Type
Air Conditioners
Voltage Description
230V AC
Model
2200 FJX4333EEH
Height Description
225mm
Width
702mm
Depth
752mm
Weight
30.4kg
Colour
White
Cut Out
400 x 400mm
Temperature Range
Operating: 0 °C to +52 °C
Approvals
CE, E24
Mounting Description
Roof Mount
Series
FreshJet
Heat Output
1200W
Consumption Cooling
4.1 A
Cooling Power
2200W
Downloads
dometic freshjet fjx4 2200 installation instructions
dometic freshjet fjx4 2200 user manual
