Indel B Plein-Aircon 12V Air Conditioner

A unique 12V roof air conditioner designed for use in campervans, motorhomes and van conversions up to 6 metres. This air conditioner is ideal for cooling and dehumidifying the sleeping area of a vehicle, rather than the entire vehicle as with traditional AC air conditioning units. It can also be used in the sleeping areas of larger vehicles that do not exceed 9m3 in size.

This Plein-Aircon unit kicks out an impressive 1200W of output and is recommended to use with a minimum of 150AH leisure battery. For those visiting campsites with access to mains power, a 220V Smart Switch can be easily added to this unit (see product code 32602). Once the switch is fitted and the vehicle is plugged into mains, the unit will automatically switch to operating from mains power.

We recommend the user cools the sleeping area of their vehicle with the unit on full power for approximately an hour, then the air conditioner can be turned down to a lower setting to maintain a comfortable sleeping temperature. The unit also has a ventilation mode which enables fresh air to be generated.

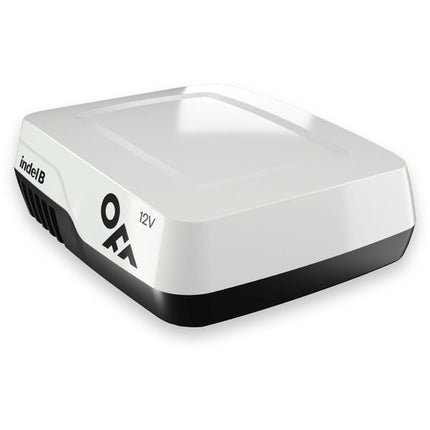

The roof-top unit includes all the necessary components for the air conditioning function (the condenser, the evaporator, the hermetic compressor and the fans). It then MUST be combined with an air diffuser (sold separately) which is installed inside the vehicle against the roof.

Diffuser options are as follows:

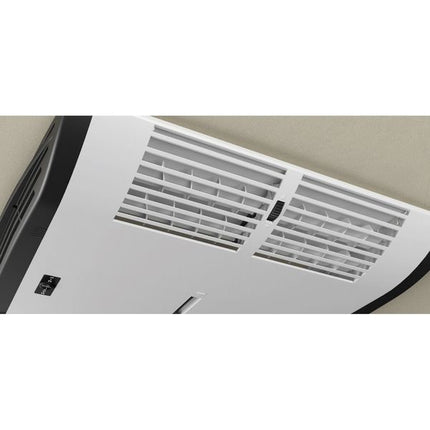

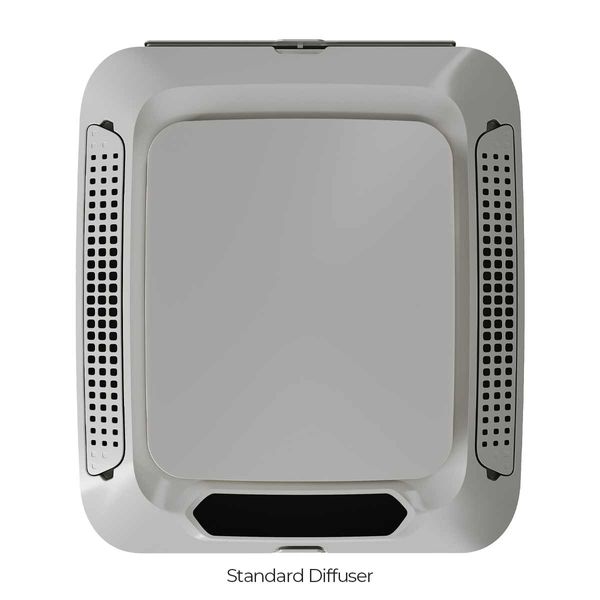

- Plein-Aircon Basic model: This diffuser features adjustable vents without mood lighting.

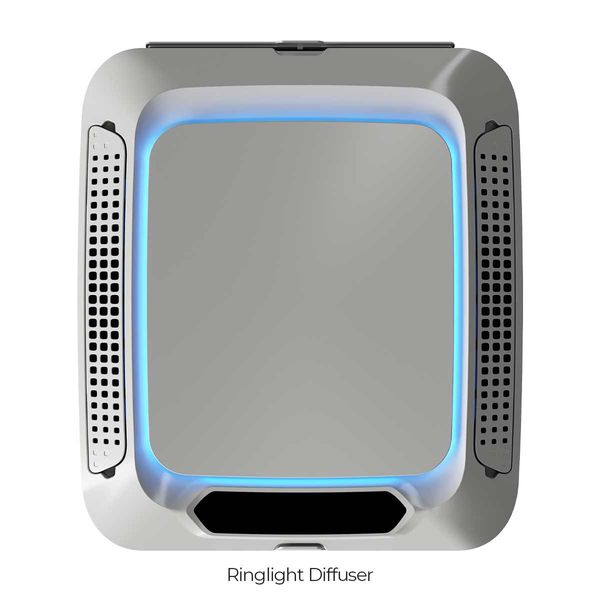

- Plein-Aircon Ringlight model: This diffuser features a customisable panel with white or blue LED perimeter lighting. This panel can also be customised with different finishes, fabrics, and stickers to integrate the air conditioner with the vehicle's interior style.

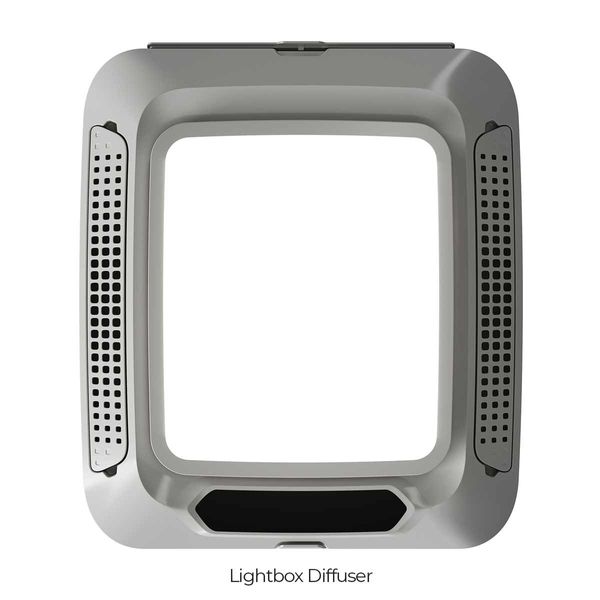

- Plein-Aircon Lightbox model: This diffuser is designed to return natural light from the porthole and radiates and diffuses white or blue light, ideal for night driving.

The latest Plein-Aircon models have been redesigned and manufactured entirely in Italy, with improved efficiency and user-friendliness thanks to the new configuration of the fins. The precision and directional flexibility of the air distribution have been optimised, allowing for even vertical distribution.

The unit can operate in two modes (one of which is optional):

- 12V (standard mode), connected to the service battery. The air conditioner can work if the vehicle is either stationary or moving.

- 12V and 230V (optional mode), connected to the service battery and to the mains (it requires a

230V Smart Switch transformer kit, optional). The air conditioner can work if the vehicle is either stationary or moving.

One of the notable features of the new Plein-Aircon models is their connectivity. They can be controlled via a smartphone app with dual connectivity via Bluetooth and Wi-Fi.

This app offers various functionalities, including manual operation, as well as Indel B's innovative Pre-Adaptive technology (Smart mode).

This technology adapts the operation of the air conditioner based on the user's habits and optimises performance according to current weather conditions or predicted conditions at a set future destination. Additionally, the app provides diagnostic and service information.

- Compressor: 12V Samsung

- Refrigerant gas: R134A

- Cooling capacity: 1200W to 4100 BTU(max.)

- External roof mounted unit: 246(H) x 670(W) x 800mm(D)

- Roof cut-out dimensions: 400 x 400mm

- Roof thickness: 30 to 70mm

- Weight: 23.1kg

- Air vents: 2 (front and rear)

• Compressor: Direct current single compressor

• Input voltage: 12V DC (Optional 115V-230V Smart Switch power supply)

• Refrigerant gas: R134A

• Cooling capacity: 1200 Watt (max)

• Number of blower speeds: 3 + auto

• Air flow: 350m3/h

• Remote control: Included

• Timer: Yes

• Battery protection: Yes

• Starting current: Very low starting current

• Soft start function: Yes

• Interchangeable internal filters: Yes

• Test marks: E-mark / EMC
