Description

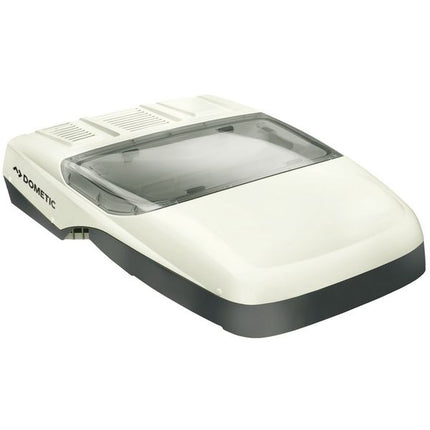

The New Freshlight 2200 is the worlds first powerful roof mount air-conditioner featuring the new built in acrylic window, delivering natural light into your vehicle. Also offer active ventilation bringing fresh air into the interior. Ideal for larger sized Motorhomes up to 7m. The proven air diffuser from the B2200 offers front & rear air distribution. This powerful unit offers a special reverse cycle compressor providing excellent an excellent cooling & heating performance.A digital remote control unit for on/off, fan speed, temperature, & dimmable LED lights integrated into the air vent panel.The internal diffuser has two internal air filters which can be removed & cleaned.
The world's first roof air conditioner with integrated roof light, Roof light with active ventilation system, Single-pleated blackout screen, Energy-efficient heat pump system for cooling and heating, Individual air flow regulation with automatic blower control.
The Freshlight can easily be retro fitted in replacement of your existing 400 x 400 roof vent & enlarging the cut-out to 700 x 400 (subject to the roof vent location, & roof space for the AC unit), alternatively it can be retro fitted with a new reinforced 700 x 400 roof cut out. A mounting frame & fixing kit with instructions are supplied.
If roof struts are in the way, an alternative cut out solution of 400 x400 for the main centre section of the AC unit, plus a further 200 x 400 for the forward moulding.
| Suitable For |
Fiat Ducato |
| Brand |
Dometic |
| Type |
Air Conditioners |
| Voltage Description |
230V AC |
| Height Description |
758mm |
| Width |
210mm |
| Length |
1105mm |
| Thickness |
Roof: 25 - 60 mm |
| Weight |
42kg |
| Cut Out |
400 x 700mm |
| Operation |
Remote Control |
| Approvals |
E24, CE |
| Application |
Motorhome |
| Input |
230 v |
| Consumption Cooling |
2200 w |
| Consumption Heating |
2700 w |
