In addition to the classic version of Bike-Block Pro, Fiamma now offers the new 'Bike-Block Pro S'. Available only in black with red inserts this bike-block rotates 360 degrees and can cope with tube diameters ranging from 25mm to 100mm.
Brand
Fiamma
Type
Bike Blocks
Colour
Black
The traditional Fiamma bike rail. As used on the majority of their bike racks. Rail Quick Red 140cm for L80 only. Comes with 2 standard sliding straps Quick-Safe.
Brand
Fiamma
Type
Rail Quick
Length
128cm
Weight
1kg
Colour
Red
Hooking Type
Rail Quick
Telescopic rail that can be adjusted to the desired extension, supplied with 2 Quick-Safe straps. Ideal to limit rail overhang. Black.
Brand
Fiamma
Type
Rail Quick
Length
101cm to 167cm
Weight
1.2kg
Colour
Black
Hooking Type
Quick Safe
Rear signal plate for protruding loads, easily fits to motor caravans, vans and 4-wheel drive vehicles. Dimensions: 50cm x 50cm.
Brand
Fiamma
Type
Warning Signs
Handy anti-theft cable made of black plastic-coated steel with incorporated padlock. Standard delivered with 2 keys. 2.5M Long.
Brand
Fiamma
Type
Bike Locks
A Fiamma bike carrier designed for installation on Volkswagen T5 vehicles with a single rear door (vehicles from 07/2003). This Carry-Bike is also suitable for vehicles with a raised roof.
This carrier is designed to carry two bikes as standard, or four bikes with the addition of optional extras.
Suitable for:
VW Transporter T5 / VW T5 Caravelle / VW T5 Multivan / VW T5 California ( ≥2003 ≤2014)
- Mounting: Vehicle tailgate
- Vertical wheelbase: 142cm
- Horizontal wheelbase (distance between brackets): 90cm
- Dimensions: 128 x 56 x 142cm
- Rail type: Rail Quick Pro
- Bike Block: Pro 1 /Pro 3
- Distance between rails: 15cm
- Licence plate carrier: Optional
Key Features
Suitable for two bikes as standard
Can carry four bikes with the addition of optional extras
Tailgate can be opened with the bike carrier mounted without bikes
Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060
Upper brackets designed to follow the shape of the vehicle
Rail Quick Pro allows for quick and secure locking of the wheel to the rail
Brand
Fiamma
Type
VW Bike Carriers
Weight
8.3kg
Colour
Aluminium
Primary Construction
Aluminium
Maximum Load Description
60kg
Application
Campervans
Position
Tailgate
Capacity Description
2 Bikes as standard (Maximum 4 Bikes)
Supplied With
Bike-Block Pro 1, Security Strip, 2 x Rail Quick Pro, Brackets
Optional Extras
Bike-Block Pro D1, Bike-Block Pro D2, 2 x Rail Quick Pro, Rail Premium S
Country of Origin
Italy
Downloads
Installation Guide Fiamma Carry Bike VW T5 T6
A Fiamma bike carrier for use on Volkswagen Crafter II series and MAN TGE (≥ 2017 - H3) vehicles.
Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the vehicle’s standard mounting points.
This Frame Sprinter model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.
The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
- Carrier colour: Deep Black
- Mounting: Rear double door
- Vertical wheelbase: 168cm
- Dimensions: 133 x 73 x 168cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 1 / Pro S 2 / Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Please note, this bike carrier is not suitable for vehicles with 270° hinge system.
Key Features
Suitable for three bikes
Stainless steel AISI 304 rail support base
Vehicle rear door opens even with bikes mounted
Optional ladder can be mounted on the left door
Brand
Fiamma
Type
Crafter Bike Carriers
Weight
17.6kg
Colour
Black
Primary Construction
Aluminium
Maximum Load Description
50kg
Application
Van Conversions
Position
Rear Double Door
Capacity Description
3 Bikes
Supplied With
Bike-Block Pro S1, Bike-Block Pro S2, Bike-Block Pro S3, 3 x Rail Quick Pro, Brackets
Optional Extras
Licence Plate Carrier
Country of Origin
Italy
Downloads
Installation Guide Fiamma Frame Crafter 3 Bikes
Fiamma Rail Plus XL bike rails offer high resistance against torsion and bend due to their improved geometry and material distribution (compared to older rails).
In addition to improved shape and materials, these rails have a larger section for transporting different types of bicycles and fit all Carry-Bike models.
This XL bike rail has an anodised/deep black finish and is 139cm in length.
Key Features
Restyled 2023 model
Deep black finish
138cm in length
Left-right sliding
Brand
Fiamma
Type
Rail Plus
Length
139cm
Weight
1.1kg
Colour
Black
Hooking Type
Quick Safe
Fiamma Rail Plus XL bike rails offer high resistance against torsion and bend due to their improved geometry and material distribution (compared to older rails).
In addition to improved shape and materials, these rails have a larger section for transporting different types of bicycles and fit all Carry-Bike models.
This XL bike rail has an anodised/silver finish and is 139cm in length.
Key Features
Restyled 2023 model
Anodised finish
138cm in length
Left-right sliding
Brand
Fiamma
Type
Rail Plus
Length
139cm
Weight
1.1kg
Colour
Aluminium
Hooking Type
Quick Safe

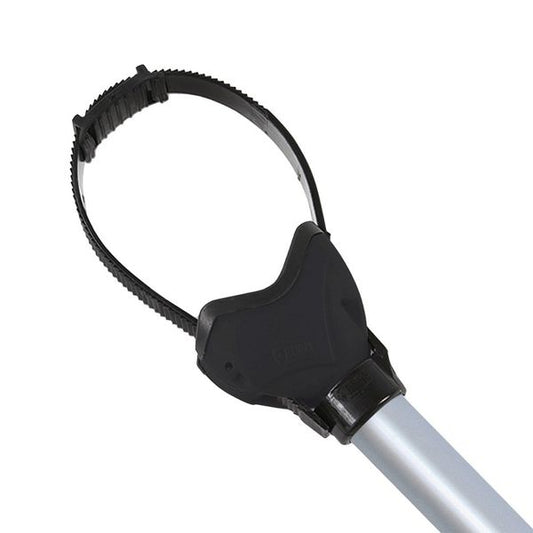

The Fiamma Bike-Block Pro S is constructed from high quality materials and benefits from improved ergonomics thanks to its frontally positioned knob.
This Bike-Block features an integrated scratch-proof support base with rubber protection for integrated bike hooking. The clamp and the bike locking system can rotate 360°.
This Bike-Block Pro S 1 adapts to all types of bicycles.
Key Features
Restyled 2023 model
Frontally positioned knob for improved ergonomics
Clamp and the bike locking system can rotate 360°
Scratch-proof support base with rubber protection for integrated bike hooking
Adapts to all types of bicycles thanks to the adjustable joint
Brand
Fiamma
Type
Bike Blocks
Weight
0.2kg
Colour
Black
Country of Origin
Italy
